VISUAL INDEX
1 Lights/turn signals/LaneWatch
button* p. 37, p. 36, p. 108
2 TrIP knob p. 29
Brightness control p. 37
3 Wipers/washers p. 38
4 Cruise control buttons* p. 101
Adaptive Cruise Control (ACC) with
Low Speed Follow (LSF) buttons*
p. 102
5 Horn
6 voice recognition/Bluetooth®
HandsFreeLink® buttons p. 73,
p. 76, p. 83
7 Audio controls p. 54
8 Instrument panel p. 23
Information display* p. 28
Driver Information Interface* p. 29
9 Lane Keeping Assist System (LKAS)
button* p. 104
10 vehicle Stability Assist (vSA®) oFF
button p. 100
road Departure Mitigation (rDM)
button* p. 105
Collision Mitigation Braking System™
(CMBS™) button* p. 106
Tire Pressure Monitoring System
(TPMS) button* p. 118
11 Display/information button* p. 29
VISUAL INDEX
*if equipped*if equipped
Quickly locate items in the vehicle’s interior.
Steering Wheel and Nearby Controls
2
5
71310
6
48
911
NAVIGATION* ......................................83
Basic Navigation Operation
.............83
Entering a Destination
.......................85
Routing
..................................................88
DRIVING
................................................90
Before Driving
.....................................90
Maximum Load Limit
..........................92
Remote Engine Start*
.........................94
Starting to Drive
..................................95
Shifting
..................................................96
Braking
.................................................98
Eco Assist™ System*
.......................100
Vehicle Stability Assist (VSA
®), aka
Electronic Stability Control (ESC)
System
.................................................100
Cruise Control*
..................................101
Adaptive Cruise Control (ACC) with
Low Speed Follow (LSF)* ................102
Lane Keeping Assist System
(LKAS)*
................................................104
Road Departure Mitigation
(RDM)*
................................................105
Collision Mitigation Braking
System™ (CMBS™)*
........................106
LaneWatch™*
...................................108
Multi-View Rear Camera*
...............109
Refueling
............................................111
HANDLING THE UNEXPECTED
.......113
Smart Entry Remote Battery
Strength*
............................................113
Shift Lever Does Not Move*
...........113
Jump Starting
....................................114 Overheating
........................................116
Emergency Engine Stop*
.................117
Emergency Towing
...........................117
Tire Pressure Monitoring System
(TPMS)
................................................118
Changing a Flat Tire
..........................120
Fuse Locations
...................................124
MAINTENANCE
.................................127
Safety Precautions
...........................127
Maintenance Minder™ ....................128
Under the Hood
..................................131
Engine Oil
...........................................133
Engine Coolant
..................................136
Brake/Clutch* Fluid
..........................137
Window Washer Fluid
.....................137
Checking the Battery
........................138
Changing Wiper Blades
...................139
Tire Information
.................................140
Tire Labeling
......................................143
DOT Tire Quality Grading
.................144
Air Conditioning
................................145
Testing of Readiness Codes
............146
SPECIFICATIONS
...............................147
CUSTOMER INFORMATION
.............149
Frequently Asked Questions/
Troubleshooting
................................149
Contact Us
..........................................150
Honda Roadside Assistance
...........150
Warranty Coverages
.........................151
VOICE COMMAND INDEX
................152
INDEX
..................................................154

24 || 25
I
NSTRUMENT PANELINSTRUMENT PANEL
Electric Power Steering (EPS)
There is a problem with the system.
Malfunction indicator lamp (check engine light)
The emissions control system may have a problem, or the fuel cap is loos\
e
or missing. If the indicator blinks, a misfire in the engine’s cylinders is
detected. Stop in a safe place, and wait for the engine to cool down.
Anti-lock Brake System (ABS)
There is a problem with the anti-lock brake system. Your vehicle still has
normal braking ability, but no anti-lock function.
Tire Pressure Monitoring System (TPMS) (U.S. models)
If the indicator blinks and remains on, there is a problem with the tire\

pressure monitoring system, or the vehicle is fitted with the compact \
spare
tire. If the vehicle battery was disconnected, the system is temporarily\

deactivated. Drive a short distance at 12 mph (20 km/h) or more, and t\
he
indicator should go off.
Vehicle Stability Assist (VSA
®)
There is a problem with the vSA system or hill start assist system. If the
vehicle battery was disconnected, the system is temporarily deactivated.
Drive a short distance at 12 mph (20 km/h) or more, and the indicator \
should
go off.
Vehicle Stability Assist (VSA
®) OFF
If the vehicle battery was disconnected, the system is temporarily
deactivated. Drive a short distance at 12 mph (20 km/h) or more, and t\
he
indicator should go off.
Collision Mitigation Braking System™ (CMBS™)*
There is a problem with the system, the temperature is too high, or the \
camera is blocked.
Brake system
There is a problem with one of the braking systems, the electric parking\

brake system, or the automatic brake hold system.
SYSTEMU.S.
Canada
*if equipped
Malfunction Indicators
These are the most critical indicators. If they come on and stay lit whi\
le driving or at
any other time, there may be a problem. See your dealer if necessary. Brake system
• Brake fluid is low. Check the brake fluid (see page 137).
•  The brake system has a problem. Press the brake pedal lightly to check
pedal pressure. If normal, check the brake fluid level when you stop. \
If
abnormal, take immediate action. If necessary, downshift the transmission
to slow the vehicle using engine braking. Have your vehicle repaired
immediately.
•  If the indicator blinks (or comes on simultaneously with the amber brak\
e
system indicator), there is a problem with the electric parking brake
system. Avoid using the parking brake and have your vehicle checked
immediately.
Low oil pressure
engine oil pressure is low. Stop in a safe place. open the hood. Check the oil
level, and add oil if necessary (see page 133). If the indicator does \
not turn
off, have your vehicle repaired immediately.
Charging system
The battery is not charging. Turn off all electrical items, but do not turn off
the vehicle to prevent further battery discharge. Have your vehicle repa\
ired
immediately.
Supplemental Restraint System (SRS)
There is a problem with one of the airbag systems or seat belt tensioner\
s.
Smart Entry system*
There is a problem with the smart entry system.
Lane Keeping Assist System (LKAS)*
There is a problem with the system.
Starter system*
There is a problem with the starter system. Press and hold the eNGINe
STArT/SToP button for up to 15 seconds while pressing the brake pedal to
manually start the engine.
Adaptive Cruise Control (ACC) with Low Speed Follow (LSF)*
There is a problem with the system.
Road Departure Mitigation (RDM)*
There is a problem with the system.
U.S.
Canada
*if equipped

26 || 27
I
NSTRUMENT PANELINSTRUMENT PANEL
Condition Indicators
These indicators may require you to perform an action.
Parking brake
release the parking brake before driving. You will hear a beep if you drive
with it not fully released.
Seat belt reminder
Make sure seat belts are fastened for you and all passengers. The indica\
tor
blinks and beeps sound continuously if you or your front passenger has not
fastened your seat belts when you begin driving. If the indicator remain\
s on
after seat belts are fastened, see your dealer.
Door/trunk open
A door or the trunk is not closed. A beep sounds if open while driving.
Low fuel
refuel as soon as possible. If the indicator blinks, there is a problem w\
ith the
fuel gauge. See your dealer.
Low tire pressure*
Stop in a safe place, check tire pressures, and inflate tire(s) if n\
ecessary.
The indicator also appears if the system has not been calibrated (see p\
age
118).
Washer fluid level (Canadian models)*
The washer fluid is low. refill the washer fluid (see page 137).
System message*
When a condition or malfunction indicator comes on, a message also
appears on the Driver Information Interface. Check the display for more \
information. Press the display/information button on the steering wheel \
to
clear the message.
Maintenance Minder™*
Scheduled maintenance for your vehicle is due.
Immobilizer/security system
Your key or remote transmitter cannot be recognized by the vehicle. If th\
e
indicator blinks, you may not be able to start the engine. Turn the vehicle
off, remove the key from the ignition*, press and hold the brake pedal, \
and
restart the vehicle. If it continues to blink, there may be a problem wi\
th the
system. See your dealer.
Canadian models: To reset the immobilizer system, follow the steps above
after the battery has been disconnected.
U.S.
Canada
*if equipped
vSA off
vSA engaged (blinking)
CrUISe MAIN on
CrUISe CoNTroL on
ACC* on
CMBS™* off
LKAS* on
Turn signals/hazards on
Fog lights* on
High beams on
exterior lights on
eCoN mode* on
Automatic brake hold on
Automatic brake hold
activated
U.S.
Canada
On/Off Indicators
These indicators remind you when an item is on or off.
Brake depress
You must press the brake pedal before activating the electric parking bra\
ke
or automatic brake hold. If the indicator blinks, automatic brake hold i\
s
canceled during operation. Immediately press the brake pedal.
CV T models
MT models

90 || 91
DRIVING
DRIVING
DRIVING
Learn about preparation for driving, as well as other features.
Before Driving
Check the following items before you begin driving.
Exterior Checks
•  Make sure there are no obstructions on the windows, door mirrors, exterior
lights, or other parts of the vehicle.
• 
remove any frost, snow, or ice.
•  Make sure the hood is securely closed.
•  Heat from the engine and exhaust can ignite flammable materials left u\
nder
the hood, causing a fire. If you’ve parked your vehicle for an exte\
nded period,
inspect and remove any debris that may have collected, such as dried grass
and leaves that have fallen or have been carried in for use as a nest by\
a small
animal. Also check under the hood for leftover flammable materials aft\
er you or
someone else has performed maintenance on your vehicle.
•  Make sure the tires are in good condition.
•  Make sure there are no people or objects behind or around the vehicle.
Interior Checks
•  Store or secure all items on board properly.
•  Do not pile items in the cargo area higher than the seatback height.
•  Do not place anything in the front seat footwells. Make sure to secure t\
he floor
mats.
•  If you have any animals on board, do not let them move freely around in \
the
vehicle.
•  Securely close and lock all doors and the trunk.
•  Adjust your seating position, mirrors, and steering wheel properly.
•  Make sure items placed on the floor behind the front seats cannot roll\
under the
seats.
• 
everyone in the vehicle must fasten their seat belt.
•  Make sure that the indicators in the instrument panel come on when you s\
tart
the vehicle, and go off soon after.
If the doors are frozen shut, use warm water around the door edges to me\
lt any
ice. Do not try to force them open, as this can damage the rubber trim a\
round the
doors. When done, wipe dry to avoid further freezing.
NOTICE In addition:
•  During the first 600 miles (1,000 km) of operation, avoid sudden acc\
eleration or
full throttle operation so as not to damage the engine or powertrain.
•  Avoid hard braking for the first 200 miles (300 km). You should also follow this
when the brake pads are replaced.
Improper accessories or modifications can affect your vehicle’s handling,
stability, and performance, and cause a crash in which you can be seriously
hurt or killed.
Follow all instructions in the vehicle owner’s manual regarding accessories
and modifications.
WARNING

94 || 95
DRIVING
DRIVING
Remote Engine Start*
Start your vehicle’s engine using the remote transmitter before you enter the vehicle.
Make sure the vehicle is in a safe location when using remote engine start (i.e., a
well ventilated area, away from any flammable materials).
Starting the Engine
Press the Lock button, then press and hold the engine button within 5 seconds to
remotely start the engine.
The engine runs for up to 10 minutes. To extend the run time for another 10
minutes, repeat the procedure during the initial 10 minutes.
While the engine is running, the climate control system adjusts the cabi\
n
temperature, the security system remains on, and lights and accessories remain
off.
Stopping the Engine
Press and hold the engine button.
The engine will also stop if it has been running for more than 10 minute\
s, or if any
door is opened without using the remote or smart entry.
engine exhaust contains toxic carbon monoxide gas.
Breathing carbon monoxide can kill you or cause unconsciousness.
Never use the remote engine starter when the vehicle is parked in a gara\
ge or
other area with limited ventilation.
WARNING
Lock button
Engine button
Starting to Drive
Turn on the vehicle and start the engine to begin driving.
Before Starting the Engine
Continuously Variable Transmission (CVT)
Check that the shift lever is in Park (P), then press
the brake pedal. Keep your foot firmly on the brake
pedal when starting the engine.
Manual transmission
Check that the shift lever is in Neutral (N), then
press the brake pedal with your right foot and the
clutch pedal with your left foot. The clutch must be
fully pressed to start the engine.
The engine is harder to start in cold weather and in thinner air found a\
t altitudes
above 8,000 feet (2,400 m). When starting the engine in cold weather, turn off
all electrical accessories such as the lights, climate control system, a\
nd rear
defogger in order to reduce battery drain.
Starting the Ignition*Insert the key into the ignition and turn to turn on the vehicle or star\
t the engine.
0 LOCK: Insert and remove the key in this position.
I ACCESSORY: operate the audio system and other
accessories in this position.
II ON: This is the position when driving.
III START: This position is for starting the engine.
The switch returns to oN when you release the key.
Manual transmission models
*if equipped
Brake pedal
Brake pedal
Clutch pedal
removing the key from the ignition switch while driving locks the steerin\
g.
This can cause you to lose control of the vehicle.
remove the key from the ignition switch only when parked.
WARNING

116 || 117
HANDLING THE UNEXPECTED
HANDLING THE UNEXPECTED
Overheating
If the temperature gauge pointer is at the H mark, the engine suddenly l\
oses power,
or steam or spray comes out from under the hood, your engine is overheat\
ing.
1. Immediately park the vehicle in a safe place. Turn
off all accessories and turn on the hazard warning
lights.
2. If steam or spray is not present: Keep the engine
running and open the hood.
 If steam or spray is present: Turn off the engine and
wait until it subsides. Then, open the hood.
3. Check that the cooling fan is operating and stop the engine once the tem\
perature
gauge needle comes down. If the cooling fan is not operating, immediatel\
y stop
the engine.
4. once the engine has cooled down, inspect the coolant level and check the \
cooling system components for leaks. If the coolant level in the expansi\
on tank
is low, or no coolant is in the tank, check that the radiator is cool. Cover t\
he
expansion tank cap with a heavy cloth and open the cap. Add coolant unti\
l it
reaches the MAX mark, and put the cap back on.
once the engine has cooled sufficiently, restart it and check the temperature gauge.
If the temperature gauge pointer has gone down, resume driving. If it ha\
s not gone
down, contact a dealer for repairs.
MAX
Expansion tankMIN
Steam and spray from an overheated engine can seriously scald you.
Do not open the hood if steam is coming out.
WARNING
removing the radiator cap while the engine is hot can cause the coolant t\
o
spray out, seriously scalding you.
Always let the engine and radiator cool down before removing the radiato\
r cap.
WARNING
Continuing to drive with the temperature gauge pointer at the H mark may\
damage
the engine.
NOTICE
Emergency Engine Stop*
The eNGINe STArT/SToP button may be used to stop the engine due to an
emergency situation even while driving. If you must stop the engine, cho\
ose one of
the following operations:
• 
Press and hold the eNGINe STArT/SToP button for
two seconds, or
• 
Firmly press the eNGINe STArT/SToP button two
times.
The steering wheel will not lock. Because turning off the engine also di\
sables the
power assist the engine provides to the steering and braking systems, it\
will require
significantly more physical effort and time to steer and slow the vehi\
cle. Downshift
gears and use both feet on the brake pedal, if necessary, to slow the vehicle and
stop immediately in a safe place
Do not press the button while driving unless it is absolutely necessary \
for the engine
to be switched off.
*if equipped
Emergency Towing
Call a professional towing service if you need to tow your vehicle.
Flat bed equipment: The operator loads your vehicle on the back of a tru\
ck. This is
the best way to transport your vehicle.
Wheel lift equipment: The tow truck uses two pivoting arms that go under the front
tires and lift them off the ground. The rear tires remain on the ground.\
This is an
acceptable way to tow your vehicle.
For CvT models: If you cannot shift the transmission or turn on the engine, your
vehicle must be transported with the front wheels off the ground. Make s\
ure the
parking brake is released. If you cannot release the parking brake, your\
vehicle must
be transported by flat bed equipment.
Trying to lift or tow your vehicle by the bumpers will cause serious dama\
ge. The
bumpers are not designed to support the vehicle’s weight.
Improper towing such as towing behind a motorhome or other motor vehicle\
can
damage the transmission.
NOTICE

126 || 127
M
AINTENANCEHANDLING THE UNEXPECTED
Inspecting and Changing Fuses
1. Turn the vehicle off, including all lights and
accessories.
2. remove the fuse box cover.
3. Check the large fuse in the engine compartment.
If the fuse is blown, use a Phillips-head
screwdriver to remove the screws and replace
the fuse with a new one. reinstall the screws.
4. Inspect the small fuses in the engine
compartment and the vehicle interior.
If there is a burned out fuse, remove it with the
fuse puller and replace it with a new one.
Blown
fuse
Combined
fuse
Fuse puller
replacing a fuse with one that has a higher rating greatly increases the \
chances of
damaging the electrical system.
NOTICE
MAINTENANCE
Learn about basic maintenance that you can perform on the vehicle yourse\
lf, as well
as information about how to best maintain the vehicle.
Safety Precautions
Some of the most important safety precautions are listed below; however, we cannot
warn you of every conceivable hazard that can arise in performing mainte\
nance.
only you can decide whether or not you should perform a given task.
Maintenance Safety •  To reduce the possibility of fire or explosion, keep cigarettes, sparks\
, and flames
away from the battery and all fuel-related parts.
•  Never leave rags, towels, or other flammable objects under the hood.
•  To clean parts, use a commercially available degreaser or parts cleaner, not
gasoline.
•  Wear eye protection and protective clothing when working with the battery\
or
compressed air.
•  Do not run the engine in confined spaces where carbon monoxide gas can\

accumulate.
Vehicle Safety
•  The vehicle must be stationary, and parked on level ground with the parking
brake set and the engine off.
•  Be aware that hot parts can burn you.
•  Be aware that moving parts can injure you.
Improperly maintaining this vehicle or failing to correct a problem befo\
re
driving can cause a crash in which you can be seriously hurt or killed. \
Always follow the inspection and maintenance recommendations according
to the schedules in this guide.
WARNING
Failure to properly follow maintenance instructions and precautions can \
cause you to be seriously hurt or killed.
Always follow the procedures and precautions in this guide.
WARNING

146 || 147
SPECIFICATIONS
M
AINTENANCE

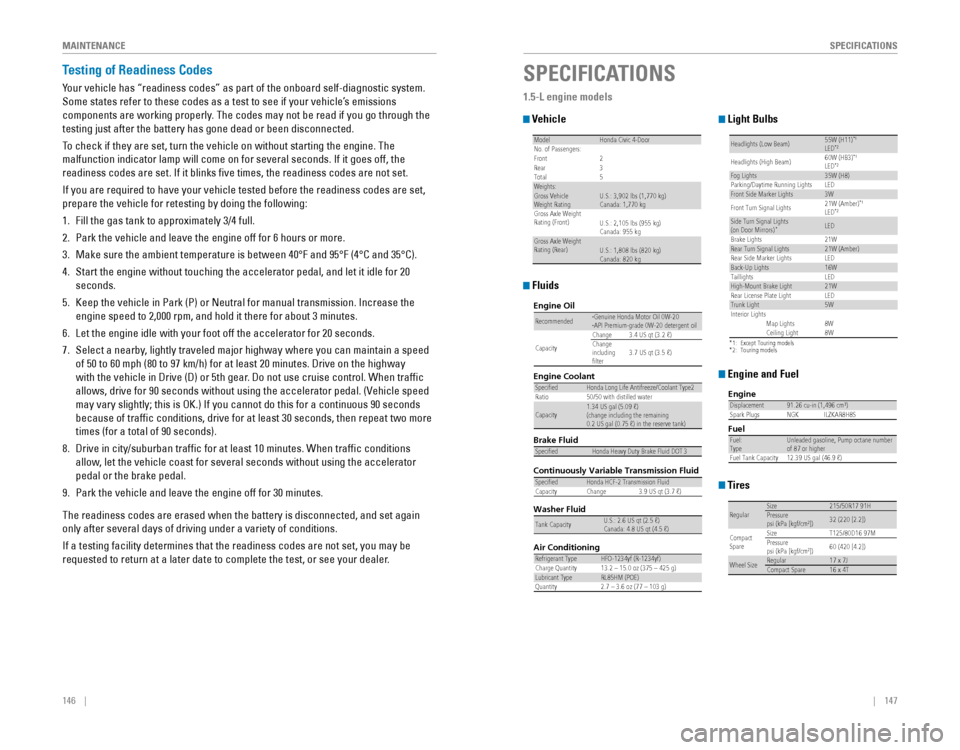

Testing of Readiness Codes
Your vehicle has “readiness codes” as part of the onboard self-diag\
nostic system.
Some states refer to these codes as a test to see if your vehicle’s emissions
components are working properly. The codes may not be read if you go through the
testing just after the battery has gone dead or been disconnected.
To check if they are set, turn the vehicle on without starting the engine\
. The
malfunction indicator lamp will come on for several seconds. If it goes \
off, the
readiness codes are set. If it blinks five times, the readiness codes \
are not set.
If you are required to have your vehicle tested before the readiness cod\
es are set,
prepare the vehicle for retesting by doing the following:
1. Fill the gas tank to approximately 3/4 full.
2. Park the vehicle and leave the engine off for 6 hours or more.
3. Make sure the ambient temperature is between 40°F and 95°F (4°\
C and 35°C).
4. Start the engine without touching the accelerator pedal, and let it idle\
for 20
seconds.
5. Keep the vehicle in Park (P) or Neutral for manual transmission. Incre\
ase the
engine speed to 2,000 rpm, and hold it there for about 3 minutes.
6. Let the engine idle with your foot off the accelerator for 20 seconds.
7. Select a nearby, lightly traveled major highway where you can maintain a speed
of 50 to 60 mph (80 to 97 km/h) for at least 20 minutes. Drive on the \
highway
with the vehicle in Drive (D) or 5th gear. Do not use cruise control. When traffic
allows, drive for 90 seconds without using the accelerator pedal. (vehicle speed
may vary slightly; this is oK.) If you cannot do this for a continuous 90 seconds
because of traffic conditions, drive for at least 30 seconds, then rep\
eat two more
times (for a total of 90 seconds).
8. Drive in city/suburban traffic for at least 10 minutes. When traffic\
conditions
allow, let the vehicle coast for several seconds without using the accelerator
pedal or the brake pedal.
9. Park the vehicle and leave the engine off for 30 minutes.
The readiness codes are erased when the battery is disconnected, and set\
again
only after several days of driving under a variety of conditions.
If a testing facility determines that the readiness codes are not set, y\
ou may be
requested to return at a later date to complete the test, or see your de\
aler.
SPECIFICATIONS
1.5-L engine models
Vehicle
ModelHonda Civic 4-Doo r
No. of Passengers :
Front2
Rear 3
Tota l5
Weights:Gross Vehicle
Weight Rating U.S.: 3,902 lbs (1,770 kg )
Canada: 1,770 kg
Gross Axle Weight
Rating (Front )U.S.: 2,105 lbs (955 kg )
Canada: 955 kg
Gross Axle Weight
Rating (Rear)U.S.: 1,808 lbs (820 kg )
Canada: 820 kg
Light Bulbs
*1:Except Touring models*2: Touring models
Headlights (Low Beam )55W (H11)*1LED*2
Headlights (High Beam )60W (HB3)*1LE
D*2Fog Lights35W (H8)
Parking/Da ytime Running Light sLED
Front Side Marker Lights3W
Front Turn Signal Lights 21W (Amber
)*1LED*2Side Turn Signal Lights
(on Door Mirrors)*LE D
Brake Light s2 1W
Rear Turn Signal Lights21W (Amber)
Rear Side Marker Lights LED
Back-Up Lights16W
DEL
sthgilliaT
High- Mount Brak e Light21W
Rear License Plate Light LED
Trunk Light5W
In terior Lights
Map Lights8 W
Ceiling Ligh t8 W
Engine and Fuel
Engine
FuelDisplacemen t91.26 cu-in (1,496 cm3)
Spark Plug sN GKILZKAR8H8S
Fuel:
TypeUnleaded gasoline, Pump octane number
of 87 or highe r
Fuel Tank Capacity 12.39 US gal (46.9 )
Fluids
Air ConditioningRefrigerant TypeHFO-1234yf (R-1234yf)
Charge Quantity 13.2 – 15.0 oz (375 – 425 g)
Lubricant TypeRL85HM (POE)
Quantity 2.7 – 3.6 oz (77 – 103 g)
Washer Fluid
Tank CapacityU.S.: 2.6 US qt (2.5 )
Canada: 4.8 US qt (4.5 )
Brake Fluid
Continuously Variable Transmission Fluid
SpecifedHonda Heavy Duty Brake Fluid DOT 3
SpecifedHonda HCF-2 Transmission Flui d
Capacity Change 3.9 US qt (3.7 )
Engine Oil
Engine Coolan
t
Recommended·Genuine Honda Motor Oil 0W-20
·API Premium-grade 0W-20 detergent oi l
Capacity Change
3.4 US qt (3.2 )
Change
including
flter 3.7 US qt (3.5 )
SpecifedHonda Long Life Anti
freeze/Coolant Type 2
Ratio 50/50 with distilled wate r
Capacity1.34 US gal (5.09 )

(change including the remaining
0.2 US gal (0.75 ) in the reserve tank )
Tires
RegularSize215/50R17 91HPressure
psi (kPa [kgf/cm2])32 (220 [2.2])
Compact
Spar e Size
T125/80D16 97M
Pressure
psi (kPa [kgf/cm
2]) 60 (420 [4.2])
Wheel SizeRegula
r17 x 7JCompact Spar e16 x 4T
