2016 HONDA CIVIC odometer

104
uuGauges and Displays uInformation Display*
Instrument Panel
Information Display*
The information display shows the odome ter, trip meter, engine oil life and
maintenance service item codes, and other gauges.
Press the ( TRIP) knob to change the display.
Shows the total number of miles or kilome ters that your vehicle has accumulated.
Shows the total number of miles or kilomete rs driven since the last reset. Meters A
and B can be used to measure two separate trips.
■Resetting a trip meter
To reset a trip meter, display it, then pr ess and hold the knob. The trip meter is
reset to 0.0 .
■Switching the Display
1Switching the Display
Each time you press the knob, the information
display changes as follows:
Instant Fuel Economy,
Odometer, Trip Meter A,
Outside Temperature
Instant Fuel Economy,
Range, Trip Meter A,
Outside Temperature
Engine Oil Life
Instant Fuel Economy, Average
Fuel Economy A, Trip Meter A,
Outside Temperature Instant Fuel Economy, Average
Fuel Economy B, Trip Meter B,
Outside Temperature
■Odometer
■Trip Meter
1 Trip Meter
Switch between trip meter A and trip meter B by
pressing the knob.
* Not available on all models
16 CIVIC 4D-31TBA6000.book 104 ページ ２０１５年８月３１日　月曜日　午後５時５６分

107
uuGauges and Displays uDriver Information Interface*
Continued
Instrument Panel

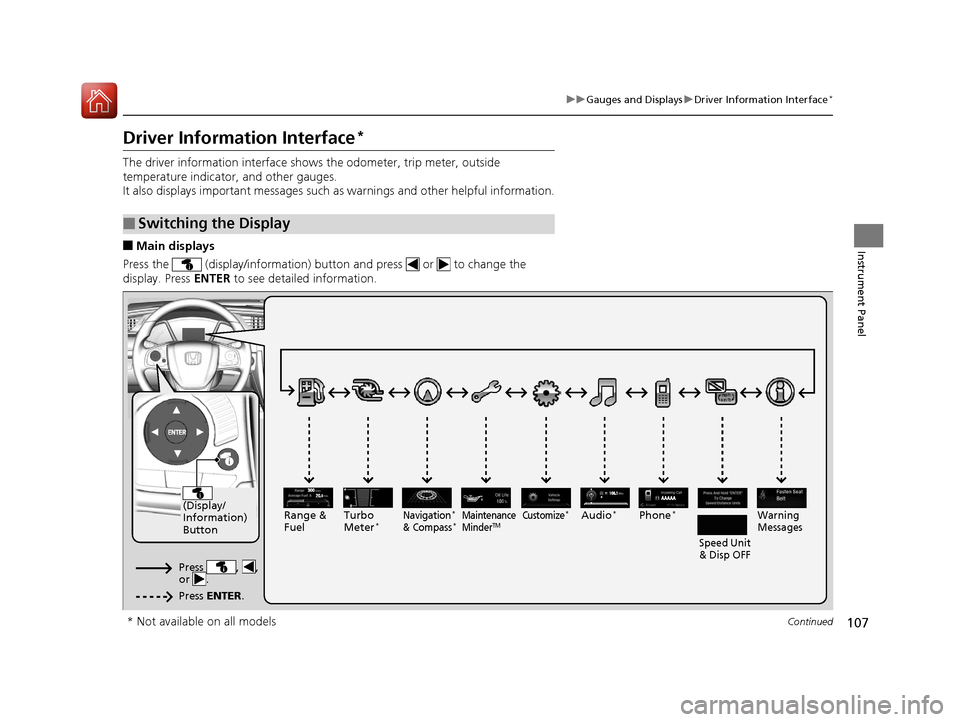

Driver Information Interface*
The driver information interface show s the odometer, trip meter, outside
temperature indicator, and other gauges.
It also displays important messages such as warnings and other helpful information.
■Main displays
Press the (display/information) button and press or to change the
display. Press ENTER to see detailed information.
■Switching the Display
AAAAA
(Display/
Information)
Button
Warning
Messages
Speed Unit
& Disp OFFMaintenance
MinderTMPhone*Turbo
Meter*Audio*Navigation*
& Compass*Range &
Fuel
Press , ,
or .
Press ENTER .
Customize*
* Not available on all models
16 CIVIC 4D-31TBA6000.book 107 ページ ２０１５年８月３１日　月曜日　午後５時５６分

uuGauges and Displays uDriver Information Interface*
108
Instrument Panel
■Trip computer
Press the ( TRIP) knob to change the display.
Shows the total number of miles or kilome ters that your vehicle has accumulated.
Shows the total number of miles or kilomete rs driven since the last reset. Meters A
and B can be used to measure two separate trips.
■Resetting a trip meter
To reset a trip meter, display it, then pr ess and hold the knob. The trip meter is
reset to 0.0 .
■Odometer
■Trip Meter
Menu Menu Menu
Odometer
Outside temperatureTrip ATrip B
(
TRIP )
Knob
1 Trip Meter
Switch between trip meter A and trip meter B by
pressing the knob, or by using the customized
features on the driver information interface.
2 Customized Features P. 111
16 CIVIC 4D-31TBA6000.book 108 ページ ２０１５年８月３１日　月曜日　午後５時５６分

580
Information
Customer Service Information
Honda dealership personnel are trained professionals.
They should be able to answer all your questions. If you encounter a problem that
your dealership does not solve to your satisfaction, please discuss it with the
dealership's service manager or general manager. If you are dissatisfied with the
decision made by the dealership's management, contact Honda Customer Services.
U.S. Owners:
American Honda Motor Co., Inc.
Honda Automobile Customer Services
Mail Stop 500-2N-7A
1919 Torrance Blvd.
Torrance, CA 90501-2746
Tel: (800) 999-1009 Canadian Owners:
Honda Canada Inc.
Customer Relations
180 Honda Boulevard
Markham, ON
L6C 0H9
Tel: 1-888-9-HONDA-9
Fax: 1-877-939-0909
E-mail: [email protected]
In Puerto Rico and the U.S. Virgin
Islands:
Bella International
P.O. Box 190816
San Juan, PR 00919-0816
Tel: (787) 620-75461 Customer Service Information
When you call or write, please give us the following
information:
•Vehicle Identification Number
2Vehicle Identification Number (VIN),
Engine Number and Transmission
Number P. 572
•Date of purchase•Odometer reading of your vehicle
•Your name, address, and telephone number
•A detailed description of the problem•Name of the dealer who sold the vehicle to you
16 CIVIC 4D-31TBA6000.book 580 ページ ２０１５年８月３１日　月曜日　午後５時５６分

586
Index
Locking/Unlocking.................................... 124
Auto Door Locking/Unlocking .................. 137
Childproof Door Locks ............................. 136
From Inside .............................................. 134
From Outside ........................................... 127
Keys ........................................................ 124
Using a Key ............................................. 133
Low Battery Charge .................................. 552
Low Fuel Indicator ...................................... 78
Low Oil Pressure Indicator ................. 76, 552
Low Smart Entry Remote Signal
Strength ................................................... 126
Lower Anchors ............................................ 63
Lubricant Specifications Chart ......... 568, 570
Luggage (Maximum Load Limit) .............. 393
M
Maintenance............................................. 475
Adding the Coolant ................................. 500
Battery..................................................... 525
Brake/Clutch Fluid.................................... 502
Cleaning .................................................. 530
Climate Control System ........................... 529
Coolant ................................................... 499
Heating System........................................ 529
Maintenance Minder
TM............................ 479
Oil ........................................................... 493
Precautions .............................................. 476
Remote Transmitter ................................. 527
Replacing Light Bulbs ............................... 504 Safety...................................................... 477
Service Items ................................... 481, 486
Tires ........................................................ 516
Transmission Fluid ................................... 501
Under the Hood ...................................... 489
Malfunction Indicator Lamp .............. 77, 553
Manual Transmission ............................... 407
Map Lights ................................................ 176
Maximum Load Limit ............................... 393
Meters, Gauges ......................................... 103
Mirrors ...................................................... 165
Adjusting ................................................ 165
Door ....................................................... 166
Exterior ................................................... 166
Interior Rearview ..................................... 165
Modifications (and Accessories) .............. 474
Moonroof ................................................. 150
MP3 ................................................... 217, 273
Multi-View Rear Camera .......................... 468
N
Numbers (Identification).......................... 572
O
Odometer......................................... 104, 108
Oil (Engine) ............................................... 492
Adding .................................................... 495
Checking................................................. 493
Displaying Oil Life ............................ 479, 484 Low Oil Pressure Indicator ................. 76, 552
Recommended Engine Oil ....................... 492
Viscosity.................................................. 492
Open Source Licences .............................. 300
Opening
Trunk ...................................................... 564
Opening/Closing Hood ...................................................... 491
Moonroof ............................................... 150
Power Windows...................................... 147
Trunk ...................................................... 141
Outside Temperature Display ......... 106, 110
Overheating ............................................. 550
P
Pandora®.................................................. 270
Panic Mode ............................................... 146
Parking ..................................................... 467
Parking Brake ........................................... 451
Parking Brake and Brake System Indicator
(Amber) ..................................................... 75
Parking Brake and Brake System Indicator (Red) .......................................... 74, 554, 555
Passenger Airbag Off Indicator ................. 56
Passing Indicators ..................................... 156
Playing Bluetooth ® Audio ............... 220, 276
Power Windows ....................................... 147
Precautions While Driving ....................... 403
Rain ........................................................ 403
Pregnant Women ....................................... 42
16 CIVIC 4D-31TBA6000.book 586 ページ ２０１５年８月３１日　月曜日　午後５時５６分
