2016 HONDA ACCORD remote start

320
uuCustomized Features u
Features
Door SetupAuto Door Lock
Auto Door Unlock
Key and Remote Unlock Mode
Keyless Lock Answer Back
Security Relock Timer
Maintenance
InfoMaintenance Reset
Default
Lighting SetupInterior Light Dimming Time
Headlight Auto Off Timer
Auto Light Sensitivity
Keyless Access
Setup*Door Unlock Mode
Keyless Access Light Flash
Keyless Access Beep
Remote Start System On/Off*
* Not available on all models
16 US ACCORD 4D (KA KC KL)-31T2A6300.book 320 ページ ２０１５年７月２８日　火曜日　午後３時３分

331
uuCustomized Features u
Continued
Features
*1:Default SettingSetup
Group Customizable Featur
es Description Sel ectable Settings
Vehicle
Driving
Position
Setup
*Memory Position LinkTurns the driving position memory system on and off.On*1/Off
Keyless
Access
Setup
*
Door Unlock Mode Changes which doors unlock when you grab the
driver’s door handle. Driver Door Only*1/
All Doors
Keyless Access Light
Flash Causes some exterior lights to flash when you unlock/
lock the doors.
On
*1/
Off
Keyless Access Beep Causes the beeper to soun
d when you unlock/lock the
doors. On
*1/
Off
Remote Start System On/
Off
*Turns the remote engine start feature on and off. On*1/Off
Lighting
Setup
Interior Light Dimming
Time Changes the length of time the interior lights stay on
after you close the doors. 60 sec/
30 sec*1/
15 sec
Headlight Auto Off Timer Changes the length of time the exterior lights stay on
after you close the driver’s door. 60 sec/
30 sec/
15 sec
*1/ 0 sec
Auto Light Sensitivity Changes the timing for the headlights to come on. Max
/High /Mid
*1/
Low /Min
* Not available on all models
16 US ACCORD 4D (KA KC KL)-31T2A6300.book 331 ページ ２０１５年７月２８日　火曜日　午後３時３分

uuWhen Driving uStarting the Engine
424
Driving
3. Press the ENGINE START/STOP button
without depressing the accelerator pedal.
You can turn the engine off when the vehicle is completely stopped.
1. Shift to
(P.
2. Press the ENGINE START/STOP button.
• If the shift lever is in
(N, press the ENGINE START/STOP button.
• If the shift lever is in any gear other than
(N, depress the clutch pedal, then press
the ENGINE START/STOP button.
1Starting the Engine
Bring the smart entry remote close to the ENGINE
START/STOP button if the battery in the smart entry
remote is weak.
2 If the Smart Entry Remote Battery is Weak
P. 566
The engine may not start if the smart entry remote is
subjected to strong radio waves.
Do not hold the ENGINE START/STOP button to
start the engine.
If the engine does not start, wait at least 30 seconds
before trying again.All models
■Stopping the Engine
Automatic transmission/CVT models
Manual transmission models
16 US ACCORD 4D (KA KC KL)-31T2A6300.book 424 ページ ２０１５年７月２８日　火曜日　午後３時３分

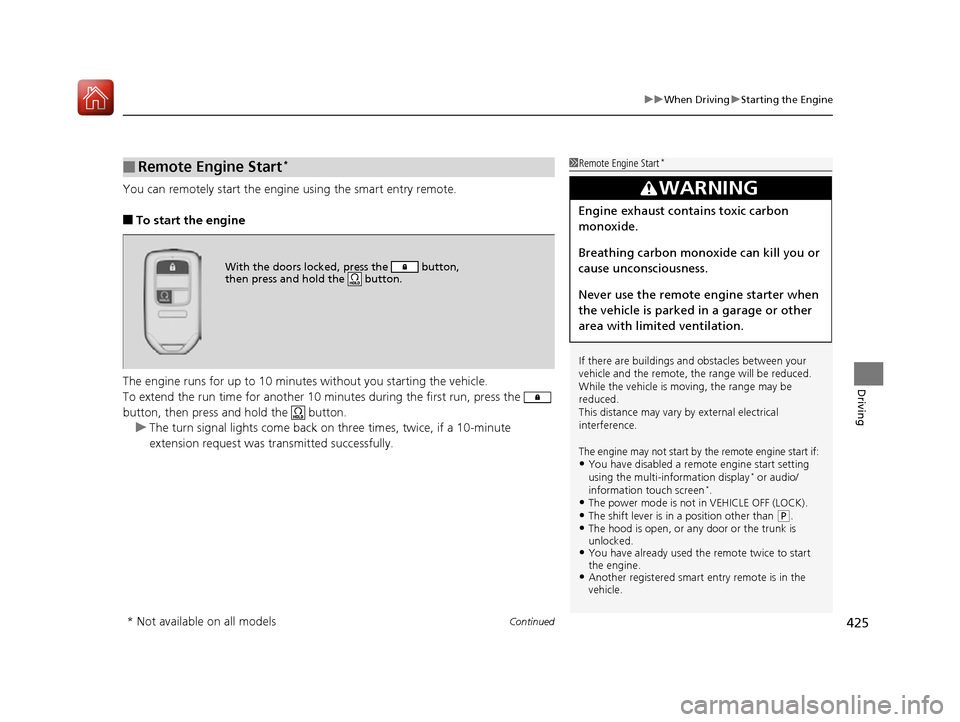

Continued425
uuWhen Driving uStarting the Engine
Driving
You can remotely start the engine using the smart entry remote.
■To start the engine
The engine runs for up to 10 minu tes without you starting the vehicle.
To extend the run time for another 10 mi nutes during the first run, press the
button, then press an d hold the button.
u The turn signal lights come back on three times, twice, if a 10-minute
extension request was transmitted successfully.
■Remote Engine Start*1 Remote Engine Start*
If there are buildings an d obstacles between your
vehicle and the remote, th e range will be reduced.
While the vehicle is moving, the range may be
reduced.
This distance may vary by external electrical
interference.
The engine may not start by the remote engine start if:•You have disabled a remo te engine start setting
using the multi-information display* or audio/
information touch screen*.•The power mode is not in VEHICLE OFF (LOCK).•The shift lever is in a position other than ( P.•The hood is open, or any door or the trunk is
unlocked.
•You have already used the remote twice to start
the engine.
•Another registered smart entry remote is in the
vehicle.
3WARNING
Engine exhaust contains toxic carbon
monoxide.
Breathing carbon monoxide can kill you or
cause unconsciousness.
Never use the remote engine starter when
the vehicle is parked in a garage or other
area with limited ventilation.
With the doors locked , press the button,
then press and hold the button.
* Not available on all models
16 US ACCORD 4D (KA KC KL)-31T2A6300.book 425 ページ ２０１５年７月２８日　火曜日　午後３時３分

uuWhen Driving uStarting the Engine
426
Driving
■To stop the engine1Remote Engine Start*
•There is any antenna failure.•Door is unlocked with the built-in key.
•The engine oil pressure is low.
•The engine coolant temper ature is extremely high.•The security system alarm is not set.
The engine may stop whil e it is running if:
•You do not start the vehicl e within 10 minutes of
starting the engine with the button on the
smart entry remote.
•The engine is stopped by using the smart entry
remote.
•Door is unlocked with the built-in key.•The hood is open.
•The shift lever is in a position other than ( P.
•The engine coolant temper ature is extremely high.•The engine oil pressure is low.
•The Malfunction Indicator Lamp (MIL) comes on if
there is a problem with the emissions control
systems.
While the engine is r unning, the vehicle will
automatically preconditi on inside the vehicle.
When it is warm outside:
•The climate control system is activated in
recirculation mode.
When it is cold outside:
•The defroster is activated at a moderately warm
temperature.
•The rear defogger and door mirror heaters* are
activated.
Press and hold the button
for one second.
* Not available on all models
16 US ACCORD 4D (KA KC KL)-31T2A6300.book 426 ページ ２０１５年７月２８日　火曜日　午後３時３分

427
uuWhen Driving uStarting the Engine
Driving
1. While depressing the brake pedal, press the ENGINE START/STOP button.
2. Keeping your right foot on the brake pedal, release the parking brake. Check that
the parking brake indicator has gone off.
2 Parking Brake P. 479
3.Put the shift lever in (D. Select (R when reversing.
4. Gradually release the brake pedal and gently depress the accelerator pedal to pull
away.
■Hill start assist system
Hill start assist keeps the brake engaged br iefly to help prevent the vehicle from
rolling on inclines as you move your foot from the brake pedal to the accelerator.
Depress the clutch pedal, and shift to on e of the forward gears when facing uphill,
or
(R when facing downhill, th en release the brake pedal.
Move the shift lever to
(D, (S, or (L when facing uphill, or (R when facing
downhill, then release the brake pedal.
Move the shift lever to
(D or (S when facing uphill, or (R when facing downhill,
then release the brake pedal.
■Starting to Drive
Automatic transmission/CVT models
1 Starting to Drive
The engine stops when the sh ift lever is moved out of
(P before the ENGINE START/STOP button is
pressed. Follow the step 1 when starting to drive.
When the engine was started using the button* on
the smart entry remoteWhen the engine was started using the button* on the smart entry remote
When the engine was started in any case
1 Hill start assist system
Hill start assist may not prevent the vehicle from
rolling downhill on a very st eep or slippery slope, and
does not operate on small inclines.
Hill start assist is not a replacement for the parking
brake.
Manual transmission models
Continuously variable transmission (CVT) models
Automatic transmission models
* Not available on all models
16 US ACCORD 4D (KA KC KL)-31T2A6300.book 427 ページ ２０１５年７月２８日　火曜日　午後３時３分

557
Handling the Unexpected
This chapter explains how to handle unexpected troubles.
ToolsTypes of Tools .................................. 558
If a Tire Goes Flat Changing a Flat Tire ......................... 559
Engine Does Not Start Checking the Engine ........................ 565
If the Smart Entry Remote Battery is Weak .......................................... 566
Emergency Engine Stop ................... 567
Jump Starting .................................... 568
Shift Lever Does Not Move .............. 571Overheating
How to Handle Overheating............. 572
Indicator, Coming On/Blinking
If the Low Oil Pressure Indicator Comes On ............................................. 574
If the Charging System Indicator Comes
On ................................................. 574
If the Malfunction Indicator Lamp Comes On or Blinks ................................... 575
If the Brake System Indicator (Red) Comes On ................................................. 576 If the Electric Power Steering (EPS) System
Indicator Comes On ....................... 576
If the Low Tire Pressure/TPMS Indicator Comes On or Blinks ....................... 577
Fuses Fuse Locations ................................. 578
Inspecting and Changing Fuses ........ 581
Emergency Towing ........................... 582
16 US ACCORD 4D (KA KC KL)-31T2A6300.book 557 ページ ２０１５年７月２８日　火曜日　午後３時３分

565
Handling the Unexpected
Engine Does Not Start
Checking the Engine
If the engine does not start, check the starter.
Starter conditionChecklist
Starter doesn’t turn or turns
over slowly.
The battery may be dead. Check
each of the items on the right and
respond accordingly.
Check for a message on the multi-information display.●If the To Start, Hold Remote Near Start Button message appears2 If the Smart Entry Remote Battery is Weak P. 566
uMake sure the smart entry remote is in its operating range.2 ENGINE START/STOP Button Operating Range P. 140
Check brightness of the interior lights.
Turn on the interior lights and check the brightness.
●If the interior lights are dim or do not come on at all2Battery P. 548●If the interior lights come on normally2 Fuses P. 578
The starter turns over normally
but the engine doesn’t start.
There may be a problem with the
fuse. Check each of the items on
the right and respond accordingly. Review the engine start procedure.
Follow its instructions, and try
to start the engine again.
2 Starting the Engine P. 421, 423
Check the immobilizer system indicator.
When the immobilizer system indicator is blinking, the engine cannot be started.
2Immobilizer System P. 132
Check the fuel level.
There should be enough fuel in the tank.
2 Fuel Gauge P. 95
Check the fuse.
Check all fuses, or have the vehicle checked by a dealer.
2 Inspecting and Changing Fuses P. 581
If the problem continues:2Emergency Towing P. 582
1Checking the Engine
If you must start the vehi cle immediately, use an
assisting vehicle to jump start it.
2 Jump Starting P. 568
Models with multi- information display
Models with smart entry system
16 US ACCORD 4D (KA KC KL)-31T2A6300.book 565 ページ ２０１５年７月２８日　火曜日　午後３時３分
