2016 HONDA ACCORD headlight bulb

76
uuIndicators u
Instrument Panel
*1:Models with the smart entry system have an ENGINE START/STOP button instead of an ignition switch.
IndicatorNameOn/BlinkingExplanationMessage*
System
Message
Indicator
*
●Comes on for a few seconds when you
turn the ignition switch to ON
(w*1, then
goes off.
●Comes on along with a beep when a
problem is detected. A system message on
the multi-information display appears at
the same time.
●While the indicator is on, press the
(information) button to see the
message again.
●Refer to the Indicators information in
this chapter when a system message
appears on the multi-information
display. Take the appropriate action for
the message.
●The multi-information display does not
return to the normal screen unless the
warning is canceled, or the
button is pressed.
—
Turn Signal
and Hazard
Warning
Indicators●Blinks when you oper ate the turn signal
lever.
●Blink along with all turn signals when you
press the hazard warning button.
●Does not blink or blinks rapidly - A
turn signal light bulb has blown.
Change the bulb immediately.
2 Replacing Light Bulbs P. 531, 533,
534
—
High Beam
Indicator●Comes on when the high beam headlights
are on.——
Lights On
Indicator
●Comes on whenever the light switch is on,
or in AUTO when the exterior lights are
on.●If you remove the key from the ignition
switch*1 while the exterior lights are on,
a chime sounds when the driver's door
is opened.—
* Not available on all models
16 US ACCORD 4D (KA KC KL)-31T2A6300.book 76 ページ ２０１５年７月２８日　火曜日　午後３時３分

150
uuOperating the Switches Around the Steering Wheel uDaytime Running Lights
Controls
Daytime Running Lights
The high beam headlights come on slightly dimmer than normal when the following
conditions have been met:
The parking/daytime running lights come on when the following conditions have
been met:
• The ignition switch is in ON
(w*1.
• The headlight switch is off, or in .
• The parking brake is released.
The lights remain on even if you set the parking brake. Turning off the ignition switch
or setting the power mode to VEHICLE OFF will turn off the daytime running lights.
The high beam headlights re turn to the original brightness once the headlight
switch is turned on.
The daytime running lights are off once the headlight switch is turned on, or when
the head light switch is in AUTO and it is getting darker outside.
*1: Models with the smart entry system have an ENGINE START/STOP button instead of an
ignition switch.
1 Daytime Running Lights
The daytime running lights come on dimmer when
the headlight switch is in than when it is in
AUTO . In AUTO , if the ambient brightness is dark,
the low beam headlights come on.Models with bulb type parking lights
Models with LED type parking/daytime running lights
Models with bulb type parking lights
16 US ACCORD 4D (KA KC KL)-31T2A6300.book 150 ページ ２０１５年７月２８日　火曜日　午後３時３分

529Continued
Maintenance
Replacing Light Bulbs
Headlight Bulbs
When replacing, use the following bulbs.1.Unlock the holding clips, then remove the
upper part of the air intake duct and the air
intake tube.
1. Remove the reserve tank.
High beam headlight: LED type*
High beam headlight: 60 W (HB3 for halogen bulb type)*
Low beam headlight: LED type*
Low beam headlight: 55 W (H11 for halogen bulb type)*
1Headlight Bulbs
NOTICE
Halogen bulbs get very hot when lit.
Oil, perspiration, or a scratch on the glass can cause
the bulb to overhe at and shatter.
The headlight aim is set by the factory, and does not
need to be adjusted. Howeve r, if you regularly carry
heavy items in the trunk or tow a trailer, have the
aiming readjusted at a de aler or by a qualified
technician.
When replacing a halogen bu lb, handle it by its base,
and protect the glass from c ontact with your skin or
hard objects. If you touch the glass, clean it with
denatured alcohol and a clean cloth.
Models with halogen headlights
All models
Models with halogen headlights
■High Beam Headlights
1 High Beam Headlights
High beam headlights ar e LED type. Have an
authorized Honda dealer in spect and replace the light
assembly.
Models with LED headlights
Models with halogen headlights
Tube Holding Clip
Holding Clips
Driver side
6-cylinder models
Passenger side
All models
* Not available on all models
16 US ACCORD 4D (KA KC KL)-31T2A6300.book 529 ページ ２０１５年７月２８日　火曜日　午後３時３分

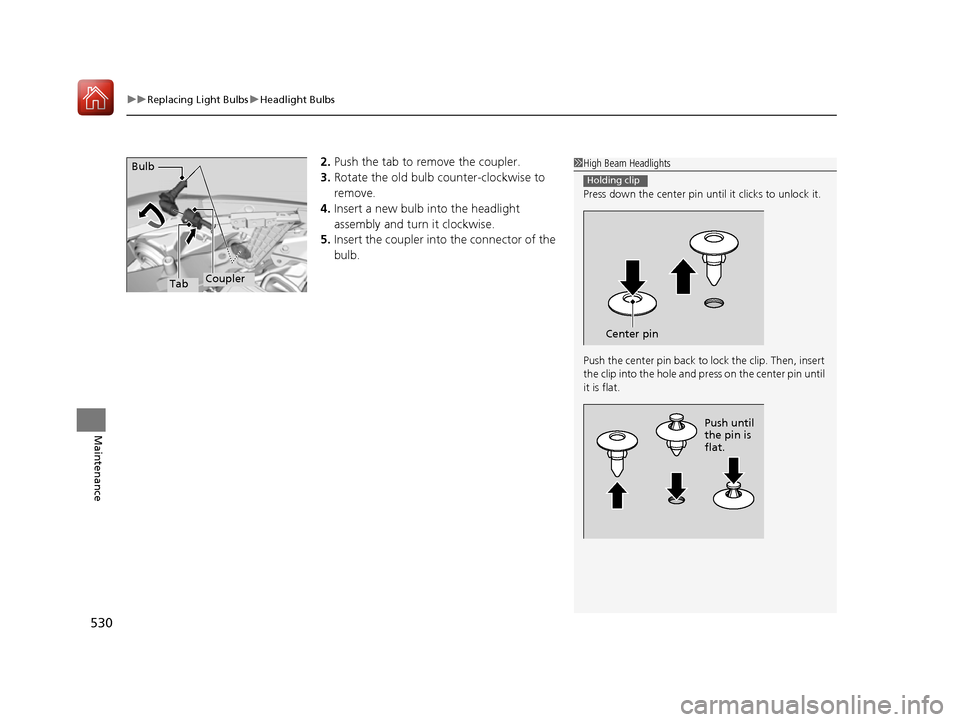

uuReplacing Light Bulbs uHeadlight Bulbs
530
Maintenance
2. Push the tab to remove the coupler.
3. Rotate the old bulb counter-clockwise to
remove.
4. Insert a new bulb into the headlight
assembly and turn it clockwise.
5. Insert the coupler into the connector of the
bulb.1High Beam Headlights
Press down the center pin until it clicks to unlock it.
Push the center pin back to lock the clip. Then, insert
the clip into the hole and press on the center pin until
it is flat.
Holding clip
Center pin
Push until
the pin is
flat.
TabCoupler
Bulb
16 US ACCORD 4D (KA KC KL)-31T2A6300.book 530 ページ ２０１５年７月２８日　火曜日　午後３時３分

531
uuReplacing Light Bulbs uFog Lights*
Maintenance
1. Push the tab to remove the coupler.
2. Rotate the old bulb counter-clockwise to
remove.
3. Insert a new bulb into the headlight
assembly and turn it clockwise.
4. Insert the coupler into the connector of the
bulb.
Fog Lights*
Fog lights are LED type. Have an authoriz ed Honda dealer inspect and replace the
light assembly.
Parking/Daytime Running Lights
Parking/daytime running lights are LED type. Have an authorized Honda dealer
inspect and replace the light assembly.
Front Turn Signal Lights
Front turn signal lights are LED type. Have an authorized Honda dealer inspect and
replace the light assembly.
■Low Beam Headlights1 Low Beam Headlights
Low beam headlights are LED type. Have an
authorized Honda dealer in spect and replace the light
assembly.
Models with LED headlightsModels with halogen headlights
TabCoupler
Bulb
Models with LED type parking/daytime running lights
Models with LED headlights
* Not available on all models
16 US ACCORD 4D (KA KC KL)-31T2A6300.book 531 ページ ２０１５年７月２８日　火曜日　午後３時３分

532

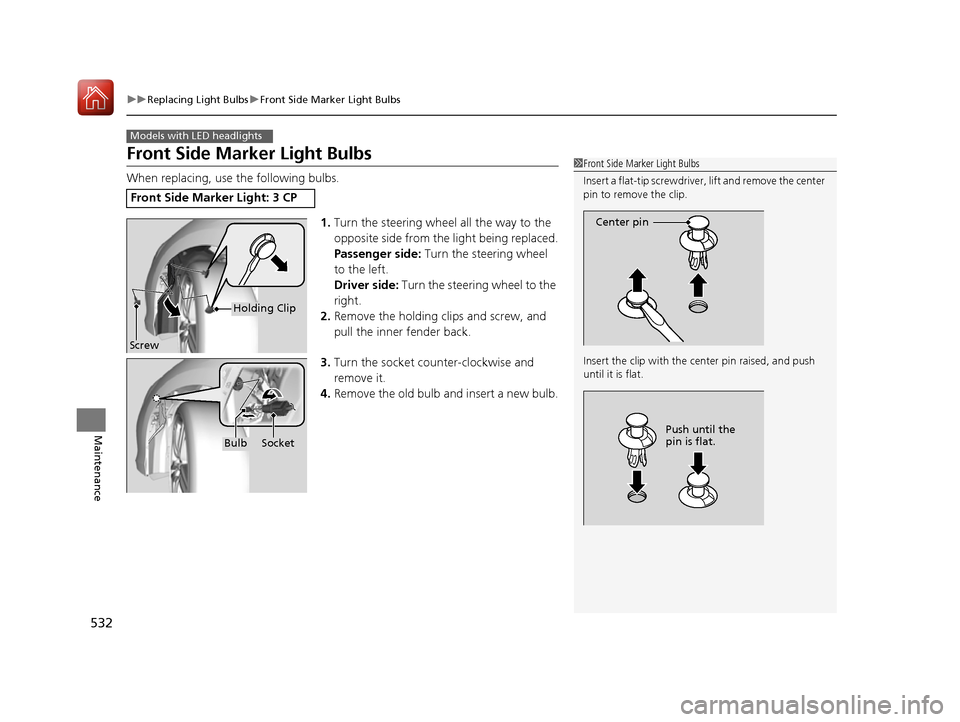

uuReplacing Light Bulbs uFront Side Marker Light Bulbs
Maintenance
Front Side Marker Light Bulbs
When replacing, use the following bulbs.
1.Turn the steering wheel all the way to the
opposite side from the light being replaced.
Passenger side: Turn the steering wheel
to the left.
Driver side: Turn the steering wheel to the
right.
2. Remove the holding clips and screw, and
pull the inner fender back.
3. Turn the socket counter-clockwise and
remove it.
4. Remove the old bulb and insert a new bulb.
Front Side Marker Light: 3 CP
Models with LED headlights
1Front Side Marker Light Bulbs
Insert a flat-tip screwdriver, lift and remove the center
pin to remove the clip.
Insert the clip with the center pin raised, and push
until it is flat.
Center pin
Push until the
pin is flat.
Screw
Holding Clip
Bulb Socket
16 US ACCORD 4D (KA KC KL)-31T2A6300.book 532 ページ ２０１５年７月２８日　火曜日　午後３時３分

533
uuReplacing Light Bulbs uFront Turn Signal/Side Marker Light Bulbs
Maintenance
Front Turn Signal/Side Marker Light Bulbs
Front Turn Signal/Side Ma rker/Parking Light Bulbs
When replacing, use the following bulbs.
Turn the steering wheel and pull the inner fender back in the same way as when
replacing the front side marker light bulbs
*.
2 Front Side Marker Light Bulbs P. 532
1.Turn the socket counter-clockwise and
remove it.
2. Remove the old bulb and insert a new bulb.
Side Turn Signal/Emer gency Indicator Lights*
Door mirror side turn lights are LED type. Have an authorized Honda dealer inspect
and replace the light assembly.
Front Turn Signal/Side Marker Light Bulbs: 28/8 W (Amber)
Front Turn Signal/Side Marker/Parki ng Light Bulbs: 28/8 W (Amber)
Models with halogen headlights and LED type parking/daytime running lights
Models with halogen headlights and bulb type parking lights
Models with halogen headlights and LED type parking/daytime running lights
Models with halogen headlights and bulb type parking lights
BulbSocket
* Not available on all models
16 US ACCORD 4D (KA KC KL)-31T2A6300.book 533 ページ ２０１５年７月２８日　火曜日　午後３時３分

584
Information
Specifications
■Vehicle Specifications
*1: LX models
*2: Except LX models
ModelHonda Accord Sedan
No. of Passengers:
Front 2
Rear 3
Total 5
Weights:Gross Vehicle
Weight Rating U.S.: 4,200 lbs (1,905 kg)*1
4,321 lbs (1,960 kg)*2
Canada: 1,930 kg*1
1,980 kg*2
Gross Axle Weight
Rating (Front)U.S.: 2,249 lbs (1,020 kg)*1
2,315 lbs (1,050 kg)*2
Canada: 1,030 kg*1
1,065 kg*2
Gross Axle Weight
Rating (Rear)U.S.: 2,006 lbs (910 kg)*1
2,050 lbs (930 kg)*2
Canada: 910 kg*1
930 kg*2
Air Conditioning:
Refrigerant Type HFC-134a (R-134a)
Charge Quantity 15.0 – 16.8 oz (425 – 475 g)
Lubricant Type ND-OIL 8
4-cylinder models■ Engine Specifications
■ Fuel
■ Washer Fluid
Displacement144 cu-in (2,356 cm3)
Spark Plugs NGK
DILKAR7G11GS
DILKAR7H11GS
DENSO DXE22HQR-D11S
Fuel:
TypeUnleaded gasoline, Pump octane number
of 87 or higher
Fuel Tank Capacity 17.2 US gal (65 ℓ)
Tank CapacityU.S.: 2.6 US qt (2.5 ℓ)
Canada: 4.85 ℓ
■ Light Bulbs
*3: Models with halogen headlights
*4: Models with LED headlights
*5: Models with bulb type parking lights
*6: Models with LED type parking/daytime running lights
*7: Models with bulb type brake lights
*8: Models with LED type brake lights
Headlights (Low Beam)55W (H11)*3
LED*4
Headlights (High Beam) 60W (HB3)*3
LED*4
Fog Lights*LEDFront Turn Signal/Side Marker/Parking Lights*3, *5
Front Turn Signal/Side Marker Lights*3, *628/8W (Amber)
Parking/Daytime Running Lights*6LED
Front Turn Signal Lights*4LEDFront Side Marker Lights*43CP
Side Turn Signal Lights
(on Door Mirrors)
*LED
Brake Lights21W*7
LED*8
Rear Turn Signal Lights 21W (Amber)Rear Side Marker LightsLED
Taillights (on Fenders) LED
Back-Up Lights16W
Taillights (on Trunk Lid) LED
High-Mount Brake LightLED
Rear License Plate Lights 5W
Trunk Light5WInterior LightsMap Lights8WCeiling Light8WVanity Mirror Lights1.4WCourtesy Lights*2CP
* Not available on all models
16 US ACCORD 4D (KA KC KL)-31T2A6300.book 584 ページ ２０１５年７月２８日　火曜日　午後３時３分
