2016 HONDA ACCORD COUPE display

563
Handling the Unexpected
Engine Does Not Start
Checking the Engine
If the engine does not start, check the starter.
Starter conditionChecklist
Starter doesn’t turn or turns
over slowly.
The battery may be dead. Check
each of the items on the right and
respond accordingly.
Check for a message on the multi-information display.●If the To Start, Hold Remote Near Start Button message appears2If the Smart Entry Remote Battery is Weak P. 564
uMake sure the smart entry remote is in its operating range.2 ENGINE START/STOP Button Operating Range P. 141
Check brightness of the interior lights.
Turn on the interior lights and check the brightness.
●If the interior lights are dim or do not come on at all2Battery P. 546●If the interior lights come on normally2Fuses P. 576
The starter turns over normally
but the engine doesn’t start.
There may be a problem with the
fuse. Check each of the items on
the right and respond accordingly. Review the engine start procedure.
Follow its instructions, and try
to start the engine again.
2Starting the Engine P. 421, 423
Check the immobilizer system indicator.
When the immobilizer system indicator is blinking, the engine cannot be started.
2Immobilizer System P. 133
Check the fuel level.
There should be enough fuel in the tank.
2Fuel Gauge P. 98
Check the fuse.
Check all fuses, or have the vehicle checked by a dealer.
2Inspecting and Changing Fuses P. 579
If the problem continues:2Emergency Towing P. 580
1Checking the Engine
If you must start the vehi cle immediately, use an
assisting vehicle to jump start it. 2 Jump Starting P. 566
Models with multi- information display
Models with smart entry system
16 US ACCORD 2D (KA KC KL)-31T3L6300.book 563 ページ ２０１５年７月２３日　木曜日　午後４時１１分

564

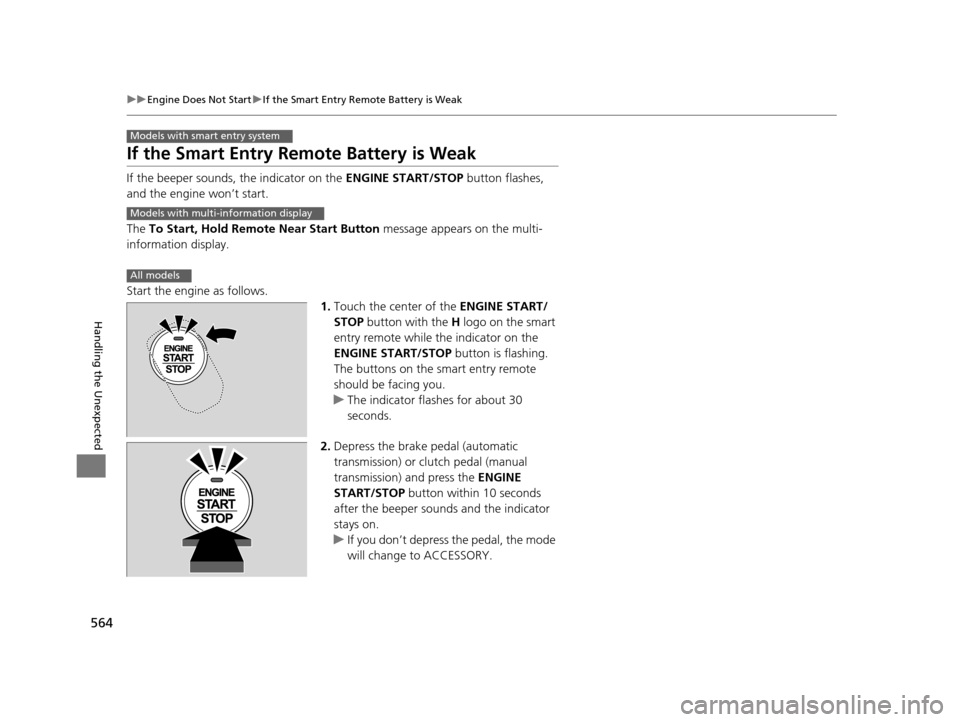

uuEngine Does Not Start uIf the Smart Entry Remote Battery is Weak
Handling the Unexpected
If the Smart Entry Remote Battery is Weak
If the beeper sounds, the indicator on the ENGINE START/STOP button flashes,
and the engine won’t start.
The To Start, Hold Remote Near Start Button message appears on the multi-
information display.
Start the engine as follows.
1.Touch the center of the ENGINE START/
STOP button with the H logo on the smart
entry remote while the indicator on the
ENGINE START/STOP button is flashing.
The buttons on the smart entry remote
should be facing you.
u The indicator flashes for about 30
seconds.
2. Depress the brake pedal (automatic
transmission) or clutch pedal (manual
transmission) and press the ENGINE
START/STOP button within 10 seconds
after the beeper sounds and the indicator
stays on.
u If you don’t depress the pedal, the mode
will change to ACCESSORY.
Models with smart entry system
Models with multi- information display
All models
16 US ACCORD 2D (KA KC KL)-31T3L6300.book 564 ページ ２０１５年７月２３日　木曜日　午後４時１１分

595

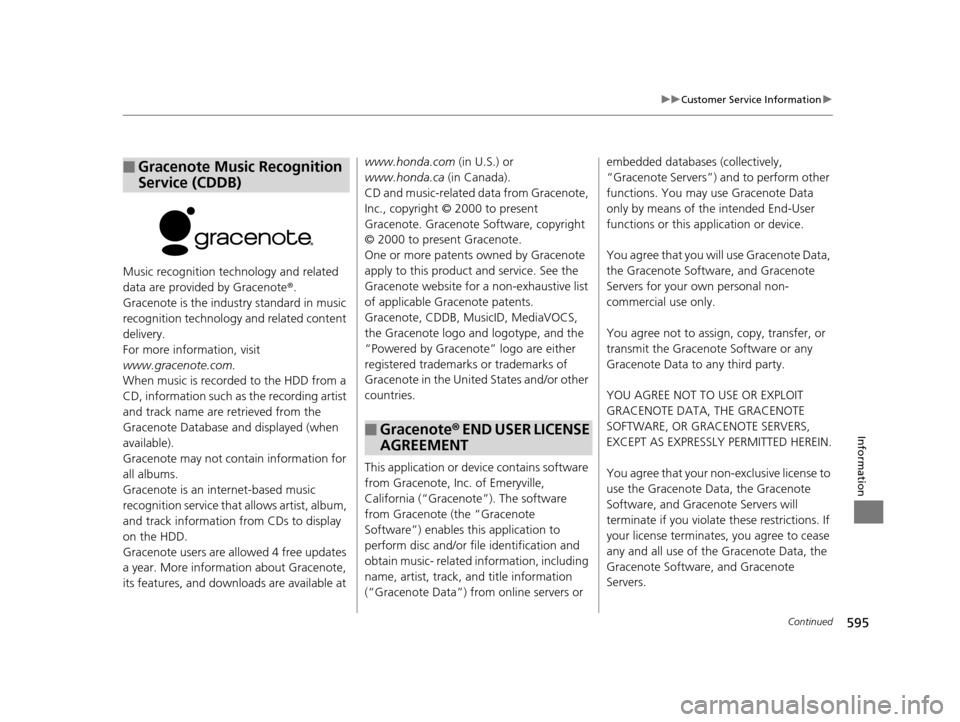

uuCustomer Service Information u
Continued
Information
Music recognition technology and related
data are provided by Gracenote®.
Gracenote is the indus try standard in music
recognition technology and related content
delivery.
For more information, visit
www.gracenote.com.
When music is recorded to the HDD from a
CD, information such as the recording artist
and track name are retrieved from the
Gracenote Database and displayed (when
available).
Gracenote may not contain information for
all albums.
Gracenote is an in ternet-based music
recognition service that allows artist, album,
and track information from CDs to display
on the HDD.
Gracenote users are allowed 4 free updates
a year. More information about Gracenote,
its features, and downloads are available at
■Gracenote Music Recognition
Service (CDDB)www.honda.com (in U.S.) or
www.honda.ca (in Canada).
CD and music-related data from Gracenote,
Inc., copyright © 2000 to present
Gracenote. Gracenote Software, copyright
© 2000 to present Gracenote.
One or more patents owned by Gracenote
apply to this produc t and service. See the
Gracenote website for a non-exhaustive list
of applicable Gracenote patents.
Gracenote, CDDB, MusicID, MediaVOCS,
the Gracenote logo and logotype, and the
“Powered by Gracenote” logo are either
registered trademarks or trademarks of
Gracenote in the United States and/or other
countries.
This application or device contains software
from Gracenote, Inc. of Emeryville,
California (“Grace note”). The software
from Gracenote (the “Gracenote
Software”) enables this application to
perform disc and/or file identification and
obtain music- related information, including
name, artist, track, and title information
(“Gracenote Data”) from online servers or
■Gracenote ® END USER LICENSE
AGREEMENT
embedded databases (collectively,
“Gracenote Servers”) and to perform other
functions. You may use Gracenote Data
only by means of the intended End-User
functions or this application or device.
You agree that you will use Gracenote Data,
the Gracenote Software, and Gracenote
Servers for your own personal non-
commercial use only.
You agree not to assign, copy, transfer, or
transmit the Gracenote Software or any
Gracenote Data to any third party.
YOU AGREE NOT TO USE OR EXPLOIT
GRACENOTE DATA, THE GRACENOTE
SOFTWARE, OR GRACENOTE SERVERS,
EXCEPT AS EXPRESSLY PERMITTED HEREIN.
You agree that your no n-exclusive license to
use the Gracenote Data, the Gracenote
Software, and Gracenote Servers will
terminate if you violate these restrictions. If
your license terminates, you agree to cease
any and all use of the Gracenote Data, the
Gracenote Software, and Gracenote
Servers.
16 US ACCORD 2D (KA KC KL)-31T3L6300.book 595 ページ ２０１５年７月２３日　木曜日　午後４時１１分

Index
598
Index
Index
Numbers
7-Speed Manual Shift Mode.................... 432
Operation ................................................ 433
A
ABS (Anti-lock Brake System) ................... 481
Accessories and Modifications ................. 500
Accessory Power Sockets .......................... 174
Adaptive Cruise Control (ACC) ........... 85, 447
Additives Coolant ................................................... 523
Engine Oil ................................................ 517
Washer .................................................... 528
Additives, Engine Oil ................................ 517
Adjusting
Clock ....................................................... 116
Front Seats .............................................. 161
Head Restraints........................................ 164
Mirrors .................................................... 159
Rear Seats................................................ 168
Steering Wheel ........................................ 158
Temperature .................................... 101, 105
Aha
TM......................................................... 264
Air Conditioning System (Climate Control System) .................................................... 180
Changing the Mode ................................ 180
Defrosting the Windshield and Windows ............................................... 181
Dust and Pollen Filter ............................... 549 Recirculation/Fresh Air Mode ................... 180
Sensor ..................................................... 183
Synchronized Mode................................. 182
Using Automatic Climate Control ............ 180
Air Pressure ............................... 538, 583, 585
Airbags ........................................................ 41
Advanced Airbags ..................................... 47
After a Collision ........................................ 44
Airbag Care............................................... 53
Event Data Recorder .................................... 0
Front Airbags (SRS) .................................... 44
Indicator.............................................. 51, 75
Passenger Airbag Off Indicator .................. 52
Sensors ..................................................... 41
Side Airbags .............................................. 48
Side Curtain Airbags.................................. 50
AM/FM Radio .................................... 199, 239
Android Auto ........................................... 281
Anti-lock Brake System (ABS) .................. 481
Indicator.................................................... 75
Apple CarPlay ........................................... 277
Audio Remote Controls ........................... 190
Audio System ............................................ 186
Adjusting the Sound........................ 197, 232
Audio/Information Screen................ 193, 216
Audio/Information Touch Screen ............. 218
Auxiliary Input Jack.................................. 188
Changing the Home Screen Icon
Layout ................................................... 221
Closing Apps ........................................... 231 Display Setup .................................. 198, 233
Error Messages ....................................... 286
General Information................................ 291
Home Screen .......................................... 224
Internet Radio ......................... 207, 262, 264
iPod ........................................ 204, 255, 294
Limitations for Manual
Operation ............................. 234, 344, 377
MP3/WMA/AAC ............. 201, 210, 252, 265
Playing a CD ................................... 201, 252
Recommended CDs ................................ 292
Recommended Devices ........................... 294
Remote Controls ..................................... 190
Security Code ......................................... 189
Selecting an Audio Source ...................... 234
Status Area ............................................. 230
Theft Protection ...................................... 189
USB Flash Drives...................... 210, 265, 294
USB Port(s) .............................................. 187
Wallpaper Setup ............................. 195, 222
Audio/Information Screen ............... 193, 216
Audio/Information Touch Screen ............ 218
Authorized Manuals ................................ 593
Auto Door Locking/Unlocking ................ 128
Customize .............................. 112, 309, 332
Auto High-Beam (High Beam Support System) .................................................... 148
Indicator ................................................... 83
Automatic Intermittent Wipers .............. 153
Automatic Lighting .................................. 146
16 US ACCORD 2D (KA KC KL)-31T3L6300.book 598 ページ ２０１５年７月２３日　木曜日　午後４時１１分

600
Index
Continuously Variable Transmission (CVT)Creeping ................................................. 429
Fluid ........................................................ 525
Kickdown ................................................ 429
Operating the Shift Lever ................... 19, 431
Shift Lever Does Not Move....................... 569
Shifting.................................................... 430
Controls ..................................................... 115
Coolant (Engine) ....................................... 523
Adding to the Engine Coolant Reserve Tank ...................................................... 523
Adding to the Radiator ............................ 524
Overheating............................................. 570
Creeping (Automatic Transmission
/CVT) ........................................................ 429
Cruise Control ........................................... 442
Indicator .................................................... 81
Cup Holders ............................................... 173
Customer Service Information ................. 594
Customized Features ................ 106, 298, 316
D
Daytime Running Lights ........................... 151
Dead Battery ............................................. 566
Defaulting All the Settings .............. 315, 339
Defrosting the Windshield and
Windows .................................................. 181
Devices that Emit Radio Waves ................ 587
Dimming
Headlights ............................................... 145 Rearview Mirror....................................... 159
Dipstick (Engine Oil) ................................. 518
Directional Signals (Turn Signal) ............. 145
Display Button .................................. 193, 216
Door Mirrors ............................................. 160
Doors ......................................................... 118
Auto Door Locking .................................. 128
Auto Door Unlocking .............................. 128
Door and Trunk Open Indicator ........... 33, 77
Keys ........................................................ 118
Locking/Unlocking the Doors from
the Inside .............................................. 126
Locking/Unlocking the Doors from the Outside ........................................... 121
Lockout Prevention System ...................... 125
DOT Tire Quality Grading ........................ 540
Driving ...................................................... 411
Adaptive Cruise Control (ACC) ................ 447
Automatic Transmission/CVT ................... 429
Braking ................................................... 479
Cruise Control ......................................... 442
Shifting Gear ................................... 434, 438
Shifting Position ...................................... 430
Starting the Engine.......................... 421, 423
Driving Position Memory System ............ 156
Dust and Pollen Filter ............................... 549
E
Eco Assist System.......................................... 9
ECON Button ............................................ 441 Elapsed Time
............................................ 104
Electric Power Steering (EPS) System
Indicator ........................................... 77, 574
Electronic Stability Control (ESC) ............ 471
Emergency ................................................ 580
Emergency Engine Stop ........................... 565
Emergency Trunk Opener ....................... 132
Emissions Testing (Readiness Codes) ...... 589
Engine ....................................................... 586
Coolant .................................................. 523
Jump Starting ......................................... 566
Oil .......................................................... 517
Remote Engine Start ............................... 425
Starting........................................... 421, 423
Switch Buzzer ......................................... 140
Engine Coolant ........................................ 523
Adding to the Engine Coolant Reserve
Tank ..................................................... 523
Adding to the Radiator ........................... 524
Overheating ............................................ 570
Temperature Gauge .................................. 98
Engine Oil ................................................. 517
Adding ................................................... 520
Checking ................................................ 518
Displaying Oil Life ........................... 505, 509
Low Oil Pressure Indicator ................. 71, 572
Recommended Engine Oil ....................... 517
ENGINE START/STOP Button .................... 141
EPS (Electric Power Steering) System ............................................... 77, 574
16 US ACCORD 2D (KA KC KL)-31T3L6300.book 600 ページ ２０１５年７月２３日　木曜日　午後４時１１分

601
Index
Exhaust Gas Hazard (Carbon Monoxide) ................................................ 66
Expanded View Driver’s Mirror ............... 160
Exterior Care (Cleaning) .......................... 552
Exterior Mirrors ........................................ 160
F
Features.................................................... 185
Filters
Dust and Pollen....................................... 549
Oil .......................................................... 521
Flat Tire ..................................................... 557
Floor Mats ................................................ 551
Fluids Automatic Transmission .......................... 526
Brake/Clutch ........................................... 527
Continuously Variable Transmission
(CVT) .................................................... 525
Engine Coolant ....................................... 523
Manual Transmission .............................. 525
Windshield Washer ................................. 528
FM/AM Radio ................................... 199, 239
Fog Light Indicator .................................... 80
Folding Down the Rear Seat ................... 168
Foot Brake ................................................ 480
Front Airbags (SRS) .................................... 44
Front Seats ................................................ 161
Adjusting ................................................ 161
Front Sensor Camera ............................... 445 Fuel
...................................................... 22, 497
Economy ................................................. 499
Gauge ....................................................... 98
Instant Fuel Economy ....................... 100, 105
Low Fuel Indicator ..................................... 75
Range .............................................. 101, 104
Recommendation .................................... 497
Refueling ................................................. 497
Fuel Economy ............................................ 499
Fuel Fill Cap ......................................... 22, 498
Message .................................................. 573
Fuel Fill Door ....................................... 22, 498
Fuses .......................................................... 576
Inspecting and Changing ......................... 579
Locations ......................................... 576, 578
G
Gasoline (Fuel) Economy ................................................. 499
Gauge ....................................................... 98
Information ............................................. 497
Instant Fuel Economy ....................... 100, 105
Low Fuel Indicator ..................................... 75
Refueling ................................................. 497
Gauges ........................................................ 98
Gear Shift Lever Positions
Automatic Transmission ........................... 434
Continuously Variab le Transmission
(CVT) ..................................................... 430
Manual Transmission ............................... 439 Glass (care)
........................................ 550, 553
Glove Box .................................................. 171
H
Halogen Bulbs .......................................... 529
Handling the Unexpected ........................ 555
HandsFreeLink ® (HFL) ....................... 343, 374
Auto Answer ........................................... 358
Automatic Import of Ce llular Phonebook and
Call History .................................... 360, 388
Automatic Transferring............................ 358
Displaying Messages................................ 403
Displaying Text Messages ........................ 371
HFL Buttons..................................... 343, 374
HFL Menus ...................................... 345, 378
HFL Status Display ........................... 344, 376
In Case of Emergency .............................. 407
Limitations for Manual Operation .... 344, 377
Making a Call .................................. 364, 396
Options During a Call ...................... 369, 400
Phone Setup.................................... 350, 383
Phonebook Phonetic Modification ........... 392
Receiving a Call ............................... 368, 399
Receiving a Text Message ........................ 370
Receiving a Text Message/E-mail.............. 401
Ring Tone........................................ 359, 387
Selecting a Mail Account ......................... 402
Speed Dial ....................................... 361, 389
To Create a Security PIN .......................... 357
16 US ACCORD 2D (KA KC KL)-31T3L6300.book 601 ページ ２０１５年７月２３日　木曜日　午後４時１１分

602
Index
To Set Up Text Message Options.............. 355
To Set Up Text Message/E-mail Options ... 386
Hazard Warning Button ............................... 4
HD Radio
TM................................................ 239
Head Restraints ......................................... 164
Headlights ................................................. 145
Aiming .................................................... 529
Auto High-Beam ...................................... 148
Automatic Operation ............................... 146
Dimming ......................................... 145, 151
Operating ................................................ 145
Heaters (Seat) ............................................ 179
High Beam Indicator ................................... 79
Hill Start Assist System ...................... 422, 427
HomeLink ® Universal Transceiver ............ 340
HondaLink ®............................................... 270
I
Identification Numbers
Engine and Transmission.......................... 586
Vehicle Identification ............................... 586
Ignition Switch .......................................... 140
Illumination Control
Knob ....................................................... 154
Immobilizer System .................................. 133
Indicator .................................................... 80
Indicators ..................................................... 70
Adaptive Cruise Control (ACC) (Amber) ..... 85
Adaptive Cruise Control (ACC)
(White) ............................................ 85, 448 Anti-lock Brake System (ABS)..................... 75
Auto High-Beam (Amber) .......................... 83
Auto High-Beam (Green) ........................... 83
Brake System (Amber) ............................... 70
Brake System (Red) .................................... 70
Charging System ............................... 71, 572
Collision Mitigati
on Braking System
TM
(CMBSTM) ................................................. 87
CRUISE CONTROL ............................. 81, 443
CRUISE MAIN .................................... 81, 442
Door and Trunk Open ............................... 77
ECON Mode ...................................... 81, 441
Electric Power Steering (EPS) System ............................................ 77, 574
Fog Light ................................................... 80
High Beam ................................................ 79
Immobilizer System ................................... 80
Lane Keeping Assist System (LKAS) (Amber) ................................................... 86
Lane Keeping Assist System (LKAS) (White) ............................................ 86, 466
Light Control ............................................. 82
Lights On .................................................. 79
Low Fuel ................................................... 75
Low Oil Pressure ................................ 71, 572
Low Tire Pressure/TPMS ............. 78, 475, 477
Maintenance Minder ......................... 81, 505
Malfunction Indicator Lamp............... 71, 573
Parking Brake and Brake System ........ 70, 574
Parking Sensor System............................... 77
Road Departure Mitigation (RDM) ............. 84 Seat Belt Reminder.............................. 35, 74
Security System Alarm............................... 80
Smart Entry System ................................... 82
Starter System........................................... 82
Supplemental Restraint System ........... 51, 75
System Message ....................................... 79
Transmission ............................................. 74
Turn Signal and Hazard Warning ............... 79
Vehicle Stability Assist (VSA®
)
System ............................................ 76, 471
VSA ® OFF .......................................... 76, 472
Washer Level ............................................ 81
Information .............................................. 581
Information Display ................................... 99
Instant Fuel Economy ...................... 100, 105
Instrument Panel ........................................ 69
Brightness Control .................................. 154
Interior Lights ........................................... 169
Interior Rearview Mirror ......................... 159
iPod ........................................... 204, 255, 294
J
Jack (Wheel Nut Wrench) ........................ 560
Jump Starting ........................................... 566
K
Key Number Tag ...................................... 119
Keyless Lockout Prevention ..................... 125
16 US ACCORD 2D (KA KC KL)-31T3L6300.book 602 ページ ２０１５年７月２３日　木曜日　午後４時１１分

603
Index
Keys........................................................... 118
Lockout Prevention ................................. 125
Master Keys ............................................ 118
Number Tag............................................ 119
Remote Engine Start ............................... 425
Remote Transmitter ................................ 123
Types and Functions................................ 118
Valet Key ........................................ 119, 131
Won’t Turn ............................................... 25
Kickdown (Automatic Transmission /CVT) ........................................................ 429
L
Lane Keeping Assist System (LKAS) ........ 464
LaneWatchTM............................................ 473
Language (HFL) ................................ 344, 376
LATCH (Child Seats) ................................... 59
Lights ................................................ 145, 529
Auto High-Beam ..................................... 148
Automatic............................................... 146
Bulb Replacement ................................... 529
Daytime Running Lights .......................... 151
Fog Lights ............................................... 147
High Beam Indicator ................................. 79
Interior.................................................... 169
Light Switches......................................... 145
Lights On Indicator.................................... 79
Turn Signals ............................................ 145
Load Limits ............................................... 415 Locking/Unlocking
.................................... 118
Auto Door Locking/Unlocking .................. 128
From Inside .............................................. 126
From Outside ........................................... 121
Keys ........................................................ 118
Using a Key ............................................. 125
Lockout Prevention System ...................... 125
Low Battery Charge .................................. 572
Low Fuel Indicator ...................................... 75
Low Oil Pressure Indicator ................. 71, 572
Low Smart Entry Remote Signal
Strength .................................................. 120
Lower Anchors ............................................ 59
Lubricant Specifications Chart ......... 582, 584
Luggage (Maximum Load Limit) ............. 415
M
Maintenance............................................. 501
Battery .................................................... 546
Brake/Clutch Fluid ................................... 527
Cleaning .................................................. 550
Climate Control System ........................... 549
Coolant ................................................... 523
Maintenance Minder
TM............................ 505
Oil ........................................................... 518
Precautions .............................................. 502
Radiator .................................................. 524
Remote Transmitter ................................. 547
Replacing Light Bulbs ............................... 529 Safety...................................................... 503
Service Items ................................... 507, 511
Tires ........................................................ 537
Transmission Fluid ................................... 525
Under the Hood ...................................... 513
Malfunction Indicator Lamp .............. 71, 573
Manual Transmission ............................... 438
Map Lights ................................................ 170
Maximum Load Limit ............................... 415
Meters, Gauges ........................................... 98
Mirrors ...................................................... 159
Adjusting ................................................ 159
Door ....................................................... 160
Exterior ................................................... 160
Interior Rearview ..................................... 159
Modifications (and Accessories) .............. 500
Moonroof ................................................. 139
MP3 ................................... 201, 210, 252, 265
Multi-Information Display ....................... 102
Multi-View Rear Camera .......................... 496
N
Numbers (Identification).......................... 586
O
Odometer......................................... 100, 104
16 US ACCORD 2D (KA KC KL)-31T3L6300.book 603 ページ ２０１５年７月２３日　木曜日　午後４時１１分
