Continued425
uuWhen Driving uStarting the Engine
Driving
You can remotely start the engine using the smart entry remote.
■To start the engine
The engine runs for up to 10 minu tes without you starting the vehicle.
To extend the run time for another 10 mi nutes during the first run, press the
button, then press an d hold the button.
u The turn signal lights come back on three times, twice, if a 10-minute
extension request was transmitted successfully.
■Remote Engine Start*1 Remote Engine Start*
If there are buildings an d obstacles between your
vehicle and the remote, th e range will be reduced.
While the vehicle is moving, the range may be
reduced.
This distance may vary by external electrical
interference.
The engine may not start by the remote engine start if:•You have disabled a remo te engine start setting
using the multi-information display* or audio/
information touch screen*.•The power mode is not in VEHICLE OFF (LOCK).•The shift lever is in a position other than ( P.•The hood is open, or any door or the trunk is
unlocked.
•You have already used the remote twice to start
the engine.
•Another registered smart entry remote is in the
vehicle.
3WARNING
Engine exhaust contains toxic carbon
monoxide.
Breathing carbon monoxide can kill you or
cause unconsciousness.
Never use the remote engine starter when
the vehicle is parked in a garage or other
area with limited ventilation.
With the doors locked , press the button,
then press and hold the button.
* Not available on all models
16 US ACCORD 2D (KA KC KL)-31T3L6300.book 425 ページ ２０１５年７月２３日　木曜日　午後４時１１分

430
uuWhen Driving uShifting
Driving

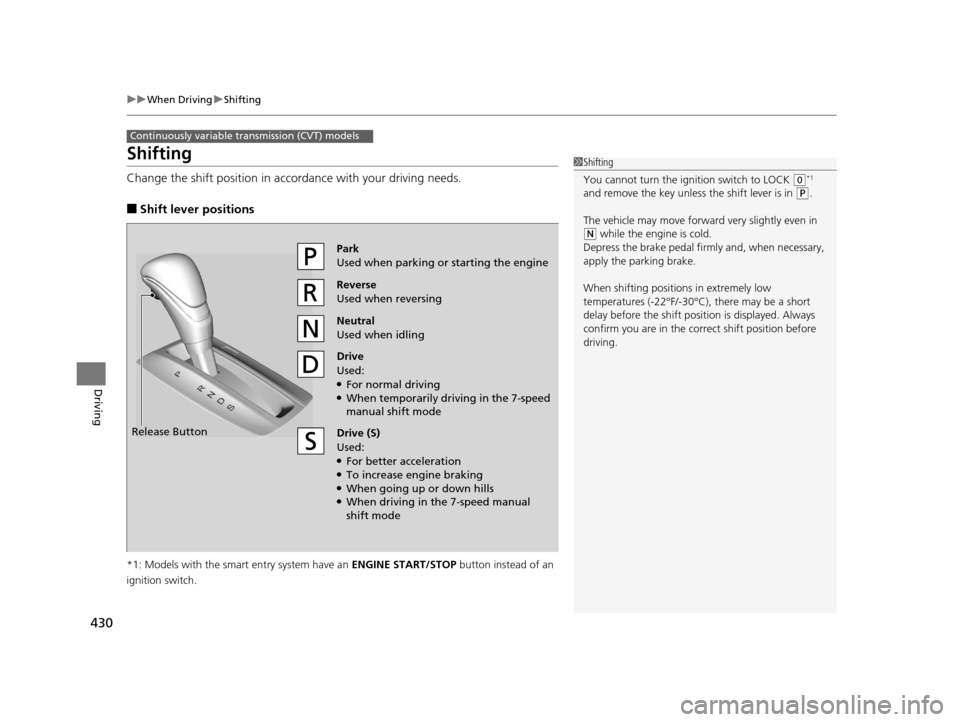

Shifting
Change the shift positi on in accordance with your driving needs.
■Shift lever positions
*1: Models with the smart entry system have an ENGINE START/STOP button instead of an
ignition switch.
Continuously variable transmission (CVT) models
1 Shifting
You cannot turn the ignition switch to LOCK
(0*1
and remove the key unless the shift lever is in ( P.
The vehicle may move forward very slightly even in
(N while the engine is cold.
Depress the brake pe dal firmly and, when necessary,
apply the parking brake.
When shifting positions in extremely low
temperatures (-22°F/-30°C), there may be a short
delay before the shift posit ion is displayed. Always
confirm you are in the corr ect shift position before
driving.
Reverse
Used when reversing
Drive
Used:
●For normal driving●When temporarily driving in the 7-speed
manual shift mode
Park
Used when parking or starting the engine
Neutral
Used when idling
Release Button
Drive (S)
Used:
●For better acceleration●To increase engine braking●When going up or down hills●When driving in the 7-speed manual
shift mode
16 US ACCORD 2D (KA KC KL)-31T3L6300.book 430 ページ ２０１５年７月２３日　木曜日　午後４時１１分

Continued431
uuWhen Driving uShifting
Driving
■Shift Lever Operation1Shift Lever Operation
NOTICE
When you change the shift lever from (D to ( R and
vice versa, come to a complete stop and keep the
brake pedal depressed.
Operating the shift lever be fore the vehicle has come
to a complete standstill can damage the transmission.
Use the shift lever position indicator to check the
lever position befo re pulling away.
If the transmission indicator blinks when driving, in
any shift position, there is a problem with the
transmission.
Avoid sudden acceleration and have the transmission
checked by a dealer as soon as possible.
The fuel supply may be cut of f if you drive at engine
speeds in or over the tachometer's red zone (engine
speed limit). If this happens, you may experience a
slight jolt.
It may not be possible to operate the shift lever if the
brake pedal is applied while the shift lever release
button is held down.
Depress the brake pedal first.
Shift Lever Position Indicator Tachometer’s red zone
Models with multi- information display
Models with information display
Press the shift lever release button and shift. Shift Lever Position Indicator
Depress the brake pedal and press the shift lever release
button to shift.
Shift without pressing the shift lever release button. Tachometer’s red zone
M
(7-Speed Manual Shift Mode)
Indicator/Shift Indicator
M (7-Speed Manual Shift Mode)
Indicator/Shift Indicator
16 US ACCORD 2D (KA KC KL)-31T3L6300.book 431 ページ ２０１５年７月２３日　木曜日　午後４時１１分

uuWhen Driving uShifting
432
Driving

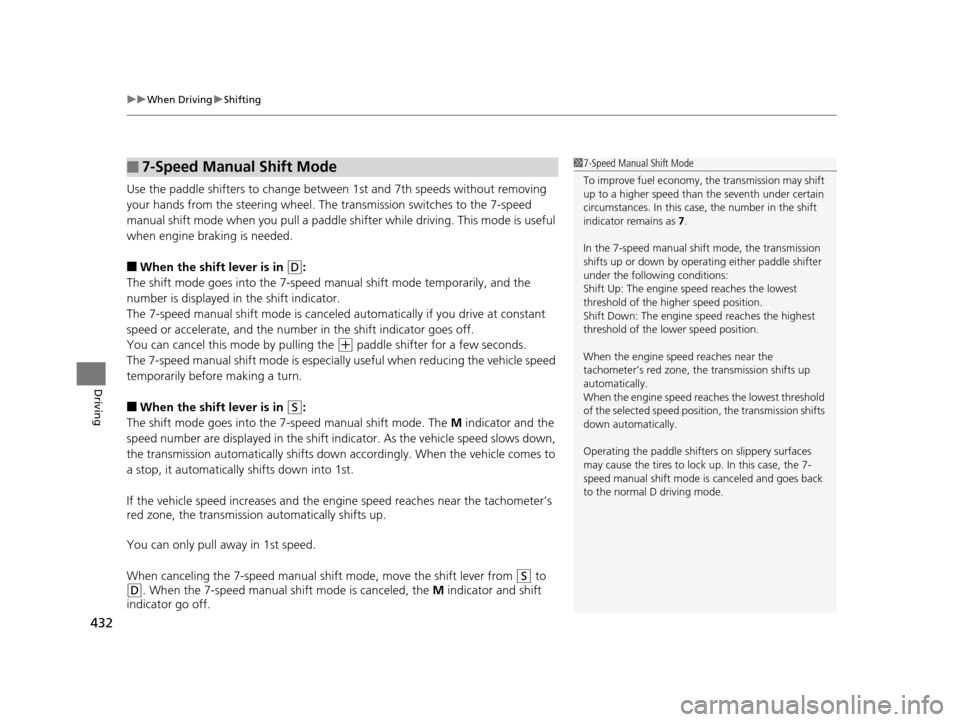

Use the paddle shifters to change betw een 1st and 7th speeds without removing
your hands from the steering wheel. The transmission switches to the 7-speed
manual shift mode when you pull a paddle shi fter while driving. This mode is useful
when engine braking is needed.
■When the shift lever is in (D:
The shift mode goes into the 7-speed ma nual shift mode temporarily, and the
number is displayed in the shift indicator.
The 7-speed manual shift mode is canceled automatically if you drive at constant
speed or accelerate, and the number in the shift indicator goes off.
You can cancel this mode by pulling the
(+ paddle shifter for a few seconds.
The 7-speed manual shift mode is especially useful when reducing the vehicle speed
temporarily before making a turn.
■When the shift lever is in (S:
The shift mode goes into the 7- speed manual shift mode. The M indicator and the
speed number are displayed in the shift indicator. As the vehicle speed slows down,
the transmission automatically shifts down accordingly. When the vehicle comes to
a stop, it automatically shifts down into 1st.
If the vehicle speed increases and the engi ne speed reaches near the tachometer’s
red zone, the transmission automatically shifts up.
You can only pull away in 1st speed.
When canceling the 7-speed manual sh ift mode, move the shift lever from
(S to
(D. When the 7-speed manual shift mode is canceled, the M indicator and shift
indicator go off.
■7-Speed Manual Shift Mode1 7-Speed Manual Shift Mode
To improve fuel economy, the transmission may shift
up to a higher speed than the seventh under certain
circumstances. In this case, the number in the shift
indicator remains as 7.
In the 7-speed manual shif t mode, the transmission
shifts up or down by opera ting either paddle shifter
under the following conditions:
Shift Up: The engine sp eed reaches the lowest
threshold of the higher speed position.
Shift Down: The engine sp eed reaches the highest
threshold of the lower speed position.
When the engine speed reaches near the
tachometer’s red zone, the transmission shifts up
automatically.
When the engine speed reaches the lowest threshold
of the selected speed positi on, the transmission shifts
down automatically.
Operating the paddle shifte rs on slippery surfaces
may cause the tires to lock up. In this case, the 7-
speed manual shift mode is canceled and goes back
to the normal D driving mode.
16 US ACCORD 2D (KA KC KL)-31T3L6300.book 432 ページ ２０１５年７月２３日　木曜日　午後４時１１分

Continued435
uuWhen Driving uShifting
Driving
■Shift Lever Operation1Shift Lever Operation
NOTICE
When you change the shift lever from (D to ( R and
vice versa, come to a complete stop and keep the
brake pedal depressed.
Operating the shift lever be fore the vehicle has come
to a complete standstill can damage the transmission.
Use the shift lever position indicator to check the
lever position befo re pulling away.
If the transmission indicator blinks when driving, in
any shift position, there is a problem with the
transmission.
Avoid sudden acceleration and have the transmission
checked by a dealer as soon as possible.
The fuel supply may be cut of f if you drive at engine
speeds in or over the tachometer’s red zone (engine
speed limit). If this happens, you may experience a
slight jolt.
It may not be possible to operate the shift lever if the
brake pedal is applied while the shift lever release
button is held down.
Depress the brake pedal first.
Shift Lever Position Indicator Tachometer’s red zone
Models with multi- information display
Models with information display
Shift Lever Position Indicator
Depress the brake pedal and press the shift lever release
button to shift.
Shift without pressing the shift lever release button. Tachometer’s red zone
M
(Sequential Shift Mode)
Indicator/Gear Position Indicator
M (Sequential Shift Mode)
Indicator/Gear Position Indicator
Press the shift lever release button and shift.
16 US ACCORD 2D (KA KC KL)-31T3L6300.book 435 ページ ２０１５年７月２３日　木曜日　午後４時１１分

uuWhen Driving uAdaptive Cruise Control (ACC)*
448
Driving
1Adaptive Cruise Control (ACC)*
When the MAIN button is pressed, ACC and Lane
Keeping Assist System (LKAS) are both turned on or
off.
ACC may not work properly under certain conditions.
2 ACC Conditions and Limitations P. 452
When not using ACC: Turn off adaptive cruise by
pressing the MAIN button. This also will turn off the
Lane Keeping Assist System (LKAS).
Do not use ACC under the following conditions:
•On roads with heavy traf fic or while driving in
continuous stop and go traffic.
•On roads with sharp turns.
•On roads with steep downhill sections, as the set
vehicle speed can be exceed ed by coasting. In such
cases, ACC will not apply the brakes to maintain
the set speed.
•On roads with toll collection facilities or other
objects between lanes of traffic, or in parking
areas, or faci lities with driv e through access.
How to use
■Press the MAIN button on
the steering wheel. ACC is on in the multi-
information display.
ACC is ready to use.
* Not available on all models
16 US ACCORD 2D (KA KC KL)-31T3L6300.book 448 ページ ２０１５年７月２３日　木曜日　午後４時１１分

Continued449
uuWhen Driving uAdaptive Cruise Control (ACC)*
Driving
Take your foot off the pedal and press down the –/SET button when you reach the
desired speed. The moment you release the button, the set speed is fixed, and ACC
begins. When ACC starts operating, the vehicle icon,
distance bars and set speed appear on the
multi-information display.
■To Set the Vehicle Speed1To Set the Vehicle Speed
You can switch the displayed set speed
measurements on the mult i-information display
between mph and km/h. 2 Customized Features P. 106, 298, 316
On when ACC
begins
Press and release
−/SET Button
Set Vehicle Speed
Set Vehicle Distance
16 US ACCORD 2D (KA KC KL)-31T3L6300.book 449 ページ ２０１５年７月２３日　木曜日　午後４時１１分

uuWhen Driving uAdaptive Cruise Control (ACC)*
450
Driving

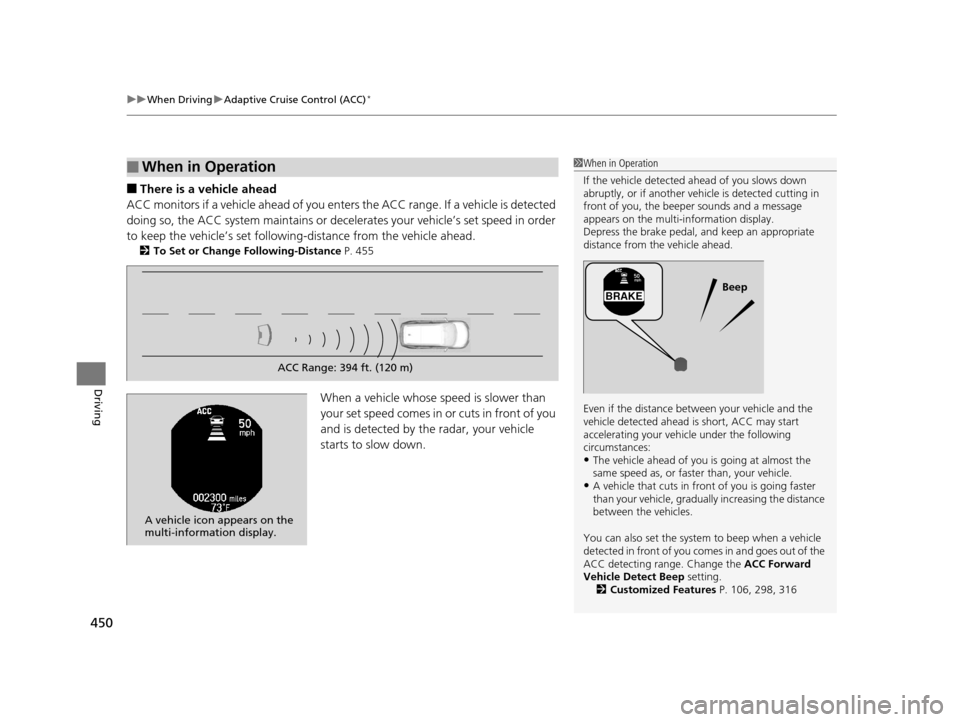

■There is a vehicle ahead
ACC monitors if a vehicle ahead of you enters the ACC range. If a vehicle is detected
doing so, the ACC system maintains or decele rates your vehicle’s set speed in order
to keep the vehicle’s se t following-distance from the vehicle ahead.
2To Set or Change Following-Distance P. 455
When a vehicle whose speed is slower than
your set speed comes in or cuts in front of you
and is detected by the radar, your vehicle
starts to slow down.
■When in Operation1 When in Operation
If the vehicle detected ahead of you slows down
abruptly, or if another vehi cle is detected cutting in
front of you, the beep er sounds and a message
appears on the multi- information display.
Depress the brake pedal, and keep an appropriate
distance from the vehicle ahead.
Even if the distance betw een your vehicle and the
vehicle detected ahead is short, ACC may start
accelerating your vehicle under the following
circumstances:
•The vehicle ahead of you is going at almost the
same speed as, or faster than, your vehicle.
•A vehicle that cuts in front of you is going faster
than your vehicle, gradually increasing the distance
between the vehicles.
You can also set the system to beep when a vehicle
detected in front of you co mes in and goes out of the
ACC detecting range. Change the ACC Forward
Vehicle Detect Beep setting.
2 Customized Features P. 106, 298, 316
Beep
ACC Range: 394 ft. (120 m)
A vehicle icon appears on the
multi-information display.
16 US ACCORD 2D (KA KC KL)-31T3L6300.book 450 ページ ２０１５年７月２３日　木曜日　午後４時１１分
