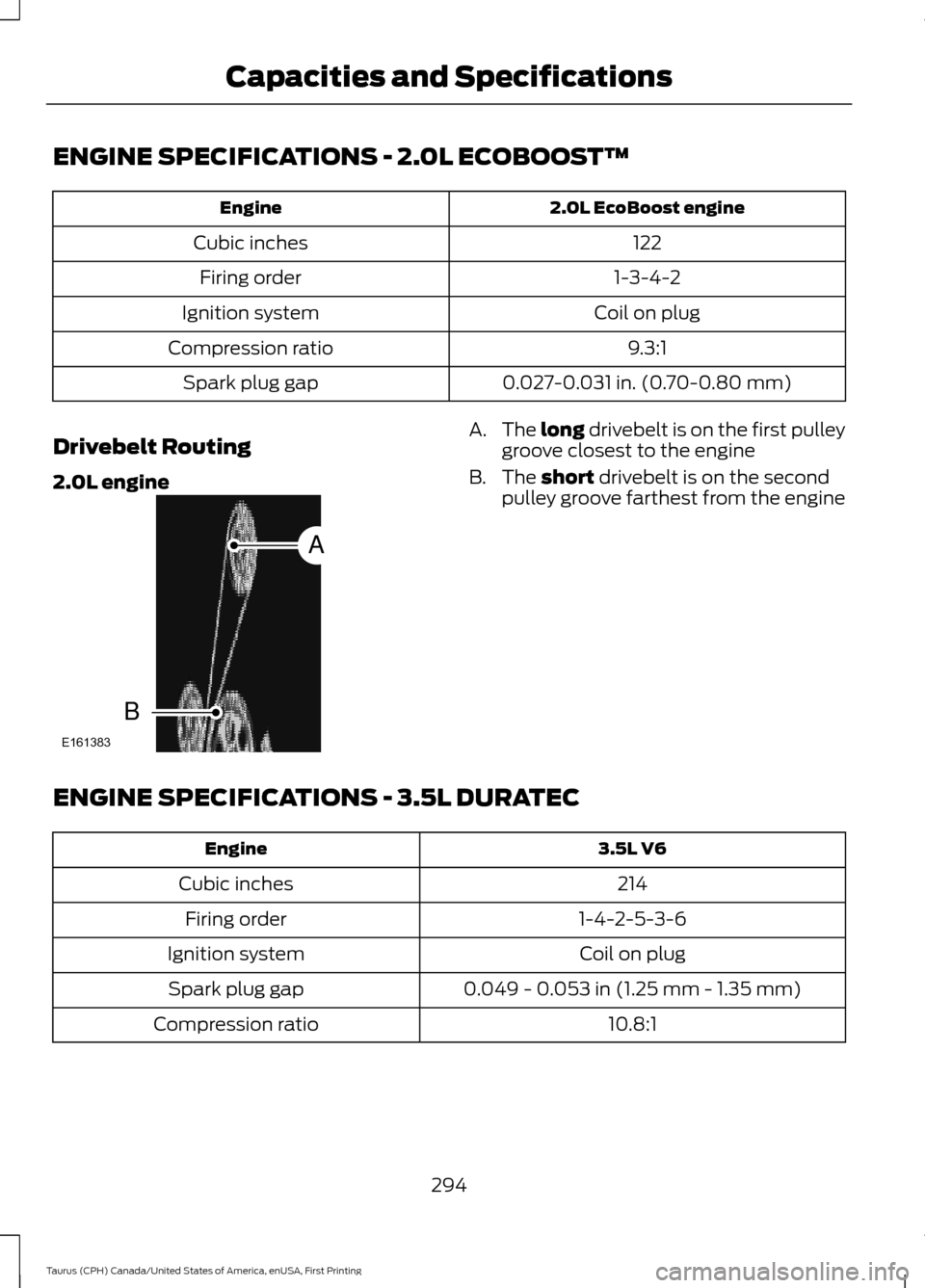

ENGINE SPECIFICATIONS - 2.0L ECOBOOST™
2.0L EcoBoost engine
Engine
122
Cubic inches
1-3-4-2
Firing order
Coil on plug
Ignition system
9.3:1
Compression ratio
0.027-0.031 in. (0.70-0.80 mm)
Spark plug gap
Drivebelt Routing
2.0L engine A.
The long drivebelt is on the first pulley
groove closest to the engine
B. The short drivebelt is on the second
pulley groove farthest from the engine
ENGINE SPECIFICATIONS - 3.5L DURATEC 3.5L V6
Engine
214
Cubic inches
1-4-2-5-3-6
Firing order
Coil on plug
Ignition system
0.049 - 0.053 in (1.25 mm - 1.35 mm)
Spark plug gap
10.8:1
Compression ratio
294
Taurus (CPH) Canada/United States of America, enUSA, First Printing Capacities and SpecificationsE161383
A
B

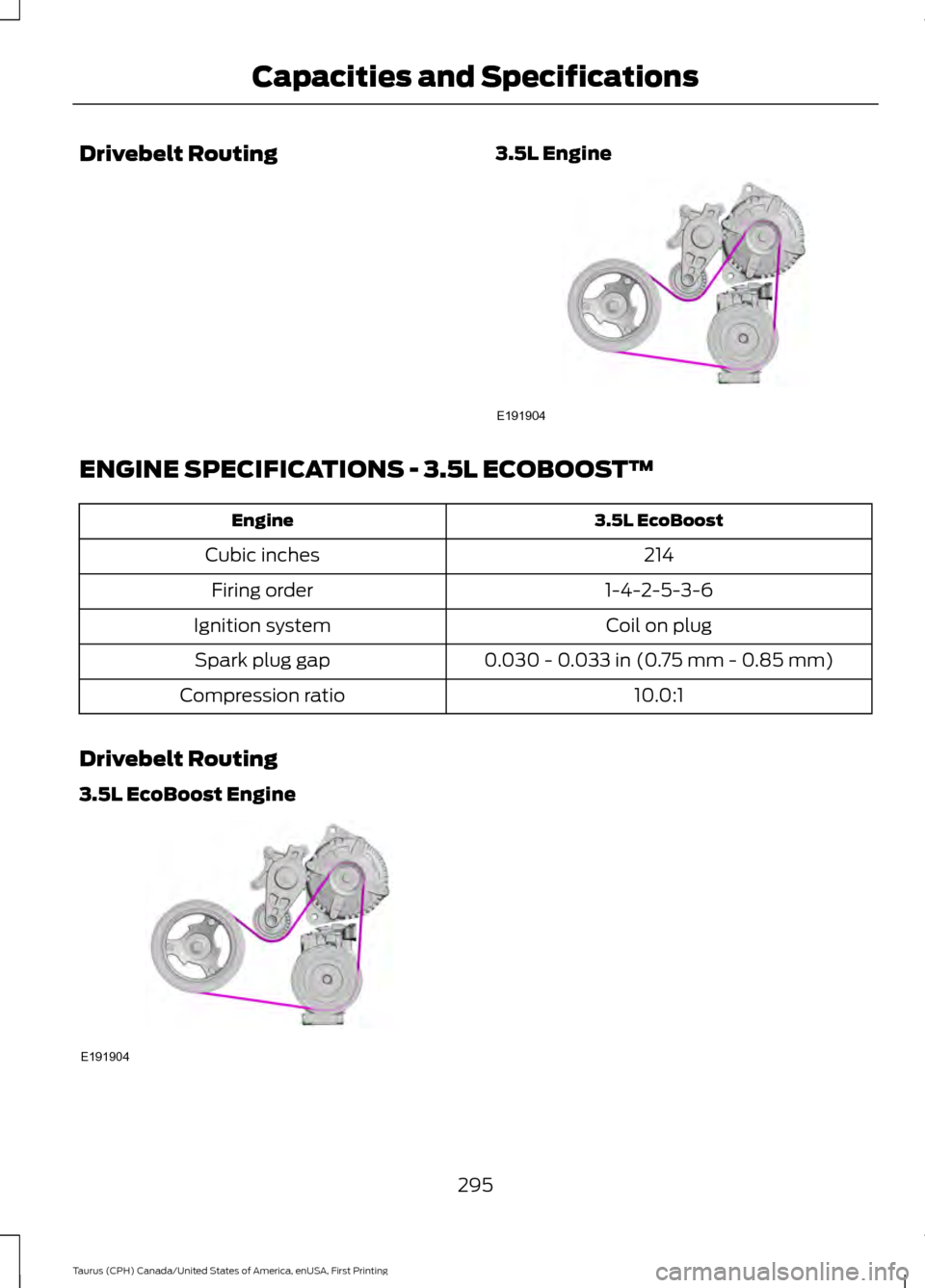

Drivebelt Routing
3.5L EngineENGINE SPECIFICATIONS - 3.5L ECOBOOST™
3.5L EcoBoost
Engine
214
Cubic inches
1-4-2-5-3-6
Firing order
Coil on plug
Ignition system
0.030 - 0.033 in (0.75 mm - 0.85 mm)
Spark plug gap
10.0:1
Compression ratio
Drivebelt Routing
3.5L EcoBoost Engine 295
Taurus (CPH) Canada/United States of America, enUSA, First Printing Capacities and SpecificationsE191904 E191904
