2016 FORD TAURUS headlamp

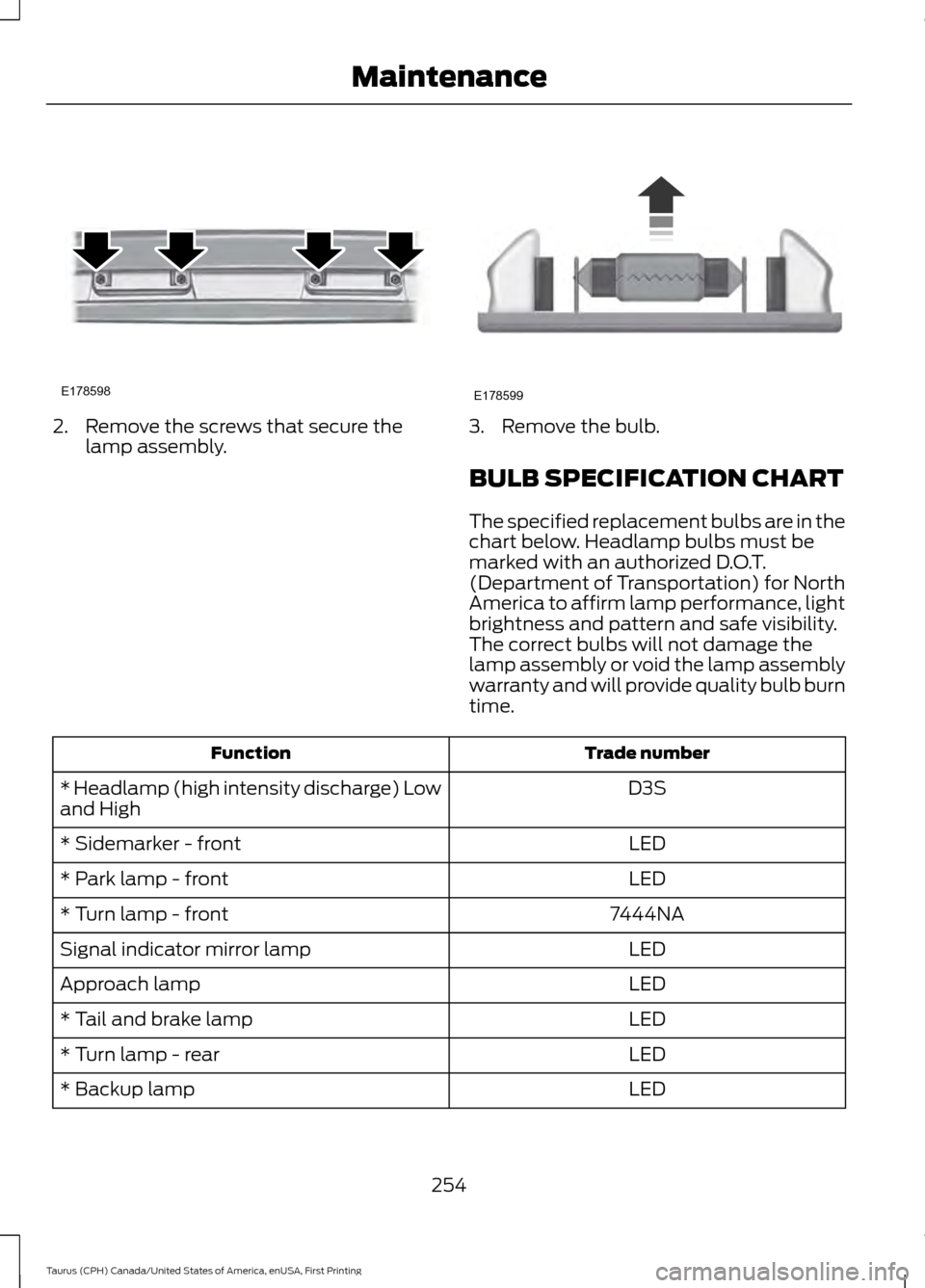

2. Remove the screws that secure the
lamp assembly. 3. Remove the bulb.
BULB SPECIFICATION CHART
The specified replacement bulbs are in the
chart below. Headlamp bulbs must be
marked with an authorized D.O.T.
(Department of Transportation) for North
America to affirm lamp performance, light
brightness and pattern and safe visibility.
The correct bulbs will not damage the
lamp assembly or void the lamp assembly
warranty and will provide quality bulb burn
time.
Trade number
Function
D3S
* Headlamp (high intensity discharge) Low
and High
LED
* Sidemarker - front
LED
* Park lamp - front
7444NA
* Turn lamp - front
LED
Signal indicator mirror lamp
LED
Approach lamp
LED
* Tail and brake lamp
LED
* Turn lamp - rear
LED
* Backup lamp
254
Taurus (CPH) Canada/United States of America, enUSA, First Printing MaintenanceE178598 E178599

A
A/C
See: Climate Control......................................... 106
About This Manual...........................................7
ABS See: Brakes........................................................... 159
ABS driving hints See: Hints on Driving With Anti-Lock
Brakes................................................................ 159
Accessories......................................................371 Exterior Style......................................................... 371
Interior Style.......................................................... 371
Lifestyle................................................................... 371
Peace of Mind....................................................... 371
Accessories See: Replacement Parts
Recommendation............................................. 11
ACC See: Using Adaptive Cruise Control.............174
Active Park Assist
.........................................166
Automatic Steering into Parking
Space................................................................. 168
Deactivating the Park Assist Feature.........168
Troubleshooting the System.......................... 169
Using Active Park Assist................................... 167
Adjusting the Headlamps.........................252 Horizontal Aim Adjustment........................... 253
Vertical Aim Adjustment................................. 252
Adjusting the Pedals
....................................66
Adjusting the Steering Wheel - Vehicles With: Manual Adjustable Steering
Column............................................................63
Adjusting the Steering Wheel - Vehicles With: Power Adjustable Steering
Column............................................................63
Easy Entry and Exit Feature............................. 64
End of Travel Position........................................ 64
Memory Feature................................................... 64
Airbag Disposal
...............................................42
Air Conditioning See: Climate Control......................................... 106
Air Filter See: Changing the Engine Air Filter.............256
Alarm See: Anti-Theft Alarm........................................ 62
All-Wheel Drive.............................................152 Anti-Theft Alarm............................................62
Arming the Alarm................................................. 62
Disarming the Alarm........................................... 62
Appendices
....................................................394
Audible Warnings and Indicators.............85 Headlamps On Warning Chime...................... 85
Key in Ignition Warning Chime........................ 85
Keyless Warning Alert........................................ 85
Parking Brake On Warning Chime.................85
Audio Control..................................................64 MEDIA....................................................................... 64
Seek, Next or Previous....................................... 64
Audio Input Jack...........................................322
Audio System
.................................................312
General Information........................................... 312
Audio Unit - Vehicles With: AM/FM/CD/ SYNC/Satellite Radio...............................313
Menu Structure.................................................... 315
Audio Unit - Vehicles With: Premium AM/FM/CD...................................................317
Audio Unit - Vehicles With: Sony AM/ FM/CD............................................................318
Autolamps........................................................70 Windshield Wiper Activated
Headlamps........................................................ 70
Automatic Climate Control - Vehicles With: Premium AM/FM/CD...................108
Automatic Climate Control - Vehicles With: Sony Audio System........................110
Automatic Climate Control - Vehicles Without: Touchscreen Display..............107
Automatic High Beam Control..................72 Activating the System......................................... 72
Manually Overriding the System..................... 73
Automatic Transmission
...........................149
Automatic Transmission Adaptive
Learning.............................................................. 151
Brake-Shift Interlock......................................... 150
If Your Vehicle Gets Stuck In Mud or Snow.................................................................... 151
SelectShift Automatic ™
Transmission................................................... 149
Understanding the Positions of Your Automatic Transmission............................. 149
Automatic Transmission Fluid Check - 2.0L EcoBoost™
.......................................244
6F35 Transmission............................................ 244
411
Taurus (CPH) Canada/United States of America, enUSA, First Printing Index

Automatic Transmission Fluid Check -
3.5L Duratec/3.5L Ecoboost™............244
6F50/6F55 Transmission.............................. 244
Autowipers........................................................67
Auxiliary Power Points................................132 12 Volt DC Power Point..................................... 132
Locations................................................................ 132
AWD See: All-Wheel Drive.......................................... 152
B
Battery See: Changing the 12V Battery..................... 249
Blind Spot Information System..............186 Switching the System Off and On...............188
System Errors....................................................... 188
Using the System............................................... 186
Bonnet Lock See: Opening and Closing the Hood..........234
Booster Seats..................................................22
Types of Booster Seats...................................... 22
Brake Fluid Check........................................248
Brakes...............................................................159 General Information.......................................... 159
Breaking-In....................................................209
Bulb Specification Chart...........................254
C
Cabin Air Filter
.................................................114
California Proposition 65..............................11
Capacities and Specifications - 2.0L EcoBoost™..................................................301
Specifications...................................................... 301
Capacities and Specifications - 3.5L Duratec.........................................................304
Specifications..................................................... 305
Capacities and Specifications - 3.5L Ecoboost™.................................................308
Specifications..................................................... 308
Capacities and Specifications................294
Cargo Nets......................................................195
Car Wash See: Cleaning the Exterior............................... 257
Center Console
..............................................133 Changing a Bulb...........................................253
Front Fog Lamp.................................................. 253
High-Intensity Discharge Headlamps........253
LED Lamps........................................................... 253
License Plate Lamp.......................................... 253
Changing a Fuse...........................................232 Fuses....................................................................... 232
Changing a Road Wheel
...........................288
Dissimilar Spare Wheel and Tire Assembly
Information..................................................... 288
Tire Change Procedure.................................... 289
Changing the 12V Battery.........................249 Battery Management System...................... 250
Changing the Engine Air Filter
................256
Changing the Wiper Blades......................251
Changing the Windshield Wiper
Blades................................................................ 251
Checking MyKey System Status................51
Checking the Wiper Blades
.......................251
Child Restraint and Seatbelt Maintenance.................................................33
Child Restraint Positioning.........................24
Child Safety
.......................................................15
General Information............................................. 15
Child Safety Locks
..........................................25
Left-Hand Side...................................................... 26
Right-Hand Side................................................... 26
Cleaning Leather Seats..............................261
Cleaning Products
........................................257
Cleaning the Alloy Wheels........................261
Cleaning the Engine
....................................259
Cleaning the Exterior...................................257 Exterior Chrome Parts..................................... 258
Exterior Plastic Parts........................................ 258
Stripes or Graphics........................................... 258
Underbody........................................................... 258
Cleaning the Instrument Panel and Instrument Cluster Lens
........................260
Cleaning the Interior...................................260
Cleaning the Windows and Wiper Blades...........................................................259
Clearing All MyKeys.......................................50
Climate Control
............................................106
Climate Controlled Seats..........................125
Cooled Seats........................................................ 125
Collision Warning System
.........................192
PRINCIPLE OF OPERATION........................... 192
412
Taurus (CPH) Canada/United States of America, enUSA, First Printing Index

Extended Service Plan (ESP)..................373
EXTENDED SERVICE PLAN (CANADA
ONLY)................................................................ 374
EXTENDED SERVICE PLAN (U.S. Only).................................................................. 373
Exterior Mirrors................................................76
Auto-Dimming Feature...................................... 76
Blind Spot Monitor............................................... 77
Fold-Away Exterior Mirrors............................... 76
Heated Exterior Mirrors....................................... 76
Integrated Blind Spot Mirrors........................... 77
Memory Mirrors..................................................... 76
Power Exterior Mirrors......................................... 76
Puddle Lamps........................................................ 77
F
Fastening the Seatbelts..............................28 Safety Belt Extension Assembly.................... 30
Safety Belt Locking Modes............................... 29
Using Safety Belts During Pregnancy...........28
Flat Tire Inflation See: Tire Sealant and Inflator Kit................264
Floor Mats
.......................................................210
Foot Pedals See: Adjusting the Pedals................................. 66
Ford Credit
..........................................................11
(U.S. Only)................................................................. 11
Front Passenger Sensing System.............37
Fuel and Refueling.......................................140
Fuel Consumption
........................................145
Calculating Fuel Economy.............................. 145
Filling the Tank..................................................... 145
Fuel Filler Funnel Location........................142
Fuel Filter
........................................................249
Fuel Quality......................................................141 Choosing the Right Fuel.................................... 141
Choosing the Right Fuel - Flex Fuel Vehicles.............................................................. 141
Fuel Shutoff
....................................................213
Fuses................................................................224
Fuse Specification Chart
...........................224
Passenger Compartment Fuse
Panel.................................................................. 229
Power Distribution Box.................................... 224G
Garage Door Opener
See: Universal Garage Door Opener............127
Gauges...............................................................80 Fuel Gauge............................................................... 81
Information Display.............................................. 81
Type 1........................................................................\
80
Type 2........................................................................\
81
General Information on Radio Frequencies...................................................43
Intelligent Access................................................. 43
General Maintenance Information........375 Multi-Point Inspection...................................... 377
Owner Checks and Services.......................... 376
Protecting Your Investment........................... 375
Why Maintain Your Vehicle?.......................... 375
Why Maintain Your Vehicle at Your Dealership?..................................................... 375
Getting Assistance Outside the U.S. and Canada.........................................................220
Getting the Services You Need................217 Away From Home............................................... 217
Global Opening
...............................................76
Opening the Windows........................................ 76
H
Handbrake See: Parking Brake............................................. 160
Hazard Warning Flashers
...........................213
Headlamp Adjusting See: Adjusting the Headlamps..................... 252
Headlamp Exit Delay
......................................71
Head Restraints.............................................116
Adjusting the Head Restraint........................... 117
Tilting Head Restraints ..................................... 118
Heated Seats
..................................................124
Rear Heated Seats............................................. 124
Heated Steering Wheel
...............................65
Heated Windows and Mirrors...................114 Heated Exterior Mirror........................................ 114
Heated Rear Window......................................... 114
Heating See: Climate Control......................................... 106
414
Taurus (CPH) Canada/United States of America, enUSA, First Printing Index

J
Jump Starting the Vehicle.........................214
Connecting the Jumper Cables..................... 214
Jump Starting....................................................... 215
Preparing Your Vehicle...................................... 214
Removing the Jumper Cables........................ 215
K
Keyless Entry...................................................58
SECURICODE™ Keyless Entry
Keypad................................................................ 58
Keyless Starting
............................................134
Ignition Modes..................................................... 135
Keys and Remote Controls.........................43
L
Lane Keeping System.................................182 Switching the System On and Off...............183
Lighting Control
..............................................69
Headlamp Flasher............................................... 70
High Beams............................................................ 69
Lighting..............................................................69 General Information........................................... 69
Load Carrying.................................................195
Load Limit
.......................................................195
Special Loading Instructions for Owners of
Pick-up Trucks and Utility-type
Vehicles............................................................ 202
Vehicle Loading - with and without a Trailer................................................................. 195Locking and Unlocking
.................................54
Activating Intelligent Access............................ 55
Autolock.................................................................. 56
Autounlock.............................................................. 57
Battery Saver......................................................... 58
Enabling or Disabling Autolock and Autounlock......................................................... 57
Illuminated Entry................................................... 57
Illuminated Exit...................................................... 57
Locking and Unlocking the Doors with the Key Blade............................................................ 54
Opening a Rear Door From the Inside..........54
Opening the Luggage Compartment...........55
Power Door Locks................................................ 54
Remote Control.................................................... 54
Smart Unlocks for Integrated Keyhead Transmitter........................................................ 56
Smart Unlocks for Intelligent Access Keys...................................................................... 56
Locks...................................................................54
Lug Nuts See: Changing a Road Wheel....................... 288
M
Maintenance..................................................234 General Information......................................... 234
Manual Climate Control
............................106
Manual Seats..................................................118
Lumbar Adjustment........................................... 119
Moving the Seat Backward and Forward.............................................................. 118
Recline Adjustment............................................ 119
Media Hub
......................................................323
Memory Function..........................................122 Easy Entry and Exit Feature............................ 123
Saving a Preset Position................................... 122
Message Center See: Information Displays................................. 86
Mirrors See: Heated Windows and Mirrors...............114
See: Windows and Mirrors................................ 75
Mobile Communications Equipment
.......12
Moonroof...........................................................79 Bounce-Back......................................................... 79
Opening and Closing the Moonroof..............79
Venting the Moonroof......................................... 79
416
Taurus (CPH) Canada/United States of America, enUSA, First Printing Index
