2016 FORD POLICE INTERCEPTOR UTILITY check engine light

From the main menu scroll to:
Action and description
Message
Press the right arrow button,
then from this menu scroll
to the following message.
Settings
Press the right arrow button,
then from this menu scroll
to the following message.
Vehicle
Press the right arrow button,
then from this menu scroll
to the following message.
Oil Life
Press and hold the OK
button until the instrument
cluster displays the
following message.
Hold OK to
Reset
Reset Successful
When the oil change indic-
ator resets the instrument
cluster displays 100%.
Remaining Life
{00}%
If the instrument cluster
displays one of the following
messages, repeat the
process.
Not Reset
Reset Cancelled
ENGINE COOLANT CHECK WARNINGS
Do not add engine coolant when the
engine is hot. Steam and scalding
liquids released from a hot cooling
system can burn you badly. Also, spilling
coolant on hot engine parts can burn you. WARNINGS
Do not put engine coolant in the
windshield washer fluid container. If
sprayed on the windshield, engine
coolant could make it difficult to see
through the windshield. To reduce the risk of personal injury,
make sure the engine is cool before
unscrewing the coolant pressure
relief cap. The cooling system is under
pressure. Steam and hot liquid can come
out forcefully when you loosen the cap
slightly. Do not add coolant further than the
MAX mark.
Checking the Engine Coolant
When the engine is cold, check the
concentration and level of the engine
coolant at the intervals listed in the
scheduled maintenance information.
See
Scheduled Maintenance (page 296).
Note: Make sure that the coolant level is
between the
MIN and MAX marks on the
coolant reservoir.
Note: Coolant expands when it is hot. The
level may extend beyond the
MAX mark.
Note: If the level is at the MIN mark, below
the MIN mark, or empty, add coolant
immediately.
Maintain coolant concentration within
48% to 50%, which equates to a freeze
point between -30°F (-34°C) and -34°F
(-37°C).
Note: For best results, coolant
concentration should be tested with a
refractometer such as Robinair® Coolant
and Battery Refractometer 75240. We do
not recommend the use of hydrometers or
coolant test strips for measuring coolant
concentrations.
181
Explorer (TUB), enUSA, Edition date: 03/2015, First Printing Maintenance

Note:
Automotive fluids are not
interchangeable. Do not use engine coolant,
antifreeze or windshield washer fluid outside
of its specified function and vehicle location.
Adding Engine Coolant
Note: Do not use stop leak pellets, cooling
system sealants or additives as they can
cause damage to the engine cooling or
heating systems. Your warranty may not
cover these damages.
Note: During normal vehicle operation, the
coolant may change color from orange to
pink or light red. As long as the coolant is
clear and uncontaminated, this color change
does not indicate the coolant has degraded
nor does it require the coolant to be drained,
the system to be flushed, or the coolant to
be replaced.
Do not mix different colors or types of
coolant in your vehicle. Mixing of engine
coolants may harm your engine ’s cooling
system. The use of an improper coolant
may harm engine and cooling system
components and may void the warranty.
Use prediluted engine coolant meeting the
Ford specification.
In case of emergency, you can add a large
amount of water without engine coolant
in order to reach a vehicle service location.
In this instance, qualified personnel:
1. Must drain the cooling system.
2. Chemically clean the cooling system with Motorcraft Premium Cooling
System Flush.
3. Refill with engine coolant as soon as possible.
Water alone, without engine coolant, can
cause engine damage from corrosion,
overheating or freezing. Do not use the following as a coolant
substitute:
•
Alcohol.
• Methanol.
• Brine.
• Any engine coolant mixed with alcohol
or methanol antifreeze or coolant.
Alcohol and other liquids can cause engine
damage from overheating or freezing.
Do not add extra inhibitors or additives to
the coolant. These can be harmful and
compromise the corrosion protection of
the engine coolant.
When adding coolant:
1. Unscrew the cap slowly. Any pressure will escape as you unscrew the cap.
2. Add prediluted engine coolant meeting
the Ford specification.
3. Check the coolant level in the coolant reservoir the next few times you drive
your vehicle.
4. If necessary, add enough prediluted engine coolant to bring the coolant
level to the proper level.
Recycled Engine Coolant
Ford Motor Company does not recommend
the use of recycled engine coolant since a
Ford-approved recycling process is not yet
available.
Used engine coolant should be disposed
of in an appropriate manner. Follow your
community ’s regulations and standards
for recycling and disposing of automotive
fluids.
182
Explorer (TUB), enUSA, Edition date: 03/2015, First Printing Maintenance

General
•
Store all vehicles in a dry, ventilated
place.
• Protect from sunlight, if possible.
• If vehicles are stored outside, they
require regular maintenance to protect
against rust and damage.
Body
• Wash your vehicle thoroughly to
remove dirt, grease, oil, tar or mud from
exterior surfaces, rear-wheel housing
and the underside of front fenders.
• Periodically wash your vehicle if it is
stored in exposed locations.
• Touch-up exposed or primed metal to
prevent rust.
• Cover chrome and stainless steel parts
with a thick coat of auto wax to prevent
discoloration. Re-wax as necessary
when you wash your vehicle.
• Lubricate all hood, door and luggage
compartment hinges and latches with
a light grade oil.
• Cover interior trim to prevent fading.
• Keep all rubber parts free from oil and
solvents.
Engine
• Change the engine oil and filter prior to
storage because used engine oil
contains contaminates which may
cause engine damage.
• Start the engine every 15 days for a
minimum of 15 minutes. Run at fast idle
with the climate controls set to defrost
until the engine reaches normal
operating temperature. •
With your foot on the brake, shift
through all the gears while the engine
is running.
• We recommend that you change the
engine oil before you use your vehicle
again.
Fuel system
• Fill the fuel tank with high-quality fuel
until the first automatic shutoff of the
fuel pump nozzle.
Cooling system
• Protect against freezing temperatures.
• When removing your vehicle from
storage, check coolant fluid level.
Confirm that there are no cooling
system leaks and that fluid is at the
recommended level.
Battery
• Check and recharge as necessary. Keep
connections clean.
• If storing your vehicle for more than 30
days without recharging the battery,
we recommend that you disconnect
the battery cables to maintain battery
charge for quick starting.
Note: It is necessary to reset memory
features if battery cables are disconnected.
Brakes
• Make sure the brakes and parking brake
release fully.
Tires
• Maintain recommended air pressure.
203
Explorer (TUB), enUSA, Edition date: 03/2015, First Printing Vehicle Care

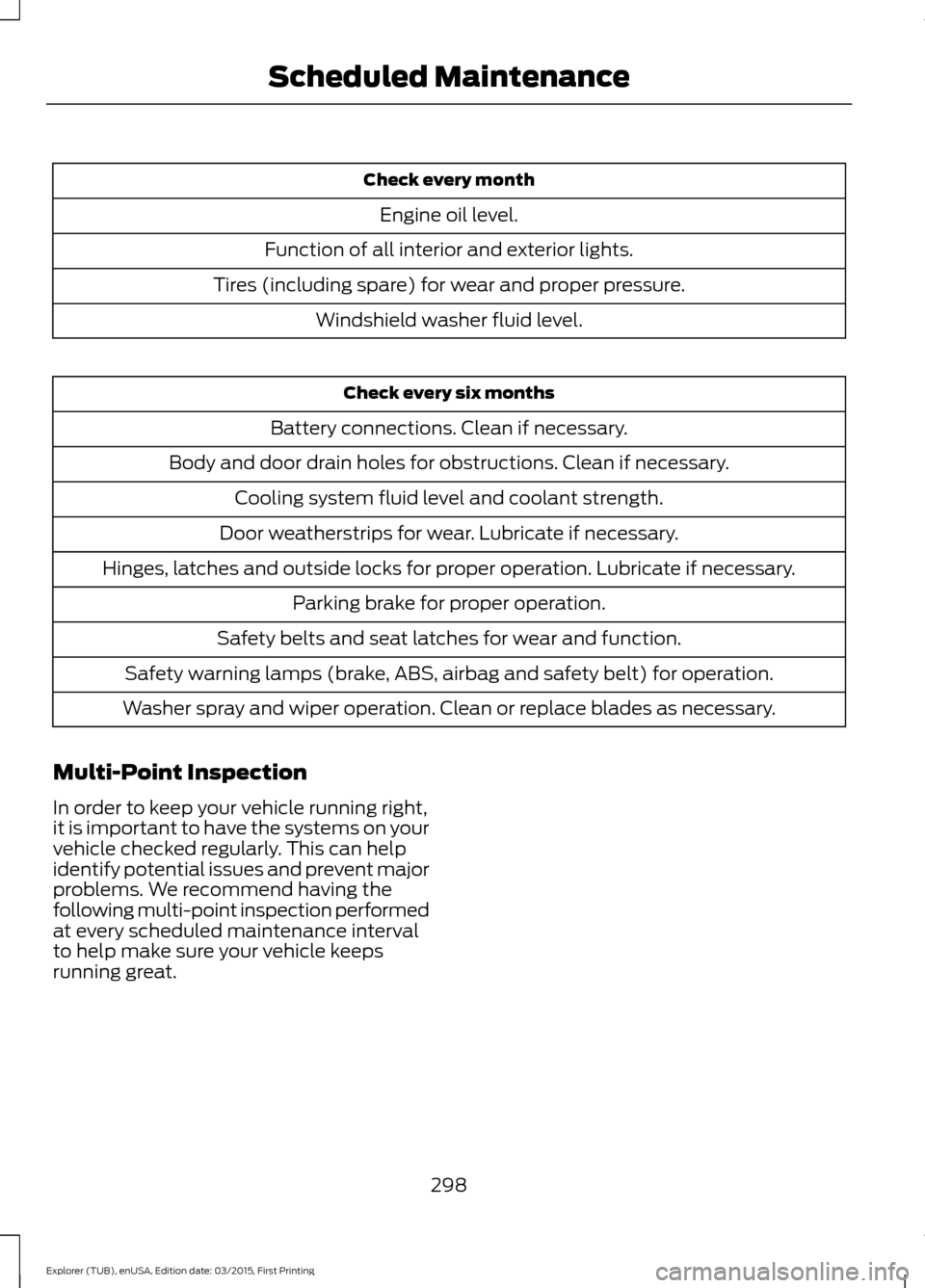

Check every month
Engine oil level.
Function of all interior and exterior lights.
Tires (including spare) for wear and proper pressure. Windshield washer fluid level. Check every six months
Battery connections. Clean if necessary.
Body and door drain holes for obstructions. Clean if necessary. Cooling system fluid level and coolant strength.
Door weatherstrips for wear. Lubricate if necessary.
Hinges, latches and outside locks for proper operation. Lubricate if necessary. Parking brake for proper operation.
Safety belts and seat latches for wear and function.
Safety warning lamps (brake, ABS, airbag and safety belt) for operation.
Washer spray and wiper operation. Clean or replace blades as necessary.
Multi-Point Inspection
In order to keep your vehicle running right,
it is important to have the systems on your
vehicle checked regularly. This can help
identify potential issues and prevent major
problems. We recommend having the
following multi-point inspection performed
at every scheduled maintenance interval
to help make sure your vehicle keeps
running great.
298
Explorer (TUB), enUSA, Edition date: 03/2015, First Printing Scheduled Maintenance

Changing a Bulb............................................192
Front Direction Indicator.................................. 192
Front Fog Lamp................................................... 193
Headlamp.............................................................. 192
Headlamp High Beam...................................... 193
LED Lamps............................................................ 194
License Plate Lamp........................................... 195
Rear Direction Indicator and Reversing Lamp.................................................................. 194
Changing a Fuse............................................175
Fuses........................................................................\
175
Changing a Road Wheel............................227 Dissimilar Spare Wheel and Tire Assembly
Information...................................................... 227
Tire Change Procedure.................................... 228
Changing the 12V Battery..........................187
Changing the Engine Air Filter..................197
Changing the Wiper Blades
.....................189
Front Wiper Blades............................................ 189
Rear Wiper Blade............................................... 189
Checking the Wiper Blades
......................189
Child Restraint and Safety Belt Maintenance.................................................32
Child Safety
.......................................................13
General Information............................................. 13
Child Safety Locks
..........................................24
Left-Hand Side...................................................... 25
Right-Hand Side................................................... 25
Child Seat Positioning...................................22
Cleaning Leather Seats..............................201
Cleaning Products
.......................................198
Cleaning the Alloy Wheels.......................202
Cleaning the Engine
....................................199
Cleaning the Exterior...................................198 Exterior Chrome Parts...................................... 198
Exterior Plastic Parts......................................... 199
Stripes or Graphics............................................ 199
Underbody............................................................ 199
Cleaning the Instrument Panel and Instrument Cluster Lens.........................201
Cleaning the Interior
..................................200
Cleaning the Windows and Wiper Blades...........................................................200
Climate Control
..............................................86
Coolant Check See: Engine Coolant Check............................. 181
Crash Sensors and Airbag Indicator.......40 Airbags and Police Equipment........................ 41Cross Traffic Alert.........................................133
False Alerts............................................................ 135
Switching the System Off and On................135
System Errors....................................................... 135
System Lights, Messages and Audible Alerts.................................................................. 135
System Limitations............................................ 135
System Sensors................................................... 135
Using the System................................................ 133
Cruise Control
..................................................54
Principle of Operation....................................... 129
Cruise control See: Using Cruise Control................................ 129
Customer Assistance
...................................161
D
Data Recording
..................................................7
Event Data Recording............................................ 7
Service Data Recording......................................... 7
Daytime Running Lamps............................60
Digital Radio
..................................................250
HD Radio Reception and Station
Troubleshooting............................................. 251
Direction Indicators
........................................61
Driver and Passenger Airbags....................35 Children and Airbags........................................... 35
Proper Driver and Front Passenger Seating Adjustment........................................................ 35
Driving Aids
......................................................131
Driving Hints....................................................153
Driving Through Water................................154
DRL See: Daytime Running Lamps........................ 60
E
Economical Driving
......................................153
Emission Control System..........................107 On-Board Diagnostics (OBD-II)................... 108
Readiness for Inspection/Maintenance (I/M) Testing................................................... 108
End User License Agreement..................316 SYNC End User License Agreement
(EULA)............................................................... 316
Engine Block Heater.....................................99 Using the Engine Block Heater....................... 99
340
Explorer (TUB), enUSA, Edition date: 03/2015, First Printing Index

K
Keys and Remote Controls........................46
Principle of Operation........................................ 46
L
Lighting Control..............................................58
Headlamp Flasher............................................... 59
High Beams............................................................ 58
Spot Lamp Control.............................................. 59
Lighting..............................................................58 General Information............................................ 58
Load Carriers See: Roof Racks and Load Carriers..............137
Load Carrying
..................................................137
Load Limit.......................................................138
Special Loading Instructions for Owners of
Pick-up Trucks and Utility-type
Vehicles............................................................. 145
Vehicle Loading - with and without a Trailer .................................................................. 138
Locking and Unlocking
................................48
Battery Saver......................................................... 50
Hidden Rear Door Locks.................................... 48
Illuminated Entry.................................................. 50
Illuminated Exit..................................................... 50
Independent Liftgate Locking Feature........49
Locking and Unlocking the Doors with the Key Blade........................................................... 49
Opening a Rear Door From the Inside..........50
Power Door Locks................................................ 48
Remote Control.................................................... 48
Locks...................................................................48
Lug Nuts See: Changing a Road Wheel........................ 227
M
Maintenance...................................................176 General Information........................................... 176
Manual Climate Control..............................86
Manual Liftgate
..............................................50
Closing the Liftgate.............................................. 51
Opening the Liftgate............................................ 51Manual Seats
...................................................92
Lumbar Adjustment............................................ 93
Moving the Seat Backward and Forward............................................................... 92
Recline Adjustment............................................. 92
Message Center See: Information Displays................................. 73
Mirrors See: Heated Windows and Mirrors................88
See: Windows and Mirrors................................ 63
Mobile Communications Equipment........11
Motorcraft Parts - 3.5L Ecoboost™.................................................234
Motorcraft Parts - 3.7L...............................235
N
Normal Scheduled Maintenance
..........299
Intelligent Oil-Life Monitor™........................ 299
Normal Maintenance Intervals.................... 300
O
Oil Change Indicator Reset.......................180
Oil Check See: Engine Oil Check....................................... 180
Opening and Closing the Hood
................177
Closing the Hood................................................ 178
Opening the Hood............................................... 177
Ordering Additional Owner's Literature......................................................165
Obtaining a French Owner ’s Manual..........165
Overhead Console
.........................................96
P
Parking Aids
....................................................124
Principle of Operation....................................... 124
Parking Brake.................................................120
Passenger Knee Airbag................................39
Pedals.................................................................55
Perchlorate..........................................................9
Personal Safety System ™
..........................33
How Does the Personal Safety System
Work?................................................................... 33
Post-Crash Alert System
...........................160
Power Door Locks See: Locking and Unlocking............................. 48
343
Explorer (TUB), enUSA, Edition date: 03/2015, First Printing Index
