2016 FORD POLICE INTERCEPTOR SEDAN fuse chart

Cruise Control
Principle of Operation..................................121
Using Cruise Control.....................................121
Driving Aids
Blind Spot Information System...............123
Cross Traffic Alert.........................................125
Steering............................................................128
Load Carrying
Rear Loadspace Hatches..........................130
Rear Under Floor Storage
..........................130
Load Limit
.......................................................130
Towing
Towing a Trailer.............................................138
Recommended Towing Weights............139
Essential Towing Checks...........................140
Transporting the Vehicle............................142
Towing the Vehicle on Four Wheels......142
Driving Hints
Breaking-In......................................................144
Economical Driving......................................144
Driving Through Water
................................145
Floor Mats
.......................................................145
Roadside Emergencies
Roadside Assistance...................................147
Hazard Warning Flashers
..........................148
Fuel Shutoff
...................................................148
Jump Starting the Vehicle
.........................149
Customer Assistance
Getting the Services You Need
................152
In California (U.S. Only)..............................153
The Better Business Bureau (BBB) Auto Line Program (U.S. Only)......................154
Utilizing the Mediation/Arbitration Program (Canada Only)........................155 Getting Assistance Outside the U.S. and
Canada.........................................................155
Ordering Additional Owner's Literature.....................................................156
Reporting Safety Defects (U.S. Only)..............................................................157
Reporting Safety Defects (Canada Only)..............................................................157
Fuses
Fuse Specification Chart...........................159
Changing a Fuse
...........................................168
Maintenance
General Information
....................................170
Opening and Closing the Hood
...............170
Under Hood Overview - 2.0L EcoBoost™.................................................172
Under Hood Overview - 3.5L Ecoboost™.................................................173
Under Hood Overview - 3.5L Duratec/ 3.7L.................................................................174
Engine Oil Dipstick - 2.0L EcoBoost™.................................................175
Engine Oil Dipstick - 3.5L Duratec/3.5L Ecoboost™/3.7L.......................................175
Engine Oil Check
...........................................175
Oil Change Indicator Reset.......................176
Engine Coolant Check.................................176
Automatic Transmission Fluid Check - 2.0L EcoBoost™
......................................180
Automatic Transmission Fluid Check - 3.5L Duratec/3.5L Ecoboost™/
3.7L................................................................180
Brake Fluid Check.........................................184
Power Steering Fluid Check.....................184
Washer Fluid Check.....................................184
Fuel Filter
.........................................................185
Changing the 12V Battery..........................185
Checking the Wiper Blades
.......................187
Changing the Wiper Blades
......................187
Adjusting the Headlamps..........................187
3
Police Interceptor (CPH), enUSA, Edition date: 10/2015, First Printing Table of Contents

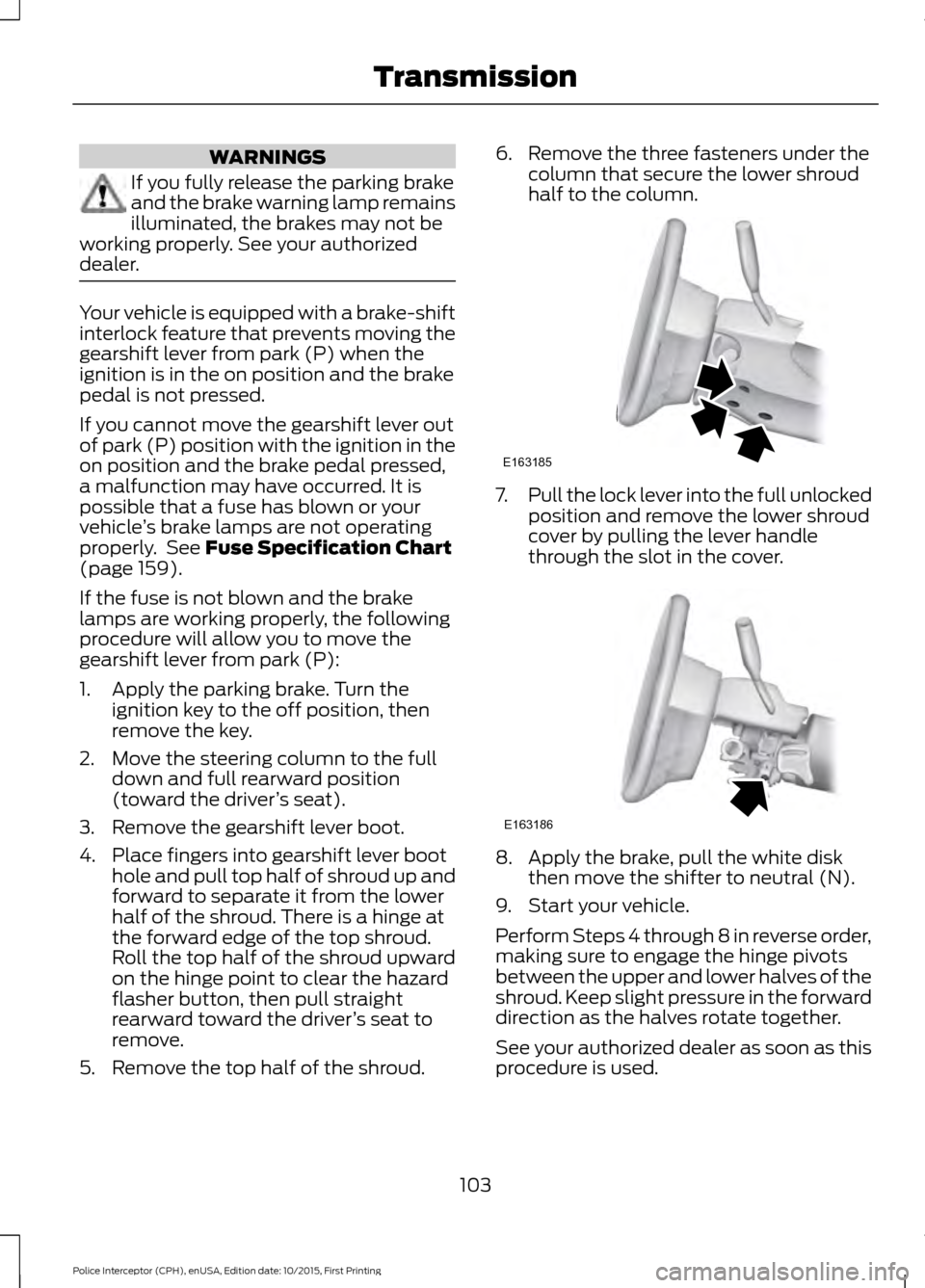

WARNINGS
If you fully release the parking brake
and the brake warning lamp remains
illuminated, the brakes may not be
working properly. See your authorized
dealer. Your vehicle is equipped with a brake-shift
interlock feature that prevents moving the
gearshift lever from park (P) when the
ignition is in the on position and the brake
pedal is not pressed.
If you cannot move the gearshift lever out
of park (P) position with the ignition in the
on position and the brake pedal pressed,
a malfunction may have occurred. It is
possible that a fuse has blown or your
vehicle
’s brake lamps are not operating
properly. See Fuse Specification Chart
(page 159).
If the fuse is not blown and the brake
lamps are working properly, the following
procedure will allow you to move the
gearshift lever from park (P):
1. Apply the parking brake. Turn the ignition key to the off position, then
remove the key.
2. Move the steering column to the full down and full rearward position
(toward the driver ’s seat).
3. Remove the gearshift lever boot.
4. Place fingers into gearshift lever boot hole and pull top half of shroud up and
forward to separate it from the lower
half of the shroud. There is a hinge at
the forward edge of the top shroud.
Roll the top half of the shroud upward
on the hinge point to clear the hazard
flasher button, then pull straight
rearward toward the driver ’s seat to
remove.
5. Remove the top half of the shroud. 6. Remove the three fasteners under the
column that secure the lower shroud
half to the column. 7.
Pull the lock lever into the full unlocked
position and remove the lower shroud
cover by pulling the lever handle
through the slot in the cover. 8. Apply the brake, pull the white disk
then move the shifter to neutral (N).
9. Start your vehicle.
Perform Steps 4 through 8 in reverse order,
making sure to engage the hinge pivots
between the upper and lower halves of the
shroud. Keep slight pressure in the forward
direction as the halves rotate together.
See your authorized dealer as soon as this
procedure is used.
103
Police Interceptor (CPH), enUSA, Edition date: 10/2015, First Printing TransmissionE163185 E163186

FUSE SPECIFICATION CHART
Power Distribution Box
WARNINGS
Always disconnect the battery before
servicing high-current fuses.
To reduce risk of electrical shock,
always replace the cover to the
power distribution box before
reconnecting the battery or refilling fluid
reservoirs. The power distribution box is in the engine
compartment. It has high-current fuses
that protect the vehicle's main electrical
systems from overloads.
If you disconnect and reconnect the
battery, you will need to reset some
features. See Changing the 12V Battery
(page 185).
Protected components
Fuse amp rating
Fuse or relay number
Rear power point tap feed 1.
50A **
1
Rear power point tap feed 2.
50A **
2
Not used.
-
3
Wiper motor relay.
30A **
4
Anti-lock brake system pump.
50A **
5
Center console 6-way B+ feed 2.
40A **
6
159
Police Interceptor (CPH), enUSA, Edition date: 10/2015, First Printing FusesE173618
97
98
77 96
95
94
9392 919089
88
66
44 78
56
39 26 18 16
17
3 1
2
4
5
6
7
8
9 19
20
21
22
23
24 27
28
29
30
31 40
41
42
43 55
57
58
59
60
61
62
63
64
65 79
80
81
82
83
84
85
86
87
67
45
32
10
11
12
13 33
34
35 46
47
48
49
50
51 68
69
70
71
72
74
73
76
75
53
37 36
54
38
25
15
1452

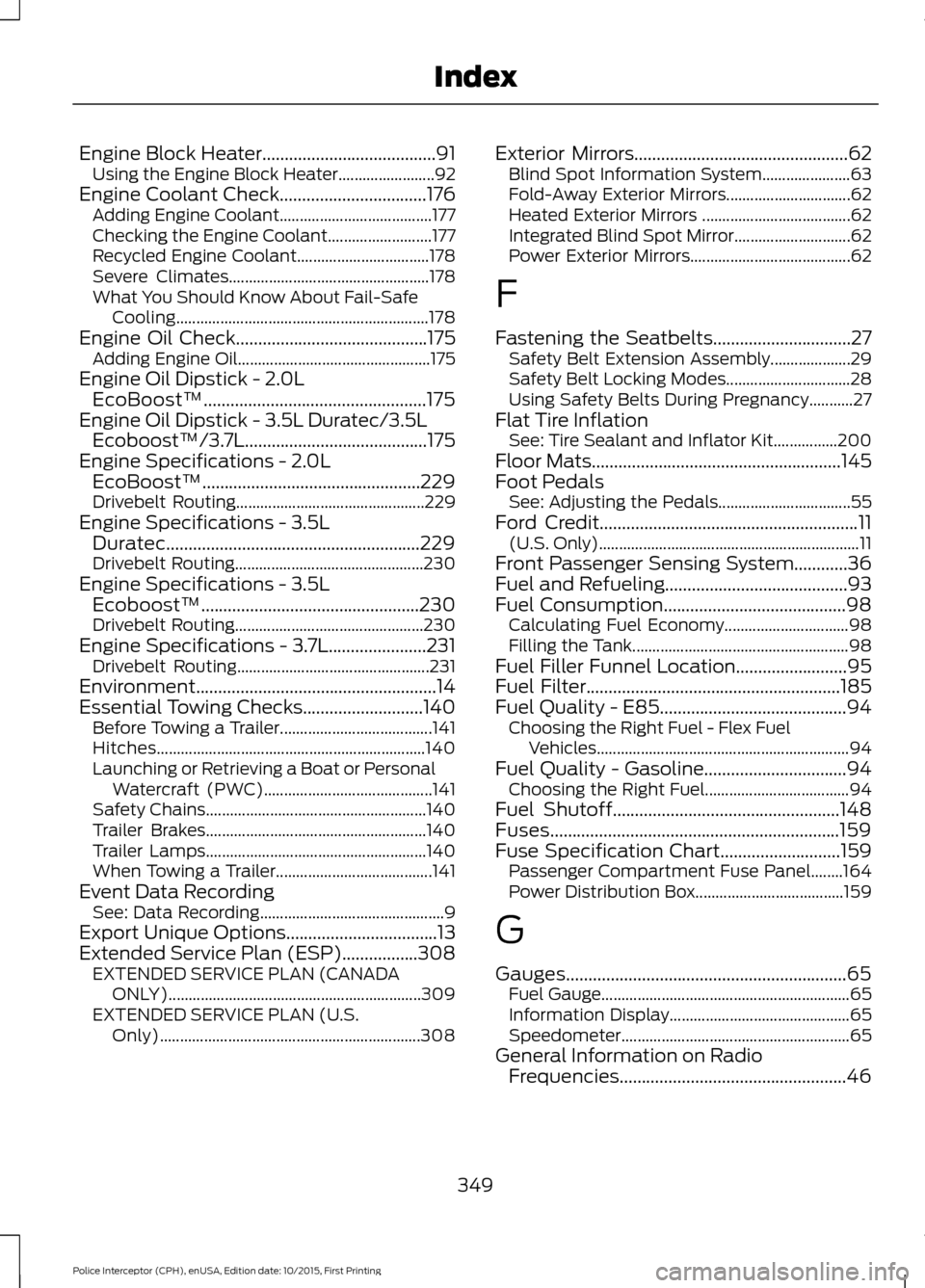

Engine Block Heater.......................................91
Using the Engine Block Heater........................ 92
Engine Coolant Check.................................176 Adding Engine Coolant...................................... 177
Checking the Engine Coolant.......................... 177
Recycled Engine Coolant................................. 178
Severe Climates.................................................. 178
What You Should Know About Fail-Safe Cooling............................................................... 178
Engine Oil Check...........................................175 Adding Engine Oil................................................ 175
Engine Oil Dipstick - 2.0L EcoBoost™..................................................175
Engine Oil Dipstick - 3.5L Duratec/3.5L Ecoboost™/3.7L.........................................175
Engine Specifications - 2.0L EcoBoost™.................................................229
Drivebelt Routing............................................... 229
Engine Specifications - 3.5L Duratec.........................................................229
Drivebelt Routing............................................... 230
Engine Specifications - 3.5L Ecoboost™.................................................230
Drivebelt Routing............................................... 230
Engine Specifications - 3.7L......................231 Drivebelt Routing................................................ 231
Environment......................................................14
Essential Towing Checks...........................140 Before Towing a Trailer...................................... 141
Hitches................................................................... 140
Launching or Retrieving a Boat or Personal Watercraft (PWC).......................................... 141
Safety Chains....................................................... 140
Trailer Brakes....................................................... 140
Trailer Lamps....................................................... 140
When Towing a Trailer....................................... 141
Event Data Recording See: Data Recording.............................................. 9
Export Unique Options..................................13
Extended Service Plan (ESP).................308 EXTENDED SERVICE PLAN (CANADA
ONLY)............................................................... 309
EXTENDED SERVICE PLAN (U.S. Only)................................................................. 308Exterior Mirrors
................................................62
Blind Spot Information System...................... 63
Fold-Away Exterior Mirrors............................... 62
Heated Exterior Mirrors ..................................... 62
Integrated Blind Spot Mirror............................. 62
Power Exterior Mirrors........................................ 62
F
Fastening the Seatbelts...............................27 Safety Belt Extension Assembly.................... 29
Safety Belt Locking Modes............................... 28
Using Safety Belts During Pregnancy...........27
Flat Tire Inflation See: Tire Sealant and Inflator Kit................200
Floor Mats
........................................................145
Foot Pedals See: Adjusting the Pedals................................. 55
Ford Credit
..........................................................11
(U.S. Only)................................................................. 11
Front Passenger Sensing System............36
Fuel and Refueling.........................................93
Fuel Consumption.........................................98 Calculating Fuel Economy............................... 98
Filling the Tank...................................................... 98
Fuel Filler Funnel Location.........................95
Fuel Filter
.........................................................185
Fuel Quality - E85..........................................94 Choosing the Right Fuel - Flex Fuel
Vehicles............................................................... 94
Fuel Quality - Gasoline................................94 Choosing the Right Fuel.................................... 94
Fuel Shutoff
...................................................148
Fuses.................................................................159
Fuse Specification Chart...........................159 Passenger Compartment Fuse Panel........164
Power Distribution Box..................................... 159
G
Gauges...............................................................65 Fuel Gauge.............................................................. 65
Information Display............................................. 65
Speedometer......................................................... 65
General Information on Radio Frequencies...................................................46
349
Police Interceptor (CPH), enUSA, Edition date: 10/2015, First Printing Index
