2016 FORD FOCUS ELECTRIC technical specifications

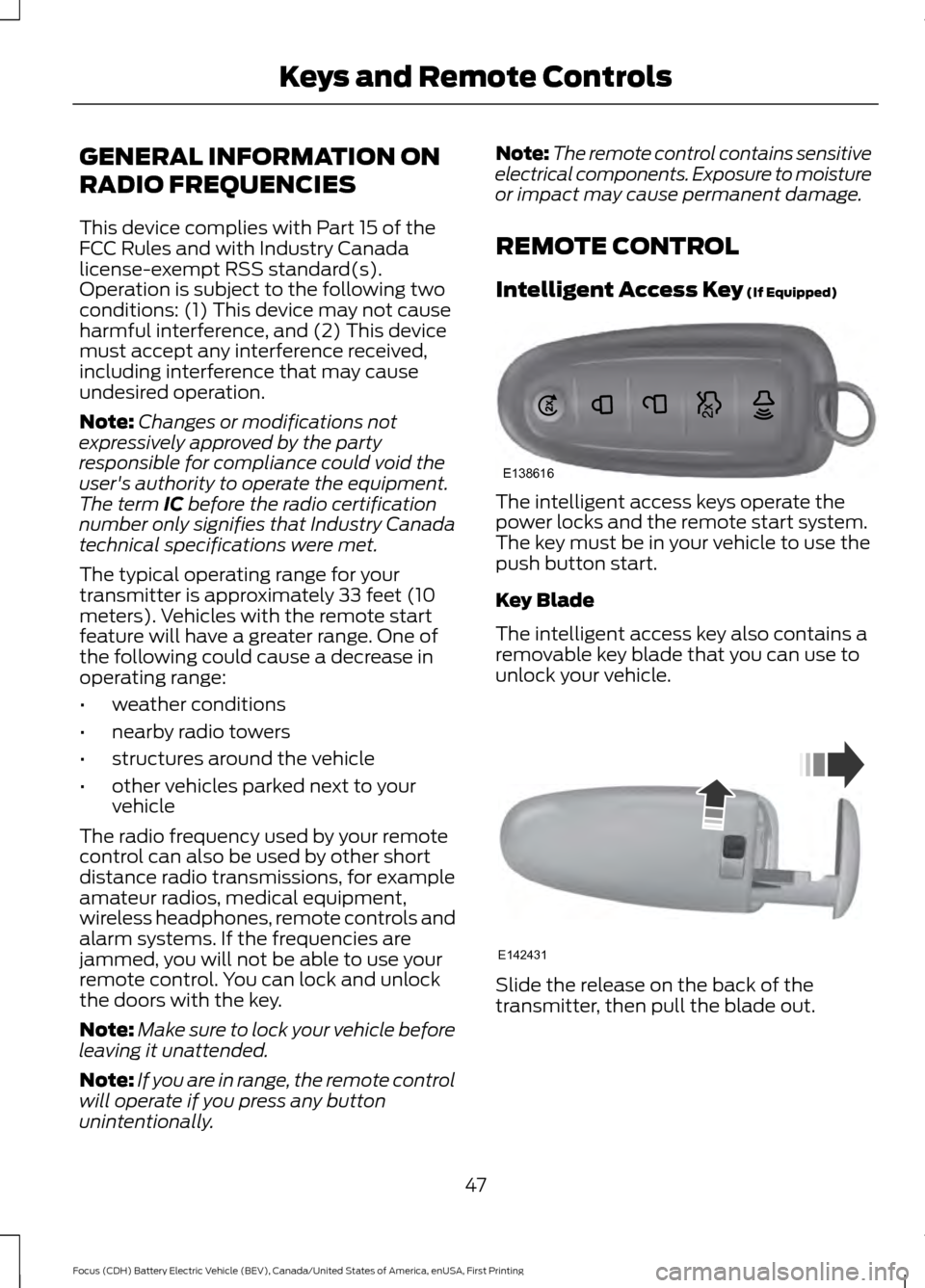

GENERAL INFORMATION ON
RADIO FREQUENCIES
This device complies with Part 15 of the
FCC Rules and with Industry Canada
license-exempt RSS standard(s).
Operation is subject to the following two
conditions: (1) This device may not cause
harmful interference, and (2) This device
must accept any interference received,
including interference that may cause
undesired operation.
Note:
Changes or modifications not
expressively approved by the party
responsible for compliance could void the
user's authority to operate the equipment.
The term IC before the radio certification
number only signifies that Industry Canada
technical specifications were met.
The typical operating range for your
transmitter is approximately 33 feet (10
meters). Vehicles with the remote start
feature will have a greater range. One of
the following could cause a decrease in
operating range:
• weather conditions
• nearby radio towers
• structures around the vehicle
• other vehicles parked next to your
vehicle
The radio frequency used by your remote
control can also be used by other short
distance radio transmissions, for example
amateur radios, medical equipment,
wireless headphones, remote controls and
alarm systems. If the frequencies are
jammed, you will not be able to use your
remote control. You can lock and unlock
the doors with the key.
Note: Make sure to lock your vehicle before
leaving it unattended.
Note: If you are in range, the remote control
will operate if you press any button
unintentionally. Note:
The remote control contains sensitive
electrical components. Exposure to moisture
or impact may cause permanent damage.
REMOTE CONTROL
Intelligent Access Key
(If Equipped) The intelligent access keys operate the
power locks and the remote start system.
The key must be in your vehicle to use the
push button start.
Key Blade
The intelligent access key also contains a
removable key blade that you can use to
unlock your vehicle.
Slide the release on the back of the
transmitter, then pull the blade out.
47
Focus (CDH) Battery Electric Vehicle (BEV), Canada/United States of America, enUSA, First Printing Keys and Remote ControlsE138616 E142431

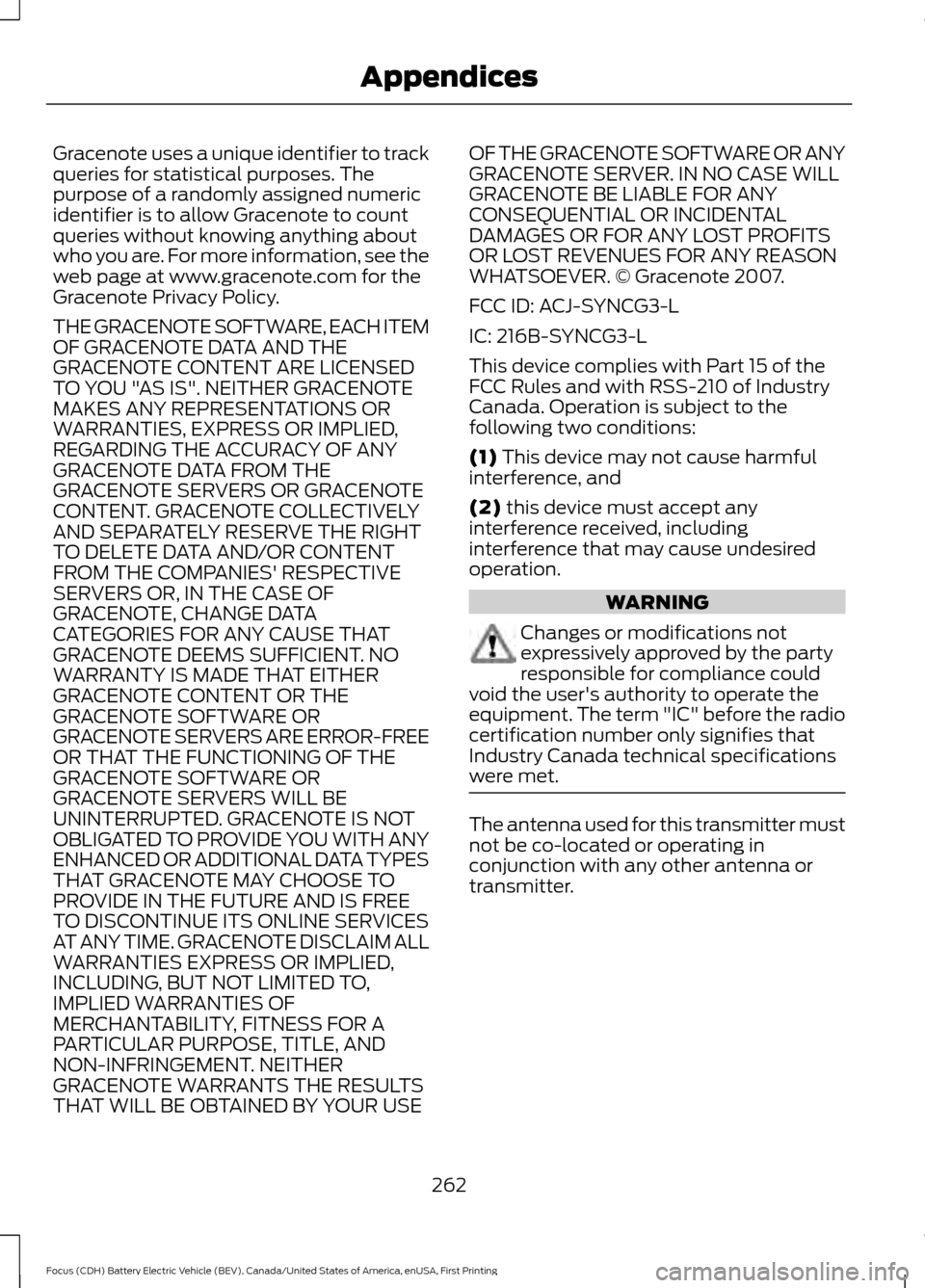

Gracenote uses a unique identifier to track
queries for statistical purposes. The
purpose of a randomly assigned numeric
identifier is to allow Gracenote to count
queries without knowing anything about
who you are. For more information, see the
web page at www.gracenote.com for the
Gracenote Privacy Policy.
THE GRACENOTE SOFTWARE, EACH ITEM
OF GRACENOTE DATA AND THE
GRACENOTE CONTENT ARE LICENSED
TO YOU "AS IS". NEITHER GRACENOTE
MAKES ANY REPRESENTATIONS OR
WARRANTIES, EXPRESS OR IMPLIED,
REGARDING THE ACCURACY OF ANY
GRACENOTE DATA FROM THE
GRACENOTE SERVERS OR GRACENOTE
CONTENT. GRACENOTE COLLECTIVELY
AND SEPARATELY RESERVE THE RIGHT
TO DELETE DATA AND/OR CONTENT
FROM THE COMPANIES' RESPECTIVE
SERVERS OR, IN THE CASE OF
GRACENOTE, CHANGE DATA
CATEGORIES FOR ANY CAUSE THAT
GRACENOTE DEEMS SUFFICIENT. NO
WARRANTY IS MADE THAT EITHER
GRACENOTE CONTENT OR THE
GRACENOTE SOFTWARE OR
GRACENOTE SERVERS ARE ERROR-FREE
OR THAT THE FUNCTIONING OF THE
GRACENOTE SOFTWARE OR
GRACENOTE SERVERS WILL BE
UNINTERRUPTED. GRACENOTE IS NOT
OBLIGATED TO PROVIDE YOU WITH ANY
ENHANCED OR ADDITIONAL DATA TYPES
THAT GRACENOTE MAY CHOOSE TO
PROVIDE IN THE FUTURE AND IS FREE
TO DISCONTINUE ITS ONLINE SERVICES
AT ANY TIME. GRACENOTE DISCLAIM ALL
WARRANTIES EXPRESS OR IMPLIED,
INCLUDING, BUT NOT LIMITED TO,
IMPLIED WARRANTIES OF
MERCHANTABILITY, FITNESS FOR A
PARTICULAR PURPOSE, TITLE, AND
NON-INFRINGEMENT. NEITHER
GRACENOTE WARRANTS THE RESULTS
THAT WILL BE OBTAINED BY YOUR USE
OF THE GRACENOTE SOFTWARE OR ANY
GRACENOTE SERVER. IN NO CASE WILL
GRACENOTE BE LIABLE FOR ANY
CONSEQUENTIAL OR INCIDENTAL
DAMAGES OR FOR ANY LOST PROFITS
OR LOST REVENUES FOR ANY REASON
WHATSOEVER. © Gracenote 2007.
FCC ID: ACJ-SYNCG3-L
IC: 216B-SYNCG3-L
This device complies with Part 15 of the
FCC Rules and with RSS-210 of Industry
Canada. Operation is subject to the
following two conditions:
(1) This device may not cause harmful
interference, and
(2)
this device must accept any
interference received, including
interference that may cause undesired
operation. WARNING
Changes or modifications not
expressively approved by the party
responsible for compliance could
void the user's authority to operate the
equipment. The term "IC" before the radio
certification number only signifies that
Industry Canada technical specifications
were met. The antenna used for this transmitter must
not be co-located or operating in
conjunction with any other antenna or
transmitter.
262
Focus (CDH) Battery Electric Vehicle (BEV), Canada/United States of America, enUSA, First Printing Appendices

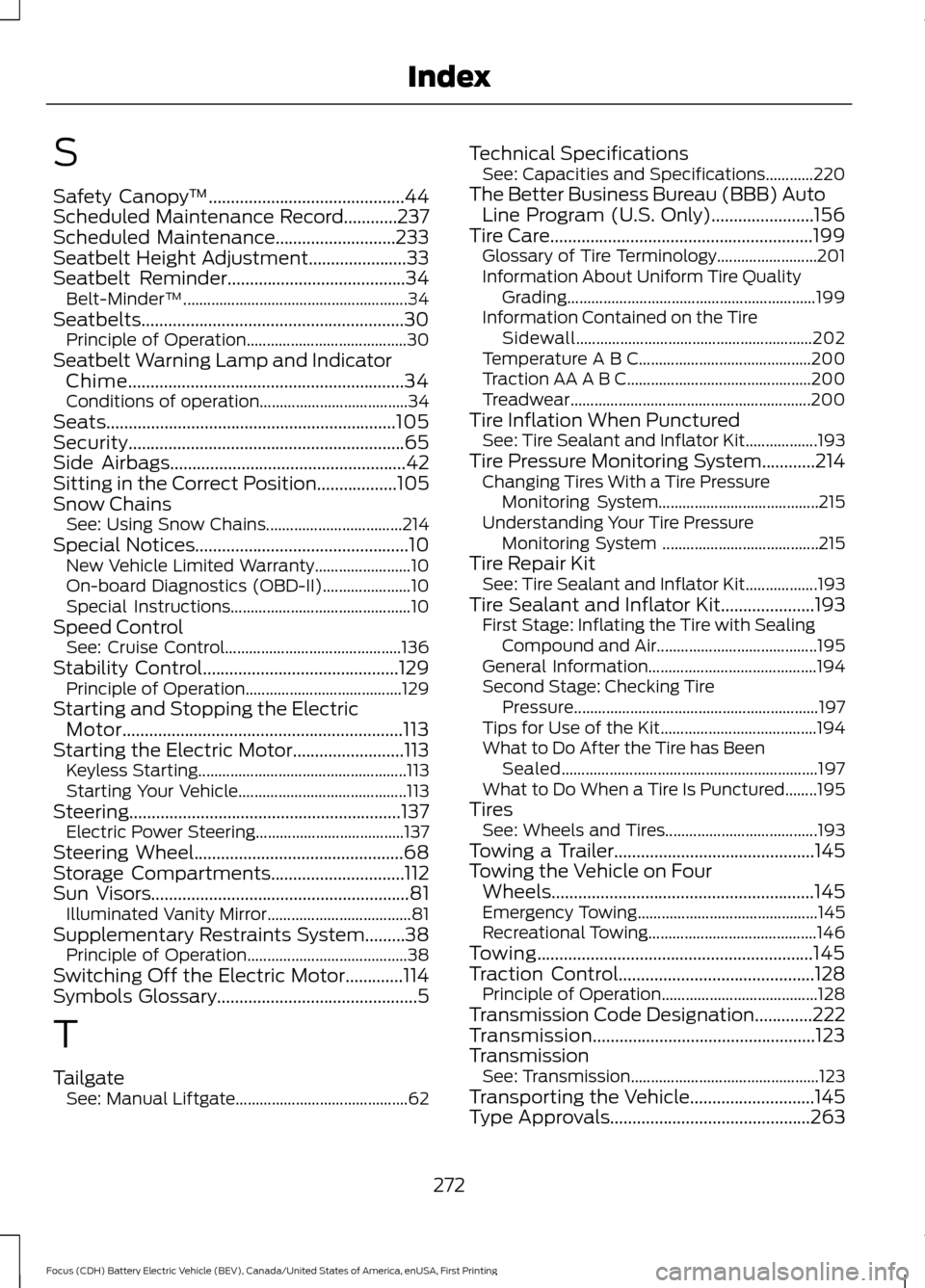

S
Safety Canopy
™............................................44
Scheduled Maintenance Record............237
Scheduled Maintenance...........................233
Seatbelt Height Adjustment
......................33
Seatbelt Reminder........................................34
Belt-Minder™........................................................ 34
Seatbelts...........................................................30 Principle of Operation........................................ 30
Seatbelt Warning Lamp and Indicator Chime..............................................................34
Conditions of operation..................................... 34
Seats.................................................................105
Security..............................................................65
Side Airbags.....................................................42
Sitting in the Correct Position
..................105
Snow Chains See: Using Snow Chains.................................. 214
Special Notices
................................................10
New Vehicle Limited Warranty........................ 10
On-board Diagnostics (OBD-II)...................... 10
Special Instructions............................................. 10
Speed Control See: Cruise Control............................................ 136
Stability Control
............................................129
Principle of Operation....................................... 129
Starting and Stopping the Electric Motor...............................................................113
Starting the Electric Motor.........................113 Keyless Starting.................................................... 113
Starting Your Vehicle.......................................... 113
Steering.............................................................137 Electric Power Steering..................................... 137
Steering Wheel
...............................................68
Storage Compartments..............................112
Sun Visors..........................................................81 Illuminated Vanity Mirror.................................... 81
Supplementary Restraints System.........38 Principle of Operation........................................ 38
Switching Off the Electric Motor.............114
Symbols Glossary.............................................5
T
Tailgate See: Manual Liftgate........................................... 62Technical Specifications
See: Capacities and Specifications............220
The Better Business Bureau (BBB) Auto Line Program (U.S. Only).......................156
Tire Care
...........................................................199
Glossary of Tire Terminology......................... 201
Information About Uniform Tire Quality Grading.............................................................. 199
Information Contained on the Tire Sidewall........................................................... 202
Temperature A B C........................................... 200
Traction AA A B C.............................................. 200
Treadwear............................................................ 200
Tire Inflation When Punctured See: Tire Sealant and Inflator Kit.................. 193
Tire Pressure Monitoring System............214 Changing Tires With a Tire Pressure
Monitoring System........................................ 215
Understanding Your Tire Pressure Monitoring System ....................................... 215
Tire Repair Kit See: Tire Sealant and Inflator Kit.................. 193
Tire Sealant and Inflator Kit
.....................193
First Stage: Inflating the Tire with Sealing
Compound and Air........................................ 195
General Information.......................................... 194
Second Stage: Checking Tire Pressure............................................................. 197
Tips for Use of the Kit....................................... 194
What to Do After the Tire has Been Sealed................................................................ 197
What to Do When a Tire Is Punctured........195
Tires See: Wheels and Tires...................................... 193
Towing a Trailer.............................................145
Towing the Vehicle on Four Wheels...........................................................145
Emergency Towing............................................. 145
Recreational Towing.......................................... 146
Towing..............................................................145
Traction Control
............................................128
Principle of Operation....................................... 128
Transmission Code Designation.............222
Transmission..................................................123
Transmission See: Transmission............................................... 123
Transporting the Vehicle............................145
Type Approvals
.............................................263
272
Focus (CDH) Battery Electric Vehicle (BEV), Canada/United States of America, enUSA, First Printing Index
