Parking aid
Parking brake
Power steering fluid
Power windows front/rear
Power window lockout
Service engine soon
Side airbag
Shield the eyes
Stability control
Windshield wash and wipe
DATA RECORDING
Service Data Recording
Service data recorders in your vehicle are
capable of collecting and storing
diagnostic information about your vehicle.
This potentially includes information about
the performance or status of various
systems and modules in the vehicle, such
as engine, throttle, steering or brake
systems. In order to properly diagnose and
service your vehicle, Ford Motor Company,
Ford of Canada, and service and repair facilities may access or share among them
vehicle diagnostic information received
through a direct connection to your vehicle
when diagnosing or servicing your vehicle.
Additionally, when your vehicle is in for
service or repair, Ford Motor Company,
Ford of Canada, and service and repair
facilities may access or share among them
data for vehicle improvement purposes.
For U.S. only (if equipped), if you choose
to use the SYNC Vehicle Health Report,
you consent that certain diagnostic
information may also be accessed
electronically by Ford Motor Company and
Ford authorized service facilities, and that
the diagnostic information may be used
for any purpose.
Event Data Recording
This vehicle is equipped with an event
data recorder. The main purpose of an
event data recorder is to record, in
certain crash or near crash-like
situations, such as an airbag
deployment or hitting a road obstacle;
this data will assist in understanding
how a vehicle
’s systems performed.
The event data recorder is designed to
record data related to vehicle dynamics
and safety systems for a short period
of time, typically 30 seconds or less.
The event data recorder in this vehicle
is designed to record such data as:
• How various systems in your vehicle
were operating;
• Whether or not the driver and
passenger safety belts were
buckled/fastened;
• How far (if at all) the driver was
depressing the accelerator and/or
the brake pedal; and
• How fast the vehicle was traveling;
and
• Where the driver was positioning
the steering wheel.
7
Focus (CDH) Battery Electric Vehicle (BEV), Canada/United States of America, enUSA, First Printing IntroductionE139213 E167012 E138639

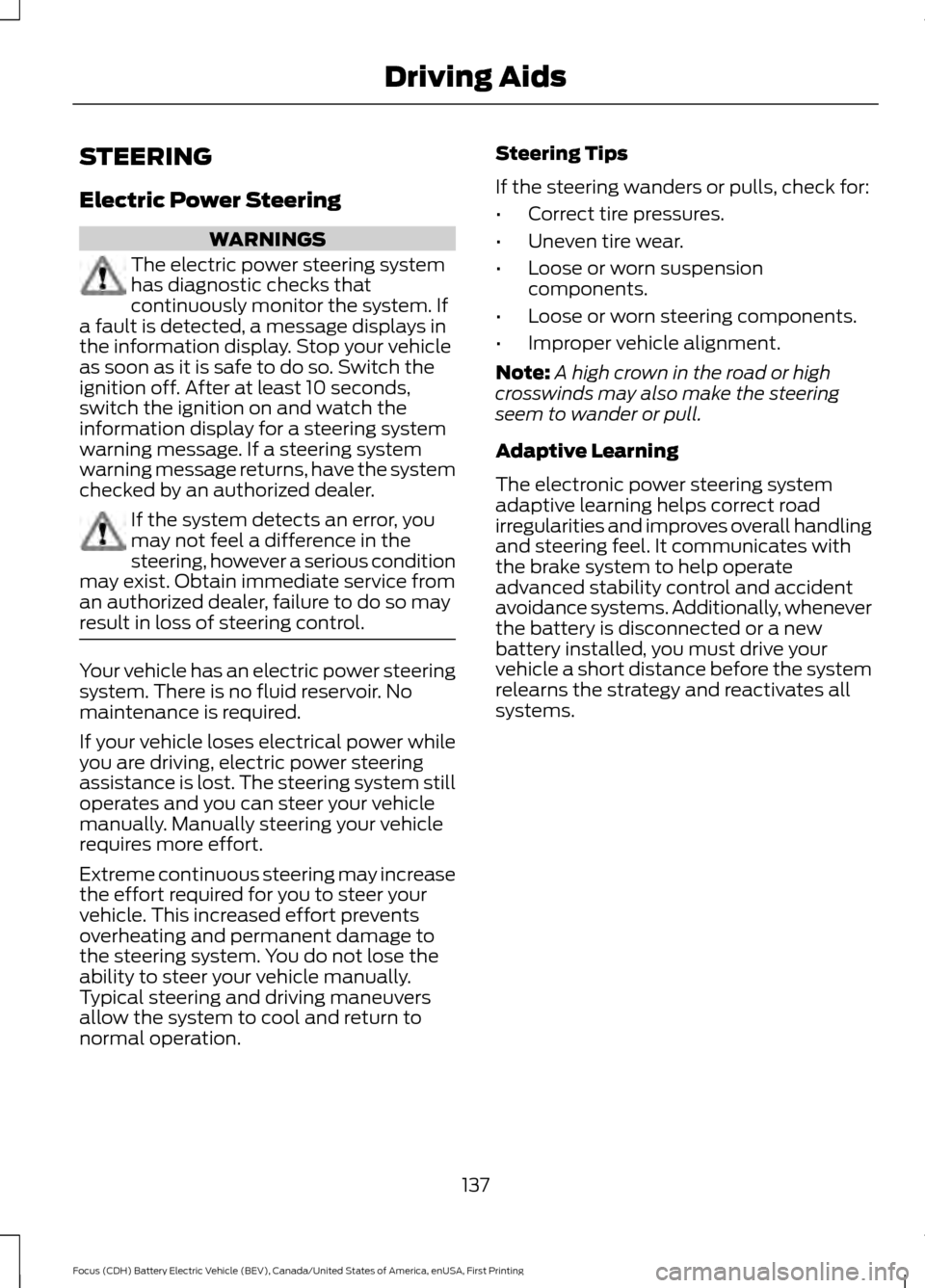

STEERING
Electric Power Steering
WARNINGS
The electric power steering system
has diagnostic checks that
continuously monitor the system. If
a fault is detected, a message displays in
the information display. Stop your vehicle
as soon as it is safe to do so. Switch the
ignition off. After at least 10 seconds,
switch the ignition on and watch the
information display for a steering system
warning message. If a steering system
warning message returns, have the system
checked by an authorized dealer. If the system detects an error, you
may not feel a difference in the
steering, however a serious condition
may exist. Obtain immediate service from
an authorized dealer, failure to do so may
result in loss of steering control. Your vehicle has an electric power steering
system. There is no fluid reservoir. No
maintenance is required.
If your vehicle loses electrical power while
you are driving, electric power steering
assistance is lost. The steering system still
operates and you can steer your vehicle
manually. Manually steering your vehicle
requires more effort.
Extreme continuous steering may increase
the effort required for you to steer your
vehicle. This increased effort prevents
overheating and permanent damage to
the steering system. You do not lose the
ability to steer your vehicle manually.
Typical steering and driving maneuvers
allow the system to cool and return to
normal operation. Steering Tips
If the steering wanders or pulls, check for:
•
Correct tire pressures.
• Uneven tire wear.
• Loose or worn suspension
components.
• Loose or worn steering components.
• Improper vehicle alignment.
Note: A high crown in the road or high
crosswinds may also make the steering
seem to wander or pull.
Adaptive Learning
The electronic power steering system
adaptive learning helps correct road
irregularities and improves overall handling
and steering feel. It communicates with
the brake system to help operate
advanced stability control and accident
avoidance systems. Additionally, whenever
the battery is disconnected or a new
battery installed, you must drive your
vehicle a short distance before the system
relearns the strategy and reactivates all
systems.
137
Focus (CDH) Battery Electric Vehicle (BEV), Canada/United States of America, enUSA, First Printing Driving Aids

FUSE SPECIFICATION CHART
Pre-Fuse Box
Your vehicle has a pre-fuse box located in
the electric motor compartment on the
front of the 12 volt battery box. It is
connected to the 12 volt battery positive
terminal. This fuse box contains several
high current fuses. If replacement of these
high current fuses is required, contact an
authorized dealer. Circuits protected
Fuse rating
Fuse
Electronic power assist steering.
80A
F1
DC/DC converter.
150A
F2
Power distribution box.
100A
F3
Body control module (KL30A supply).
50A
F4
High voltage battery coolant element one and two.
70A
F5
Load compartment fuse box.
70A
F6
Not used.
-
F7
Electric fan control module.
50A
F8
Body control module (KL30B supply).
50A
F9
High voltage battery coolant element three.
40A
F10
Electric Motor Compartment Fuse
Box WARNING
To reduce risk of electrical shock,
always replace the cover to the
power distribution box before
reconnecting the battery or refilling fluid
reservoirs. Always disconnect the 12 volt
battery before servicing high current fuses. This fuse box contains several high current
fuses that protect your vehicle's main
electrical systems from overloads.
If the 12 volt battery is disconnected and
reconnected, some features need to be
reset.
161
Focus (CDH) Battery Electric Vehicle (BEV), Canada/United States of America, enUSA, First Printing Fuses

A
A/C
See: Climate Control.......................................... 101
About This Manual...........................................5
ABS See: Brakes............................................................ 125
ABS driving hints See: Hints on Driving With Anti-Lock
Brakes.................................................................126
Accessories....................................................229 Exterior style........................................................ 229
Interior style......................................................... 229
Lifestyle................................................................. 229
Peace of mind..................................................... 229
Accessories See: Replacement Parts
Recommendation.............................................. 9
Adjusting the Headlamps.........................180 Horizontal Aim Adjustment............................. 181
Vertical Aim Adjustment................................. 180
Adjusting the Steering Wheel...................68
Airbag Disposal..............................................46
Air Conditioning See: Climate Control.......................................... 101
Alarm See: Anti-Theft Alarm........................................ 66
Ambient Lighting.............................................77
Anti-Theft Alarm............................................66 Arming the Alarm................................................ 66
Disarming the Alarm........................................... 67
Appendices.....................................................247
At a Glance
........................................................13
Audible Warnings and Indicators.............86
Headlamps On Warning Chime..................... 86
Keyless Warning Alert........................................ 86
Parking Brake On Warning Chime.................86
Audio Control..................................................68 Seek, Next or Previous....................................... 69
Audio System
................................................225
General Information.......................................... 225
Audio Unit - Vehicles With: Sony Audio System..........................................................226
Autolamps.........................................................74 Windshield Wiper Activated
Headlamps......................................................... 74Automatic Climate Control.......................101
Dual Zone Temperature Control................... 102
Single Zone Temperature Control................102
Temperature Control......................................... 102
Automatic Transmission
............................123
Brake-Shift Interlock.......................................... 123
If Your Vehicle Gets Stuck In Mud or Snow................................................................... 124
Understanding the Positions of Your Automatic Transmission............................. 123
Auxiliary Power Points..................................111 12 Volt DC Power Point....................................... 111
Location.................................................................... 111
B
Battery See: Changing the 12V Battery....................... 177
Bonnet Lock See: Opening and Closing the Hood............173
Booster Seats..................................................25 Types of Booster Seats...................................... 26
Brake Fluid Check.........................................176
Brakes................................................................125 General Information.......................................... 125
Breaking-In......................................................147
Bulb Specification Chart...........................184
C
Cabin Air Filter...............................................104
California Proposition 65...............................9
Capacities and Specifications................223 Specifications...................................................... 223
Car Wash See: Cleaning the Exterior............................... 186
Center Console
...............................................112
Changing a Bulb............................................182
Headlamp.............................................................. 182
Licence Plate and High Mounted Brake Lamp.................................................................. 184
Rear Lamp............................................................. 183
Changing a Fuse.............................................171 Fuses........................................................................\
. 171
Changing a Road Wheel............................218 Important Information for Lifting or
Jacking............................................................... 218
Changing the 12V Battery...........................177
267
Focus (CDH) Battery Electric Vehicle (BEV), Canada/United States of America, enUSA, First Printing Index
