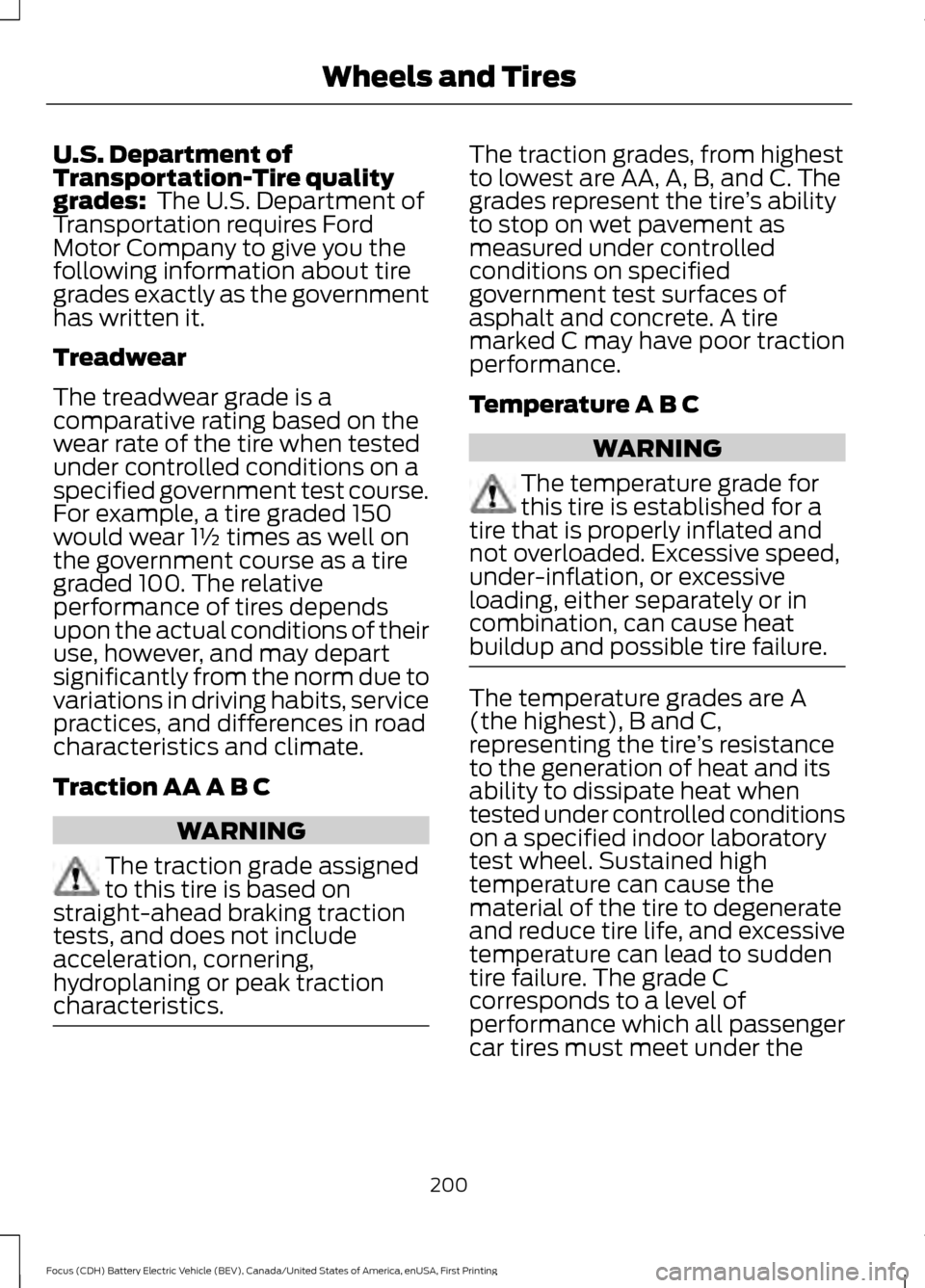

U.S. Department of
Transportation-Tire quality
grades: The U.S. Department of
Transportation requires Ford
Motor Company to give you the
following information about tire
grades exactly as the government
has written it.
Treadwear
The treadwear grade is a
comparative rating based on the
wear rate of the tire when tested
under controlled conditions on a
specified government test course.
For example, a tire graded 150
would wear 1½ times as well on
the government course as a tire
graded 100. The relative
performance of tires depends
upon the actual conditions of their
use, however, and may depart
significantly from the norm due to
variations in driving habits, service
practices, and differences in road
characteristics and climate.
Traction AA A B C WARNING
The traction grade assigned
to this tire is based on
straight-ahead braking traction
tests, and does not include
acceleration, cornering,
hydroplaning or peak traction
characteristics. The traction grades, from highest
to lowest are AA, A, B, and C. The
grades represent the tire
’s ability
to stop on wet pavement as
measured under controlled
conditions on specified
government test surfaces of
asphalt and concrete. A tire
marked C may have poor traction
performance.
Temperature A B C WARNING
The temperature grade for
this tire is established for a
tire that is properly inflated and
not overloaded. Excessive speed,
under-inflation, or excessive
loading, either separately or in
combination, can cause heat
buildup and possible tire failure. The temperature grades are A
(the highest), B and C,
representing the tire
’s resistance
to the generation of heat and its
ability to dissipate heat when
tested under controlled conditions
on a specified indoor laboratory
test wheel. Sustained high
temperature can cause the
material of the tire to degenerate
and reduce tire life, and excessive
temperature can lead to sudden
tire failure. The grade C
corresponds to a level of
performance which all passenger
car tires must meet under the
200
Focus (CDH) Battery Electric Vehicle (BEV), Canada/United States of America, enUSA, First Printing Wheels and Tires

J.

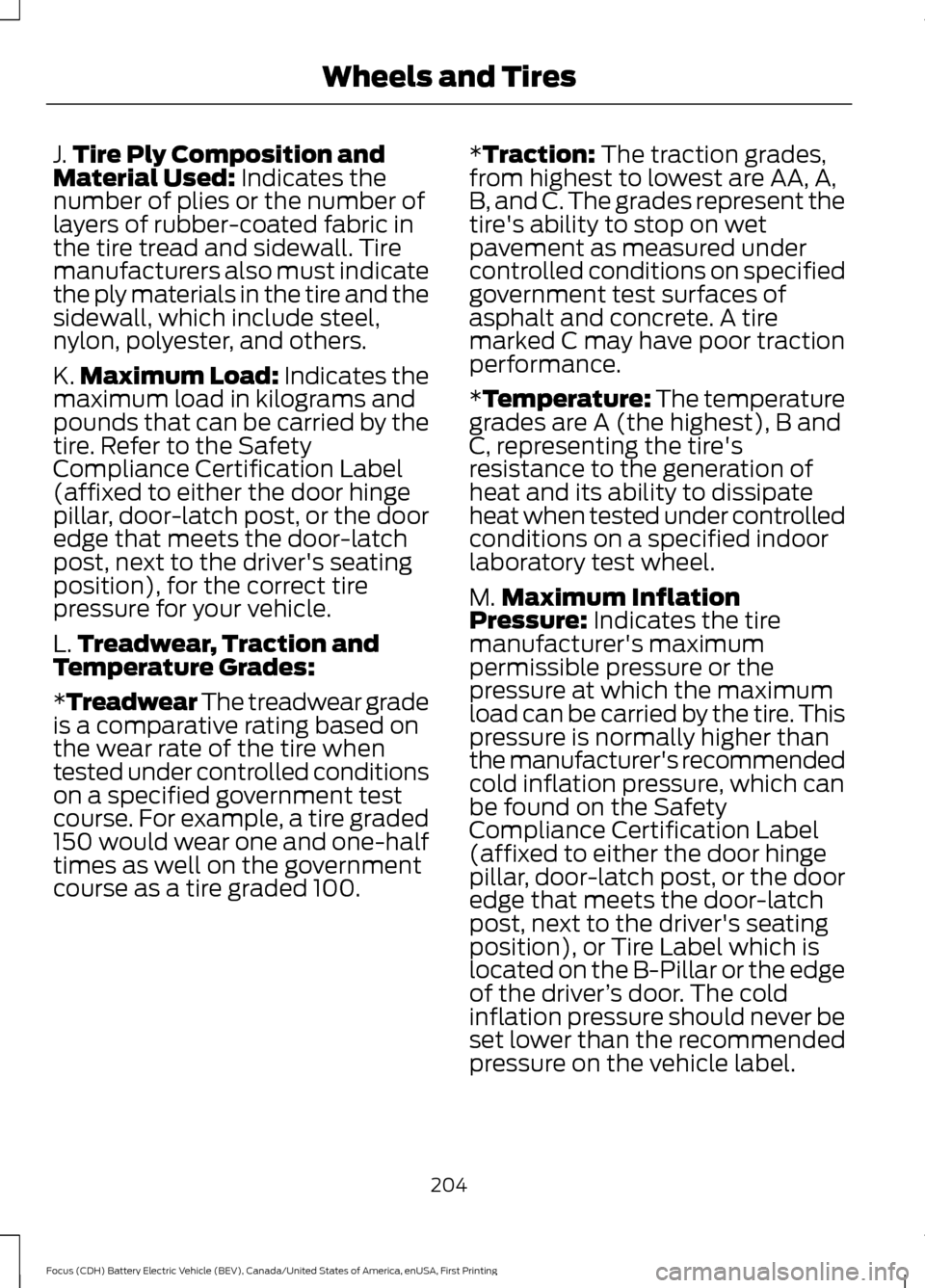

Tire Ply Composition and
Material Used: Indicates the
number of plies or the number of
layers of rubber-coated fabric in
the tire tread and sidewall. Tire
manufacturers also must indicate
the ply materials in the tire and the
sidewall, which include steel,
nylon, polyester, and others.
K. Maximum Load: Indicates the
maximum load in kilograms and
pounds that can be carried by the
tire. Refer to the Safety
Compliance Certification Label
(affixed to either the door hinge
pillar, door-latch post, or the door
edge that meets the door-latch
post, next to the driver's seating
position), for the correct tire
pressure for your vehicle.
L. Treadwear, Traction and
Temperature Grades:
*Treadwear The treadwear grade
is a comparative rating based on
the wear rate of the tire when
tested under controlled conditions
on a specified government test
course. For example, a tire graded
150 would wear one and one-half
times as well on the government
course as a tire graded 100. *Traction: The traction grades,
from highest to lowest are AA, A,
B, and C. The grades represent the
tire's ability to stop on wet
pavement as measured under
controlled conditions on specified
government test surfaces of
asphalt and concrete. A tire
marked C may have poor traction
performance.
*
Temperature: The temperature
grades are A (the highest), B and
C, representing the tire's
resistance to the generation of
heat and its ability to dissipate
heat when tested under controlled
conditions on a specified indoor
laboratory test wheel.
M. Maximum Inflation
Pressure:
Indicates the tire
manufacturer's maximum
permissible pressure or the
pressure at which the maximum
load can be carried by the tire. This
pressure is normally higher than
the manufacturer's recommended
cold inflation pressure, which can
be found on the Safety
Compliance Certification Label
(affixed to either the door hinge
pillar, door-latch post, or the door
edge that meets the door-latch
post, next to the driver's seating
position), or Tire Label which is
located on the B-Pillar or the edge
of the driver ’s door. The cold
inflation pressure should never be
set lower than the recommended
pressure on the vehicle label.
204
Focus (CDH) Battery Electric Vehicle (BEV), Canada/United States of America, enUSA, First Printing Wheels and Tires

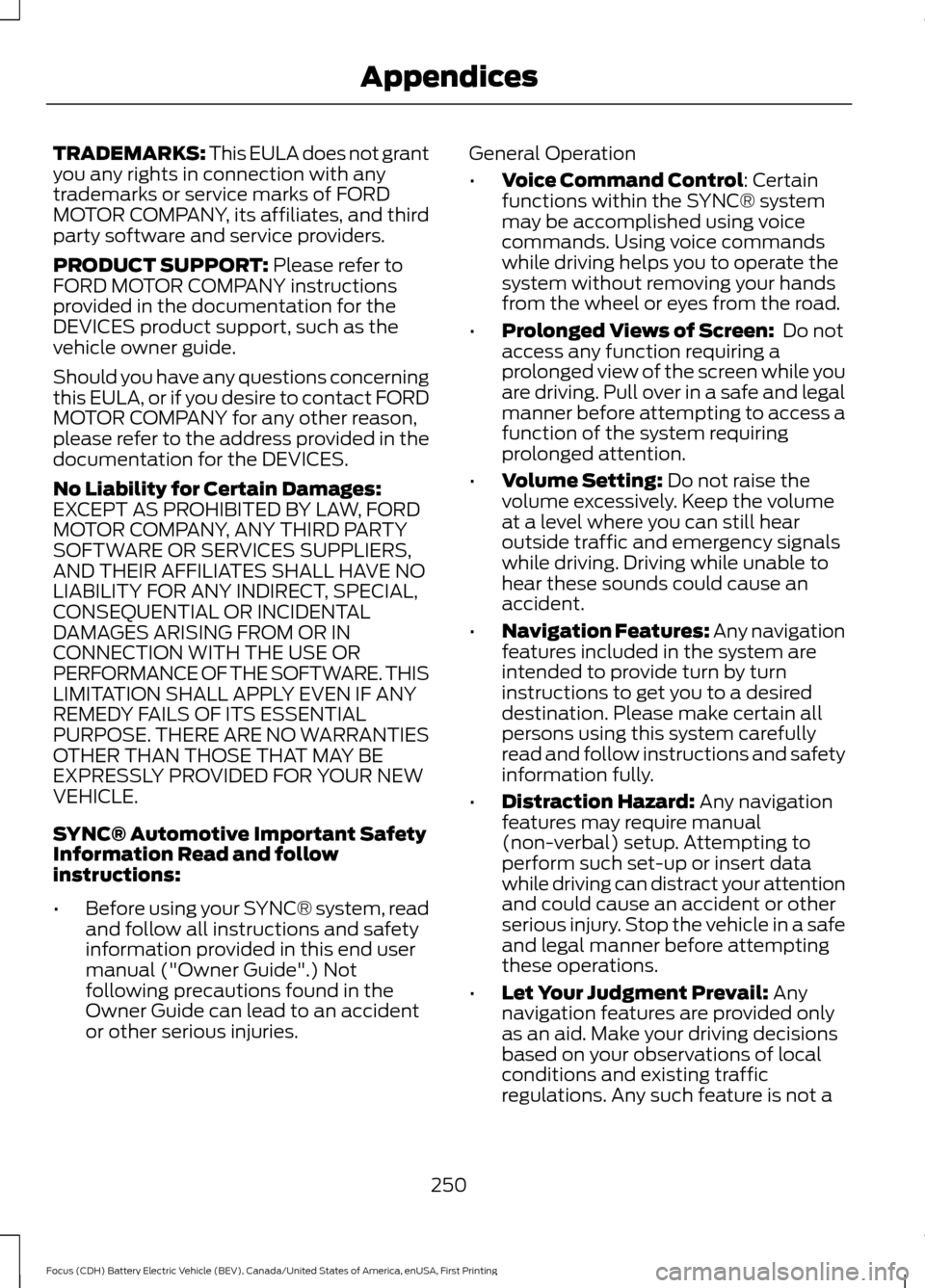

TRADEMARKS: This EULA does not grant
you any rights in connection with any
trademarks or service marks of FORD
MOTOR COMPANY, its affiliates, and third
party software and service providers.
PRODUCT SUPPORT: Please refer to
FORD MOTOR COMPANY instructions
provided in the documentation for the
DEVICES product support, such as the
vehicle owner guide.
Should you have any questions concerning
this EULA, or if you desire to contact FORD
MOTOR COMPANY for any other reason,
please refer to the address provided in the
documentation for the DEVICES.
No Liability for Certain Damages:
EXCEPT AS PROHIBITED BY LAW, FORD
MOTOR COMPANY, ANY THIRD PARTY
SOFTWARE OR SERVICES SUPPLIERS,
AND THEIR AFFILIATES SHALL HAVE NO
LIABILITY FOR ANY INDIRECT, SPECIAL,
CONSEQUENTIAL OR INCIDENTAL
DAMAGES ARISING FROM OR IN
CONNECTION WITH THE USE OR
PERFORMANCE OF THE SOFTWARE. THIS
LIMITATION SHALL APPLY EVEN IF ANY
REMEDY FAILS OF ITS ESSENTIAL
PURPOSE. THERE ARE NO WARRANTIES
OTHER THAN THOSE THAT MAY BE
EXPRESSLY PROVIDED FOR YOUR NEW
VEHICLE.
SYNC® Automotive Important Safety
Information Read and follow
instructions:
• Before using your SYNC® system, read
and follow all instructions and safety
information provided in this end user
manual ("Owner Guide".) Not
following precautions found in the
Owner Guide can lead to an accident
or other serious injuries. General Operation
•
Voice Command Control
: Certain
functions within the SYNC® system
may be accomplished using voice
commands. Using voice commands
while driving helps you to operate the
system without removing your hands
from the wheel or eyes from the road.
• Prolonged Views of Screen:
Do not
access any function requiring a
prolonged view of the screen while you
are driving. Pull over in a safe and legal
manner before attempting to access a
function of the system requiring
prolonged attention.
• Volume Setting:
Do not raise the
volume excessively. Keep the volume
at a level where you can still hear
outside traffic and emergency signals
while driving. Driving while unable to
hear these sounds could cause an
accident.
• Navigation Features:
Any navigation
features included in the system are
intended to provide turn by turn
instructions to get you to a desired
destination. Please make certain all
persons using this system carefully
read and follow instructions and safety
information fully.
• Distraction Hazard:
Any navigation
features may require manual
(non-verbal) setup. Attempting to
perform such set-up or insert data
while driving can distract your attention
and could cause an accident or other
serious injury. Stop the vehicle in a safe
and legal manner before attempting
these operations.
• Let Your Judgment Prevail:
Any
navigation features are provided only
as an aid. Make your driving decisions
based on your observations of local
conditions and existing traffic
regulations. Any such feature is not a
250
Focus (CDH) Battery Electric Vehicle (BEV), Canada/United States of America, enUSA, First Printing Appendices

S
Safety Canopy
™............................................44
Scheduled Maintenance Record............237
Scheduled Maintenance...........................233
Seatbelt Height Adjustment
......................33
Seatbelt Reminder........................................34
Belt-Minder™........................................................ 34
Seatbelts...........................................................30 Principle of Operation........................................ 30
Seatbelt Warning Lamp and Indicator Chime..............................................................34
Conditions of operation..................................... 34
Seats.................................................................105
Security..............................................................65
Side Airbags.....................................................42
Sitting in the Correct Position
..................105
Snow Chains See: Using Snow Chains.................................. 214
Special Notices
................................................10
New Vehicle Limited Warranty........................ 10
On-board Diagnostics (OBD-II)...................... 10
Special Instructions............................................. 10
Speed Control See: Cruise Control............................................ 136
Stability Control
............................................129
Principle of Operation....................................... 129
Starting and Stopping the Electric Motor...............................................................113
Starting the Electric Motor.........................113 Keyless Starting.................................................... 113
Starting Your Vehicle.......................................... 113
Steering.............................................................137 Electric Power Steering..................................... 137
Steering Wheel
...............................................68
Storage Compartments..............................112
Sun Visors..........................................................81 Illuminated Vanity Mirror.................................... 81
Supplementary Restraints System.........38 Principle of Operation........................................ 38
Switching Off the Electric Motor.............114
Symbols Glossary.............................................5
T
Tailgate See: Manual Liftgate........................................... 62Technical Specifications
See: Capacities and Specifications............220
The Better Business Bureau (BBB) Auto Line Program (U.S. Only).......................156
Tire Care
...........................................................199
Glossary of Tire Terminology......................... 201
Information About Uniform Tire Quality Grading.............................................................. 199
Information Contained on the Tire Sidewall........................................................... 202
Temperature A B C........................................... 200
Traction AA A B C.............................................. 200
Treadwear............................................................ 200
Tire Inflation When Punctured See: Tire Sealant and Inflator Kit.................. 193
Tire Pressure Monitoring System............214 Changing Tires With a Tire Pressure
Monitoring System........................................ 215
Understanding Your Tire Pressure Monitoring System ....................................... 215
Tire Repair Kit See: Tire Sealant and Inflator Kit.................. 193
Tire Sealant and Inflator Kit
.....................193
First Stage: Inflating the Tire with Sealing
Compound and Air........................................ 195
General Information.......................................... 194
Second Stage: Checking Tire Pressure............................................................. 197
Tips for Use of the Kit....................................... 194
What to Do After the Tire has Been Sealed................................................................ 197
What to Do When a Tire Is Punctured........195
Tires See: Wheels and Tires...................................... 193
Towing a Trailer.............................................145
Towing the Vehicle on Four Wheels...........................................................145
Emergency Towing............................................. 145
Recreational Towing.......................................... 146
Towing..............................................................145
Traction Control
............................................128
Principle of Operation....................................... 128
Transmission Code Designation.............222
Transmission..................................................123
Transmission See: Transmission............................................... 123
Transporting the Vehicle............................145
Type Approvals
.............................................263
272
Focus (CDH) Battery Electric Vehicle (BEV), Canada/United States of America, enUSA, First Printing Index

U
Under Hood Overview.................................174
Using Cruise Control....................................136
Switching Cruise Control Off......................... 136
Switching Cruise Control On.......................... 136
Using MyKey With Remote Start Systems..........................................................55
Vehicles With Ford-Approved Aftermarket Remote Start Systems.................................. 55
Vehicles With Non-Ford-Approved Aftermarket Remote Start
Systems.............................................................. 55
Using Snow Chains......................................214
Using Stability Control...............................130
Using Traction Control................................128 Switching the System Off............................... 128
System Indicator Lights and Messages.......................................................... 128
Using a Switch..................................................... 128
Using the Information Display Controls............................................................. 128
Utilizing the Mediation/Arbitration Program (Canada Only)..........................157
V
Vehicle Care
...................................................186
General Information.......................................... 186
Vehicle Certification Label........................222
Vehicle Identification Number
.................221
Vehicle Interior Overview..............................15
Vehicle Storage..............................................191 12V Battery............................................................ 192
Body........................................................................\
.. 191
Brakes..................................................................... 192
Cooling System................................................... 192
Electric Motor........................................................ 191
General.................................................................... 191
High Voltage Battery.......................................... 191
Miscellaneous...................................................... 192
Removing Vehicle From Storage.................. 192
Tires........................................................................\
. 192
Ventilation See: Climate Control.......................................... 101
VIN See: Vehicle Identification Number.............221
Voice Control...................................................69 W
Warning Lamps and Indicators................84
Anti-Lock Braking System Warning
Lamp.................................................................... 84
Battery Warning Lamp....................................... 84
Brake System Warning Lamp.......................... 84
Cruise Control Indicator .................................... 84
Direction Indicator............................................... 84
Door Ajar................................................................. 84
Fasten Safety Belt Warning Lamp.................85
Front Airbag Warning Lamp............................. 85
Headlamp and Parking Lamp Indicator ........................................................................\
........ 85
High Beam Indicator........................................... 85
Liftgate Ajar............................................................ 85
Limited Performance.......................................... 85
Low Battery............................................................ 85
Low Tire Pressure Warning............................... 85
Low Washer Fluid................................................. 85
Motor Coolant Temperature............................ 85
Powertrain Fault................................................... 85
Ready to Drive....................................................... 85
Stability Control Off Indicator......................... 86
Stability Control Warning Lamp ................... 86
Stop Safely............................................................. 86
Vehicle Plugged in............................................... 86
Washer Fluid Check......................................177
Washers See: Cleaning the Exterior............................... 186
See: Wipers and Washers................................... 71
Waxing..............................................................187
Wheel Nuts See: Changing a Road Wheel........................ 218
Wheels and Tires
..........................................193
Windows and Mirrors....................................78
Windshield Washers.......................................71
Windshield Wipers
..........................................71
Intermittent Wipe.................................................. 71
Speed Dependent Wipers.................................. 71
Wiper Blades See: Checking the Wiper Blades................... 178
Wipers and Washers......................................71
Wrecker Towing See: Transporting the Vehicle........................ 145
273
Focus (CDH) Battery Electric Vehicle (BEV), Canada/United States of America, enUSA, First Printing Index
