2016 FORD F650 fuse chart

Using Traction Control - Vehicles With:
Hydraulic Brakes.......................................132
Cruise Control
Principle of Operation.................................134
Using Cruise Control
....................................134
Driving Aids
Steering............................................................136
Load Carrying
Load Limit........................................................137
Air Suspension
...............................................138
Towing
Towing a Trailer.............................................140
Recommended Towing Weights.............141
Essential Towing Checks...........................142
Transporting the Vehicle............................143
Fifth Wheel Operation
................................144
Driving Hints
Breaking-In.....................................................146
General Driving Points................................146
Economical Driving
......................................147
Cold Weather Precautions
........................148
Driving Through Water...............................150
Roadside Emergencies
Roadside Assistance
....................................151
Hazard Warning Flashers...........................152
Fuel Shutoff....................................................152
Jump Starting the Vehicle
.........................153
Customer Assistance
Getting the Services You Need
...............156
In California (U.S. Only)
..............................157
The Better Business Bureau (BBB) Auto Line Program (U.S. Only)......................158 Utilizing the Mediation/Arbitration
Program (Canada Only)
........................158
Getting Assistance Outside the U.S. and Canada.........................................................159
Ordering Additional Owner's Literature.....................................................160
Reporting Safety Defects (U.S. Only).............................................................160
Reporting Safety Defects (Canada Only)..............................................................161
Fuses
Fuse Specification Chart...........................162
Changing a Fuse...........................................170
Vehicle Inspection Guide
Vehicle Inspection Information.................171
Maintenance
General Information....................................180
Opening and Closing the Hood................181
Under Hood Overview - 6.8L...................183
Under Hood Overview - 6.7L Diesel......184
Engine Oil Dipstick - 6.8L..........................185
Engine Oil Dipstick - 6.7L Diesel.............185
Engine Oil Check - 6.8L
..............................185
Engine Oil Check - 6.7L Diesel.................186
Changing the Engine Oil and Oil Filter..............................................................188
Changing the Coalescer Filter Element.......................................................189
Oil Change Indicator Reset.......................190
Engine Coolant Check - 6.8L
...................190
Engine Coolant Check - 6.7L Diesel.......195
Automatic Transmission Fluid Check...........................................................200
Brake Fluid Check.........................................201
Power Steering Fluid Check.....................202
Washer Fluid Check....................................202
Draining the Fuel Filter Water Trap - 6.7L Diesel
...........................................................203
3
F650750 (TBC), enUSA, First Printing Table of Contents

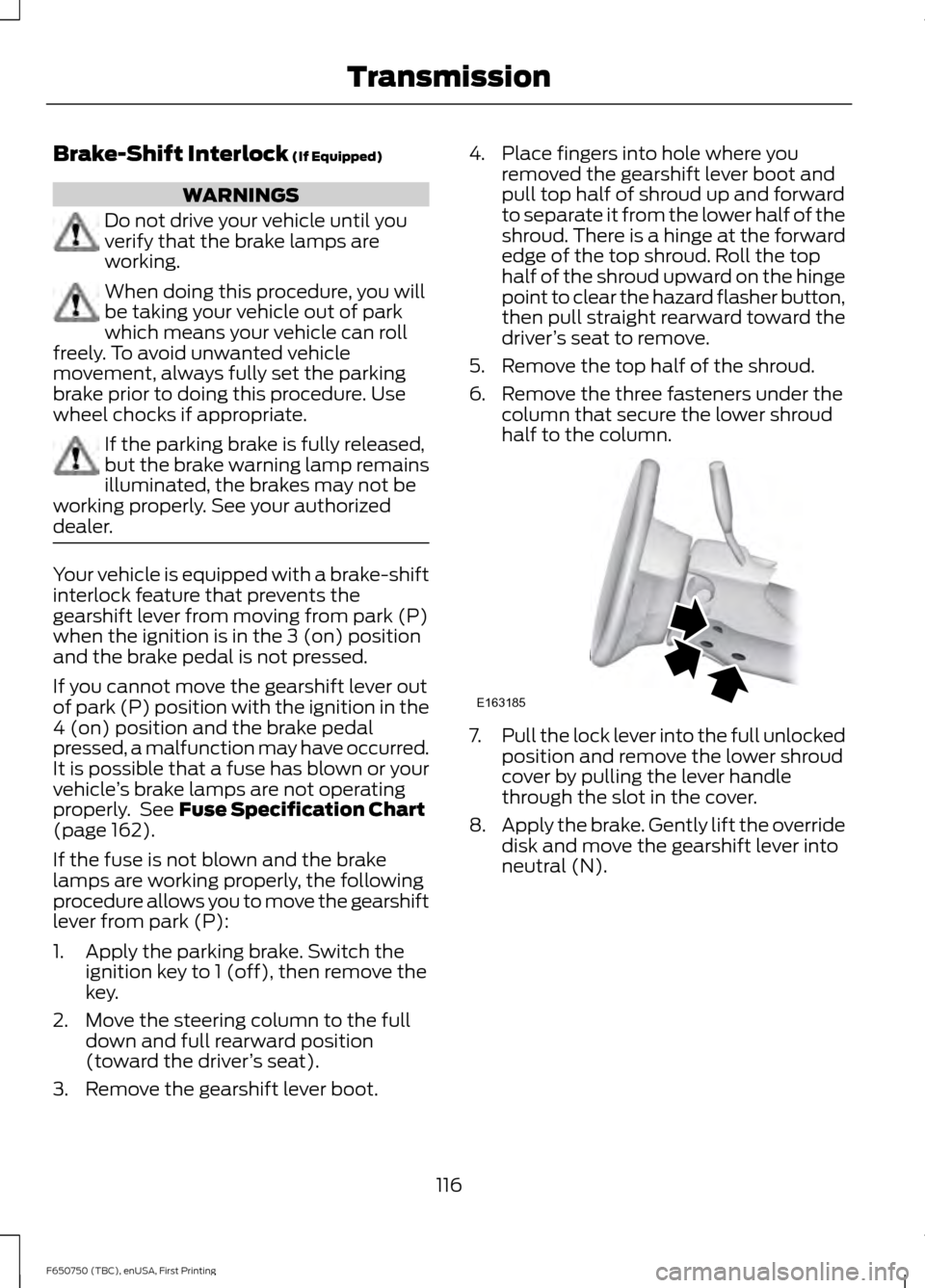

Brake-Shift Interlock (If Equipped)
WARNINGS
Do not drive your vehicle until you
verify that the brake lamps are
working.
When doing this procedure, you will
be taking your vehicle out of park
which means your vehicle can roll
freely. To avoid unwanted vehicle
movement, always fully set the parking
brake prior to doing this procedure. Use
wheel chocks if appropriate. If the parking brake is fully released,
but the brake warning lamp remains
illuminated, the brakes may not be
working properly. See your authorized
dealer. Your vehicle is equipped with a brake-shift
interlock feature that prevents the
gearshift lever from moving from park (P)
when the ignition is in the 3 (on) position
and the brake pedal is not pressed.
If you cannot move the gearshift lever out
of park (P) position with the ignition in the
4 (on) position and the brake pedal
pressed, a malfunction may have occurred.
It is possible that a fuse has blown or your
vehicle
’s brake lamps are not operating
properly. See
Fuse Specification Chart
(page 162).
If the fuse is not blown and the brake
lamps are working properly, the following
procedure allows you to move the gearshift
lever from park (P):
1. Apply the parking brake. Switch the ignition key to 1 (off), then remove the
key.
2. Move the steering column to the full down and full rearward position
(toward the driver ’s seat).
3. Remove the gearshift lever boot. 4. Place fingers into hole where you
removed the gearshift lever boot and
pull top half of shroud up and forward
to separate it from the lower half of the
shroud. There is a hinge at the forward
edge of the top shroud. Roll the top
half of the shroud upward on the hinge
point to clear the hazard flasher button,
then pull straight rearward toward the
driver ’s seat to remove.
5. Remove the top half of the shroud.
6. Remove the three fasteners under the column that secure the lower shroud
half to the column. 7.
Pull the lock lever into the full unlocked
position and remove the lower shroud
cover by pulling the lever handle
through the slot in the cover.
8. Apply the brake. Gently lift the override
disk and move the gearshift lever into
neutral (N).
116
F650750 (TBC), enUSA, First Printing TransmissionE163185

FUSE SPECIFICATION CHART
Power Distribution Box
WARNINGS
Always disconnect the battery before
servicing high current fuses.
To reduce risk of electrical shock,
always replace the cover to the
power distribution box before
reconnecting the battery or refilling fluid
reservoirs. The power distribution box is located in
the engine compartment. It has
high-current fuses that protect your
vehicle's main electrical systems from
overloads.
If you disconnect and reconnect the
battery, you will need to reset some
features. See Changing the 12V Battery
(page 204).
Protected components
Fuse amp rating
Fuse or relay number
Blower motor.
Relay
1
Trailer tow and body builder stoplamps.
Relay
2
Urea heaters (diesel engine).
Relay
3
Driver air ride seat compressor.
Relay
4
Heated mirrors.
Relay
5
Not used.
—
6
Not used.
—
7
Passenger air ride seat compressor.
20A*
8
Not used.
—
9
Not used.
—
10
162
F650750 (TBC), enUSA, First Printing FusesE163101

Bulb Specification Chart..........................209
C
California Proposition 65.............................13
Capacities and Specifications - 6.7L Diesel..............................................................261
Engine Oil Specifications............................... 268
Specifications..................................................... 263
Capacities and Specifications - 6.8L
................................................................256
Specifications...................................................... 257
Capacities and Specifications.................251
Car Wash See: Cleaning the Exterior.............................. 225
Changing a Bulb..........................................208 Brake Lamp, Rear Lamp, Rear Direction
Indicator, License Plate Lamp and
Reverse Lamp................................................ 209
Front Clearance and Identification Lamp................................................................. 208
Headlamp Bulbs................................................ 208
Changing a Fuse............................................170 Fuses....................................................................... 170
Changing a Road Wheel............................247 Tire Change Procedure..................................... 247
Changing the 12V Battery.........................204 Battery Management System (If
Equipped)....................................................... 205
Changing the Coalescer Filter Element.........................................................189
Changing the Engine Air Filter - 6.7L Diesel...............................................................211
Air Filter Replacement...................................... 212
Air Filter Restriction Gauge............................... 211
Changing the Engine Air Filter - 6.8L.................................................................210
Changing the Engine-Mounted and Diesel Fuel Conditioner Module Fuel
Filters - 6.7L Diesel....................................215
Diesel Fuel Conditioner Module Filter.........215
Engine-mounted Fuel Filter............................ 216
Purging Air from the Fuel System.................217
Changing the Engine Oil and Oil Filter...............................................................188
Engine lubrication for severe service operation.......................................................... 188
Changing the Wiper Blades....................206 Checking the Wiper Blades.....................206
Child Restraint and Seatbelt
Maintenance..................................................37
Child Restraint Positioning
..........................27
Child Safety........................................................17
General Information............................................. 17
Child Safety Locks.........................................28
Cleaning Products.......................................225
Cleaning the Alloy Wheels.......................229
Cleaning the Engine....................................226
Cleaning the Exterior..................................225 Exterior Chrome Parts...................................... 225
Exterior Plastic Parts........................................ 226
Stripes or Graphics............................................ 226
Underbody........................................................... 226
Cleaning the Instrument Panel and Instrument Cluster Lens.........................228
Cleaning the Interior....................................227
Cleaning the Windows and Wiper Blades............................................................227
Climate Control...............................................70
Cold Weather Precautions........................148 Winter Operating Tips for Arctic Operation
-20°F (-29°C) and Below.......................... 149
Coolant Check See: Engine Coolant Check - 6.7L Diesel....195
See: Engine Coolant Check - 6.8L...............190
Cruise Control
..................................................45
Principle of Operation....................................... 134
Cruise control See: Using Cruise Control................................ 134
Customer Assistance
..................................156
D
Data Recording.................................................12 Service Data Recording....................................... 12
Daytime Running Lamps............................48
Diesel Particulate Filter................................87
Direction Indicators.......................................48
DPF See: Diesel Particulate Filter............................ 87
Draining the Fuel Filter Water Trap - 6.7L Diesel
.............................................................203
Draining the Diesel Fuel Conditioner Module
(DFCM)............................................................. 203
Driving Aids
.....................................................136
Driving Hints...................................................146
368
F650750 (TBC), enUSA, First Printing Index

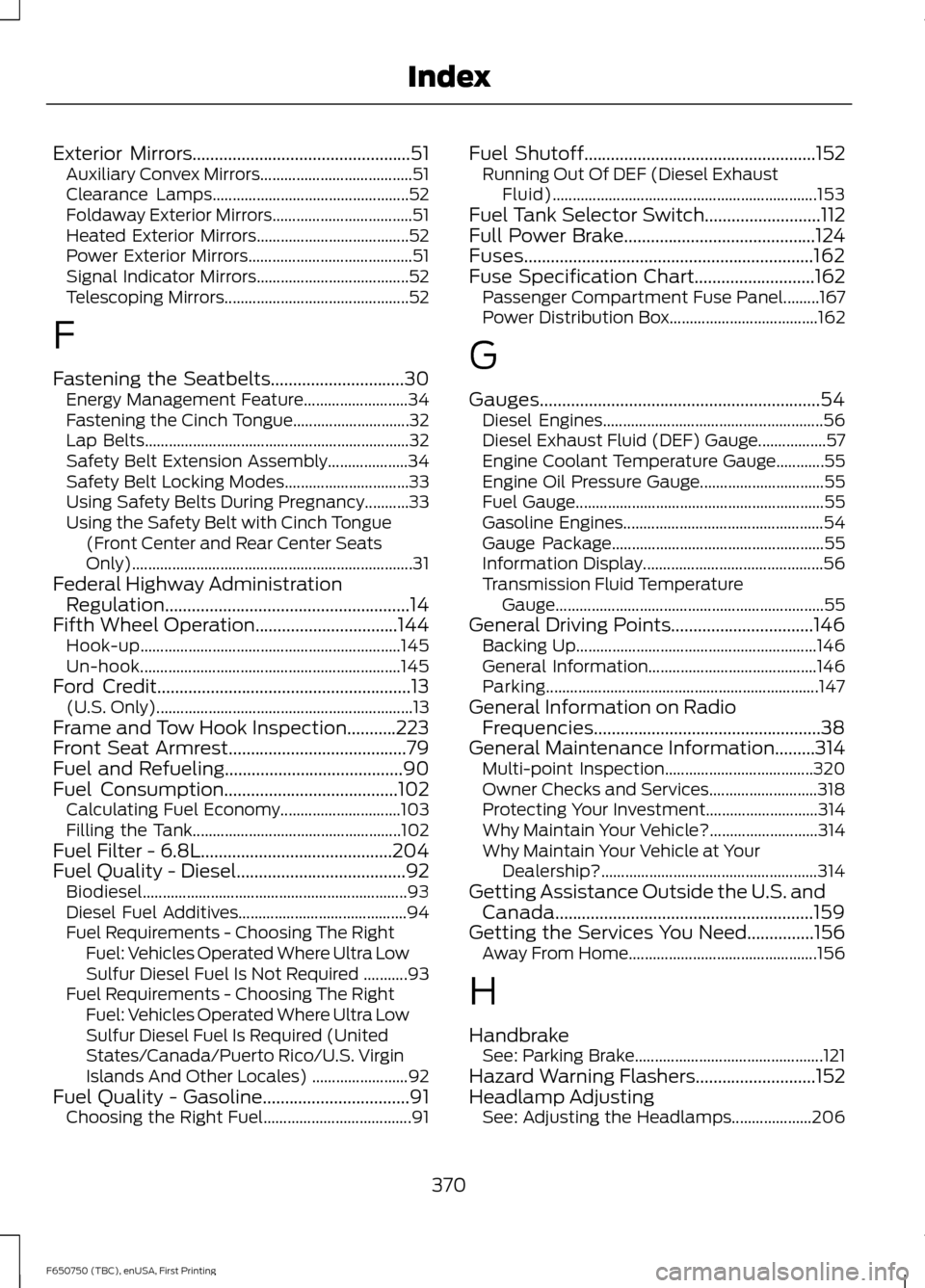

Exterior Mirrors.................................................51
Auxiliary Convex Mirrors...................................... 51
Clearance Lamps................................................. 52
Foldaway Exterior Mirrors...................................51
Heated Exterior Mirrors...................................... 52
Power Exterior Mirrors......................................... 51
Signal Indicator Mirrors...................................... 52
Telescoping Mirrors.............................................. 52
F
Fastening the Seatbelts..............................30 Energy Management Feature.......................... 34
Fastening the Cinch Tongue............................. 32
Lap Belts.................................................................. 32
Safety Belt Extension Assembly.................... 34
Safety Belt Locking Modes............................... 33
Using Safety Belts During Pregnancy...........33
Using the Safety Belt with Cinch Tongue (Front Center and Rear Center Seats
Only)...................................................................... 31
Federal Highway Administration Regulation
.......................................................14
Fifth Wheel Operation................................144 Hook-up................................................................. 145
Un-hook................................................................. 145
Ford Credit
.........................................................13
(U.S. Only)................................................................ 13
Frame and Tow Hook Inspection
...........223
Front Seat Armrest........................................79
Fuel and Refueling
........................................90
Fuel Consumption.......................................102 Calculating Fuel Economy.............................. 103
Filling the Tank.................................................... 102
Fuel Filter - 6.8L...........................................204
Fuel Quality - Diesel
......................................92
Biodiesel.................................................................. 93
Diesel Fuel Additives.......................................... 94
Fuel Requirements - Choosing The Right Fuel: Vehicles Operated Where Ultra Low
Sulfur Diesel Fuel Is Not Required ...........93
Fuel Requirements - Choosing The Right Fuel: Vehicles Operated Where Ultra Low
Sulfur Diesel Fuel Is Required (United
States/Canada/Puerto Rico/U.S. Virgin
Islands And Other Locales) ........................ 92
Fuel Quality - Gasoline.................................91 Choosing the Right Fuel..................................... 91Fuel Shutoff....................................................152
Running Out Of DEF (Diesel Exhaust
Fluid).................................................................. 153
Fuel Tank Selector Switch..........................112
Full Power Brake
...........................................124
Fuses.................................................................162
Fuse Specification Chart...........................162 Passenger Compartment Fuse Panel.........167
Power Distribution Box..................................... 162
G
Gauges...............................................................54 Diesel Engines....................................................... 56
Diesel Exhaust Fluid (DEF) Gauge.................57
Engine Coolant Temperature Gauge............55
Engine Oil Pressure Gauge............................... 55
Fuel Gauge.............................................................. 55
Gasoline Engines.................................................. 54
Gauge Package..................................................... 55
Information Display............................................. 56
Transmission Fluid Temperature Gauge................................................................... 55
General Driving Points
................................146
Backing Up............................................................ 146
General Information.......................................... 146
Parking.................................................................... 147
General Information on Radio Frequencies...................................................38
General Maintenance Information
.........314
Multi-point Inspection..................................... 320
Owner Checks and Services........................... 318
Protecting Your Investment............................ 314
Why Maintain Your Vehicle?........................... 314
Why Maintain Your Vehicle at Your Dealership?...................................................... 314
Getting Assistance Outside the U.S. and Canada..........................................................159
Getting the Services You Need
...............156
Away From Home............................................... 156
H
Handbrake See: Parking Brake............................................... 121
Hazard Warning Flashers...........................152
Headlamp Adjusting See: Adjusting the Headlamps.................... 206
370
F650750 (TBC), enUSA, First Printing Index
