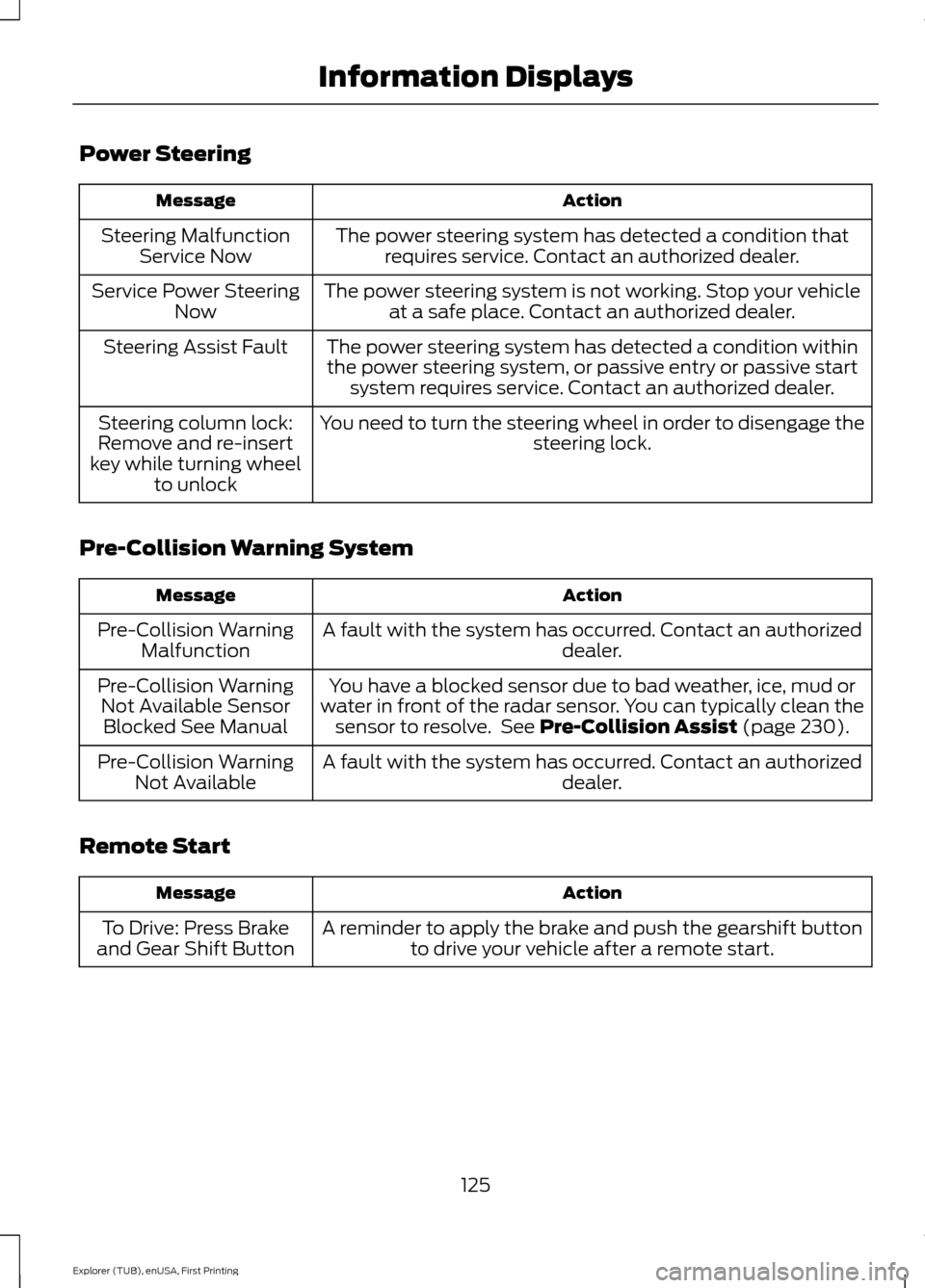

Power Steering
Action
Message
The power steering system has detected a condition thatrequires service. Contact an authorized dealer.
Steering Malfunction
Service Now
The power steering system is not working. Stop your vehicleat a safe place. Contact an authorized dealer.
Service Power Steering
Now
The power steering system has detected a condition withinthe power steering system, or passive entry or passive start system requires service. Contact an authorized dealer.
Steering Assist Fault
You need to turn the steering wheel in order to disengage thesteering lock.
Steering column lock:
Remove and re-insert
key while turning wheel to unlock
Pre-Collision Warning System Action
Message
A fault with the system has occurred. Contact an authorized dealer.
Pre-Collision Warning
Malfunction
You have a blocked sensor due to bad weather, ice, mud or
water in front of the radar sensor. You can typically clean the sensor to resolve. See Pre-Collision Assist (page 230).
Pre-Collision Warning
Not Available SensorBlocked See Manual
A fault with the system has occurred. Contact an authorized dealer.
Pre-Collision Warning
Not Available
Remote Start Action
Message
A reminder to apply the brake and push the gearshift buttonto drive your vehicle after a remote start.
To Drive: Press Brake
and Gear Shift Button
125
Explorer (TUB), enUSA, First Printing Information Displays

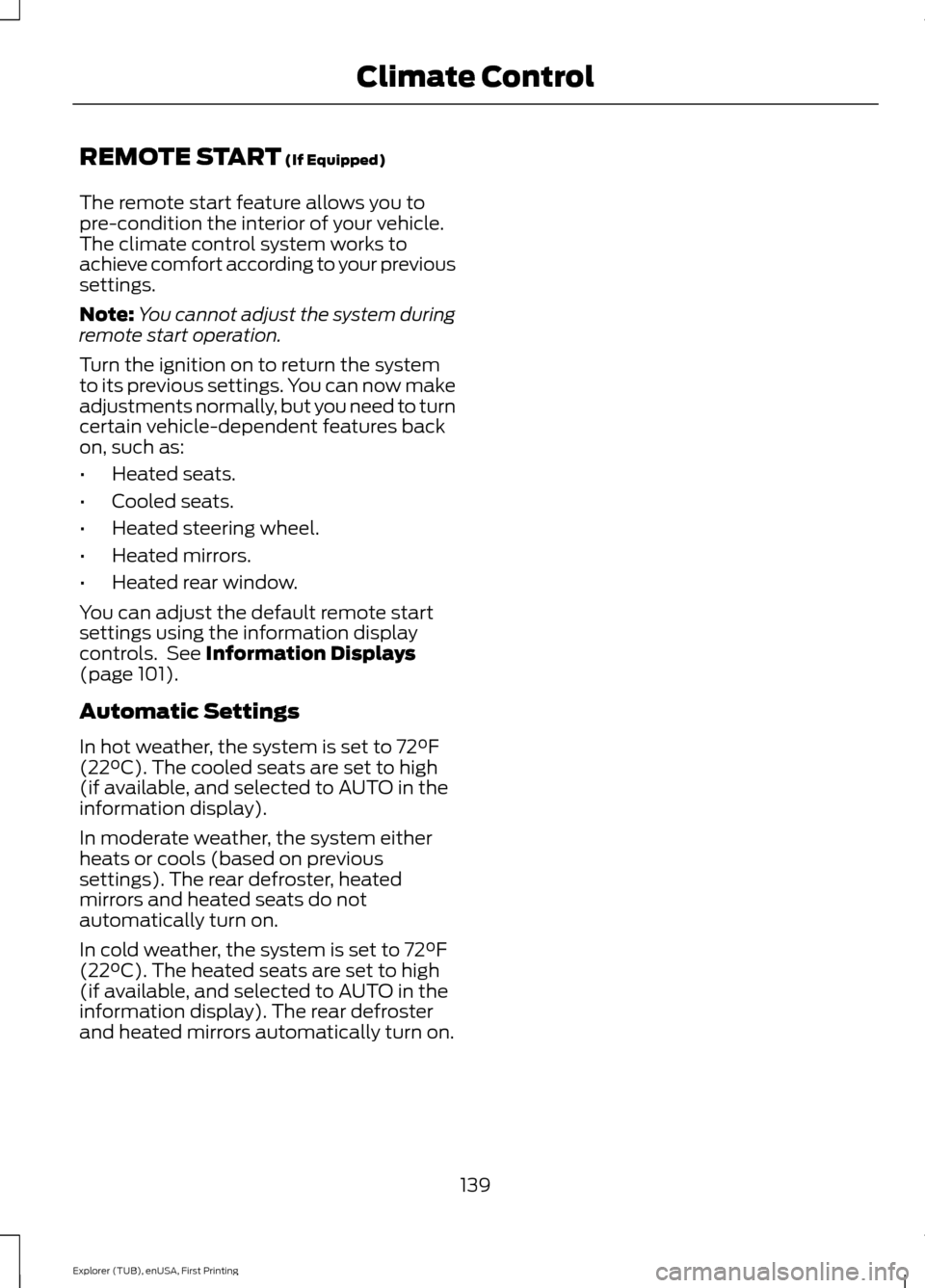

REMOTE START (If Equipped)
The remote start feature allows you to
pre-condition the interior of your vehicle.
The climate control system works to
achieve comfort according to your previous
settings.
Note: You cannot adjust the system during
remote start operation.
Turn the ignition on to return the system
to its previous settings. You can now make
adjustments normally, but you need to turn
certain vehicle-dependent features back
on, such as:
• Heated seats.
• Cooled seats.
• Heated steering wheel.
• Heated mirrors.
• Heated rear window.
You can adjust the default remote start
settings using the information display
controls. See
Information Displays
(page 101).
Automatic Settings
In hot weather, the system is set to 72°F
(22°C). The cooled seats are set to high
(if available, and selected to AUTO in the
information display).
In moderate weather, the system either
heats or cools (based on previous
settings). The rear defroster, heated
mirrors and heated seats do not
automatically turn on.
In cold weather, the system is set to 72°F
(22°C). The heated seats are set to high
(if available, and selected to AUTO in the
information display). The rear defroster
and heated mirrors automatically turn on.
139
Explorer (TUB), enUSA, First Printing Climate Control

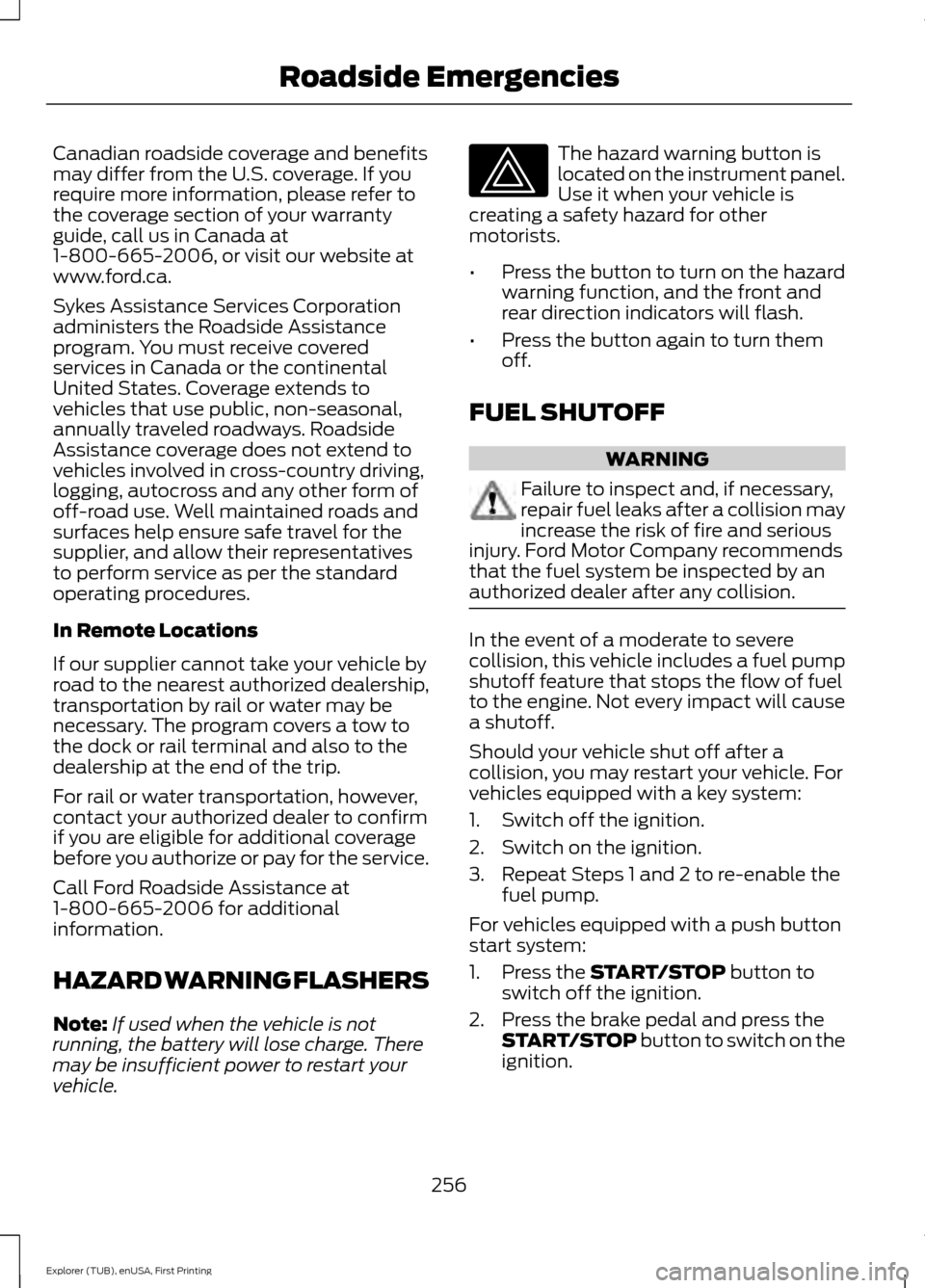

Canadian roadside coverage and benefits
may differ from the U.S. coverage. If you
require more information, please refer to
the coverage section of your warranty
guide, call us in Canada at
1-800-665-2006, or visit our website at
www.ford.ca.
Sykes Assistance Services Corporation
administers the Roadside Assistance
program. You must receive covered
services in Canada or the continental
United States. Coverage extends to
vehicles that use public, non-seasonal,
annually traveled roadways. Roadside
Assistance coverage does not extend to
vehicles involved in cross-country driving,
logging, autocross and any other form of
off-road use. Well maintained roads and
surfaces help ensure safe travel for the
supplier, and allow their representatives
to perform service as per the standard
operating procedures.
In Remote Locations
If our supplier cannot take your vehicle by
road to the nearest authorized dealership,
transportation by rail or water may be
necessary. The program covers a tow to
the dock or rail terminal and also to the
dealership at the end of the trip.
For rail or water transportation, however,
contact your authorized dealer to confirm
if you are eligible for additional coverage
before you authorize or pay for the service.
Call Ford Roadside Assistance at
1-800-665-2006 for additional
information.
HAZARD WARNING FLASHERS
Note:
If used when the vehicle is not
running, the battery will lose charge. There
may be insufficient power to restart your
vehicle. The hazard warning button is
located on the instrument panel.
Use it when your vehicle is
creating a safety hazard for other
motorists.
• Press the button to turn on the hazard
warning function, and the front and
rear direction indicators will flash.
• Press the button again to turn them
off.
FUEL SHUTOFF WARNING
Failure to inspect and, if necessary,
repair fuel leaks after a collision may
increase the risk of fire and serious
injury. Ford Motor Company recommends
that the fuel system be inspected by an
authorized dealer after any collision. In the event of a moderate to severe
collision, this vehicle includes a fuel pump
shutoff feature that stops the flow of fuel
to the engine. Not every impact will cause
a shutoff.
Should your vehicle shut off after a
collision, you may restart your vehicle. For
vehicles equipped with a key system:
1. Switch off the ignition.
2. Switch on the ignition.
3. Repeat Steps 1 and 2 to re-enable the
fuel pump.
For vehicles equipped with a push button
start system:
1. Press the START/STOP button to
switch off the ignition.
2. Press the brake pedal and press the START/STOP
button to switch on the
ignition.
256
Explorer (TUB), enUSA, First Printing Roadside Emergencies

WARNINGS
1. Make sure that you have the
correct tire and wheel size.
2. Lubricate the tire bead and
wheel bead seat area again.
3. Stand at a minimum of 12 feet
(3.66 meters) away from the
wheel and tire assembly.
4. Use both eye and ear
protection.
For a mounting pressure more
than 20 psi (1.38 bar) greater than
the maximum pressure, a Ford
dealer or other tire service
professional should do the
mounting.
Always inflate steel carcass tires
with a remote air fill with the
person inflating standing at a
minimum of 12 feet (3.66 meters)
away from the wheel and tire
assembly. Important: Remember to replace
the wheel valve stems when the
road tires are replaced on your
vehicle.
It is recommended that the two
front tires or two rear tires
generally be replaced as a pair.
The tire pressure sensors mounted
in the wheels (originally installed
on your vehicle) are not designed
to be used in aftermarket wheels. The use of wheels or tires not
recommended by Ford Motor
Company may affect the
operation of your tire pressure
monitoring system.
If the tire pressure monitoring
system indicator is flashing, your
system is malfunctioning. Your
replacement tire might be
incompatible with your tire
pressure monitoring system, or
some component of the system
may be damaged.
Safety Practices
WARNINGS
If your vehicle is stuck in
snow, mud, or sand, do not
rapidly spin the tires. Spinning the
tires can tear the tire and cause
an explosion. A tire can explode in
as little as three to five seconds. Do not spin the wheels at
over 35 mph (56 km/h). The
tires may fail and injure a
passenger or bystander. Driving habits have a great deal
to do with your tire mileage and
safety.
*Observe posted speed limits
*Avoid fast starts, stops and turns
*Avoid potholes and objects on
the road
*Do not run over curbs or hit the
tire against a curb when parking
321
Explorer (TUB), enUSA, First Printing Wheels and Tires

For a complete listing of the
accessories that are available for your
vehicle, please contact your authorized
dealer or visit our online store at:
Web Address
www.Accessories.Ford.com
You can also visit: Web Address
www.Ford.ca
Ford Motor Company will repair or replace
any properly authorized dealer-installed
Ford Original Accessory found to be
defective in factory-supplied materials or
workmanship during the warranty period,
as well as any component damaged by the
defective accessories.
Ford Motor Company will warrant your
Ford Original Accessory through the
warranty that provides the greatest
benefit:
• 24 months, unlimited mileage.
• The remainder of your new vehicle
limited warranty.
Contact an authorized dealer for details
and a copy of the warranty.
Exterior Style
• Bumper protector.
• Hood deflectors.
• Side window deflectors.
• Splash guards.
Interior Style
• Ambient lighting.
• Cargo area protector.
• Floor mats.
• Rear console. Lifestyle
•
Ash cup or smoker's package.
• Camping tent*.
• Car covers*.
• Cargo organization and management.
• Rear seat entertainment*.
• Roof crossbars.
• Roof racks and carriers*.
• Trailer hitch balls.
• Trailer hitch drawbars and towing
accessories.
Peace of Mind
• Cargo shade.
• Keyless entry keypad.
• Parking sensors*.
• Remote start.
• Vehicle security systems.
• Wheel locks.
*Ford Licensed Accessories. The accessory
manufacturer designs, develops and
therefore warrants Ford Licensed
Accessories, and does not design or test
these accessories to Ford Motor Company
engineering requirements. Contact an
authorized Ford dealer for the
manufacturer ’s limited warranty details,
and request a copy of the Ford Licensed
Accessories product limited warranty from
the accessory manufacturer.
482
Explorer (TUB), enUSA, First Printing Accessories

Getting the Services You Need..............260
Away From Home............................................. 260
H
Handbrake See: Parking Brake............................................. 190
Hazard Warning Flashers.........................256
HDC See: Using Hill Descent Control.................... 196
Headlamp Exit Delay....................................82
Head Restraints............................................140 Adjusting the Head Restraint.......................... 141
Tilting Head Restraints .................................... 142
Heated Seats.................................................154 Front Seats............................................................ 154
Rear Seats............................................................. 155
Heated Steering Wheel
................................75
Heated Windows and Mirrors..................138 Heated Exterior Mirror....................................... 138
Heated Rear Window........................................ 138
Heating See: Climate Control......................................... 129
Hill Start Assist
.............................................190
Switching the System On and Off................191
Using Hill Start Assist....................................... 190
Hints on Controlling the Interior Climate..........................................................134
Cooling the Interior Quickly............................ 136
General Hints....................................................... 134
Heating the Interior Quickly............................ 135
Recommended Settings for Cooling ..........136
Recommended Settings for Heating..........136
Side Window Defogging in Cold Weather............................................................. 137
Hints on Driving With Anti-Lock Brakes............................................................189
Hood Lock See: Opening and Closing the Hood...........276
I
Ignition Switch
...............................................165
In California (U.S. Only).............................261
Information Display Control.......................75
Information Display Control Features...........75
Information Displays
....................................101
General Information........................................... 101Information....................................................453
911 Assist............................................................... 459
Alerts...................................................................... 458
Calendar............................................................... 459
Sirius Travel Link................................................. 457
SYNC Services (If Equipped, United States Only).................................................................. 453
Vehicle Health Report (If Equipped, US Only)................................................................... 461
Information Messages
.................................115
4WD........................................................................\
.. 115
Adaptive Cruise Control.................................... 116
AdvanceTrac ™..................................................... 116
Alarm........................................................................\
116
Automatic Engine Shutdown.......................... 117
Automatic High Beam Control........................ 117
Battery and Charging System......................... 118
Blind Spot Information and Cross Traffic Alert System..................................................... 118
Brake System........................................................ 119
Collision Warning System................................ 119
Doors and Locks.................................................. 119
Driver Alert............................................................ 120
Electronic Stability Control............................. 120
Engine..................................................................... 120
Fuel........................................................................\
.... 121
Hill Descent Control............................................ 121
Hill Start Assist..................................................... 121
Keys and Intelligent Access............................. 122
Lane Keeping System........................................ 123
Maintenance......................................................... 123
MyKey...................................................................... 124
Park Aid.................................................................. 124
Park Brake.............................................................. 124
Power Steering.................................................... 125
Pre-Collision Warning System....................... 125
Remote Start........................................................ 125
Seats........................................................................\
126
Starting System.................................................. 126
Terrain Management System......................... 127
Tire Pressure Monitoring System.................. 126
Traction Control................................................... 127
Trailer....................................................................... 127
Transmission........................................................ 128
531
Explorer (TUB), enUSA, First Printing Index

Installing Child Seats......................................17
Using Lap and Shoulder Belts.......................... 17
Using Lower Anchors and Tethers for CHildren (LATCH)............................................ 22
Using Tether Straps............................................. 24
Instrument Cluster
.........................................93
Instrument Lighting Dimmer.....................82
Interior Lamps
.................................................85
Battery Saver......................................................... 86
Dome Lamp........................................................... 85
Front Row Map Lamps...................................... 85
Second Row Dome and Courtesy Lamps................................................................. 86
Second Row Dome and Map Lamps...........86
Third Row Cargo Lamp...................................... 86
Interior Mirror...................................................90 Auto-Dimming Mirror......................................... 90
Introduction.........................................................7
J
Jump Starting the Vehicle.........................257 Connecting the Jumper Cables..................... 257
Jump Starting...................................................... 258
Preparing Your Vehicle..................................... 257
Removing the Jumper Cables....................... 258
K
Keyless Entry
....................................................67
SECURICODE™ Keyless Entry
Keypad................................................................. 67
Keyless Starting............................................165 Ignition Modes..................................................... 166
Keys and Remote Controls
........................48
Principle of Operation........................................ 48
L
Lane Keeping System
................................220
Switching the System On and Off................221
Lighting Control
..............................................80
Headlamp Flasher................................................ 81
High Beams............................................................ 80
Lighting
..............................................................80
General Information........................................... 80
Load Carriers See: Roof Racks and Load Carriers.............234 Load Carrying
................................................233
Load Limit.......................................................235 Special Loading Instructions for Owners of
Pick-up Trucks and Utility-type
Vehicles............................................................. 242
Vehicle Loading - with and without a Trailer................................................................. 235
Locking and Unlocking................................60 Activating Intelligent Access............................. 61
Autolock................................................................... 62
Autounlock ............................................................ 62
Battery Saver......................................................... 63
Enabling or Disabling Autolock and Autounlock........................................................ 62
Illuminated Entry.................................................. 63
Illuminated Exit..................................................... 63
Locking and Unlocking the Doors with the Key Blade........................................................... 60
Opening a Rear Door from Inside.................. 60
Power Door Locks................................................ 60
Remote Control.................................................... 60
Smart Unlocks for Integrated Keyhead Transmitter......................................................... 61
Smart Unlocks for Intelligent Access Keys....................................................................... 61
Locks..................................................................60
Luggage Covers
............................................234
Lug Nuts See: Changing a Road Wheel....................... 328
M
Maintenance..................................................275 General Information.......................................... 275
Manual Climate Control
.............................129
Manual Liftgate...............................................63 Closing the Liftgate............................................. 64
Opening the Liftgate........................................... 64
Manual Seats
.................................................143
Lumbar Adjustment.......................................... 144
Moving the Seat Backward and Forward............................................................. 143
Recline Adjustment........................................... 143
Media Hub
......................................................367
532
Explorer (TUB), enUSA, First Printing Index

Power Steering Fluid Check....................288
Power Windows..............................................87
Accessory Delay.................................................... 87
Bounce-Back......................................................... 87
One-Touch Down................................................. 87
One-Touch Up....................................................... 87
Window Lock......................................................... 87
Pre-Collision Assist.....................................230 Using the Pre-Collision Assist
System............................................................... 231
Protecting the Environment........................14
R
Rear Parking Aid...........................................198 Obstacle Distance Indicator.......................... 199
Rear Passenger Climate Controls...........137
Rear Seats
........................................................147
Adjusting the Rear Seats.................................. 147
Rear Under Floor Storage.........................233 Adjustable Load Floor...................................... 233
Cargo Management System.......................... 233
Rear View Camera
......................................208
Using the Rear View Camera
System............................................................. 208
Rear View Camera See: Rear View Camera.................................. 208
Rear Window Wiper and Washers...........78 Rear Camera Washer.......................................... 79
Rear Window Washer......................................... 79
Rear Window Wiper............................................. 78
Recommended Towing Weights
...........244
Refueling..........................................................174 Easy Fuel ™ Capless Fuel System.................175
Remote Control
..............................................49
Car Finder................................................................ 52
Integrated Keyhead Transmitters .................49
Intelligent Access Key........................................ 49
Memory Feature.................................................... 51
Remote Start ........................................................ 52
Replacing the Battery......................................... 50
Sounding a Panic Alarm.................................... 52
Remote Start..................................................139 Automatic Settings............................................ 139
Removing a Headlamp..............................293
Repairing Minor Paint Damage
..............304 Replacement Parts
Recommendation.........................................11
Collision Repairs..................................................... 11
Scheduled Maintenance and Mechanical Repairs................................................................... 11
Warranty on Replacement Parts..................... 12
Replacing a Lost Key or Remote Control.............................................................53
Reporting Safety Defects (Canada Only)..............................................................265
Reporting Safety Defects (U.S. Only)..............................................................264
Roadside Assistance..................................255 Vehicles Sold in Canada: Getting Roadside
Assistance....................................................... 255
Vehicles Sold in Canada: Using Roadside Assistance....................................................... 255
Vehicles Sold in the United States: Getting Roadside Assistance................................... 255
Vehicles Sold in the United States: Using Roadside Assistance................................... 255
Roadside Emergencies
..............................255
Roof Racks and Load Carriers................234 Adjusting the Crossbar.................................... 235
Thumbwheel Kit................................................. 234
Running-In See: Breaking-In................................................. 252
Running Out of Fuel.....................................173 Adding Fuel From a Portable Fuel
Container........................................................... 173
Filling a Portable Fuel Container................... 173
S
Safety Belt Height Adjustment.................36
Safety Belt Minder..........................................37 Belt-Minder™......................................................... 37
Safety Belts
.......................................................31
Principle of Operation.......................................... 31
Safety Belt Warning Lamp and Indicator Chime..............................................................36
Conditions of operation..................................... 36
Safety Canopy ™
............................................45
Safety Precautions........................................171
534
Explorer (TUB), enUSA, First Printing Index
