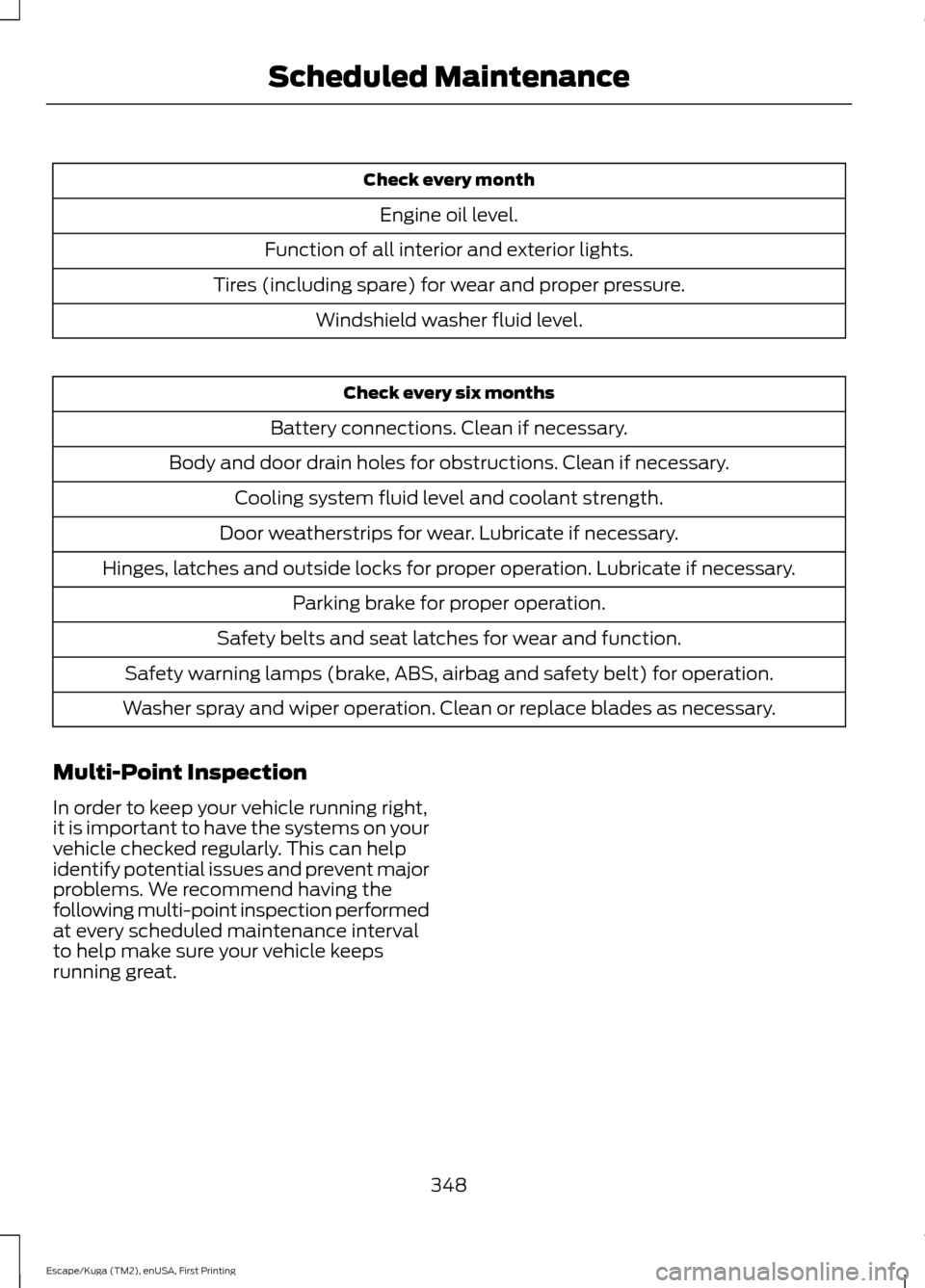

Check every month
Engine oil level.
Function of all interior and exterior lights.
Tires (including spare) for wear and proper pressure. Windshield washer fluid level. Check every six months
Battery connections. Clean if necessary.
Body and door drain holes for obstructions. Clean if necessary. Cooling system fluid level and coolant strength.
Door weatherstrips for wear. Lubricate if necessary.
Hinges, latches and outside locks for proper operation. Lubricate if necessary. Parking brake for proper operation.
Safety belts and seat latches for wear and function.
Safety warning lamps (brake, ABS, airbag and safety belt) for operation.
Washer spray and wiper operation. Clean or replace blades as necessary.
Multi-Point Inspection
In order to keep your vehicle running right,
it is important to have the systems on your
vehicle checked regularly. This can help
identify potential issues and prevent major
problems. We recommend having the
following multi-point inspection performed
at every scheduled maintenance interval
to help make sure your vehicle keeps
running great.
348
Escape/Kuga (TM2), enUSA, First Printing Scheduled Maintenance

Multi-Point inspection
Hazard warning system operation
Accessory drive belt(s)
Horn operation
Battery performance
Radiator, cooler, heater and air conditioninghoses
Engine air filter
Suspension components for leaks ordamage
Exhaust system
Steering and linkage
Exterior lamps operation
Tires (including spare) for wear and properpressure**
Fluid levels *
; fill if necessary
Windshield for cracks, chips or pits
For oil and fluid leaks
Washer spray and wiper operation
Half-shaft dust boots
* Brake, coolant recovery reservoir, automatic transmission and window washer
** If your vehicle is equipped with a temporary mobility kit, check the tire sealant expiration
Use By date on the canister. Replace as needed.
Be sure to ask your dealership service
advisor or technician about the multi-point
vehicle inspection. It is a comprehensive
way to perform a thorough inspection of
your vehicle. Your checklist gives you
immediate feedback on the overall
condition of your vehicle.
NORMAL SCHEDULED
MAINTENANCE
Intelligent Oil-Life Monitor™
Your vehicle is equipped with an Intelligent
Oil-Life Monitor that determines when you
should change the engine oil based on how
your vehicle is used. By using several
important factors in its calculations, the
monitor helps reduce the cost of owning
your vehicle and reduces environmental
waste at the same time. This means you do not have to remember
to change the oil on a mileage-based
schedule. Your vehicle lets you know when
an oil change is due by displaying a
message in the information display.
The following table provides examples of
vehicle use and its impact on oil change
intervals. It is a guideline only. Actual oil
change intervals depend on several factors
and generally decrease with severity of
use.
349
Escape/Kuga (TM2), enUSA, First Printing Scheduled Maintenance

At every oil change interval as indicated by the information display
*
Inspect the tires, tire wear and measure the tread depth.
Inspect the wheels and related components for abnormal noise, wear, looseness or
drag.
* Do not exceed one year or 10000 miles (16000 kilometers) between service intervals.
** Reset the Intelligent Oil-Life Monitor after engine oil and filter changes. See Engine
Oil Check (page 217). Other maintenance items
1
Replace cabin air filter.
Every 20000 miles (32000
km)
Replace engine air filter.
Every 30000 miles (48000
km)
Change engine coolant.2
At 100000 miles (160000
km)
Replace spark plugs.
Every 100000 miles
(160000 km) Inspect accessory drive belt(s). 3
Change automatic transmission fluid. 4
Every 150000 miles
(240000 km) Replace accessory drive belt(s). 5
Replace timing belt (1.6L engine).
1 Perform these maintenance items within 3000 miles (4800 kilometers) of the last
engine oil and filter change. Do not exceed the designated distance for the interval.
2 Initial replacement at six years or 100000 miles (160000 kilometers), then every three
years or 50000 miles (80000 kilometers).
3 After initial inspection, inspect every other oil change until replaced.
4 Rear-wheel drive vehicles only.
5 If not replaced within the last 100000 miles (160000 kilometers).
351
Escape/Kuga (TM2), enUSA, First Printing Scheduled Maintenance

Extensive idling or low-speed driving for long distances, as in heavy commercial use
Change automatic transmission fluid.
Every 30000 miles (48000
km)
Replace spark plugs.
Every 60000 miles (96000
km)
* This is an optional feature. Operating in dusty or sandy conditions (such as unpaved or dusty roads)
Replace cabin air filter. *
Inspect frequently, service
as required
Replace engine air filter.
Inspect the wheels and related components for abnormal
noise, wear, looseness or drag.
Every 5000 miles (8000
km)
Rotate tires, inspect tires for wear and measure tread
depth.
Change engine oil and filter.**
Every 5000 miles (8000
km) or six months
Perform multi-point inspection.
Change automatic transmission fluid.
Every 30000 miles (48000
km)
* This is an optional feature.
** Reset your Intelligent Oil-Life Monitor after engine oil and filter changes. See Engine
Oil Check (page 217). Exclusive use of E85 (flex fuel vehicles only)
If ran exclusively on E85, fill the fuel tank full with regular
unleaded fuel.
Every oil change
Exceptions
There are several exceptions to the Normal
Schedule: Normal vehicle axle maintenance: Rear
axles and power take-off (PTO) units with
synthetic fluid and light-duty trucks
equipped with Ford-design axles are
lubricated for life; do not check or change
fluid unless a leak is suspected, service is
required or the assembly has been
submerged in water. During long periods
of trailer towing with outside temperatures
353
Escape/Kuga (TM2), enUSA, First Printing Scheduled Maintenance

4
4WD
See: Four-Wheel Drive....................................... 141
A
A/C See: Climate Control.......................................... 101
About This Manual...........................................7
ABS See: Brakes........................................................... 146
ABS driving hints See: Hints on Driving With Anti-Lock
Brakes................................................................ 146
Accessories....................................................342 Exterior Style....................................................... 342
Interior Style......................................................... 342
Lifestyle................................................................. 342
Peace of Mind..................................................... 342
Accessories See: Replacement Parts
Recommendation............................................. 11
Active Park Assist
.........................................154
Automatic Steering into Parking
Space................................................................. 155
Deactivating the Park Assist Feature..........156
Troubleshooting the System.......................... 156
Using Active Park Assist................................... 154
Adjusting the Headlamps.........................224 Horizontal Aim Adjustment........................... 226
Vertical Aim Adjustment................................. 224
Adjusting the Steering Wheel
....................67
Airbag Disposal...............................................43
Air Conditioning See: Climate Control.......................................... 101
Alarm See: Anti-Theft Alarm........................................ 66
Anti-Theft Alarm............................................66 Arming the Alarm................................................ 66
Disarming the Alarm........................................... 66
Appendices....................................................365 Audible Warnings and Indicators.............87
Automatic Transmission Warning
Chime................................................................... 87
Engine On Warning Chime................................ 87
Headlamps On Warning Chime...................... 87
Key in Ignition Warning Chime......................... 87
Keyless Warning Alert ........................................ 87
Parking Brake On Warning Chime.................. 87
Audio Control...................................................67
Audio System................................................286 General Information......................................... 286
Audio Unit - Vehicles With: AM/FM/CD/ SYNC/Satellite Radio
..............................291
Audio Unit - Vehicles With: AM/FM/CD/ SYNC.............................................................289
Audio Unit - Vehicles With: AM/FM/ CD...................................................................287
Audio Unit - Vehicles With: Premium AM/FM/CD..................................................293
Audio Unit - Vehicles With: Sony AM/ FM/CD...........................................................295
Menu Structure.................................................. 296
Autolamps.........................................................74 Windshield Wiper Activated
Headlamps......................................................... 75
Automatic Climate Control......................102 Temperature Control......................................... 103
Automatic Transmission...........................138 Brake-Shift Interlock......................................... 139
If Your Vehicle Gets Stuck In Mud or Snow.................................................................. 140
SelectShift Automatic ™
Transmission................................................... 138
Understanding the Positions of Your Automatic Transmission............................. 138
Automatic Transmission Fluid Check..............................................................221
Autowipers........................................................70
Auxiliary Power Points.................................121 110 Volt AC Power Point..................................... 121
12 Volt DC Power Point...................................... 121
Locations................................................................. 121
381
Escape/Kuga (TM2), enUSA, First Printing Index

B
Blind Spot Information System..............162
Switching the System Off and On...............164
System Errors....................................................... 164
Using the System................................................ 162
Bonnet Lock See: Opening and Closing the Hood............212
Booster Seats..................................................22
Types of Booster Seats...................................... 23
Brake Fluid Check
.........................................221
Brakes...............................................................146 General Information.......................................... 146
Breaking-In.....................................................188
Bulb Specification Chart
..........................230
C
Cabin Air Filter................................................107
California Proposition 65..............................11
Capacities and Specifications - 1.6L EcoBoost™..................................................275
Specifications...................................................... 275
Capacities and Specifications - 2.0L EcoBoost™.................................................278
Specifications...................................................... 279
Capacities and Specifications - 2.5L.................................................................282
Specifications..................................................... 283
Capacities and Specifications...............268
Car Wash See: Cleaning the Exterior.............................. 234
Center Console..............................................123
Changing a Bulb
...........................................226
Lamp Assembly Condensation.................... 226
Replacing Fog, Park and Turn Signal Bulbs.................................................................. 228
Replacing Headlamp Bulbs............................ 227
Replacing HID Headlamp Bulbs.................. 228
Replacing High-Mount Brake Lamp Bulb.................................................................... 230
Replacing License Plate Lamp Bulb..........230
Replacing Reverse Lamp Assembly...........229
Replacing Side Marker Bulbs........................ 228
Replacing Tail, Brake and Turn Signal Bulbs.................................................................. 229
Changing a Fuse.............................................211 Fuses........................................................................\
. 211Changing a Road Wheel...........................262
Dissimilar Spare Wheel and Tire Assembly
Information..................................................... 262
Tire Change Procedure.................................... 263
Changing the 12V Battery..........................222
Changing the Engine Air Filter.................232 1.6L and 2.0L EcoBoost Engines.................. 232
2.5L Engine........................................................... 233
Changing the Wiper Blades.....................223 Front Wiper Blades............................................ 223
Rear Wiper Blade............................................... 224
Checking MyKey System Status...............52
Checking the Wiper Blades......................223
Child Restraint and Safety Belt Maintenance.................................................33
Child Safety
.......................................................15
General Information............................................. 15
Child Safety Locks
..........................................25
Left-Hand Side...................................................... 26
Right-Hand Side................................................... 26
Child Seat Positioning..................................24
Cleaning Leather Seats..............................237
Cleaning Products
.......................................234
Cleaning the Alloy Wheels.......................238
Cleaning the Engine....................................235
Cleaning the Exterior..................................234 Exterior Chrome Parts...................................... 234
Exterior Plastic Parts........................................ 235
Stripes or Graphics............................................ 235
Underbody............................................................ 235
Cleaning the Instrument Panel and Instrument Cluster Lens.........................237
Cleaning the Interior...................................236
Cleaning the Windows and Wiper Blades...........................................................236
Clearing All MyKeys.......................................50
Climate Control..............................................101
Coolant Check See: Engine Coolant Check............................. 218
Crash Sensors and Airbag Indicator........42
Creating a MyKey
...........................................50
Programming/Changing Configurable
Settings............................................................... 50
382
Escape/Kuga (TM2), enUSA, First Printing Index

Cross Traffic Alert.........................................164
False Alerts............................................................ 167
Switching the System Off and On................167
System Errors....................................................... 167
System Lights, Messages and Audible Alerts.................................................................. 166
System Limitations............................................ 166
Using the System............................................... 164
Cruise Control.................................................68 Principle of Operation........................................ 161
Cruise control See: Using Cruise Control................................. 161
Customer Assistance.................................196
D
Data Recording
..................................................9
Event Data Recording........................................... 9
Service Data Recording........................................ 9
Daytime Running Lamps.............................76 Type 1 - Conventional
(Non-Configurable)........................................ 76
Type 2 - Configurable.......................................... 76
Digital Radio
..................................................298
HD Radio Reception and Station
Troubleshooting............................................ 299
Direction Indicators
........................................77
Driver and Passenger Airbags...................36 Children and Airbags.......................................... 36
Proper Driver and Front Passenger Seating Adjustment........................................................ 36
Driver Knee Airbag.........................................40
Driving Aids
.....................................................162
Driving Hints...................................................188
Driving Through Water...............................189
DRL See: Daytime Running Lamps......................... 76
E
Eco Mode
.........................................................167
Resetting Eco Mode.......................................... 168
Type 1...................................................................... 168
Type 2 and 3......................................................... 168
Economical Driving......................................188 Emission Control System
..........................135
On-Board Diagnostics (OBD-II)................... 136
Readiness for Inspection/Maintenance (I/M) Testing................................................... 136
End User License Agreement.................365 VEHICLE SOFTWARE END USER LICENSE
AGREEMENT (EULA) ................................. 365
Engine Block Heater
....................................128
Using the Engine Block Heater...................... 129
Engine Coolant Check
................................218
Adding Engine Coolant..................................... 219
Checking the Engine Coolant......................... 218
Recycled Engine Coolant................................. 219
Severe Climates................................................. 220
What You Should Know About Fail-Safe Cooling.............................................................. 220
Engine Immobilizer See: Passive Anti-Theft System..................... 65
Engine Oil Check............................................217 Adding Engine Oil................................................ 217
Engine Oil Dipstick - 1.6L EcoBoost™...................................................217
Engine Oil Dipstick - 2.0L EcoBoost™/ 2.5L..................................................................217
Engine Specifications - 1.6L EcoBoost™.................................................268
Drivebelt Routing............................................... 268
Engine Specifications - 2.0L EcoBoost™.................................................268
Drivebelt Routing............................................... 269
Engine Specifications - 2.5L....................269 Drivebelt Routing............................................... 270
Environment......................................................14
Essential Towing Checks...........................182 Before Towing a Trailer..................................... 184
Hitches.................................................................... 182
Launching or Retrieving a Boat or Personal Watercraft (PWC)......................................... 185
Safety Chains....................................................... 183
Trailer Brakes........................................................ 183
Trailer Lamps....................................................... 184
When Towing a Trailer...................................... 184
Event Data Recording See: Data Recording.............................................. 9
Export Unique Options..................................13
Extended Service Plan (ESP).................344 SERVICE PLANS (CANADA ONLY)............345
SERVICE PLANS (U.S. Only)......................... 344
383
Escape/Kuga (TM2), enUSA, First Printing Index

Exterior Mirrors................................................79
Blind Spot Monitor.............................................. 80
Fold-Away Exterior Mirrors.............................. 80
Heated Exterior Mirrors...................................... 80
Integrated Blind Spot Mirrors.......................... 80
Memory Mirrors.................................................... 80
Power Exterior Mirrors........................................ 79
F
Fastening the Safety Belts
.........................28
How to Extract Safety Belts in the Rear
Outboard Positions........................................ 30
Safety Belt Extension Assembly.................... 30
Safety Belt Locking Modes............................... 29
Using Safety Belts During Pregnancy...........28
Floor Mats
.......................................................189
Fog Lamps - Front See: Front Fog Lamps......................................... 76
Ford Credit
..........................................................11
(U.S. Only)................................................................. 11
Four-Wheel Drive
..........................................141
Principle of Operation........................................ 141
Front Fog Lamps............................................76
Front Parking Aid..........................................153
Front Passenger Sensing System.............37
Fuel and Refueling
.......................................130
Fuel Consumption........................................134
Calculating Fuel Economy.............................. 135
Filling the Tank..................................................... 134
Fuel Filler Funnel Location.........................131
Fuel Filter
.........................................................222
Fuel Quality......................................................131
Choosing the Right Fuel.................................... 131
Fuel Shutoff
....................................................192
Fuses................................................................202
Fuse Specification Chart
..........................202
Luggage Compartment Fuse Panel...........208
Passenger Compartment Fuse
Panel................................................................. 205
Power Distribution Box.................................... 202
Pre-Fuse Box....................................................... 202
G
Garage Door Opener See: Universal Garage Door Opener............116 Gauges...............................................................83
Engine Coolant Temperature Gauge............84
Fuel Gauge............................................................. 84
Information Display............................................. 83
General Information on Radio Frequencies...................................................44
Intelligent Access................................................. 44
General Maintenance Information
.......346
Multi-Point Inspection..................................... 348
Owner Checks and Services.......................... 347
Protecting Your Investment.......................... 346
Why Maintain Your Vehicle?......................... 346
Why Maintain Your Vehicle at Your Dealership?..................................................... 346
Getting Assistance Outside the U.S. and Canada..........................................................199
Getting the Services You Need...............196 Away From Home.............................................. 196
H
Handbrake See: Parking Brake.............................................. 147
Hazard Warning Flashers...........................192
Headlamp Exit Delay.....................................75
Head Restraints............................................108 Adjusting the Head Restraint........................ 109
Heated Seats...................................................114
Heated Steering Wheel...............................69
Heated Windows and Mirrors
..................106
Heated Exterior Mirror...................................... 106
Heated Rear Window....................................... 106
Heating See: Climate Control.......................................... 101
Hill Start Assist..............................................147 Switching the System On and Off...............148
Using Hill Start Assist........................................ 147
384
Escape/Kuga (TM2), enUSA, First Printing Index
