2016 FORD C MAX remote start

Power Steering
Action
Message
The power steering system has detected a condition that
requires service. See your authorized dealer.
Steering Fault Service
Now
The power steering system is not working. Stop the vehicle a
safe place. Contact your authorized dealer.
Steering Loss Stop
Safely
Remote Start Action
Message
Displayed when the remote start system is active.
Remote Start Active
Tire Pressure Monitoring System Action
Message
Displays when one or more tires on your vehicle have low tire
pressure. See Tire Pressure Monitoring System (page 270).
Tire Pressure Low
Displays when the tire pressure monitoring system is
malfunctioning. If the warning stays on or continues to come
on, contact your authorized dealer. See Tire Pressure
Monitoring System (page 270).
Tire Pressure Monitor
Fault
Displayed when a tire pressure sensor is malfunctioning, or
your spare tire is in use. See
Tire Pressure Monitoring
System (page 270). If the warning stays on or continues to
come on, contact your authorized dealer as soon as possible.
Tire Pressure Sensor
Fault
Transmission Action
Message
Displays as a reminder to shift into park.
Transmission Not in Park
107
C-MAX (CCG) Canada/United States of America, enUSA, First Printing Information Displays

5. Direct the outer instrument panel air
vents toward the side windows.
6. To increase the airflow to the outer instrument panel vents, close the air
vents in the middle of the instrument
panel and in the rear of the center
console.
HEATED WINDOWS AND
MIRRORS
Note: Make sure the engine is running
before operating the heated windows.
Heated Rear Window The heated rear window button
is below the climate control unit.
Press the button to clear the
heated rear window of thin ice and fog.
The heated rear window will automatically
turn off after a short period of time.
Note: Do not use razor blades or other
sharp objects to clean or remove decals
from the inside of the heated rear window.
The vehicle warranty does not cover
damage caused to the heated rear window
grid lines.
Heated Exterior Mirrors (If Equipped)
When you switch the heated rear window
on, the heated exterior mirrors will
automatically turn on.
Note: Do not remove ice from the mirrors
with a scraper or adjust the mirror glass
when it is frozen in place.
Note: Do not clean the mirror housing or
glass with harsh abrasives, fuel or other
petroleum-based cleaning products. CABIN AIR FILTER
Your vehicle is equipped with a cabin air
filter, which gives you and your passengers
the following benefits:
•
It improves your driving comfort by
reducing particle concentration.
• It improves the interior compartment
cleanliness.
• It protects the climate control
components from particle deposits.
Your cabin air filter is located under the
instrument panel in the passenger footwell
area.
Note: Make sure you have a cabin air filter
installed at all times. This prevents foreign
objects from entering the system. Running
the system without a filter in place could
result in degradation or damage to the
system.
Replace the filter at regular intervals. See
Maintenance
(page 218).
For additional cabin air filter information,
or to replace the filter, see an authorized
dealer.
REMOTE START
(If Equipped)
The remote start feature allows you to
pre-condition the interior of your vehicle.
The climate control system works to
achieve comfort according to your previous
settings.
Note: You cannot adjust the system during
remote start operation.
Turn the ignition on to return the system
to its previous settings. You can now make
adjustments normally, but you need to turn
certain vehicle-dependent features back
on, such as:
• Heated seats.
• Cooled seats.
111
C-MAX (CCG) Canada/United States of America, enUSA, First Printing Climate ControlE72507

•
Heated steering wheel.
• Heated mirrors.
• Heated rear window.
You can adjust the default remote start
settings using the information display
controls. See Information Displays
(page 93).
Automatic Settings
In hot weather, the system is set to
72°F
(22°C). The cooled seats are set to high
(if available, and selected to AUTO in the
information display).
In moderate weather, the system either
heats or cools (based on previous
settings). The rear defroster, heated
mirrors and heated seats do not
automatically turn on.
In cold weather, the system is set to
72°F
(22°C). The heated seats are set to high
(if available, and selected to AUTO in the
information display). The rear defroster
and heated mirrors automatically turn on.
112
C-MAX (CCG) Canada/United States of America, enUSA, First Printing Climate Control

Note:
The green ready indicator illuminates
letting you know that the vehicle is ready
for driving. Since your vehicle is equipped
with a silent key start, the engine may not
start at the time of the vehicle start. See
Hybrid Vehicle Operation (page 135).
The system does not function if:
• The key frequencies are jammed.
• The key battery has no charge.
If you are unable to start the vehicle, do
the following:
3-button remote 5-button remote
1. Hold the key next to the steering
column as shown. 2. With the key in this position, you can
use the start button to switch the
ignition on and start your vehicle.
Fast Restart
The fast restart feature allows you to
restart the vehicle within 20 seconds of
switching it off, even if a valid key is not
present.
Within 20 seconds of switching the vehicle
off, press the brake pedal and press the
button. After 20 seconds have expired, you
can no longer restart the vehicle without
the key present inside your vehicle.
Once the vehicle has started, it remains
running until you press the button, even if
the system does not detect a valid key. If
you open and close a door while the vehicle
is running, the system searches for a valid
key. You cannot restart the vehicle if the
system does not detect a valid key within
20 seconds.
Switching Off the Vehicle When It
Is Stationary
Vehicles with an Ignition Key
1. Move the transmission selector lever to position
P.
2. Turn the key to position
0.
3. Apply the parking brake.
Vehicles with Keyless Start
1. Move the transmission selector lever to position
P.
2. Press the button once.
3. Apply the parking brake.
Note: This switches off the ignition, all
electrical circuits, warning lamps and
indicators.
131
C-MAX (CCG) Canada/United States of America, enUSA, First Printing Starting and Stopping the EngineE145988 E142874

Protected components
Fuse amp rating
Fuse or relay number
Washer pump.
20A
F77
Ignition switch, Start button.
5A
F78
Radio.
15A
F79
Hazard light switch.
Not used (spare).
20A
F80
Power sun shade.
5A
F81
Remote receiver antenna.
Washer pump ground.
20A
F82
Central locking ground.
20A
F83
Drive door unlock ground.
20A
F84
Electronic 15 feed.
7.5A
F85
Restraints control module.
10A
F86
Passenger air bag deactivation indicator.
Not used (spare).
15A
F87
Not used (spare).
25A
F88
Not used.
—
F89
Luggage Compartment Fuse Panel
The fuse panel is located in the luggage
compartment behind the left side wheel
well. Remove the fuse panel cover to gain
access to the fuses.
214
C-MAX (CCG) Canada/United States of America, enUSA, First Printing Fuses

For a complete listing of the accessories
that are available for your vehicle, please
contact your authorized dealer or visit the
online store web site:
Web Address (United States)
www.Accessories.Ford.com Web Address (Canada)
www.Accessories.Ford.ca
Ford Motor Company will repair or replace
any properly authorized dealer-installed
Ford Original Accessory found to be
defective in factory-supplied materials or
workmanship during the warranty period,
as well as any component damaged by the
defective accessories.
Ford Motor Company warrants your
vehicle's accessory through the warranty
that provides the greatest benefit:
• 24 months, unlimited mileage.
• The remainder of your new vehicle
limited warranty.
Contact an authorized dealer for details
and a copy of the warranty.
Exterior style
• Custom graphics*.
• Hood deflector*.
• Side window deflectors.
• Splash guards.
Interior style
• Accent lighting.
• Cargo area protector.
• Door sill plates.
• Floor mats. Lifestyle
•
Ash cup or smoker's packages.
• Cargo net*.
• Roof racks and carriers*.
• Soft cargo organizers.
Peace of mind
• Bumper-mounted parking assist
system*.
• Car covers.
• Charge cord storage bag*.
• Keyless entry keypad.
• Rear bumper protector.
• Remote start.
• Vehicle security systems.
• Wheel locks.
344
C-MAX (CCG) Canada/United States of America, enUSA, First Printing Accessories

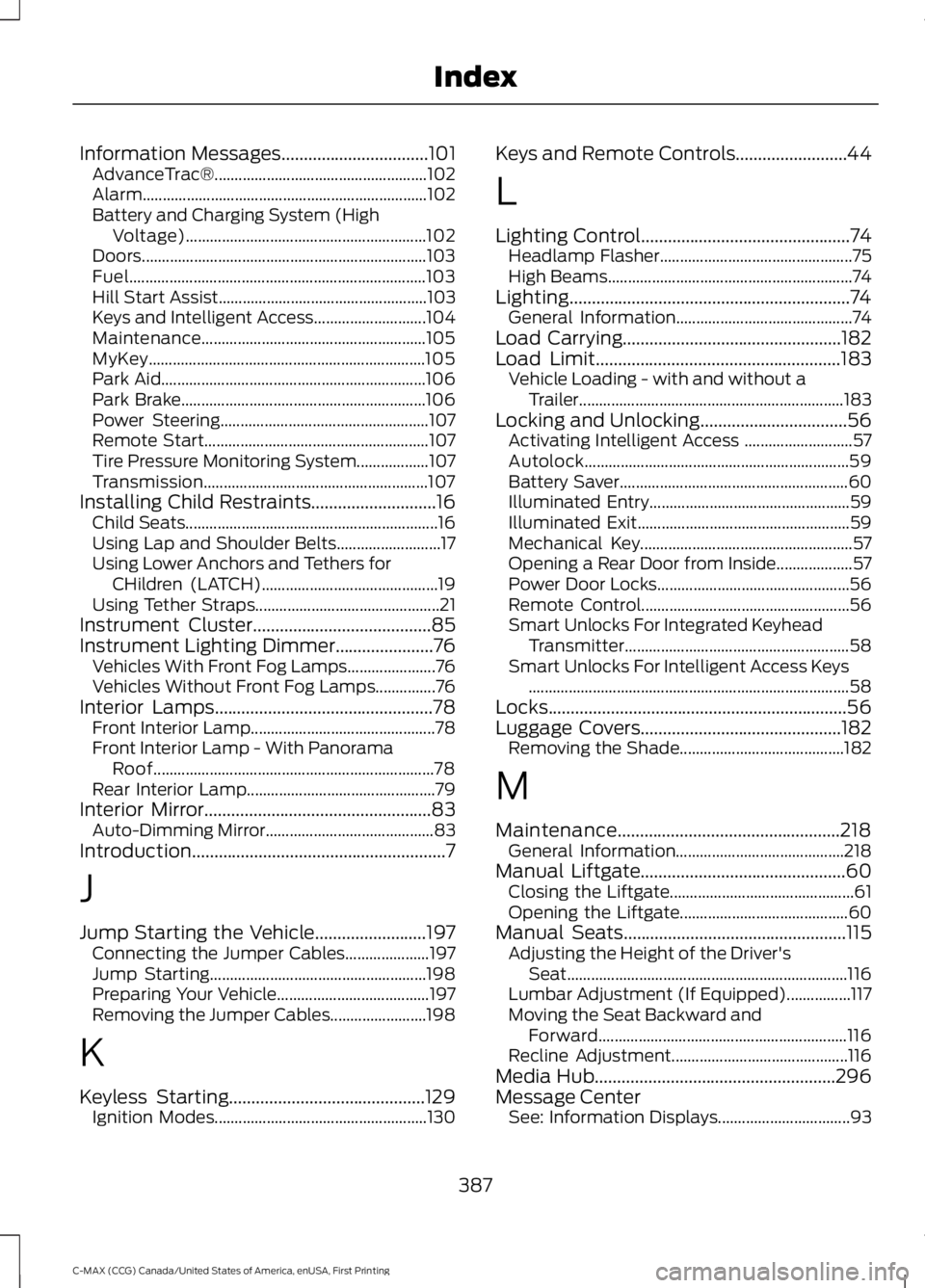

Information Messages.................................101
AdvanceTrac®..................................................... 102
Alarm....................................................................... 102
Battery and Charging System (High Voltage)............................................................ 102
Doors....................................................................... 103
Fuel........................................................................\
.. 103
Hill Start Assist.................................................... 103
Keys and Intelligent Access............................ 104
Maintenance........................................................ 105
MyKey..................................................................... 105
Park Aid.................................................................. 106
Park Brake............................................................. 106
Power Steering.................................................... 107
Remote Start........................................................ 107
Tire Pressure Monitoring System.................. 107
Transmission........................................................ 107
Installing Child Restraints
............................16
Child Seats............................................................... 16
Using Lap and Shoulder Belts.......................... 17
Using Lower Anchors and Tethers for CHildren (LATCH)............................................ 19
Using Tether Straps.............................................. 21
Instrument Cluster
........................................85
Instrument Lighting Dimmer......................76
Vehicles With Front Fog Lamps...................... 76
Vehicles Without Front Fog Lamps...............76
Interior Lamps
.................................................78
Front Interior Lamp.............................................. 78
Front Interior Lamp - With Panorama Roof...................................................................... 78
Rear Interior Lamp............................................... 79
Interior Mirror
...................................................83
Auto-Dimming Mirror.......................................... 83
Introduction.........................................................7
J
Jump Starting the Vehicle.........................197 Connecting the Jumper Cables..................... 197
Jump Starting...................................................... 198
Preparing Your Vehicle...................................... 197
Removing the Jumper Cables........................ 198
K
Keyless Starting
............................................129
Ignition Modes..................................................... 130Keys and Remote Controls.........................44
L
Lighting Control
...............................................74
Headlamp Flasher................................................ 75
High Beams............................................................. 74
Lighting...............................................................74 General Information............................................ 74
Load Carrying.................................................182
Load Limit
.......................................................183
Vehicle Loading - with and without a
Trailer .................................................................. 183
Locking and Unlocking
.................................56
Activating Intelligent Access ........................... 57
Autolock.................................................................. 59
Battery Saver......................................................... 60
Illuminated Entry.................................................. 59
Illuminated Exit..................................................... 59
Mechanical Key..................................................... 57
Opening a Rear Door from Inside................... 57
Power Door Locks................................................ 56
Remote Control.................................................... 56
Smart Unlocks For Integrated Keyhead Transmitter........................................................ 58
Smart Unlocks For Intelligent Access Keys ........................................................................\
........ 58
Locks
...................................................................56
Luggage Covers.............................................182 Removing the Shade......................................... 182
M
Maintenance..................................................218 General Information.......................................... 218
Manual Liftgate..............................................60 Closing the Liftgate.............................................. 61
Opening the Liftgate.......................................... 60
Manual Seats
..................................................115
Adjusting the Height of the Driver's
Seat...................................................................... 116
Lumbar Adjustment (If Equipped)................117
Moving the Seat Backward and Forward.............................................................. 116
Recline Adjustment............................................ 116
Media Hub
......................................................296
Message Center See: Information Displays................................. 93
387
C-MAX (CCG) Canada/United States of America, enUSA, First Printing Index

Mirrors
See: Heated Windows and Mirrors.................111
See: Windows and Mirrors............................... 80
Mobile Communications Equipment.......12
Motorcraft Parts............................................277
MyKey Troubleshooting...............................54
MyKey ™..............................................................51
Principle of Operation.......................................... 51
N
Normal Scheduled Maintenance
...........352
Intelligent Oil-Life Monitor™......................... 352
Normal Maintenance Intervals..................... 352
O
Oil Check See: Engine Oil Check....................................... 222
Opening and Closing the Hood...............218 Closing the Hood................................................ 219
Opening the Hood.............................................. 218
Ordering Additional Owner's Literature.....................................................206
Obtaining a French Owner ’s Manual..........207
Overhead Console
........................................128
P
Parking Aids....................................................170 Principle of Operation....................................... 170
Parking Brake
.................................................165
Passive Anti-Theft System.........................65
SecuriLock®........................................................... 65
PATS See: Passive Anti-Theft System..................... 65
Perchlorate.........................................................11
Personal Safety System ™
..........................34
How Does the Personal Safety System
Work?.................................................................. 34
Plug-In Hybrid Vehicle Operation...........137 ECO Cruise............................................................ 139
EV Modes............................................................... 137
Fuel Freshness..................................................... 139
Low Engine Use................................................... 139
Plug-in Power Mode and Hybrid Mode................................................................... 137
Post-Crash Alert System
...........................201 Power Door Locks
See: Locking and Unlocking............................. 56
Power Liftgate..................................................61 Hands-Free Feature............................................ 63
Obstacle Detection............................................. 63
Opening and Closing the Liftgate................... 61
Setting the Liftgate Open Height................... 63
Stopping the Liftgate Movement................... 62
Power Seats.....................................................117 Power Lumbar...................................................... 119
Power Steering Fluid Check.....................227
Power Windows
.............................................80
Accessory Delay..................................................... 81
Bounce-Back......................................................... 80
One-Touch Down................................................ 80
One-Touch Up...................................................... 80
Window Lock......................................................... 80
Protecting the Environment........................14
R
Rear Parking Aid
............................................170
Rear Seat Armrest........................................120
Rear Seats
........................................................119
Folding the Seatback ........................................ 119
Unfolding the Seatback.................................... 119
Rear Under Floor Storage..........................182
Rear View Camera........................................176 Using the Rear View Camera System.........176
Rear View Camera See: Rear View Camera.................................... 176
Rear Window Wiper and Washers...........72 Rear Window Washer......................................... 73
Rear Window Wiper............................................. 72
Refueling..........................................................146 Easy Fuel ™ Capless Fuel System................146
Easy Fuel ™ Capless System - Energi
Vehicles Only................................................... 147
Remote Control..............................................44 Car Finder................................................................ 48
Integrated Keyhead Transmitters .................44
Intelligent Access Key......................................... 45
Remote Start (If Equipped)............................. 48
Replacing the Battery......................................... 46
Sounding a Panic Alarm.................................... 48
Remote Start....................................................111 Automatic Settings............................................. 112
Removing a Headlamp..............................232
388
C-MAX (CCG) Canada/United States of America, enUSA, First Printing Index
