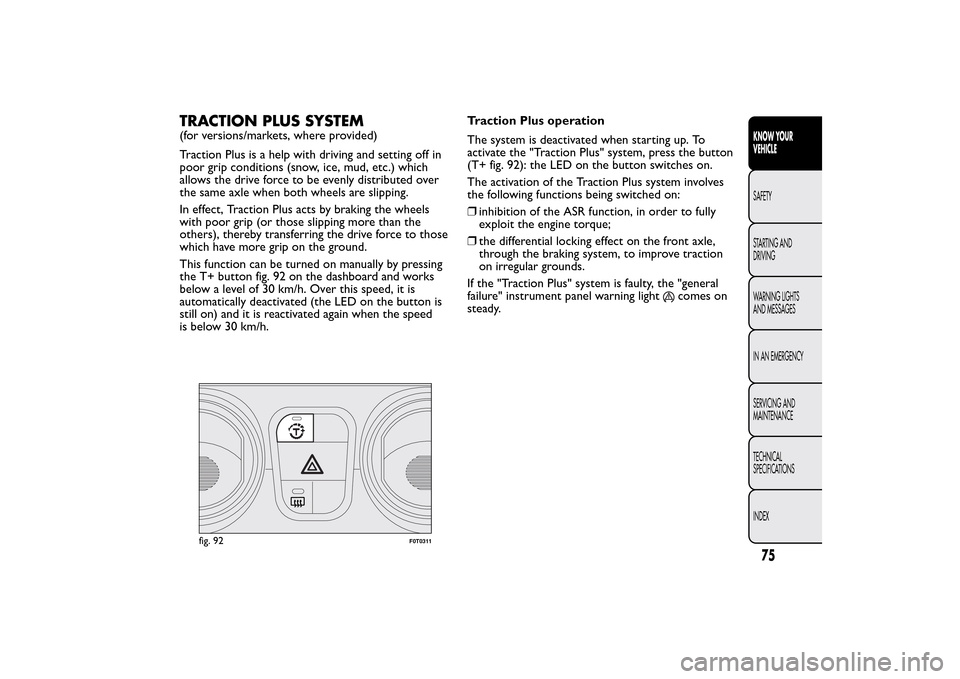

TRACTION PLUS SYSTEM(for versions/markets, where provided)
Traction Plus is a help with driving and setting off in
poor grip conditions (snow, ice, mud, etc.) which
allows the drive force to be evenly distributed over
the same axle when both wheels are slipping.
In effect, Traction Plus acts by braking the wheels
with poor grip (or those slipping more than the
others), thereby transferring the drive force to those
which have more grip on the ground.
This function can be turned on manually by pressing
the T+ button fig. 92 on the dashboard and works
below a level of 30 km/h. Over this speed, it is
automatically deactivated (the LED on the button is
still on) and it is reactivated again when the speed
is below 30 km/h.Traction Plus operation
The system is deactivated when starting up. To
activate the "Traction Plus" system, press the button
(T+ fig. 92): the LED on the button switches on.
The activation of the Traction Plus system involves
the following functions being switched on:
❒inhibition of the ASR function, in order to fully
exploit the engine torque;
❒the differential locking effect on the front axle,
through the braking system, to improve traction
on irregular grounds.
If the "Traction Plus" system is faulty, the "general
failure" instrument panel warning light
comes on
steady.
fig. 92
F0T0311
75KNOW YOUR
VEHICLESAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
CAPACITIES
1.3 Multijet 75 HP
Recommended fuels and original
lubricants
litres kg
Fuel tank: 45 -
Diesel for motor vehicles (EN590
specification)
including a reserve of: 6/7 -
Engine cooling system: 7.6 -50% mixture of distilled water and
PARAFLU
UP
(*)
Engine sump: 3.0 2.6
SELENIA WR P.E.
Engine sump and filter: 3.2 2.8
Gearbox/differential casing: 1.84 1.6TUTELA CAR TECHNYX
Hydraulic power steering 0.38 0.35TUTELA GI/E
Hydraulic brake circuit: - 0.5TUTELA TOP 4
Windscreen and rear window
washer fluid tank:3.0 -Water and liquid mixture
TUTELA PROFESSIONAL SC 35(*)When the vehicle is used in particularly harsh weather conditions, we recommend using a 60-40 mixture of PARAFLU
UP
and
distilled water.
206KNOW YOUR
VEHICLE
SAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN EMERGENCY
SERVICING AND
MAINTENANCETECHNICAL
SPECIFICATIONS
INDEX
UseFluid and lubricant specifications for
correct operationGenuine fluids and
lubricantsApplications
Lubricants for
motion
transmissionSAE 75W-85 grade synthetic lubricant. Exceeds
API GL 4 PLUS specifications.
FIAT Qualification 9.55550-MX3TUTELA CAR
TECHNYX
Contractual Technical
Reference N. F010.B05Manual gearboxes and
differentials (diesel
versions)
Molybdenum disulphide grease, for use at high
temperatures.
Qualification FIAT 9.55580.Consistency
NL.G.I. 1-2TUTELA ALL STAR
Contractual Technical
Reference N. F702.G07Wheel side constant
velocity joints
Grease for constant velocity joints with low
friction coefficient.
Qualification FIAT 9.55580.Consistency
NL.G.I. 0-1TUTELA STAR 700
Contractual Technical
Reference N. F701.C07Differential-side
constant velocity
joints
Automatic transmission lubricant. Exceeding ATF
DEXRON III specificationsQualification FIAT
9.55550- AG2.TUTELA GI/E
Contractual Technical
Reference N. F001.C94Hydraulic power
steering
Brake fluidSynthetic fluid, NHTSA N. 116 DOT 4, ISO
4925, SAE J-1704, CUNA NC 956-01.
Qualification FIAT 9.55597.TUTELA TOP 4
Contractual Technical
Reference N. F001.A93Hydraulic brakes and
hydraulic clutch
controls
