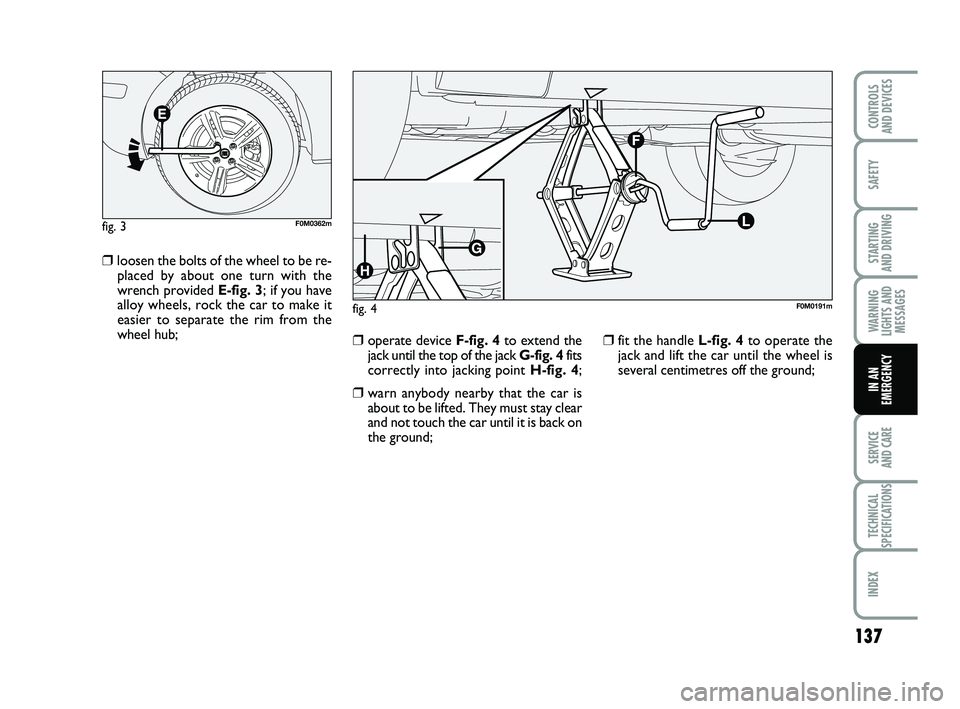

❒loosen the bolts of the wheel to be re- placed by about one turn with the
wrench provided E-fig. 3; if you have
alloy wheels, rock the car to make it
easier to separate the rim from the
wheel hub;
❒ operate device F-fig. 4to extend the
jack until the top of the jack G-fig. 4fits
correctly into jacking point H-fig. 4;
❒ warn anybody nearby that the car is about to be lifted. They must stay clear
and not touch the car until it is back on
the ground;
❒fit the handle L-fig. 4 to operate the
jack and lift the car until the wheel is
several centimetres off the ground;
fig. 3F0M0362m
fig. 4F0M0191m
