2016 FIAT PUNTO fuel

READ THIS CAREFULLY!

K
REFUELLINGPetrol engines : refuel only with unleaded petrol with an octane rating (RON) of no l\
ess than 95 conforming to
the European specification EN228.
Diesel engines: refuel only with diesel fuel conforming to the European specification \
EN590.
The use of other products or mixtures may damage the engine beyond repai\
r and consequently invalidate the war-
ranty, depending on the damage caused.
STARTING THE ENGINE Petrol engines : make sure that the handbrake is engaged, set the gearshift lever to ne\
utral, fully depress the clutch
without pressing the accelerator, then turn the ignition key to AVV and \
release it as soon as the engine has started.
Diesel engines: make sure that the handbrake is engaged, set the gearshift lever to ne\
utral, fully depress the clutch
without pressing the accelerator, then turn the ignition key to MAR and \
wait for the warning lights
Yand mto
go off; turn the ignition key to AVV and release it as soon as the engin\
e has started.
PARKING ON FLAMMABLE MATERIAL The catalytic converter develops high temperatures during operation. Do \
not park the vehicle on grass, dry leaves,
pine needles or other flammable material: fire hazard.
RESPECTING THE ENVIRONMENT The car is fitted with a system that allows continuous diagnosis of the \
components correlated with emissions to en-
sure better respect for the environment.
001-032 PUNTO POP 1ed EN 31/03/14 09:02 Pagina 2

4
SAFETY
STARTING
AND DRIVING
WARNING
LIGHTS AND MESSAGES
IN AN
EMERGENCY
SERVICE
AND CARE
TECHNICAL
SPECIFICATIONS
INDEX
CONTROLS
AND DEVICESDASHBOARD ......................................................................\
5
SYMBOLS ........................................................................\
....... 6
THE FIAT C ODE SYSTEM ................................................. 6
THE KEYS ........................................................................\
...... 8
ALARM ........................................................................\
........... 10
IGNITION .......................................................................\
...... 12
INSTRUMENT PANEL ........................................................ 13
INSTRUMENTS .................................................................... 14
DIGITAL DISPLAY ............................................................... 16
MULTIFUNCTION DISPLAY ............................................ 21
TRIP COMPUTER ................................................................ 30
FRONT SEATS ..................................................................... 32
REAR S EATS ........................................................................\
.. 33
HEAD RESTRAINTS ........................................................... 34
STEERING WHEEL .............................................................. 35
MIRRORS .......................................................................\
........ 35
HEATING AND VENTILATION SYSTE M .................... 37
MANUAL CLIMATE CONTROL SYSTE M .................... 41
EXTERIOR LIGHTS ............................................................. 47
WINDOW CLEAN ING ..................................................... 49
CEILING COURTESY LIGHTS ......................................... 51
CONTROLS .......................................................................\
. 53
FUEL CUT-OFF SYSTEM ................................................... 55 INTERIOR FI
TTINGS ........................................................... 56
DOORS ........................................................................\
.......... 60
ELECTRIC WINDOW OPENING ................................. 63
BOOT ........................................................................\
............. 65
BONNET .......................................................................\
........ 68
ROOF RACK/SKI RACK .................................................... 69
HEADLIGHTS ....................................................................... 70
ABS SYSTE M ......................................................................\
... 72
ESP SYSTEM ......................................................................\
.... 73
EOBD SYSTEM ..................................................................... 76
“DUAL DRIVE” ELECTRIC POWER
STEERING SYSTEM ............................................................. 77
START&STOP SYSTEM ...................................................... 79
SYSTÈME GEAR SHIFT INDICATOR ............................. 84
SOUND SYSTE M ................................................................. 85
ABILITY TO INSTALL A PORTABLE
NAVIGATION SYSTEM ..................................................... 86
ACCESSORIES PURCHASED BY THE OWNER ......... 86
REFEULLING THE CAR ..................................................... 88
PROTECTING THE ENVIRONMENT ........................... 89
C
C
O
O
N
N
T
T
R
R
O
O
L
L
S
S


A
A
N
N
D
D


D
D
E
E
V
V
I
I
C
C
E
E
S
S
001-032 PUNTO POP 1ed EN 31/03/14 09:02 Pagina 4

8
SAFETY
STARTING
AND DRIVING
WARNING
LIGHTS AND MESSAGES
IN AN
EMERGENCY
SERVICE
AND CARE
TECHNICAL
SPECIFICATIONS
INDEX
CONTROLS
AND DEVICES
KEY WITH REMOTE CONTROL
fig. 4
(for versions/markets, where provided)
The metal insert Aenables:
❒the ignition;
❒the door locks;
❒the fuel cap lock/release (for versions/
markets, where provided).
To open/close the metal insert, press
button B.
Button Ëis used for unlocking the doors
and the boot.
Button
Áis used for locking the doors and
the boot.
Button
Ris used to open the boot re-
motely.
When unlocking the doors, the passenger
compartment lights will come on for
a preset time.
THE KEYS
CODE CARD fig. 3
(for versions/markets, where provided)
The car is delivered with two copies of the
ignition key and with the CODE card
which bears the following:
A the electronic code;
B the mechanical key code to be given to
the Fiat Dealership when ordering du-
plicate keys.
You should have the electronic code A-
fig. 3 with you at all times.
IMPORTANT In order to ensure com-
plete efficiency of the electronic devices
inside the keys, they should never be ex-
posed to direct sunlight.
All the keys and the CODE
card must be handed over to
the new owner when selling
the car.
fig. 3F0M0351m
Press button B only with the
key away from your body,
specifically from your eyes and from
objects which could get damaged (e.g.
your clothes). Do not leave the key
unattended to avoid the button being
accidentally pressed while it is being
handled, e.g. by a child.
WARNING
fig. 4F0M0394mfig.
001-032 PUNTO POP 1ed EN 31/03/14 09:03 Pagina 8

10
SAFETY
STARTING
AND DRIVING
WARNING
LIGHTS AND MESSAGES
IN AN
EMERGENCY
SERVICE
AND CARE
TECHNICAL
SPECIFICATIONS
INDEX
CONTROLS
AND DEVICES
KEY WITHOUT REMOTE
CONTROL fig. 8
The metal insert of the key Ais fixed.
The key operates:
❒the ignition;
❒the door locks;
❒the fuel tank cap lock (for versions/ markets, where provided).
fig. 8F0M0352m
ALARM
The car alarm system is available at Lin-
eaccessori Fiat.
Used batteries are harmful to
the environment. You can dis-
pose of them either in the
correct containers as speci-
fied by law or by taking them to a Fiat
Dealership, which will deal with their
disposal.
Requesting additional
remote controls
The system acknowledges up to 8 remote
controls. Should a new remote control be
necessary, contact a Fiat Dealership, tak-
ing with you the CODE card, a personal
identity document and the car’s owner-
ship documents.
001-032 PUNTO POP 1ed EN 31/03/14 09:03 Pagina 10

13
SAFETY
STARTING
AND DRIVING
WARNING
LIGHTS AND MESSAGES
IN AN
EMERGENCY
SERVICE
AND CARE
TECHNICAL
SPECIFICATIONS
INDEX
CONTROLS
AND DEVICES
INSTRUMENT PANEL
Versions with digital display
A Speedometer
B Fuel level gauge with reserve warning
light
C Engine coolant temperature gauge and
excessive temperature warning light
D Rev counter
E Digital display
Versions with multifunction display
A Speedometer
B Fuel level gauge with reserve warning
light
C Engine coolant temperature gauge and
excessive temperature warning light
D Rev counter
E Multifunction display
F0M0535m
fig. 10
F0M0536mfig. 11
001-032 PUNTO POP 1ed EN 31/03/14 09:03 Pagina 13

14
SAFETY
STARTING
AND DRIVING
WARNING
LIGHTS AND MESSAGES
IN AN
EMERGENCY
SERVICE
AND CARE
TECHNICAL
SPECIFICATIONS
INDEX
CONTROLS
AND DEVICES

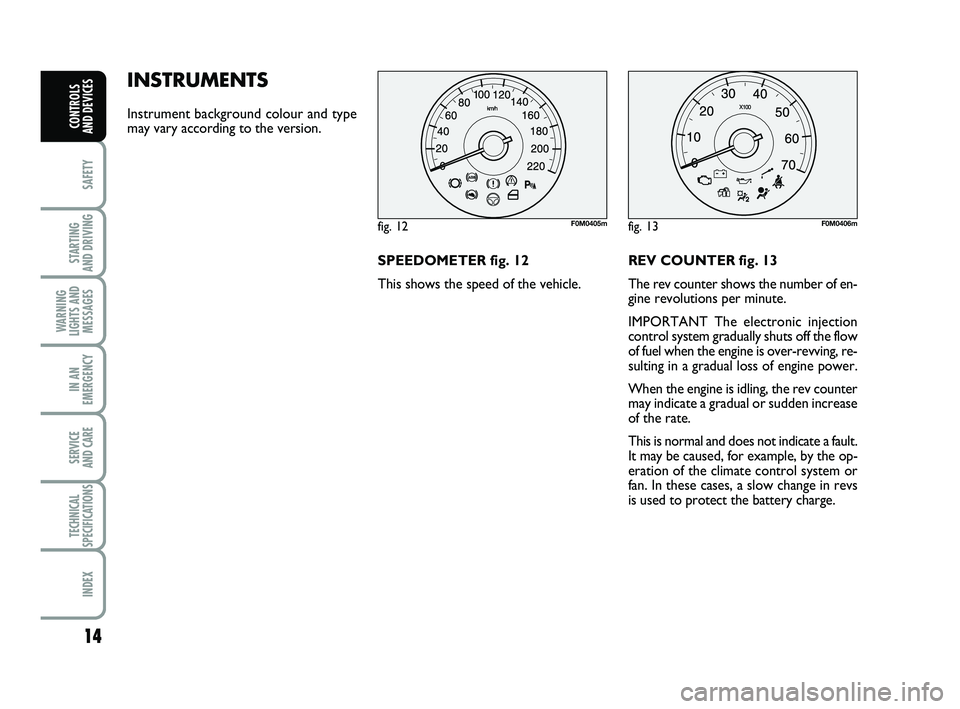

INSTRUMENTS
Instrument background colour and type
may vary according to the version.
SPEEDOMETER fig. 12
This shows the speed of the vehicle.REV COUNTER fig. 13
The rev counter shows the number of en-
gine revolutions per minute.
IMPORTANT The electronic injection
control system gradually shuts off the flow
of fuel when the engine is over-revving, re-
sulting in a gradual loss of engine power.
When the engine is idling, the rev counter
may indicate a gradual or sudden increase
of the rate.
This is normal and does not indicate a fault.
It may be caused, for example, by the op-
eration of the climate control system or
fan. In these cases, a slow change in revs
is used to protect the battery charge.
fig. 12F0M0405mfig. 13F0M0406m
001-032 PUNTO POP 1ed EN 31/03/14 09:03 Pagina 14

15
SAFETY
STARTING
AND DRIVING
WARNING
LIGHTS AND MESSAGES
IN AN
EMERGENCY
SERVICE
AND CARE
TECHNICAL
SPECIFICATIONS
INDEX
CONTROLS
AND DEVICES
FUEL LEVEL GAUGE fig. 14
This shows the amount of fuel left in
the tank.
E tank empty.
F full tank.
The reserve warning light A turns on to
indicate that approximately 7 litres of
fuel are left in the tank.
Do not travel with the fuel tank almost
empty: the gaps in fuel delivery could dam-
age the catalyst.
See the description in the “Refuelling”
paragraph.
IMPORTANT The needle will point to E
and warning light Awill blink to indicate
a fault in the system. If this happens, go
to a Fiat Dealership to have the system
checked. ENGINE COOLANT
TEMPERATURE GAUGE fig. 15
This shows the temperature of the engine
coolant fluid and starts working when the
fluid temperature exceeds approx. 50 °C.
Under normal usage, the needle should
hover around the middle of the scale ac-
cording to the working conditions.
C
Low engine coolant temperature.
H High engine coolant temperature. Warning light B
may light up (and a mes-
sage on the multifunctional display may ap-
pear in certain versions) to indicate that
the coolant fluid temperature is too high;
in this case, stop the engine and contact
a Fiat Dealership.
If the needle reaches the red
area, stop the engine imme-
diately and contact a Fiat
Dealership.
fig. 14F0M0407mfig. 15F0M0408m
001-032 PUNTO POP 1ed EN 31/03/14 09:03 Pagina 15

27
SAFETY
STARTING
AND DRIVING
WARNING
LIGHTS AND MESSAGES
IN AN
EMERGENCY
SERVICE
AND CARE
TECHNICAL
SPECIFICATIONS
INDEX
CONTROLS
AND DEVICES
Selecting language (Language)
Display messages can be shown in differ-
ent languages: Italian, English, German,
Portuguese, Spanish, French, Polish and
Dutch.
To set the required language, proceed as
follows:
– briefly press MENU ESC – the previ-
ously set language will flash on the display;
– press + or –to make your choice;
– briefly press MENU ESC to return to
the menu screen or hold the button down
to return to the standard screen without
saving. Adjusting the failure/warning
buzzer volume (Alert Volume)
This function allows the volume of the
buzzer which accompanies the display of
failures/warnings to be adjusted (over
8 levels).
To set the desired volume, proceed as fol-
lows:
– briefly press MENU ESC
– the previ-
ously set volume level will flash on the dis-
play;
– press + or –to set the value;
– briefly press MENU ESCto return to
the menu screen or hold the button down
to return to the standard screen without
saving.
If the distance unit set is “km” the fuel con-
sumption unit will be displayed in km/l or
l/100km.
If the distance unit set is “mi” the fuel con-
sumption unit will be displayed in “mpg”.
– press +
or –to make your choice;
– if selecting “Temperature” : briefly press
MENU ESC and the display will show
“C” or “F” (depending on the previous
setting);
– press + or –to make your choice;
When you have made the adjustment,
briefly press MENU ESC to go back to
the sub-menu screen or hold the button
down to go back to the main menu with-
out saving.
– hold down MENU ESC again to go
back to the standard screen or main
menu, depending on where you are in the
menu.
001-032 PUNTO POP 1ed EN 31/03/14 09:03 Pagina 27
