KEYLESS OPERATION
SYSTEM
The keyless operation system allows
you to lock and unlock the doors, start
the engine and change the operation
mode simply by carrying the keyless
operation key with you.
The switches on the keyless operation
key can also be used as the key switch
of keyless entry system. Refer to
“Starting and stopping the engine”.
Refer to “Keyless entry system”. The
driver should always carry the keyless
operation key. This key is necessary for
locking and unlocking the doors,
starting the engine and otherwise
operating the vehicle, so before locking
and leaving the vehicle, be sure to
check that you have the keyless
operation key.
4) 5)
You can limit the possible operations of
the keyless operation system. Please
consult a Fiat Dealership.
The keyless operation key uses an
ultra-weak electromagnetic wave. In the
following cases, the keyless operation
system may not operate properly or
may be unstable.
When there is equipment nearby that
emits strong radio waves, such as: a
power station, a radio/TV broadcasting
station or an airport.
The keyless operation system is
carried together with a communicationsdevice such as a cellular phone or radio
set, or with an electronic device such as
a personal computer.
The keyless operation key is touching
or covered by a metal object.
A keyless entry system is being used
nearby.
When the keyless operation key
battery is worn out.
When the keyless operation key is
set down in an area with strong radio
waves or noise. In such cases, use the
emergency key. Refer to “To
lock/unlock without using the keyless
operation function”.
NOTE Because the keyless operation
key receives signals in order to
communicate with the transmitters in
the vehicle, the battery continually
wears down regardless of keyless
operation key use. The battery life is
1 to 2 years, depending on usage
conditions. When the battery wears out,
replace the battery according to the
description in this manual or have it
replaced a Fiat Dealership. Refer to
“Procedure for replacing the key
battery”.
NOTE Because the keyless operation
key continually receives signals, strong
radio wave reception could affect
battery wear. Do not leave the key near
a TV, personal computer, or other
electronic device.Operating range of the keyless
operation system
If you are carrying the keyless operation
key, enter the operating range of the
keyless operation system, and press
the driver’s or front passenger’s door
lock/unlock switch, the ID code for your
key is verified.
You can lock and unlock the doors,
start the engine and change the
operation mode only if the ID codes of
your keyless operation key and the
vehicle match.
NOTE If the keyless operation key
battery is wearing out or there are
strong electromagnetic waves or noise
present, the operating range may
become smaller and operation may
become unstable.
Operating range for locking and
unlocking the doors
The operating range is approximately
70 cm from the driver’s or front
passenger’s door lock/unlock switch.
NOTE Locking and unlocking operate
only when you press a door switch that
detects the keyless operation key.
NOTE Operation may not be possible if
you are too close to the front door, door
window.
NOTE Even if the keyless operation key
is within 70 cm of the driver’s or front
passenger’s door lock/unlock switch, if
the key is near to the ground or high
up, the system may not operate.
17

NOTE If the keyless operation key is
within the operating range, even
someone not carrying the key can lock
and unlock the doors by pressing the
driver’s or front passenger’s door
lock/unlock switch.
Operating range for starting the
engine and changing the operation
mode
The operating range is the interior of the
vehicle.
NOTE Even if it is within the operating
range, if the keyless operation key is in
a small item holder such as the glove
box, on top of the instrument panel,
door pocket or in the luggage
compartment, it may be impossible to
start the engine and change the
operation mode.
NOTE If a keyless operation key is too
close to the door or door window, it
may be possible to start the engine or
change the operation mode even when
the key is outside the vehicle.To operate using the keyless
operation function
Locking the doors
When you are carrying the keyless
operation key, if you press the driver’s
or front passenger’s door lock/unlock
switch (A), within the operating range,
the doors are locked.
The turn-signal lamps will blink once
and the outer buzzer will sound once.
Also refer to “Locking and unlocking:
Doors, Central door locks”.
Unlocking the doors
When you are carrying the keyless
operation key, if you press the driver’s
or front passenger’s door lock/unlock
switch (A), within the operating range,
all the doors are unlocked.
If the room lamp switch is in the middle
position at this time, the room lamp will
turn on for 15 seconds. The turn-signallamps will blink twice and the outer
buzzer will sound twice.
If the driver’s or front passenger’s door
lock/unlock switch is pressed and any
of the doors is not opened within
approximately 30 seconds, relocking
will automatically occur.
Refer to “Locking and unlocking: Doors,
Central door locks”.
NOTE The keyless operation function
does not operate under the following
conditions:
The keyless operation key is inside
the vehicle.
A door is open or ajar.
The operation mode is not in OFF.
NOTE The time between unlocking and
automatic locking can be adjusted.
Please consult a Fiat Dealership.
Operation confirmation when
locking and unlocking
Operation can be confirmed as shown
below. However, the room lamp will
illuminate only if the room lamp switch
is in the middle position.
When locking — the turn-signal lamps
blink once and the outer buzzer sounds
once.
When unlocking — the room lamp
illuminates for approximately
15 seconds, the turn-signal lamps blink
twice, and the outer buzzer sounds
twice.
NOTE Functions can be modified as
stated below. For further information,
A
13AHA105437
18
GETTING TO KNOW YOUR VEHICLE

please contact a Fiat Dealership.
NOTE Activating the operation
confirmation function (blinking of the
turn-signal lamps) only during locking,
or only during unlocking.
NOTE Disabling the operation
confirmation function (blinking of the
turn-signal lamps) and outer buzzer.
NOTE Changing the number of blinks
for the operation confirmation function
(blinking of the turn-signal lamps).
To lock/unlock without using the
keyless operation function
Emergency key
The emergency key (A) can only be
used to lock and unlock the door. To
use the emergency key, unlock the lock
knob (B) and remove it from the keyless
operation key (C).
NOTE Only use the emergency key for
emergencies. If the keyless operationkey battery wears out, replace it as
quickly as possible so that you can use
the keyless operation key.
NOTE The emergency key is built in the
keyless operation key.
NOTE After using the emergency key,
always return it into the original position.
Locking and unlocking the door
Turning the emergency key in the
forward direction locks the door, and
turning it in the rear direction unlocks
the door. Also refer to “Locking and
unlocking: Doors”.
1 — Lock
2 — Unlock
A
BC
14AG0010823
21
15AHA105440
19

Warning activation
In order to prevent vehicle theft or the accidental operation of the keyless operation system, the lamp and buzzer are used to
alert the driver.
Buzzer Item Cause Note / Solution
BlinksOuter buzzer
sounds
4 times. Inner
buzzer sounds.Keyless
operation key
take-out
monitoring
systemWhen the vehicle is parked with
the operation mode in any mode
other than OFF, if you close the
door after opening any of the
doors and taking the keyless
operation key out of the vehicle.
Outer buzzer sounds 4 times at
this time. And when a vehicle
starts, inner buzzer sounds once.If you take the keyless operation key out of the
vehicle through a window without opening a door,
this system does not operate.
It is possible to change the setting to make the
system operate if you take the keyless operation key
out from the vehicle through a window without
opening a door. For further information, please
contact a Fiat Dealership.
Even if you have the keyless operation key within the
engine start operating range, if the key and vehicle
ID codes cannot be matched, for example due to
the ambient environment or electromagnetic
conditions, the warning may be activated.
BlinksOuter buzzer
3 sounds
approximately
3 secondsKey lock-in
prevention
systemWhen the operation mode is in
OFF, if you close all the doors with
the keyless operation key left in
the vehicle and you try to lock the
doors by pressing the driver’s or
front passenger’s door lock/unlock
switch.Make sure you have the keyless operation key with
you before locking the doors. Even if you leave the
keyless operation key inside the vehicle, it is
possible that the doors will lock depending on the
surrounding environment and wireless signal
conditions.
BlinksOuter buzzer
sounds
approximately
3 secondsDoor ajar
prevention
systemWhen the operation mode is in
OFF, if you try to lock the doors by
pressing the driver’s or front
passenger’s door lock/unlock
switch with one of the doors not
completely closed.—
Blinks No soundKeyless
operation
systemThe battery of the keyless
operation key has worn out.Replace the battery as soon as possible at a Fiat
Dealership.
20
GETTING TO KNOW YOUR VEHICLE

Buzzer Item Cause Note / Solution
Illuminates No soundKeyless
operation
systemA power supply is not switched
over from OFF because the
keyless operation key in the
vehicle cannot be detected. When
a warning is issued to being in the
vehicle, it is because the battery of
the keyless operation key has
worn out or the state of the
surrounding radio wave is bad.Please confirm that the keyless operation key is in
the vehicle. If the key is in the vehicle, insert the slot.
Starting the engine and changing the operation
mode should be now possible.
Illuminates No soundKeyless
operation
systemThere is a fault in the keyless
operation system.If the warning lamp illuminates, please contact a Fiat
Dealership.
IlluminatesInner buzzer
sounds
(intermittent
sounds)Keyless
operation
systemThere is a fault in the electrical
system.If the warning lamp illuminates, please contact a Fiat
Dealership.
IlluminatesInner buzzer
sounds
(continuous
sounds)Keyless
operation
systemThere is a fault in the electrical
system.Immediately stop the vehicle in a safe place and
contact a Fiat Dealership.
BlinksOuter buzzer
sounds
approximately
3 seconds.
Inner buzzer
sounds
approximately
1 minute.Keyless
operation key
reminderWhen the operation mode is in
OFF with the keyless operation
key left in the key slot, if you try to
open the driver’s door.Remove the keyless operation key from the key slot.
Refer to “Starting and stopping the engine”.
IlluminatesInner buzzer
3 soundsSteering wheel
lockThere is a fault in the steering
wheel lock system.Refer to “Steering wheel lock”.
21

Buzzer Item Cause Note / Solution
BlinksOuter buzzer
sounds
approximately
3 secondsOperation
mode OFF
reminder
systemWhen the operation mode is in
any mode other than OFF with all
the doors are closed, if you try to
lock by using the driver’s or front
passenger’s door lock/unlock
switch.Refer to “Operation mode OFF reminder system”.
Buzzer Item Cause Note / Solution
Illuminates No soundsImmobilizer
systemThere is a fault in the electronic
immobilizer (Anti-theft starting
system).Put the operation mode in OFF and then start the
engine again. If the warning is not cancelled,
contact a Fiat Dealership
BlinksInner buzzer
soundsSteering wheel
lockSteering wheel does not unlock.the procedure of reference page. Refer to “Steering
wheel lock”.
Illuminates No soundsSteering wheel
lockSteering wheel lock is abnormal. Refer to “Steering wheel lock”.
WARNING
1)When carrying a key on flights, do not
press any switches on the key while on the
plane. If a switch is pressed on the plane,
the key emits electromagnetic waves,
which could adversely affect the plane’s
flight operation. When carrying a key in a
bag, be careful that no switches on the key
can be easily pressed by mistake.2)Don’t make any alterations or additions
to the immobilizer system; alterations or
additions could cause failure of the
immobilizer.
3)When the key case is opened, be careful
to keep water, dust, etc. out. Also, do not
touch the internal components.4)People with implantable cardiac
pacemakers or implantable cardiovascular-
defibrillators should not go near the exterior
transmitters (A) or the interior transmitters
(B). The radio waves used by the keyless
operation system could adversely affect
implantable cardiac pacemakers or
implantable cardiovascular-defibrillators.
22
GETTING TO KNOW YOUR VEHICLE

5)When using electro-medical devices
other than implantable cardiac pacemakers
or implantable cardiovascular-defibrillators,
contact the electro-medical device
manufacturer ahead of time to determine
the adverse effects of radio waves on the
devices. Electro-medical device operations
could be affected by radio waves.
IMPORTANT
1)Used batteries are harmful to the
environment. You can dispose of them
either in the correct containers as specified
by law or by taking them to a Fiat
Dealership, which will deal with their
disposal.
IGNITION SWITCH
(where provided)
LOCK
The engine is stopped and the steering
wheel locked. The key can only be
inserted and removed in this position.
ACC
The engine is stopped, but the audio
system and other electric devices can
be operated.
ON
All the vehicle’s electrical devices can
be operated.
START
The starter motor operates. After the
engine has started, release the key and
it will automatically return to the “ON”
position.
NOTE If your vehicle is equipped with
an electronic immobilizer. To start theengine, the ID code which the
transponder inside the key sends must
match the one registered in the
immobilizer computer. Refer to
“Electronic immobilizer (Anti-theft
starting system)”.
To remove the key
For vehicles equipped with a M/T, when
removing the key, push the key in at the
“ACC” position and keep it depressed
until it is turned to the “LOCK” position
and remove it.
For vehicles equipped with A/T, when
removing the key, first set the selector
lever to the “P” (PARK) position, and
push the key in at the “ACC” position
and keep it depressed until it is turned
to the “LOCK” position, and remove it.
6) 7) 8) 9) 10)
1) 2) 3)
18AG0004466
19AHA103488
23

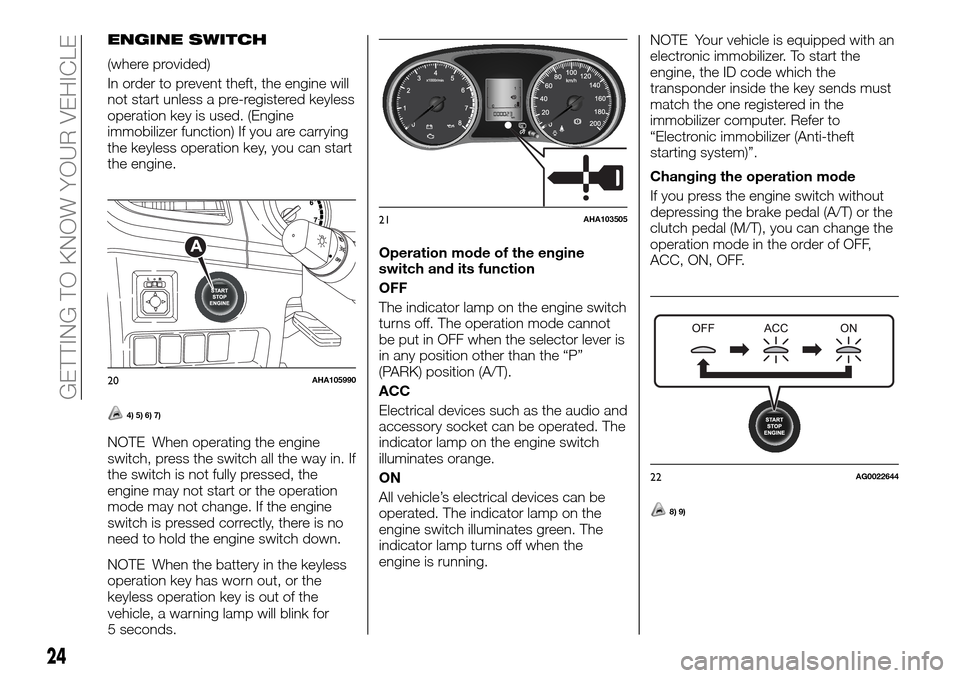

ENGINE SWITCH
(where provided)
In order to prevent theft, the engine will
not start unless a pre-registered keyless
operation key is used. (Engine
immobilizer function) If you are carrying
the keyless operation key, you can start
the engine.
4) 5) 6) 7)
NOTE When operating the engine
switch, press the switch all the way in. If
the switch is not fully pressed, the
engine may not start or the operation
mode may not change. If the engine
switch is pressed correctly, there is no
need to hold the engine switch down.
NOTE When the battery in the keyless
operation key has worn out, or the
keyless operation key is out of the
vehicle, a warning lamp will blink for
5 seconds.Operation mode of the engine
switch and its function
OFF
The indicator lamp on the engine switch
turns off. The operation mode cannot
be put in OFF when the selector lever is
in any position other than the “P”
(PARK) position (A/T).
ACC
Electrical devices such as the audio and
accessory socket can be operated. The
indicator lamp on the engine switch
illuminates orange.
ON
All vehicle’s electrical devices can be
operated. The indicator lamp on the
engine switch illuminates green. The
indicator lamp turns off when the
engine is running.NOTE Your vehicle is equipped with an
electronic immobilizer. To start the
engine, the ID code which the
transponder inside the key sends must
match the one registered in the
immobilizer computer. Refer to
“Electronic immobilizer (Anti-theft
starting system)”.
Changing the operation mode
If you press the engine switch without
depressing the brake pedal (A/T) or the
clutch pedal (M/T), you can change the
operation mode in the order of OFF,
ACC, ON, OFF.
8) 9)
20AHA105990
21AHA103505
22AG0022644
24
GETTING TO KNOW YOUR VEHICLE
