2016 FIAT DOBLO COMBI technical data

Versions AB(*)C(**)D(**)E
F(***)G
Tot. Front Rear
Long wheelbase - Low roof-2front
seats1360 1855 1090 1450 570
495(°)1000/500 100 60
1360 2215 1090 1450 930 855 1000/500 100 60
Short wheelbase - Low roof-3front
seats1355 1850 1090 1140 570
495
(°)1000/500 100 60
1355 2030 1090 1140 750 675 1000/500 100 60
1355 2210 1090 1450 930
855
(°°)1000/500 100 60
Short wheelbase - High roof-3front
seats1365 1860 1090 1140 570
495
(°)1000/500 - 60
1365 2040 1090 1160 750 675 1000/500 - 60
1360 2215 1090 1450 930
855
(°°)1000/500 - 60
Long wheelbase - Low roof-3front
seats1360 1855 1090 1450 570
495
(°)1000/500 100 60
1360 2215 1090 1450 930 855 1000/500 100 60
(*) Loads not to be exceeded. The user is responsible for arranging goods in the luggage compartment and/or load platform within the maximum permittedloads.
(**) Values refer to minimum equipment level. If special equipment is fitted (fixed window, trailer towing equipment, etc.) the unladen weight will increase and
consequently the payload will decrease in relation to the maximum permitted loads.
(***) Including the weight of any carrying systems fitted (Lineaccessori Fiat bars/box).
(°) Reduced payload
(°°) Increased payload
224
TECHNICAL DATA

Cargo 1.4 T-JET
Key
A. Unladen weight including driver (with all fluids, fuel tank 90% full and without optional equipment) - B. Maximum permitted
load - C. Payload including the driver - D. Payload excluding the driver - E. Towable loads (braked / non-braked trailer) -
F. Maximum load on roof - G. Maximum load on tow hitch (trailer with brakes).
Versions AB(*)C(**)D(**)E
F(***)G
Tot. Front Rear
Short wheelbase - Low roof-2front
seats - Increased Payload1440 2370 1090 1450 1005
930(°°)1000/500 100 60
Short Wheelbase - High roof-2front
seats - Increased Payload1480 2410 1090 1450 1005
930
(°°)1000/500 - 60
Long wheelbase - Low roof-2front
seats1480 2410 1120 1450 1005 930 1000/500 100 60
Long wheelbase - High roof-2front
seats1550 2480 1200 1450 1005 930 1000/500 100 60
Short wheelbase - Low roof-3front
seats - Increased payload1440 2370 1090 1450 1005
930
(°°)1000/500 100 60
(*) Loads not to be exceeded. The user is responsible for arranging goods in the luggage compartment and/or load platform within the maximum permittedloads.
(**) Values refer to minimum equipment level. If special equipment is fitted (fixed window, trailer towing equipment, etc.) the unladen weight will increase and
consequently the payload will decrease in relation to the maximum permitted loads.
(***) Including the weight of any carrying systems fitted (Lineaccessori Fiat bars/box).
(°°) Increased payload
226
TECHNICAL DATA

Combi 1.4 T-JET
Key
A. Unladen weight including driver (with all fluids, fuel tank 90% full and without optional equipment) - B. Maximum permitted
load - C. Payload including the driver - D. Payload excluding the driver - E. Towable loads (braked / non-braked trailer) -
F. Maximum load on roof - G. Maximum load on tow hitch (trailer with brakes).
Versions AB(*)C(**)D(**)E
F(***)G
Tot. Front Rear
Short wheelbase - Low roof-2front
seats-3rearseats1421 2170 1090 1450 824 749 1000/500 100 60
Long wheelbase - Low roof-2front
seats-3rearseats1516 2265 1120 1450 824 749 1000/500 100 60
(*) Loads not to be exceeded. The user is responsible for arranging goods in the luggage compartment and/or load platform within the maximum permittedloads.
(**) Values refer to minimum equipment level. If special equipment is fitted (fixed window, trailer towing equipment, etc.) the unladen weight will increase and
consequently the payload will decrease in relation to the maximum permitted loads.
(***) Including the weight of any carrying systems fitted (Lineaccessori Fiat bars/box).
228
TECHNICAL DATA

Versions AB(*)C(**)D(**)E
F(***)G
Tot. Front Rear
Long wheelbase - Low roof-2front
seats1460 1955 1090 1450 570
495
(°)1000/500 100 60
1460 2420 1120 1450 1035 960 1000/500 100 60
1451 2156 1090 1140 780705
(****)1000/500 100 60
1505 2505 1150 1450 10751000
(^)1000/500 100 60
Short wheelbase - Low roof-3front
seats1365 1860 1090 1140 570
495
(°)1000/500 100 60
1365 2070 1090 1140 780 705 1000/500 100 60
1395 2355 1090 1450 1035
960
(°°)1000/500 100 60
Long wheelbase - Low roof-3front
seats1460 1955 1090 1450 570
495
(°)1000/500 100 60
1460 2420 1150 1450 1035 960 1000/500 100 60
1451 2156 1120 1140 780705
(****)1000/500 100 60
1505 2505 1150 1450 10751000
(^)1000/500 100 60
(*) Loads not to be exceeded. The user is responsible for arranging goods in the luggage compartment and/or load platform within the maximum permittedloads.
(**) Values refer to minimum equipment level. If special equipment is fitted (fixed window, trailer towing equipment, etc.) the unladen weight will increase and
consequently the payload will decrease in relation to the maximum permitted loads.
(***) Including the weight of any carrying systems fitted (Lineaccessori Fiat bars/box).
(°) Reduced payload
(****)700 kg
(^) GVW 2505
(°°) Increased payload
230
TECHNICAL DATA

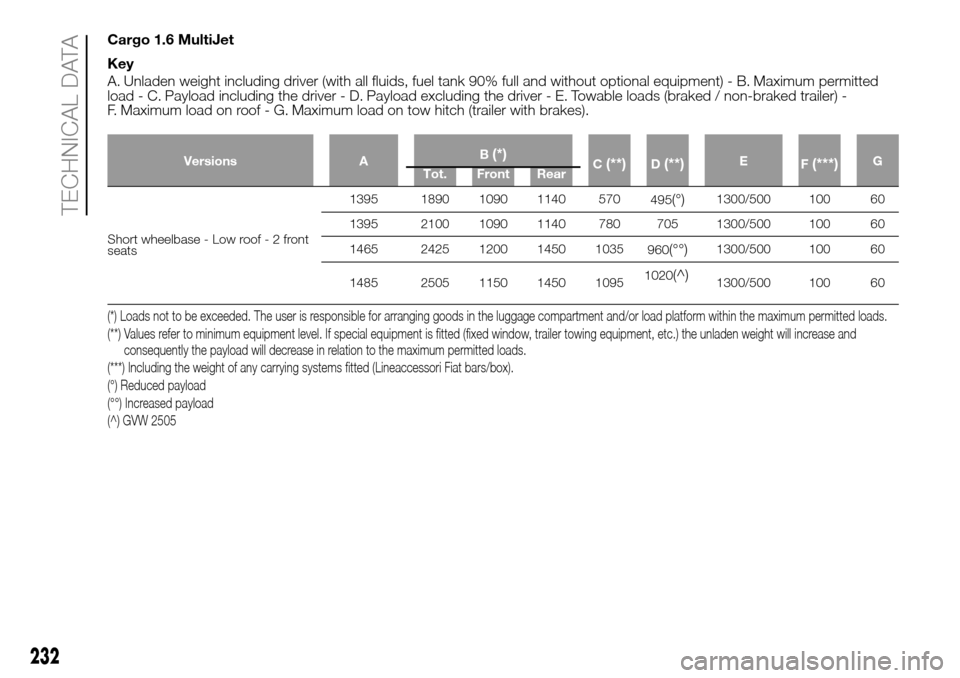

Cargo 1.6 MultiJet
Key
A. Unladen weight including driver (with all fluids, fuel tank 90% full and without optional equipment) - B. Maximum permitted
load - C. Payload including the driver - D. Payload excluding the driver - E. Towable loads (braked / non-braked trailer) -
F. Maximum load on roof - G. Maximum load on tow hitch (trailer with brakes).
Versions AB(*)C(**)D(**)E
F(***)G
Tot. Front Rear
Short wheelbase - Low roof-2front
seats1395 1890 1090 1140 570
495
(°)1300/500 100 60
1395 2100 1090 1140 780 705 1300/500 100 60
1465 2425 1200 1450 1035
960
(°°)1300/500 100 60
1485 2505 1150 1450 10951020
(^)1300/500 100 60
(*) Loads not to be exceeded. The user is responsible for arranging goods in the luggage compartment and/or load platform within the maximum permittedloads.
(**) Values refer to minimum equipment level. If special equipment is fitted (fixed window, trailer towing equipment, etc.) the unladen weight will increase and
consequently the payload will decrease in relation to the maximum permitted loads.
(***) Including the weight of any carrying systems fitted (Lineaccessori Fiat bars/box).
(°) Reduced payload
(°°) Increased payload
(^) GVW 2505
232
TECHNICAL DATA

Versions AB(*)C(**)D(**)E
F(***)G
Tot. Front Rear
Long wheelbase - Low roof-2front
seats1505 2000 1120 1450 570
495
(°)1300/500 100 60
1465 2170 1120 1140 780705
(****)1300/500 100 60
1505 2465 1200 1450 1035 960 1300/500 100 60
1505 2505 1200 1450 10751000
(^)1300/500 100 60
Long wheelbase - High roof-2front
seats1535 2030 1200 1450 570
495
(°)1300/500 - 60
1535 2495 1200 1450 1035 960 1300/500 - 60
1535 2505 1200 1450 1045
970
(^)1300/500 - 60
(*) Loads not to be exceeded. The user is responsible for arranging goods in the luggage compartment and/or load platform within the maximum permittedloads.
(**) Values refer to minimum equipment level. If special equipment is fitted (fixed window, trailer towing equipment, etc.) the unladen weight will increase and
consequently the payload will decrease in relation to the maximum permitted loads.
(***) Including the weight of any carrying systems fitted (Lineaccessori Fiat bars/box).
(°) Reduced payload
(****)700 kg
(^) GVW 2505
234
TECHNICAL DATA

Versions AB(*)C(**)D(**)E
F(***)G
Tot. Front Rear
Long wheelbase - Low roof-3front
seats1505 2000 1135 1450 570
495
(°)1300/500 100 60
1465 2170 1150 1140 780705
(****)1300/500 100 60
1505 2465 1200 1450 1035 960 1300/500 100 60
1505 2505 1233 1450 10751000
(^)1300/500 100 60
Long wheelbase - High roof-3front
seats1535 2030 1200 1450 570
495
(°)1300/500 - 60
1535 2495 1233 1450 1035 960 1300/500 - 60
1535 2505 1233 1450 1045
970
(^)1300/500 - 60
(*) Loads not to be exceeded. The user is responsible for arranging goods in the luggage compartment and/or load platform within the maximum permittedloads.
(**) Values refer to minimum equipment level. If special equipment is fitted (fixed window, trailer towing equipment, etc.) the unladen weight will increase and
consequently the payload will decrease in relation to the maximum permitted loads.
(***) Including the weight of any carrying systems fitted (Lineaccessori Fiat bars/box).
(°) Reduced payload
(****)700 kg
(^) GVW 2505
236
TECHNICAL DATA

Cargo 2.0 MultiJet
Key
A. Unladen weight including driver (with all fluids, fuel tank 90% full and without optional equipment) - B. Maximum permitted
load - C. Payload including the driver - D. Payload excluding the driver - E. Towable loads (braked / non-braked trailer) -
F. Maximum load on roof - G. Maximum load on tow hitch (trailer with brakes).
Versions AB(*)C(**)D(**)E
F(***)G
Tot. Front Rear
Short wheelbase - Low roof-2front
seats1448 1943 1120 1140 570
495
(°)1500/500 100 60
1448 2153 1120 1140 780 705 1500/500 100 60
1475 2435 1200 1450 1035
960
(°°)1500/500 100 60
1535 2505 1200 1450 1045
970
(^)1500/500 100 60
(*) Loads not to be exceeded. The user is responsible for arranging goods in the luggage compartment and/or load platform within the maximum permittedloads.
(**) Values refer to minimum equipment level. If special equipment is fitted (fixed window, trailer towing equipment, etc.) the unladen weight will increase and
consequently the payload will decrease in relation to the maximum permitted loads.
(***) Including the weight of any carrying systems fitted (Lineaccessori Fiat bars/box).
(°) Reduced payload
(°°) Increased payload
(^) GVW 2505
238
