2016 DODGE GRAND CARAVAN Owners Manual

Four-Pin Connector
1 — Female Pins4 — Park
2 — Male Pin 5 — Left Stop/Turn
3 — Ground 6 — Right Stop/Turn
Seven-Pin Connector
1 — Battery5 — Ground
2 — Backup Lamps 6 — Left Stop/Turn
3 — Right Stop/Turn 7 — Running Lamps
4 — Electric Brakes
5
STARTING AND OPERATING 559

Towing Tips
Before setting out on a trip, practice turning, stopping,
and backing up the trailer in an area located away from
heavy traffic.
Automatic Transmission
The DRIVE range can be selected when towing. How-
ever, if frequent shifting occurs while in DRIVE, use the
Electronic Range Select (ERS) shift control to select a
lower gear range.
NOTE:Using a lower gear range while operating the
vehicle under heavy loading conditions will improve
performance and extend transmission life by reducing
excessive shifting and heat build up. This action will also
provide better engine braking. If you REGULARLY tow a trailer for more than 45
minutes of continuous operation, then change the trans-
mission fluid and filter as specified for “police, taxi, fleet,
or frequent trailer towing”. Refer to the “Maintenance
Schedule” for the proper maintenance intervals.Electronic Speed Control — If Equipped
•
Do not use in hilly terrain or with heavy loads.
• When using the speed control, if you experience speed
drops greater than 10 mph (16 km/h), disengage until
you can get back to cruising speed.
• Use speed control in flat terrain and with light loads to
maximize fuel efficiency.
560 STARTING AND OPERATING

Cooling System
To reduce potential for engine and transmission over-
heating, take the following actions:
City Driving
When stopped for short periods, shift the transmission
into NEUTRAL and increase engine idle speed.
Highway Driving
Reduce speed.
Air Conditioning
Turn off temporarily.
5
STARTING AND OPERATING 561

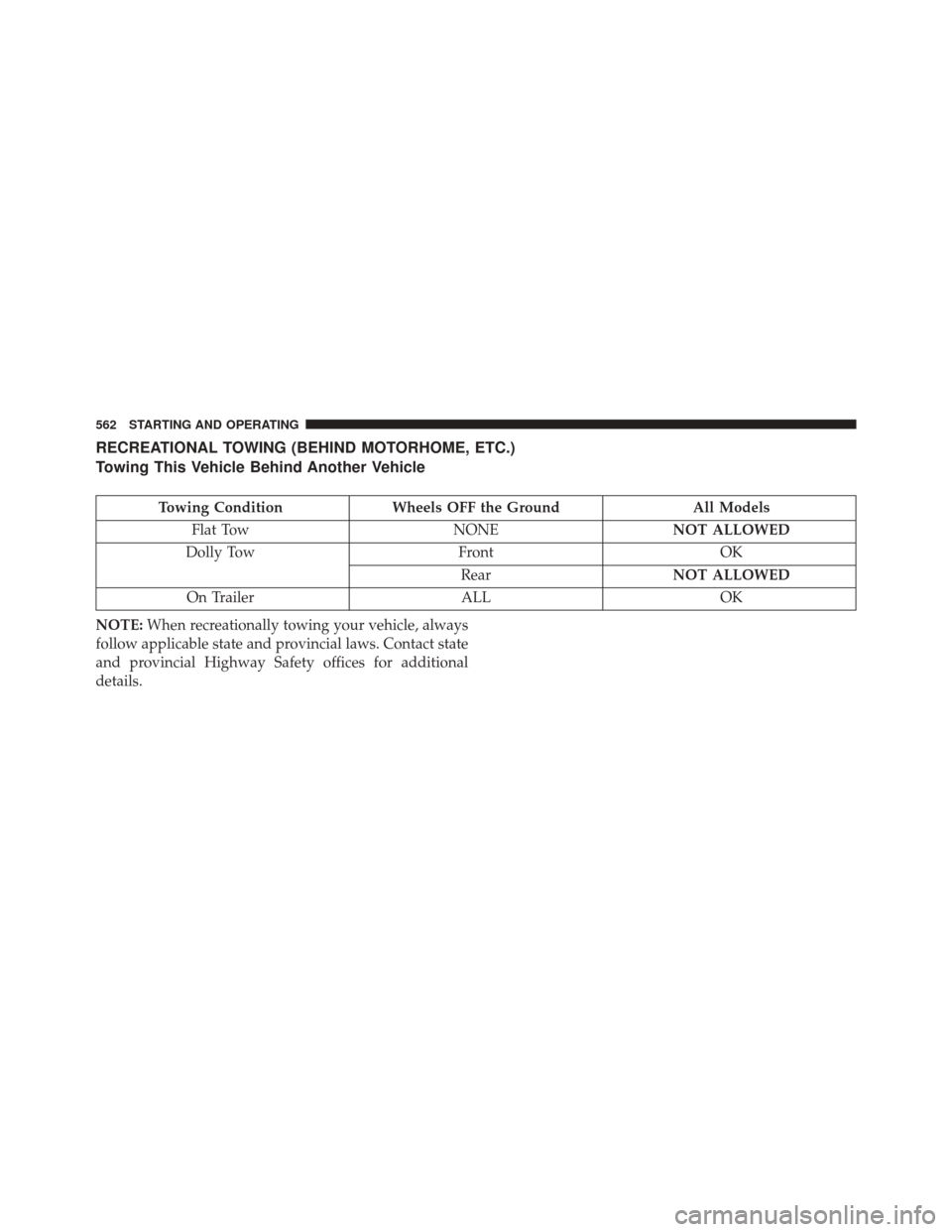

RECREATIONAL TOWING (BEHIND MOTORHOME, ETC.)
Towing This Vehicle Behind Another Vehicle
Towing ConditionWheels OFF the Ground All Models
Flat Tow NONENOT ALLOWED
Dolly Tow FrontOK
Rear NOT ALLOWED
On Trailer ALLOK
NOTE: When recreationally towing your vehicle, always
follow applicable state and provincial laws. Contact state
and provincial Highway Safety offices for additional
details.
562 STARTING AND OPERATING

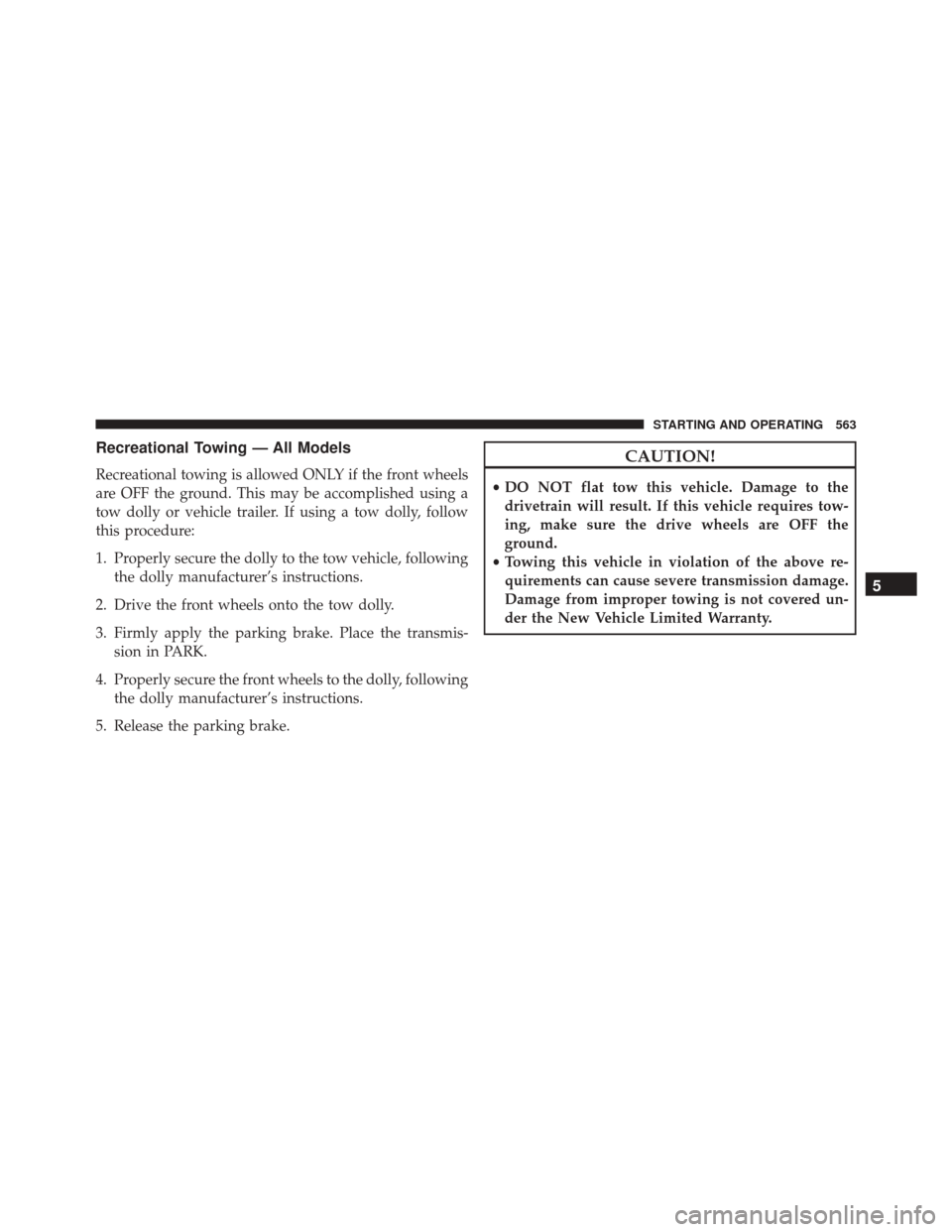

Recreational Towing — All Models
Recreational towing is allowed ONLY if the front wheels
are OFF the ground. This may be accomplished using a
tow dolly or vehicle trailer. If using a tow dolly, follow
this procedure:
1. Properly secure the dolly to the tow vehicle, followingthe dolly manufacturer’s instructions.
2. Drive the front wheels onto the tow dolly.
3. Firmly apply the parking brake. Place the transmis- sion in PARK.
4. Properly secure the front wheels to the dolly, following the dolly manufacturer’s instructions.
5. Release the parking brake.
CAUTION!
• DO NOT flat tow this vehicle. Damage to the
drivetrain will result. If this vehicle requires tow-
ing, make sure the drive wheels are OFF the
ground.
• Towing this vehicle in violation of the above re-
quirements can cause severe transmission damage.
Damage from improper towing is not covered un-
der the New Vehicle Limited Warranty.
5
STARTING AND OPERATING 563

WHAT TO DO IN EMERGENCIES
CONTENTS
HAZARD WARNING FLASHERS ...........567
 IF YOUR ENGINE OVERHEATS ............567
 TIRE SERVICE KIT — IF EQUIPPED .........568
▫ Tire Service Kit Storage .................569
▫ Tire Service Kit Components And Operation . .570
▫ Tire Service Kit Usage Precautions ..........571
▫ Sealing A Tire With Tire Service Kit .........573
 WHEEL AND TIRE TORQUE
SPECIFICATIONS ..................... .580
▫ Torque Specifications ...................580
JACKING AND TIRE CHANGING — IF
EQUIPPED .......................... .581
▫ Jack Location ....................... .582
▫ Spare Tire Removal ....................583
▫ To Access Spare Tire Winch Drive Nut .......583
▫ Spare Tire Tools ...................... .585
▫ Spare Tire Removal Instructions ...........587
▫ Preparations For Jacking ................589
▫ Jacking Instructions ...................589
▫ Securing The Compact Spare Tire ..........596
6

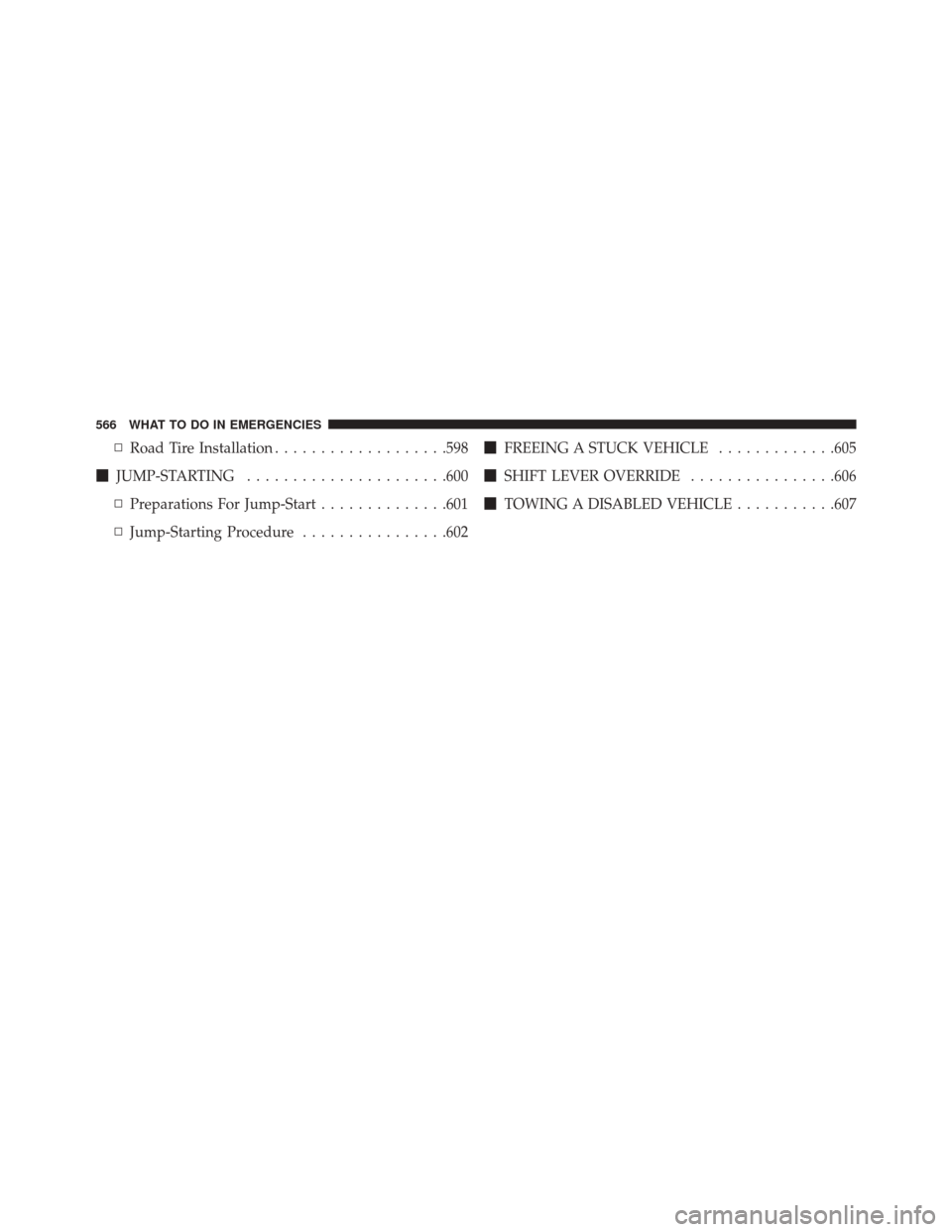

▫Road Tire Installation ...................598
 JUMP-STARTING ..................... .600
▫ Preparations For Jump-Start ..............601
▫ Jump-Starting Procedure ................602
FREEING A STUCK VEHICLE .............605
 SHIFT LEVER OVERRIDE ................606
 TOWING A DISABLED VEHICLE ...........607
566 WHAT TO DO IN EMERGENCIES
