WARNING!(Continued)
•If a general protection fuse for safety systems (air
bag system, braking system), power unit systems
(engine system, gearbox system) or steering system
blows, contact an authorized dealer.
Front Power Distribution Center (Fuses)
The Front Power Distribution Center is located in the
engine compartment. This module contains fuses and
relays. Fuse cavity location and descriptions are printed
on the inside of the power distribution center cover.
CAUTION!
• When installing the power distribution center
cover, it is important to ensure the cover is properly
positioned and fully latched. Failure to do so may
(Continued)
Front Power Distribution Center
7
MAINTAINING YOUR VEHICLE 591

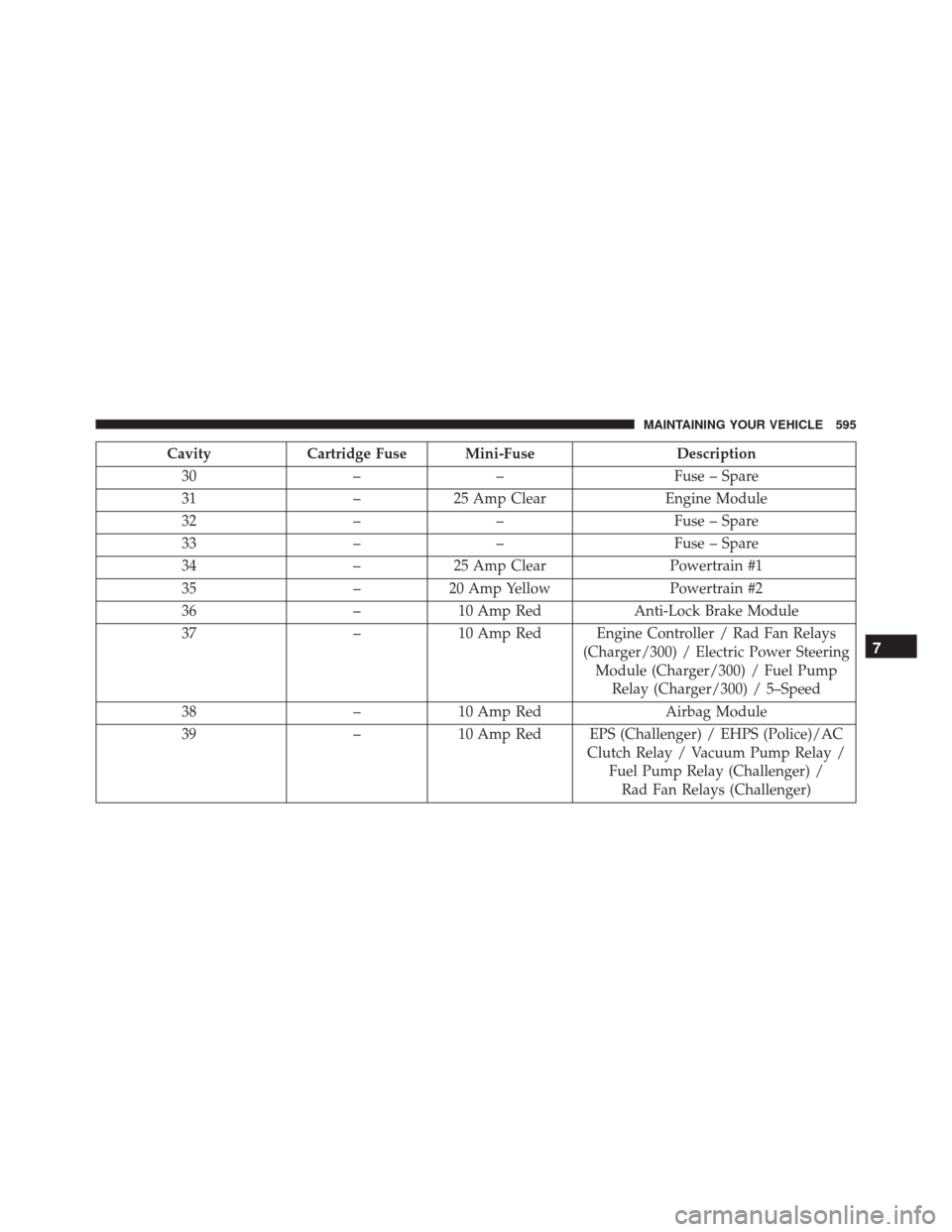

CavityCartridge Fuse Mini-Fuse Description
30 –– Fuse – Spare
31 –25 Amp Clear Engine Module
32 –– Fuse – Spare
33 –– Fuse – Spare
34 –25 Amp Clear Powertrain #1
35 –20 Amp Yellow Powertrain #2
36 –10 Amp Red Anti-Lock Brake Module
37 –10 Amp Red Engine Controller / Rad Fan Relays
(Charger/300) / Electric Power SteeringModule (Charger/300) / Fuel Pump Relay (Charger/300) / 5–Speed
38 –10 Amp Red Airbag Module
39 –10 Amp Red EPS (Challenger) / EHPS (Police)/AC
Clutch Relay / Vacuum Pump Relay /Fuel Pump Relay (Challenger) /Rad Fan Relays (Challenger)
7
MAINTAINING YOUR VEHICLE 595

Rear Power Distribution Center (Fuses)
There is also a power distribution center located in the
trunk under the spare tire access panel. This center
contains fuses and relays. Fuse cavity location and de-
scriptions are printed on the inside of the power distri-
bution center cover.
CAUTION!
•When installing the power distribution center
cover, it is important to ensure the cover is properly
positioned and fully latched. Failure to do so may
(Continued)Opening The Access Cover
Rear Power Distribution Center
7
MAINTAINING YOUR VEHICLE 597

CavityCartridge Fuse Mini-FuseDescription
59 –20 Amp Yellow Adjustable Pedals –
Police
60 –5 Amp Tan Heated Washer Nozzles
(Charger)
61 ––Fuse – Spare
62 ––Fuse – Spare
63 ––Fuse – Spare
64 –25 Amp Breaker Rear Windows
(Charger/300)
65 –10 Amp Red Airbag Module
66 ––Fuse – Spare
67 –10 Amp Red
Rain and Light Sensor /
Sunroof / Inside RR View
Mirror / Power Outlet Illu-
mination (Center Console)
/ Police Run Acc Relay
