2016 DODGE CHALLENGER headlamp

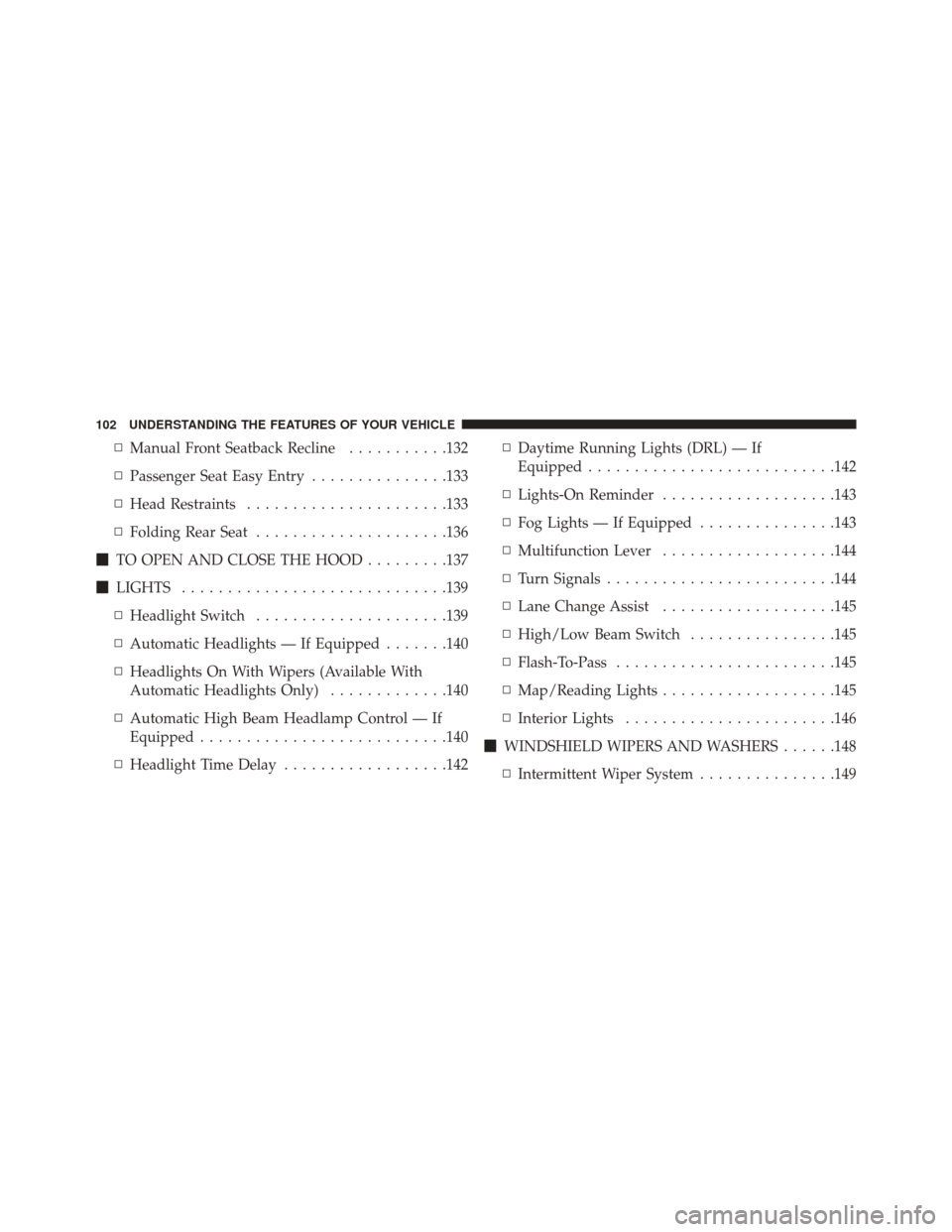

▫Manual Front Seatback Recline ...........132
▫ Passenger Seat Easy Entry ...............133
▫ Head Restraints ..................... .133
▫ Folding Rear Seat .....................136
 TO OPEN AND CLOSE THE HOOD .........137
 LIGHTS ............................ .139
▫ Headlight Switch .....................139
▫ Automatic Headlights — If Equipped .......140
▫ Headlights On With Wipers (Available With
Automatic Headlights Only) .............140
▫ Automatic High Beam Headlamp Control — If
Equipped .......................... .140
▫ Headlight Time Delay ..................142 ▫
Daytime Running Lights (DRL) — If
Equipped .......................... .142
▫ Lights-On Reminder ...................143
▫ Fog Lights — If Equipped ...............143
▫ Multifunction Lever ...................144
▫ Turn Signals ........................ .144
▫ Lane Change Assist ...................145
▫ High/Low Beam Switch ................145
▫ Flash-To-Pass ....................... .145
▫ Map/Reading Lights ...................145
▫ Interior Lights ...................... .146
 WINDSHIELD WIPERS AND WASHERS ......148
▫ Intermittent Wiper System ...............149
102 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

Rotate the headlight switch to the second detent for
headlight, parking light and instrument panel light op-
eration.
Automatic Headlights — If Equipped
This system automatically turns the headlights on or off
according to ambient light levels. To turn the system on,
rotate the headlight switch counterclockwise to the
AUTO position. When the system is on, the headlight
time delay feature is also on. This means the headlights
will stay on for up to 90 seconds after you place the
ignition into the OFF position. To turn the automatic
system off, move the headlight switch out of the AUTO
position.
NOTE:The engine must be running before the headlights
will come on in the automatic mode.
Headlights On With Wipers (Available With
Automatic Headlights Only)
When this feature is active, the headlights will turn on
after the wipers are turned on if the headlight switch is
placed in the AUTO position and programmable feature
is set to ON. In addition, the headlights will turn off
when the wipers are turned off if they were turned on by
this feature.
NOTE: The Headlights On with Wipers feature can be
turned on or off using the Uconnect System. Refer to
“Uconnect Settings/Customer Programmable Features”
in “Understanding Your Instrument Panel” for further
information.
Automatic High Beam Headlamp Control — If
Equipped
The Automatic High Beam Headlamp Control system
provides increased forward lighting at night by automat-
ing high beam control through the use of a digital camera
140 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

mounted on the windshield. This camera detects vehicle
specific light and automatically switches from high
beams to low beams until the approaching vehicle is out
of view.
NOTE:
•The Automatic High Beam Headlamp Control can be
turned on or off using the Uconnect System. Refer to
“Uconnect Settings” in “Understanding Your Instru-
ment Panel” for further information.
• Broken, muddy, or obstructed headlights and taillights
of vehicles in the field of view will cause headlights to
remain on longer (closer to the vehicle). Also, dirt, film,
and other obstructions on the windshield or camera
lens will cause the system to function improperly.
• To opt out of the Advanced Auto High-Beam Sensitiv-
ity Control (default) and enter Reduced High-Beam Sensitivity Control (not recommended), toggle high-
beam lever 6 full on/off cycles within 10 seconds of
ignition ON. System will return to default setting upon
ignition off.
If the windshield or Automatic High Beam Headlamp
Control mirror is replaced, the mirror must be re-aimed
to ensure proper performance. See your local authorized
dealer.
To Activate
1. Turn the headlight switch to the AUTO headlight position.
2. Push the multifunction lever away from you (toward front of vehicle) to engage the high beam mode.
NOTE: This system will not activate until the vehicle is
at or above 15 mph (24 km/h).
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 141

To Deactivate
1. Pull the multifunction lever toward you (or rearwardin vehicle) to manually deactivate the system (normal
operation of low beams).
2. Push back on the multifunction lever to reactivate the system.
Headlight Time Delay
This feature provides the safety of headlight illumination
for up to 90 seconds when leaving your vehicle in an
unlit area.
To activate the delay feature, turn OFF the ignition switch
while the headlights are still on. Then, turn off the
headlights within 45 seconds. The delay interval begins
when the headlight switch is turned off.
NOTE: The lights must be turned off within 45 seconds
of turning the ignition OFF to activate this feature. If you turn the headlights, park lights or ignition switch
ON again, the system will cancel the delay.
If you turn the headlights off before the ignition, they will
turn off in the normal manner.
NOTE:
The Headlight Time Delay is programmable us-
ing the Uconnect System, refer to “Uconnect Settings” in
“Understanding Your Instrument Panel” for further in-
formation.Daytime Running Lights (DRL) — If Equipped
The Daytime Running Lights will turn On when the
engine is started and remain On unless the headlamps
are turned ON, the parking brake is applied, or the
engine is shut Off.
142 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

▫Exhaust System ..................... .546
▫ Cooling System ..................... .549
▫ Brake System ....................... .555
▫ Clutch Hydraulic System — Manual
Transmission (If Equipped) ...............557
▫ Manual Transmission — If Equipped .......557
▫ Automatic Transmission — If Equipped .....558
▫ Rear Axle .......................... .559
▫ Appearance Care And Protection From
Corrosion .......................... .560
 FUSES ............................. .567
▫ Front Power Distribution Center (Fuses) .....567
▫ Rear Power Distribution Center (Fuses) .....573
 VEHICLE STORAGE ....................579
REPLACEMENT BULBS .................580
 BULB REPLACEMENT ..................582
▫ Low Beam Headlamp, High Beam Headlamp,
Park/Turn Lamp — Models With Halogen
Headlamps — If Equipped ...............582
▫ Low Beam Headlamp, High Beam Headlamp,
and Park/Turn Lamp — Models With High
Intensity Discharge (HID) Headlamps — If
Equipped .......................... .583
▫ Front/Rear Side Marker Lamp ............584
▫ Tail/Turn And Stop Lamp ...............584
▫ Center Tail/Backup Lamp ...............584
▫ Center High-Mounted Stop Lamp (CHMSL) . .584
▫ License Lamp ....................... .584
 FLUID CAPACITIES ....................585
522 MAINTAINING YOUR VEHICLE

Cavity Cartridge Fuse Mini-FuseDescription
15 –20 Amp Yellow Left HID – If Equipped
16 –20 Amp Yellow Right HID – If Equipped
18 50 Amp Red –Radiator Fan #2 – (Non 6.2L Supercharged)
19 50 Amp Red –Electric Power Steering #2 – If Equipped / Radiator Fan
(6.2L Supercharged)
20 30 Amp Pink –Wiper Motor
21 30 Amp Pink 20 Amp Blue –Police –
Headlamp Washers – If Equipped
Police Bat Feed #2
22 40 Amp Green / 20 Amp Blue –Police –
Engine Cooling Pump (6.2L Supercharged) / Police Bat
Feed # 3
23 20 Amp Blue –Police Bat Feed # 1
24 20 Amp Blue –Police Ignition Run/ACC Feed # 3
28 – – Fuse – Spare
570 MAINTAINING YOUR VEHICLE

Exterior Bulbs
Bulb Number
Headlamp – High Intensity Discharge (HID) D3S (Serviced at Authorized Dealer) *
Halogen Headlamp HIR2LL
Front Park/Turn Lamp LED (Serviced at Authorized Dealer)
Front Fog Lamp H11LL
Front Side Marker LED (Serviced at Authorized Dealer)
Tail Lamp LED (Serviced at Authorized Dealer)
Stop/Turn Lamp LED (Serviced at Authorized Dealer)
Rear Side Marker LED (Serviced at Authorized Dealer)
Backup Lamp LED (Serviced at Authorized Dealer)
Center High-Mount Stop Lamp (CHMSL) LED (Serviced at Authorized Dealer)
License LED (Serviced at Authorized Dealer)
* The headlamps are a type of high-voltage discharge
tube. High voltage can remain in the circuit even with the
headlamp switch off and the key removed. Because of this, you should not attempt to service a headlamp bulb
yourself. If a headlamp bulb fails, take your vehicle to an
authorized dealer for service.
7
MAINTAINING YOUR VEHICLE 581

BULB REPLACEMENT
NOTE:Lens fogging can occur under certain atmo-
spheric conditions. This will usually clear as atmospheric
conditions change to allow the condensation to change
back into a vapor. Turning the lamps on will usually
accelerate the clearing process.
Low Beam Headlamp, High Beam Headlamp,
Park/Turn Lamp — Models With Halogen
Headlamps — If Equipped
To replace the passenger side lamps:
1. Open the hood.
2. Remove the headlamp cover.
3. Reach behind the passenger headlamp assembly.
NOTE: The park/turn lamps can also be accessed at this
point. 4. Turn the headlamp access cap counterclockwise to
remove.
5. Remove bulb by turning it counter clockwise and disconnect.
6. Install new bulb by turning it clockwise and reconnect.
7. Reinstall headlamp access cap by turning it clockwise and then reinstall headlamp cover.
To replace the driver side lamps:
1. Open the hood.
2. Remove the air cleaner filter cover by removing three fasteners and loosening the clean air inlet clamp and
then rotate cover off to the side.
NOTE: The cover has an electrical connector that does
not need to be disconnected if the cover is rotated off to
the side.
582 MAINTAINING YOUR VEHICLE
