2016 DACIA SANDERO STEPWAY Controls

JauneNoirNoir texte
1.3
ENG_UD18185_9
Clés / télécommande à radiofréquence: généralité\
s (B90 - L90 - F90 - U90 - R90 - L90 Ph2 - F90 Ph2 - R90 Ph2 - Dacia)
ENG_NU_817-10_B90_Dacia_1
The remote control unit
operating range
This varies according to the environ-
ment. It is therefore important when
handling the remote control to ensure
that you do not lock or unlock the ve-
hicle by inadvertently pressing the but-
tons.
Interference
The presence of certain objects (metal
objects, mobile telephones, or an area
with strong electromagnetic radiation,
etc.) close to the key may create inter-
ference and affect the operation of the
system.
KEYS, RADIO FREQUENCY REMOTE CONTROL: general information (2/2)
Replacement and additional keys
or remote controls.
You must only contact an approved
Dealer:
–

If
you need to replace a key it will
be necessary to take the vehicle
and all of its keys to an approved
Dealer in order to initialise the
system.
–

d
epending on the vehicle, you
have the option of using up to
four remote controls.
Remote control unit failure
Make sure that the correct battery
type is being used, and that the
battery is in good condition and in-
serted correctly. These batteries
should have a service life of approx-
imately two years.
Refer to Section 5: “Radio fre-
quency remote control: batteries”
for the battery changing procedure.

1.16
ENG_UD19962_9
Dispositifs complémentaires à la ceinture avant (B90 - L90 Ph2 - \
F90 Ph2 - R90 Ph2 - Dacia)
ENG_NU_817-10_B90_Dacia_1
Jaune NoirNoir texte
SYSTEMS IN ADDITION TO THE FRONT SEAT BELTS (2/4)
Driver’s and passenger air
bags
These may be provided for the driver
and the front passenger seats.
The presence of this equipment is in-
dicated by the words “Air bag” on the
steering wheel and the dashboard, and
a label on the base of the windscreen or
on the sun visor.
Each air bag system consists of:
–

a
n air bag and gas generator fitted
on the steering wheel for the driver
and in the dashboard for the front
passenger;
–

an
electronic unit for system monitor-
ing which controls the gas generator
electrical trigger system;
–

a special tell-tale light å;
–

remote sensors.
Load limiter
Above a certain level of impact force,
this mechanism is used to limit the force
of the belt against the body so that it is
at an acceptable level.
The air bag system uses
pyrotechnic principles. This
explains why, when the air
bag inflates, it will gener-
ate heat, produce smoke (this does
not mean that a fire is about to start)
and make a noise upon detonation.
An air bag may inflate immediately,
causing some minor, superficial
grazing to the skin or other discom-
fort.

controls ................................................. (up to the end of the DU)
driver’s position .................................... (up to the end of the DU)
dashboard............................................. (up to the end of the DU)
1.36
ENG_UD25096_5
Poste de conduite direction à gauche (B90 - L90 Ph2 - F90 Ph2 - R90 \
Ph2 - Dacia)
ENG_NU_817-10_B90_Dacia_1
Jaune NoirNoir texte
Driving position
DRIVER’S POSITION, LEFT-HAND DRIVE (1/2)
The presence of the equipment DEPENDS ON THE VEHICLE VERSION AND COUNTRY.
2651783410119
1213141516
17181921202223
242526272928

rear screendemisting ......................................................... (current page)
Jaune NoirNoir texte
1.37
ENG_UD25096_5
Poste de conduite direction à gauche (B90 - L90 Ph2 - F90 Ph2 - R90 \
Ph2 - Dacia)
ENG_NU_817-10_B90_Dacia_1
DRIVER’S POSITION, LEFT-HAND DRIVE (2/2)
The presence of the equipment DEPENDS ON THE VEHICLE VERSION AND COUNTRY.
1 Side air ven t.
2


Demister ou
tlet.
3


Stalk for:
–


direction indicator lights,
–


exterior lights,
–


front fog lights,
–


rear fog lights,
–


horn.
4


Instrument panel.
5


Location for
driver’s air bag.
6


S
teering column stalk for wind-
screen and rear screen wash/wipe.
On-board computer information re-
adout control.
7


Centre air vents.
8


L
ocation for passenger air bag or
storage compartment.
9


Demister ou
tlet. 10 Side air ven t.
1

1
Passenger
air bag activation/deac-
tivation switch.
12


Glove box.
13


Location
for radio or storage com-
partment.
14


Electric wind
ow control.
15


Central doo
r locking switch.
16


Hazard war
ning lights switch.
17


Heating and
ventilation controls.
18


Cigar lighter
.
19


Handbrake.
20


R
ear window electric locking con-
trol. 21 Electric doo r mirror control.
22


Location for
ashtray or cup holder.
23


Gear lever
.
24


Heated rear
screen control.
25


Electric wind
ow control.
26


Ignition swit
ch.
27


Headlight
beam height adjustment
control.
28


Bonnet rele
ase.
29


Fuse flap.

controls ................................................. (up to the end of the DU)
driver’s position .................................... (up to the end of the DU)
dashboard............................................. (up to the end of the DU)
1.38
ENG_UD18230_3
Poste de conduite direction à droite (B90 - Dacia)
ENG_NU_817-10_B90_Dacia_1
Jaune NoirNoir texte
The presence of the equipment DEPENDS ON THE VEHICLE VERSION AND COUNTRY.
DRIVER’S POSITION, RIGHT- HAND DRIVE (1/2)
1423567891011
1412131516171826272829
19202122232425

JauneNoirNoir texte
1.39
ENG_UD18230_3
Poste de conduite direction à droite (B90 - Dacia)
ENG_NU_817-10_B90_Dacia_1
1 Side air ven t.
2


Demister ou
tlet.
3


S
torage compartment or location
for passenger air bag.
4


Centre air vents.
5


Stalk for:
–


direction indicator lights,
–


exterior lights,
–


front fog lights,
–


rear fog lights.
6


Instrument panel.
7


L
ocation for driver’s air bag (de-
pending on vehicle).
8


Windscreen
wiper/washer stalk.
On-board computer information re-
adout control.
9


Demister ou
tlet. 22 R ear window electric locking con-
trol
23


Electric doo
r mirror control.
24


Location for
ashtray or cup holder.
25


Gear lever
.
26


Heated rear
screen control.
27


Electric wind
ow control.
28


Glove box.
29


Passenger
air bag activation/deac-
tivation switch.
DRIVER’S POSITION, RIGHT- HAND DRIVE (2/2)
The presence of the equipment DEPENDS ON THE VEHICLE VERSION AND COUNTRY.
10


Side air ven
t.
1

1
Fuse box.
12


Bonnet rele
ase.
13


Headlight
beam height adjustment
control.
14


Ignition swit
ch.
15


Location
for radio or storage com-
partment.
16


Electric wind
ow control.
17


Central lock
ing switch.
18


Hazard war
ning lights switch.
19


Heating and
ventilation controls.
20


Cigar lighter
.
21


Handbrake.

air conditioning ..................................... (up to the end of the DU)
heating and air conditioning system ..... (up to the end of the DU)
heating system ..................................... (up to the end of the DU)
air conditioning ..................................... (up to the end of the DU)
ventilation ............................................. (up to the end of the DU)
temperature regulation ......................... (up to the end of the DU)
3.4
ENG_UD25116_1
Chauffage - Ventilation - Air conditionné (B90 - L90 Ph2 - Dacia)
ENG_NU_817-10_B90_Dacia_3
Jaune NoirNoir texte
Heating, Ventilation, Air conditioning

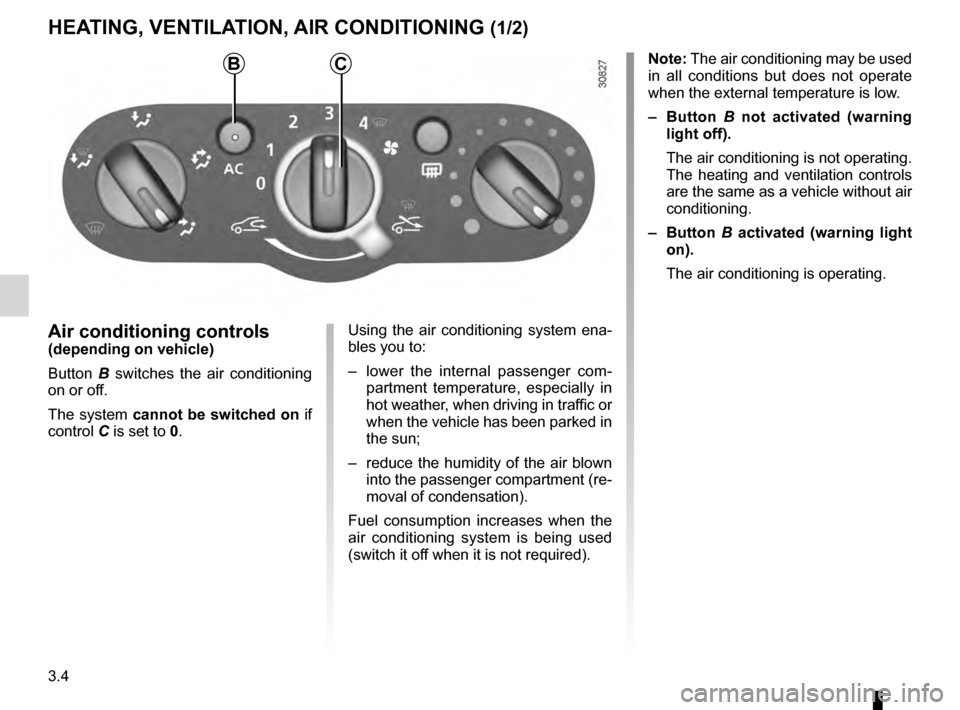

HEATING, VENTILATION, AIR CONDITIONING (1/2)
Air conditioning controls(depending on vehicle)
Button
B

switches the air conditioning
on or off.
The system cannot be switched on if
control
C is set to 0. Using the air conditioning system ena-
bles you to:
–

l
ower the internal passenger com-
partment temperature, especially in
hot weather, when driving in traffic or
when the vehicle has been parked in
the sun;
–

reduce
the humidity of the air blown
into the passenger compartment (re-
moval of condensation).
Fuel consumption increases when the
air conditioning system is being used
(switch it off when it is not required). Note: The air conditioning may be used
in all conditions but does not operate
when the external temperature is low.
–

B
utton
B
n
ot activated (warning
light off).
The air conditioning is not operating.
The heating and ventilation controls
are the same as a vehicle without air
conditioning.
–
B
utton
B
a
ctivated (warning light
on).
The air conditioning is operating.
CB

JauneNoirNoir texte
3.5
ENG_UD25116_1
Chauffage - Ventilation - Air conditionné (B90 - L90 Ph2 - Dacia)
ENG_NU_817-10_B90_Dacia_3
HEATING, VENTILATION, AIR CONDITIONING (2/2)
In very hot weather or when the vehicle
has been parked in the sun, open the
doors for a few moments to let the hot
air escape before starting the engine.
Use the passenger compartment isola-
tion function to lower the temperature
as quickly as possible to the required
comfort level. Switch off the air recircu-
lation function once a comfortable level
has been reached. When the air conditioning system is op-
erating, all windows must be closed for
maximum efficiency.
If there is an operating fault, contact an
approved dealer.
If no cold air is produced
Check that the controls are set correctly
and that the fuses are sound. If they are
not, switch off the heating and air condi-
tioning system (warning light integrated
into button
B
)

and contact an author-
ised dealer.
Adjusting the air temperature.
Move control F to obtain the desired
temperature. The further the control is
in the red, the more the temperature will
be increased.
Do not open the refrigerant
fluid circuit. The fluid may
damage eyes or skin.
BF
