2016 DACIA DUSTER fuse

JauneNoir Noir texte
5.21
ENG_UD39296_4
Feux arrière : remplacement des lampes (H79 Ph2 - Dacia) ENG_NU_1079-6_H79Ph2_Dacia_5
REAR LIGHTS: replacing the bulbs(4/5)
High-level brake light
The bulb for high-level brake light 18
may be accessed through the luggage
compartment.
Carefully unclip cover 17 by pressing
tabs 19.Carefully unclip tab 21 (movement A)
and turn it an eighth of a turn (move-
ment B) to release bulb holder 20.Remove bulb 22.
Bulb type: W 16 W.
1718
19
20A
B
2122
To comply with current legislation, or
as a precaution, you can obtain an
emergency kit from your approved
dealer containing a set of spare
bulbs and fuses.The bulbs are under pres-
sure and can break when
replaced.
Risk of injury.

JauneNoir Noir texte
5.28
ENG_UD39267_6
Fusibles (H79 - H79 Ph2 - Dacia) ENG_NU_1079-6_H79Ph2_Dacia_5
Passenger compartment fuses
If any electrical component does not
work, check the condition of the fuses.
Unclip flap A using notch 1 to help you.
Depending on the vehicle, to identify
the fuses, refer to the fuse allocation
label located at the back of the flap A
and shown on the following pages.
Check the fuse in question
and replace it, if necessary,
with a fuse of the same
rating.
If a fuse is fitted where the rating is
too high, it may cause the electrical
circuit to overheat (risk of fire) in the
event of an item of equipment using
an excessive amount of current.
To comply with current legislation,
or as a precaution, you can obtain
an emergency kit from your appro-
ved Dealer containing a set of spare
bulbs and fuses.
FUSES (1/8)
Tweezers 2
Remove the fuse using tweezers 2, lo-
cated at the back of flap A.
To remove the fuse from the tweezers,
slide the fuse to the side.
It is not advisable to use the free fuse
locations.
2
1
A

JauneNoir Noir texte
5.29
ENG_UD39267_6
Fusibles (H79 - H79 Ph2 - Dacia) ENG_NU_1079-6_H79Ph2_Dacia_5
FUSES (2/8)
Fuses in engine compartment B
Some functions are protected by fuses
located in the engine compartment
(unit B).
However, because of their reduced
accessibility, we advise you to have
your fuses replaced by an approved
dealer.
B
Special features of LPG versions
The specific LPG circuit shut-off fuse 3
is located in the box B.
3
When working in the engine
compartment, ensure that
the windscreen wiper stalk
is in the park position.
Risk of injury.
Deactivate the Stop and
Start function for any opera-
tion performed in the engine
compartment.

JauneNoir Noir texte
5.30
ENG_UD39267_6
Fusibles (H79 - H79 Ph2 - Dacia) ENG_NU_1079-6_H79Ph2_Dacia_5
FUSES (3/8)

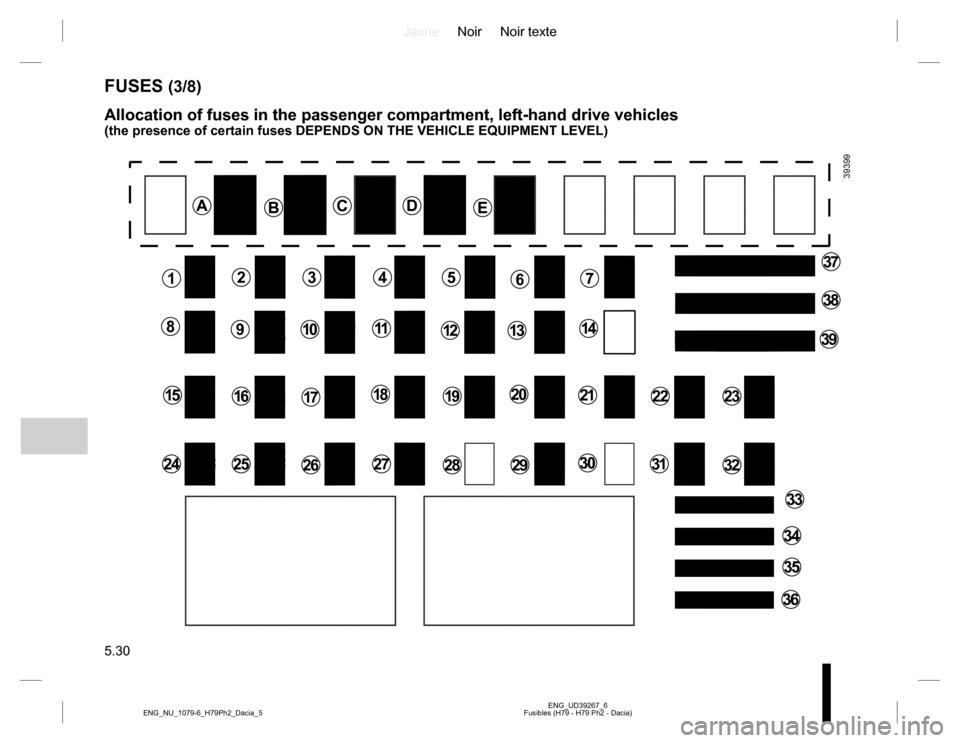

Allocation of fuses in the passenger compartment, left-hand drive vehicles
(the presence of certain fuses DEPENDS ON THE VEHICLE EQUIPMENT LEVEL)
ABCDE
1
8
15
24
2
9
16
25
3
10
17
26
4
11
18
27
5
12
19
28
6
13
20
29
7
14
21
30
22
31
23
32
37
38
39
33
34
35
36

JauneNoir Noir texte
5.31
ENG_UD39267_6
Fusibles (H79 - H79 Ph2 - Dacia) ENG_NU_1079-6_H79Ph2_Dacia_5
Number Allocation
ADriver’s side window
winder
B4-wheel drive (4WD)
transmission
CLPG
DRear accessories socket
EPassenger compartment
ECU, starter
1Front electric window
2Left-hand main beam
headlight
3Right-hand main beam
headlight
4Left-hand dipped beam
headlight
5Right-hand dipped beam
headlight
6Rear lights
7Front side lights
8Rear electric windowsNumber Allocation
9Rear fog lights
10Horn
11Automatic door locking
12ABS-ESC, brake switch,
clutch switch
13Interior lights, boot light,
glovebox light
14 Empty location
15Windscreen wiper
16Cruise control/Speed
limiter, unfastened
seat belt warning,
parking distance
control, multimedia, air
conditioning, heated seats,
automatic gearbox lever,
UCHNumber Allocation
17Daytime running lights
18Brake lights
19Injection, instrument panel
or dashboard, passenger
compartment, sequential
gearbox lever
20Airbag
214-wheel drive transmission
(4WD), LPG, automatic
gearbox, sequential
gearbox, reverse gear
22Power-assisted steering
23Heated rear windscreen,
heated seats, seatbelt
alarm, parking distance
control, additional
passenger compartment
heating, cruise control/
speed limiter, heated
windscreen
FUSES (4/8)

JauneNoir Noir texte
5.32
ENG_UD39267_6
Fusibles (H79 - H79 Ph2 - Dacia) ENG_NU_1079-6_H79Ph2_Dacia_5
FUSES (5/8)
Number Allocation
24Passenger compartment
ECU
25Passenger compartment
ECU
26Direction indicator lights
27 and
29Steering column control
28Not used
30Not used
31Instrument panel
32Radio, passenger
compartment air
conditioning control panel,
passenger compartment
ventilation, rear
accessories socket
33Cigar lighter
34Diagnostics and radio
socket
35Defrosting rearview mirror
36Electric door mirrors
37Passenger compartment
ECU, starterNumber Allocation
38Front windscreen wiper
39Passenger compartment
ventilation
Check the fuse in question
and replace it, if necessary,
with a fuse of the same
rating.
If a fuse is fitted where the rating is
too high, it may cause the electrical
circuit to overheat (risk of fire) in the
event of an item of equipment using
an excessive amount of current.
To comply with current legislation,
or as a precaution, you can obtain
an emergency kit from your appro-
ved Dealer containing a set of spare
bulbs and fuses.

JauneNoir Noir texte
5.33
ENG_UD39267_6
Fusibles (H79 - H79 Ph2 - Dacia) ENG_NU_1079-6_H79Ph2_Dacia_5
FUSES (6/8)
Allocation of fuses in the passenger compartment, right-hand drive vehicles
(the presence of certain fuses DEPENDS ON THE VEHICLE EQUIPMENT LEVEL)
ABCDE
1
8
15
24
2
9
16
25
3
10
17
26
4
11
18
27
5
12
19
28
6
13
20
29
7
14
21
30
22
31
23
32
33
34
35
36
37
38
39

JauneNoir Noir texte
5.34
ENG_UD39267_6
Fusibles (H79 - H79 Ph2 - Dacia) ENG_NU_1079-6_H79Ph2_Dacia_5
FUSES (7/8)
Number Allocation
ADriver’s side window
winder
B4-wheel drive (4WD)
transmission
CRear air conditioning
DRear accessories socket
EPassenger compartment
ECU, starter
1Front electric window
2Left-hand main beam
headlight
3Right-hand main beam
headlight
4Left-hand dipped beam
headlight
5Right-hand dipped beam
headlight
6Rear lights
7Front side lightsNumber Allocation
8Rear electric windows
9Rear fog lights
10Horn
11Automatic door locking
12ABS-ESC, brake switch
13Interior lights, boot light,
glovebox light
14Not used
15Windscreen wiper
16Multimedia
17Daytime running lightsNumber Allocation
18Brake lights
19Injection, instrument panel
or dashboard, passenger
compartment, sequential
gearbox lever
20Airbag
214-wheel drive transmission
(4WD), reverse gear
22Power-assisted steering
23Cruise control/Speed
limiter, rear windscreen,
unfastened seatbelt
warning, parking distance
control, additional
passenger compartment
heating
