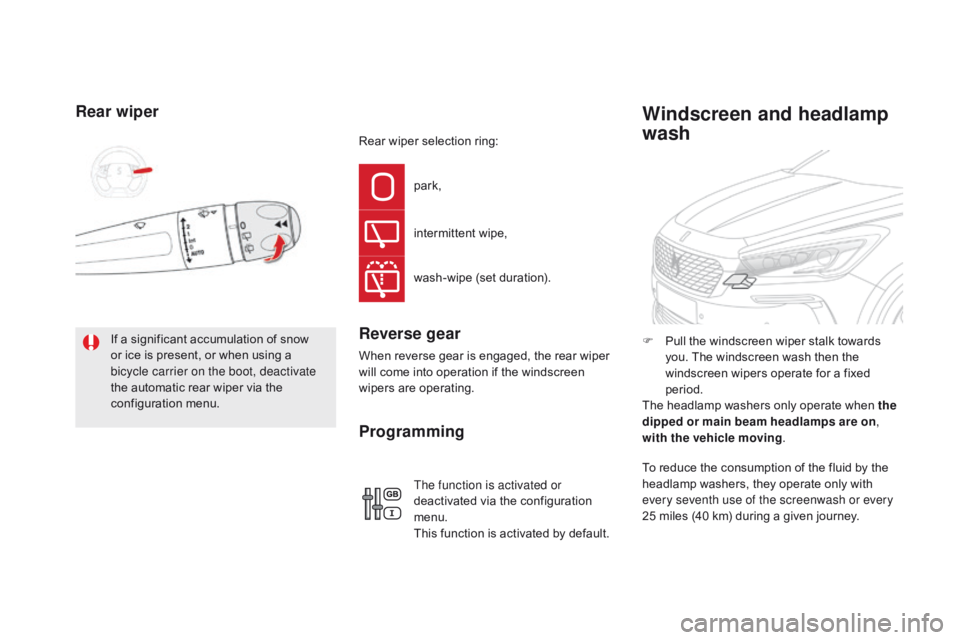

Rear wiper
If a significant accumulation of snow
or ice is present, or when using a
bicycle carrier on the boot, deactivate
the automatic rear wiper via the
configuration menu.park,
intermittent wipe,
wash-wipe (set duration).Reverse gear
When reverse gear is engaged, the rear wiper
will come into operation if the windscreen
wipers are operating.
The function is activated or
deactivated via the configuration
menu.
This function is activated by default.
Programming
F Pull the windscreen wiper stalk towards you. The windscreen wash then the
windscreen wipers operate for a fixed
period.
The headlamp washers only operate when the
dipped or main beam headlamps are on,
with the vehicle moving .
Windscreen and headlamp
wash
Rear wiper selection ring:
To reduce the consumption of the fluid by the
headlamp washers, they operate only with
every seventh use of the screenwash or every
25 miles (40 km) during a given journey.
DS5_en_Chap09_verifications_ed01-2015
coolant level
The coolant level should be close
to the "MA X" mark but should never
exceed it.
Fluid specification
The coolant must conform to the
manufacturer's recommendations.In addition, as the cooling system is
pressurised, wait at least one hour after
switching off the engine before carrying
out any work.
To avoid any risk of scalding, unscrew
the cap by two turns to allow the
pressure to drop. When the pressure
has dropped, remove the cap and top
up the level.
When the engine is warm, the temperature of
the coolant is regulated by the fan.
The cooling fan may star t after switching
off the engine: take care with ar ticles and
clothing that might be caught by the fan
blades.
Specification of the fluid
To ensure optimum cleaning and to avoid
freezing, the fluid should never be topped up or
replaced by plain water.
In wintry conditions, the use of an ethyl alcohol
or methanol base fluid is recommended.
Screenwash / headlamp
wash level
To check the level or top up the fluid on vehicle
fitted with headlamp washers, immobilise the
vehicle and switch of the engine.
F
B
efore opening the bonnet, ensure that the
engine has completely stopped.
F
O
pen the screenwash reservoir filler cap. F
Take and pinch the level gauge to block its
breather.
F Remove the gauge completely from the reservoir to read the level in the transparent section.
F Top up if necessary.F Refit the filler cap to the reservoir and close the bonnet.
