2016 Citroen DS5 HYBRID RHD Keyless entry and starting

OFF
OFF
65
Reactivation of the interior
volumetric and anti-tilt monitoring
Triggering of the alarm
This is indicated by sounding of the siren
and flashing of the direction indicators for
thirty seconds.
The monitoring functions remain active until
the alarm has been triggered eleven times in
succession.
F

P

ress the unlocking button on
the remote control or unlock the
vehicle using the Keyless Entry
and Starting system to deactivate
the exterior perimeter monitoring.
F

P

ress the locking button on the
remote control or lock the vehicle
using the Keyless Entry and
Starting system to activate all the
monitoring functions.
The indicator lamp in the button
again flashes once per second. When the vehicle is unlocked using
the remote control or unlocked
using the Keyless Entry and Starting
system, rapid flashing of the indicator
lamp in the button informs you that the alarm
was triggered during your absence. When
the ignition is switched on, this flashing stops
immediately.
Failure of the remote control
In this case, carry out the operations below to
deactivate the monitoring functions:
F

U
nlock the vehicle using the key (integral
with the remote control) in the driver's door
lock.
F

O
pen the door; the alarm is triggered.
F

S
witch on the ignition; the alarm stops. The
indicator lamp in the button goes off.
Locking the vehicle without
activating the alarm
F Lock or deadlock the vehicle using the key (integral with the remote control) in the
driver's door lock.
Operating fault
When the ignition is switched on, fixed
illumination of the indicator lamp in the button
indicates a fault in the system.
Have it checked by a CITROËN dealer or a
qualified workshop.
* Depending on the country of sale.
Automatic activation*
2 minutes after the last door or the boot is
closed, the system is activated automatically.
F

T
o avoid triggering the alarm on entering
the vehicle, first press the unlocking button
on the remote control or unlock the vehicle
using the Keyless Entry and Starting
system.
Access

67
Safety anti-pinch
When the window rises and meets an obstacle,
it stops and immediately partially lowers again.
In the event of unwanted opening of the
window on closing, press the switch until the
window opens completely, then pull the switch
immediately until the window closes. Continue
to hold the switch for approximately one second
after the window has closed.
The safety anti-pinch function is not active
during this operation.
deactivating the rear
window controlsReinitialisation of the
electric windows
In the event of contact during operation of the windows, you must reverse the movement of
the window. To do this, press the switch concerned.
When operating the passenger electric window switches, the driver must ensure that no one
is preventing correct closing of the windows.
The driver must ensure that the passengers use the electric windows correctly.
Be particularly aware of children when operating the windows.
Be aware of passengers and other persons present close to the vehicle when closing the
windows remotely using the the electronic key or the Keyless Entry and Starting system. Following reconnection of the battery, the
safety anti-pinch function must be reinitialised.
The safety anti-pinch function is not active
during these operations.
For each window:
-

l
ower the window completely, then raise
it. It will rise in steps of a few centimetres
each time the switch is pressed. Repeat
the operation until the window closes
completely,
-
c
ontinue to press the switch for at least
one second after reaching this position,
window closed.
For the safety of your children, press
switch 5 to prevent operation of the
rear windows irrespective of their
position.
The warning lamp in the button comes on,
accompanied by a message confirming
activation. It remains on, as long as the child
lock is activated.
The interior controls for the rear doors are also
deactivated.
Opening the doors from the outside and
operation of the rear windows from the driver's
controls remain possible.
Access

Starting / Switching off the engine
F Insert the electronic key in the reader.
F P ress the brake pedal for vehicles with an
automatic gearbox, or fully declutch for
vehicles with a manual gearbox.
Starting using
the electronic key Starting with Keyless Entry
and Starting
If one of the starting conditions is not met, a
reminder message appears in the instrument
panel screen. In some circumstances, it is
necessary to turn the steering wheel slightly
while pressing the "
START/STOP" button to
assist unlocking of the steering; a message
warns you when this is needed.
With a manual gearbox , put the gear lever into neutral.
With an automatic gearbox , place the gear selector at position P or
n.
diesel vehicles
It is not necessary to place the electronic key in
the reader.
F

W
ith the electronic key inside the vehicle,
press the brake pedal for vehicles with an
automatic gearbox, or fully depress the
clutch pedal for vehicles with a manual
gearbox.
F

P

ress the " START/STOP " button
while maintaining pressure on
the pedal until the engine starts. F

P
ress the "START/STOP " button
while maintaining pressure on
the pedal until the engine starts. The "Keyless Entry and Starting"
electronic key must be in the
recognition zone.
For safety reasons, do not leave this
zone with the vehicle running.
If the electronic key is not detected
in the recognition zone, a message
is displayed. Move the electronic key
into the zone so that the engine can be
started.
The steering column unlocks and the engine
starts more or less instantly.
See the advice below for Diesel vehicles. The steering column unlocks and the engine
starts more or less instantly.
See the warning below for Diesel vehicles. In temperatures below zero the engine
will not start until the pre-heater
warning lamp has gone off.
If this warning lamp comes on after
pressing "
START/STOP ", you should
hold the brake or clutch pedal down
until the warning lamp goes off and
do not press the START/STOP button
again.

101
Switching off using the
electronic key
F Immobilise the vehicle.
Electronic key left in the
reader
If the electronic key is left in the reader,
on opening the driver's door a message
appears to warn you.
Switching off with Keyless
Entry and Starting
F Immobilise the vehicle.If the vehicle is not immobilised, the
engine will not stop.
Never leave your vehicle with the
electronic key still inside.
Switching the ignition on
(without starting)
F With the electronic key inside
the vehicle, press the " S TA R T/
STOP " button.
The engine stops and the steering
column locks. F
P
ress the "
START/STOP "
button.
The engine stops and the steering
column locks.
Anti-theft protection
Electronic engine immobiliser
The keys contain an electronic chip which has
a secret code. When the ignition is switched
on, this code must be recognised in order for
starting to be possible.
This electronic engine immobiliser locks the
engine management system a few minutes
after the ignition is switched off and prevents
starting of the engine by anyone who does not
have the key.
In the event of a malfunction, you are informed
by a message in the instrument panel screen.
In this case, your vehicle does not start; contact
a CITROËN dealer as soon as possible.
With the electronic key in the reader or the
Keyless Entry and Starting key inside the
vehicle, pressing the "START/STOP" button,
with no action on the pedals
, allows the
ignition to be switched on.
F

R

emove the electronic key from the reader. F

P

ress the "START/STOP" button,
the instrument panel comes on
but the engine does not start.
F

P

ress the button again to switch
off the ignition and so allow the
vehicle to be locked.
With the ignition on, the system goes
into energy economy mode when
necessary to maintain the state of
charge of the battery.
Switching off the engine leads to a loss
of braking assistance.
driving

Emergency starting with the
"Keyless Entry and Starting"
system
When the electronic key is in the recognition
zone and your vehicle does not start after
pressing the "START/STOP " button:
F

I
nsert the electronic key in the reader.
F

P
ress the brake pedal on vehicles with an
automatic gearbox, or fully declutch with a
manual gearbox.
F

P
ress the " START/STOP " button.
T

he engine starts. In the event of an emergency only, the engine
can be switched of without conditions.
To do this, press and hold the "START/STOP"

button for about 3 seconds.
In this case the steering column locks as soon
as the vehicle stops.
If the electronic key is no longer in the
recognition zone when driving or when you
(later) request switching off the engine,
a message appears in the instrument panel.
Emergency switch-off
Electronic key not recognised by
the "Keyless Entry and Starting"
system
F Press and hold the "START/STOP" button
for about 3 seconds if you want to force
switching off the engine.
Note that restarting will not be possible
without the key.

149

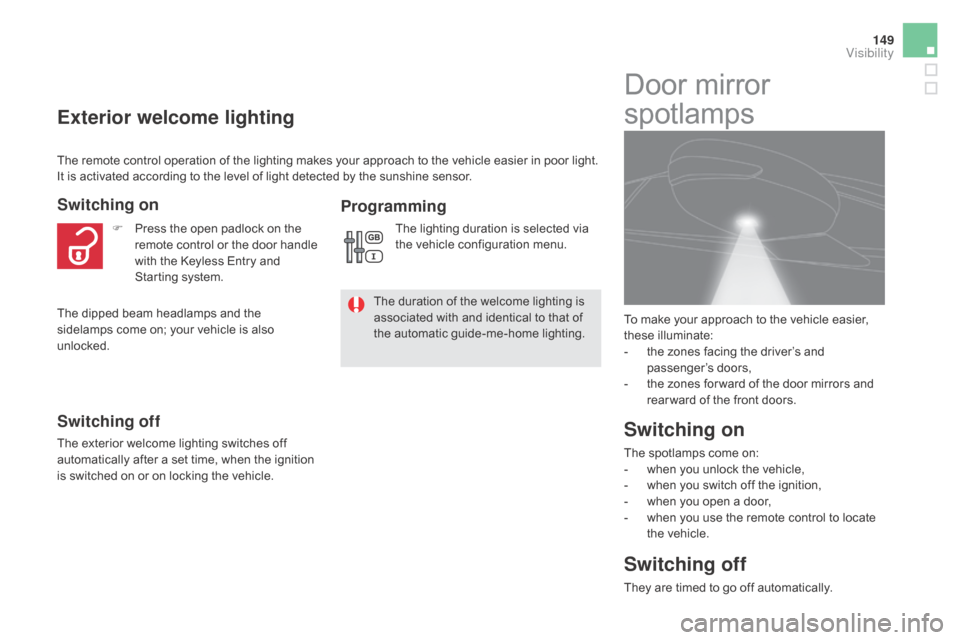

Exterior welcome lighting
Switching on
Switching off
The exterior welcome lighting switches off
automatically after a set time, when the ignition
is switched on or on locking the vehicle.F

P
ress the open padlock on the
remote control or the door handle
with the Keyless Entry and
Starting system.
Door mirror
spotlamps
Switching on
The spotlamps come on:
- w hen you unlock the vehicle,
-

w
hen you switch off the ignition,
-

w
hen you open a door,
-

w
hen you use the remote control to locate
the vehicle.
Switching off
They are timed to go off automatically. To make your approach to the vehicle easier,
these illuminate:
-
t
he zones facing the driver’s and
passenger’s doors,
-
t
he zones for ward of the door mirrors and
rear ward of the front doors.
The dipped beam headlamps and the
sidelamps come on; your vehicle is also
unlocked. The remote control operation of the lighting makes your approach to the vehicle easier in poor light.
It is activated according to the level of light detected by the sunshine sensor.
The duration of the welcome lighting is
associated with and identical to that of
the automatic guide-me-home lighting.
Programming
The lighting duration is selected via
the vehicle configuration menu.
Visibility

Key .....................................................52- 60, 101
Key, electronic ......................................52-55, 57
Keyless Entry and Starting

....................... 5
4, 60
Kit, hands-free
.............................................. 2

92
Kit, temporary puncture repair

......................19

6
K
n
O
Labels, identification .....................................2 74
Lamps, cleaning ............................................ 23
3
Lamps, parking
............................................. 14

8
Lane Departure Warning System (LDWS)

...............................
...........12 2
Leather (care)
...............................

.................233
LEDs - light-emitting diodes

................. 1
45, 216
Level, AdBlue
® additive ................................. 25 3
Level, brake fluid ........................................... 24
8
Level, Diesel additive

............................ 2
50, 251
Level, engine coolant

.............................. 3
2, 249
Level, engine oil

...............................
....... 36, 247
Level, headlamp wash

.................................. 24

9
Level, power steering fluid

............................ 24

8
Levels and checks

.................2
44, 245, 247-250
Level, screenwash fluid

................................ 24

9
Light-emitting diodes - LEDs

................ 1
45, 216
Lighting
................

.......................................... 15 8
Lighting, dashboard
........................................ 37
L

ighting dimmer
..............................
................37
Lighting, directional
................................ 15

1, 152
Lighting, guide-me home

...................... 14

6, 148
Lighting, interior
.................................... 15

7, 15 8
Lighting, mood
..............................

................15 8
Lighting, welcome

......................................... 14

9
Loading
..............................

..................... 14, 232
Load reduction mode

.................................... 2

27
Localised Assistance Call

............................. 2

78
Locating your vehicle

...................................... 55
L

ocking from the inside
................................... 61
L

ong objects, transporting
.............................. 86
L

ow fuel level

..............................
............ 28, 239
Lumbar
...............................

............................. 76
LM
Maintenance, routine .............................. 1 4, 233
Map reading lamps ....................................... 15
7
Markings, identification
................................. 2

74
Massage function

...............................
............76
Mat
.......

........................................................... 84
Memorising a speed

..................................... 12

8
Menu, audio system

...................................... 28

4
Mirror, rear view

.............................................. 81
M

irrors, door............................................ 80, 123
Misfuel prevention
...............................

..........242
Mountings, Isofix
...............................

............170
MP3 CD

................
................................. 288, 289
Number plate lamps

...................................... 2

18
Oil change

...............................
......................247
Oil consumption

............................................ 2

47
OIl, engine
...............................

................ 36, 247
Opening the boot

..............................
.. 52-54, 62
Opening the doors

...............................
..... 52, 54
Jack
........

............................................... 202, 203
Jump starting

..............................

.................. 224
J
Instrument panels ............................... ............18
Intelligent Traction Control ............................ 18
3
ISOFIX
...............

.................................... 170 -174
Isofix mountings
...............................

.............170
