Foglamp selection ring
The foglamps operate with dipped and main beam headlamps.
Rotate and release the ring:
F
fo
r wards a first time to switch on the front
foglamps,
F
fo

r wards a second time to switch on the
rear foglamps,
F
re

ar wards a first time to switch off the rear
foglamps,
F
re

ar wards a second time to switch of the
front fog lamps. When the headlamps switch off with automatic
illumination of headlamps (AUTO model)
or when the dipped beam headlamps are
switched off manually, the foglamps and
sidelamps remain on.
F
Tu

rn the ring rear wards to switch off
the foglamps, the sidelamps will then
switch off. In good or rainy weather, by both day
and night, the front foglamps and the
rear foglamps are prohibited. In these
situations, the power of their beams
may dazzle other drivers. They should
only be used in fog or falling snow.
In these weather conditions, you should
switch on the foglamps and dipped
beam headlamps manually, as the
sunshine sensor may detect sufficient
light.
Do not forget to switch off the front and
rear foglamps when they are no longer
necessary.
Front and rear
foglamps

DS5_en_Chap05_visibilite_ed02-2015
When a low level of ambient light is detected
by a sunshine sensor, the number plate
lamps,
si
delamps and dipped beam headlamps
are switched on automatically, without any
action on the part of the driver. They can also
come on if rain is detected, at the same time as
automatic operation of the windscreen wipers.
As soon as the ambient light returns to a
sufficient level or after the windscreen wipers
are switched off, the lamps are switched off
automatically.
Activation
F Turn the ring to the "AUTO" p osition. The
activation of the function is accompanied
by the display of a message in the screen.
deactivation
F Turn the ring to another position.
D eactivation of the function is
accompanied by the display of a message
in the screen. When the automatic illumination of headlamps
function is activated (lighting control stalk in the
"
AUTO " position), under low ambient light the
dipped beam headlamps remain on when the
ignition is switched off.
Operating fault
In the event of a malfunction of the
sunshine sensor, the lighting comes
on, this warning lamp is displayed
in the instrument panel and/or a
message appears in the screen,
accompanied by an audible signal.
In fog or snow, the sunshine sensor
may detect sufficient light. In this
case, the lighting will not come on
automatically.
Do not cover the sunshine sensor,
coupled with the rain sensor and
located in the centre of the windscreen
behind the rear view mirror; the
associated functions would no longer
be controlled.
Contact a CITROËN dealer or a qualified
workshop.
Programming
Automatic guide-me-home
lighting
Activation or deactivation, as well
as the duration of the guide-me-
home lighting, is set in the vehicle
configuration menu.
Automatic illumination of headlamps

149
DS5_en_Chap05_visibilite_ed02-2015
Exterior welcome lighting
Switching on
Switching off
The exterior welcome lighting switches off
automatically after a set time, when the ignition
is switched on or on locking the vehicle.F
Pr

ess the open padlock on the
remote control or the door handle
with the Keyless Entry and
Starting system.
Door mirror
spotlamps
Switching on
The spotlamps come on:
- wh en you unlock the vehicle,
-
wh

en you switch off the ignition,
-
wh

en you open a door,
-
wh

en you use the remote control to locate
the vehicle.
Switching off
They are timed to go off automatically. To make your approach to the vehicle easier,
these illuminate:
-
th
e zones facing the driver’s and
passenger’s doors,
-
th
e zones for ward of the door mirrors and
rear ward of the front doors.
The dipped beam headlamps and the
sidelamps come on; your vehicle is also
unlocked. The remote control operation of the lighting makes your approach to the vehicle easier in poor light.
It is activated according to the level of light detected by the sunshine sensor.
The duration of the welcome lighting is
associated with and identical to that of
the automatic guide-me-home lighting.
Programming
The lighting duration is selected via
the vehicle configuration menu.
visibility

155
DS5_en_Chap05_visibilite_ed02-2015
Automatic rain sensitive
windscreen wipers
The windscreen wipers operate automatically,
without any action on the part of the driver, if
rain is detected (sensor behind the rear view
mirror), adapting their speed to the intensity of
the rainfall.
Switching on
Briefly push the control stalk
downwards.
A wiping cycle confirms that the
instruction has been accepted.Briefly push the control stalk
downwards again, or place the
control stalk in another position
(Int, 1 or 2).
Switching off
The automatic rain sensitive windscreen
wipers must be reactivated by pushing
the control stalk downwards, if the
ignition has been off for more than
one minute.
This warning lamp goes off in the instrument
panel and a message is displayed.
This warning lamp comes on in the instrument
panel and a message is displayed.
visibility

DS5_en_Chap05_visibilite_ed02-2015
Do not cover the rain sensor, linked with
the sunshine sensor and located in the
centre of the windscreen behind the rear
view mirror.
Switch off the automatic rain sensitive
wipers when using an automatic car wash.
In winter, it is advisable to wait until the
windscreen is completely clear of ice
before activating the automatic rain
sensitive wipers.

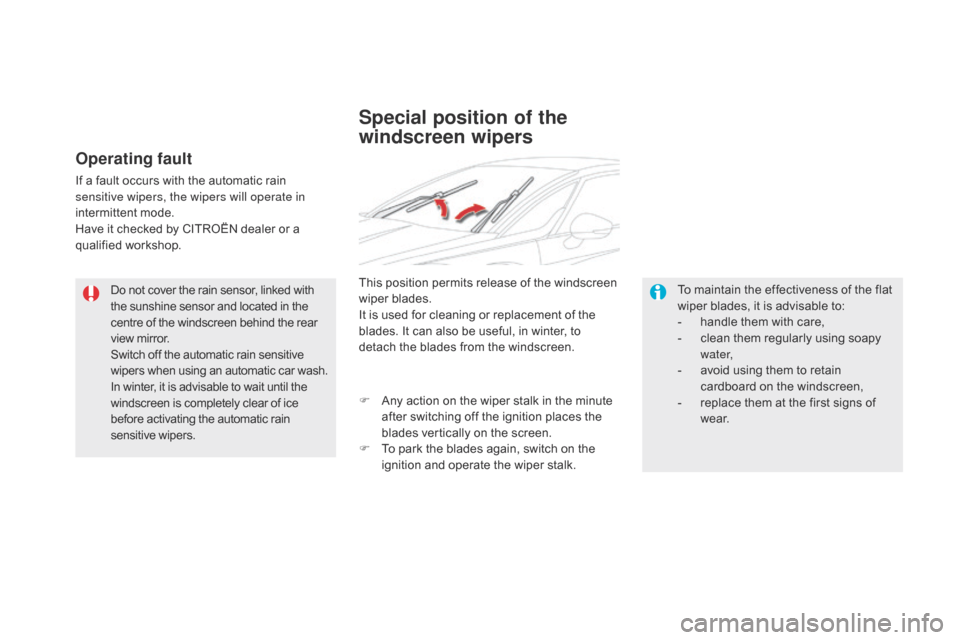

Operating fault
If a fault occurs with the automatic rain
sensitive wipers, the wipers will operate in
intermittent mode.
Have it checked by CITROËN dealer or a
qualified workshop.
Special position of the
windscreen wipers
This position permits release of the windscreen
wiper blades.
It is used for cleaning or replacement of the
blades. It can also be useful, in winter, to
detach the blades from the windscreen.To maintain the effectiveness of the flat
wiper blades, it is advisable to:
-
ha

ndle them with care,
-
cl

ean them regularly using soapy
water,
-
av

oid using them to retain
cardboard on the windscreen,
-
re

place them at the first signs of
w e a r.
F
An

y action on the wiper stalk in the minute
after switching off the ignition places the
blades vertically on the screen.
F
To p

ark the blades again, switch on the
ignition and operate the wiper stalk.

203
DS5_en_Chap08_info-pratiques_ed02-2015
List of tools*
Access to the spare wheel
The spare wheel is supported by a winch
carrier system underneath the vehicle.
Tyre under-inflation detection
The spare wheel is not fitted with a
sensor. The punctured wheel must be
repaired by a CITROËN dealer or a
qualified workshop.
1.
Wh

eelbrace.
Fo

r removing the wheel trim and removing
the wheel bolts.
2.
Ja

ck with integral handle.
Fo

r raising the vehicle.
3.
Wh

eel bolt cover removal tool.
Fo

r removing the bolt head protectors on
alloy wheels.
4.
Wh

eel trim remover.
Fo

r removing the alloy wheel finishers.
5.
So

cket for the security bolts (located in the
glove box).
Fo

r adapting the wheelbrace to the special
"security" bolts.
6.
Cho

ck.
Fo

r blocking the vehicle's wheels.
7. Wh
eelbrace extension. Fo
r slackening/tightening the spare wheel
carrier nut.
8.
Re

movable towing eye.
* Depending on country of sale. For more information on towing the vehicle,
refer to the corresponding section.
All of these tools are specific to your
vehicle and can vary according to
equipment.
Do not use them for any other
purposes.
Practical information

DS5_en_Chap08_info-pratiques_ed02-2015
Accessories
A wide range of accessories and genuine parts is available from the CITROËN dealer network.
These accessories and parts are all suitable for your vehicle and benefit from CITROËN's recommendation and warranty.
"comfort":
door deflectors, side window blinds, rear
screen blind, isotherm module, coat hanger
fixed to head restraint, mobile reading lamp,
mirror for caravan, parking sensors, scented air
freshener, cigarette lighter, ...
"Transport systems":
child seats and booster cushions, boot carpet,
boot liner, boot net, boot spacers, transverse
roof bars, bicycle carrier, ski carrier, roof boxes,
towbars, wiring harnesses...
"Styling":
aluminium pedals, aluminium foot rest, alloy
wheels, chrome mirror shells, ...*
To a

void any risk of jamming the pedals:
-
en

sure that mats are correctly positioned
and secured,
-
ne

ver fit one mat on top of another.
"Security and safety":
anti-intrusion alarm, anti-tilt unit, stolen vehicle
tracking system, child seats and booster
cushions, dog guard, breathalyser, first aid
kit, fire extinguisher, warning triangle, belt
cutter/glass breaker, high visibility vest, wheel
security bolts, snow chains, snow socks, ...
"Protection":
mats*, mud flaps, bumper protection strips,
boot sill protector, vehicle cover...
If a towbar and wiring harness are fitted
outside the CITROËN dealer network,
the installation must be done using
the vehicle's electrical pre-equipment
and fitted following the manufacturer's
recommendations. The rear bodywork has been designed
to avoid spray.

AB
Accessories .................................................. 23 4
Accessory position ....................................... 101
Ad
ditive, AdBlue
.............................. 29
, 253 -261
Additive, Diesel
.....................................

250, 251
Adjusting headlamps
.................................... 150
A

djusting head restraints
.......................... 72
, 75
Adjusting seats
.......................................... 72

, 73
Adjusting the date
..................................... 39

, 42
Adjusting the height and reach of the steering wheel
........................................ 81
A

djusting the seat belt height
....................... 187
A

djusting the time
............................... 38
, 39, 42
Advice on care and maintenance
............................................... 233
A

dvice on driving
......................................
98, 99
Airbags
....................................................

31, 189
Airbags, curtain
..................................... 191

, 192
Airbags, front......................................... 189, 192
Airbags, lateral
...................................... 191

, 192
Air conditioning, automatic
....................... 90

, 91
Air vents
.......................................................... 89
A

larm
............................................................... 63
An

ti-lock braking system (ABS)
.................... 182
A

nti-pinch
........................................................ 68
Ant

i-theft
....................................................... 10

1
Armrest, front
............................................ 82

, 85
Armrest, rear
............................................. 82

, 86
Ashtray
............................................................ 8

2
Assistance call
......................................

181, 278
Assistance, emergency braking
................... 182
A

udible warning
............................................ 181
A

udio streaming (Bluetooth)
................. 29
1, 293
Audio system
...........................................

39, 281
Automatic headlamps
............................. 20

, 147Battery ............................................
223 -227, 251
Battery, charging ........................................... 2
25
Battery, remote control
............................. 59

, 60
Black panel ...................................................... 38
Blind spot sensors
........................................ 123
Bl

ueHDi
.........................................
246, 253 -261
Bluetooth (hands-free)
.................................. 292
Boo

t
.................................................................62
B

oot (opening)
.................................................53
B

rake discs
....................................................252
B

rake lamps
..................................................2

16
Brake warning lamp
........................................ 27
B

raking assistance system
...........................182
B

raking, dynamic emergency
...............103

, 107
Bulbs (changing)
.................................... 21

1-218
Capacity, fuel tank
........................................ 23

9
Cap, fuel filler
................................................ 239
CD .................................................................

287
CD, MP3
................................................ 28

8, 289
Central locking
.......................................... 53

, 55
Changing a bulb
..................................... 211

-218
Changing a fuse
..................................... 21

9-222
Changing a wheel
.................................. 20

2-209
Changing a wiper blade
........................ 15

6, 228
Changing the remote control battery
.............. 59
Ch

ecking the engine oil level
.................. 36
, 247
Checking the levels
................................ 24

7-25 0
Checking tyre pressures (using the kit)
........ 201
C

hecks
..................................
244, 245, 251, 252
Checks, routine
..................................... 25

1, 252Date (setting)
.............................................

39, 42
Daytime running lamps
..................14

5, 211, 212
Deactivating ESC
.......................................... 18 4
D

eactivating the passenger airbag
...............19 0
D

eadlocking
....................................................56
D

emisting, defrosting
......................................95
Dem

isting, defrosting
the mirrors
..............................................

80, 95
cd
Child lock ............................................... 169, 176
Children .................................. 160 -176, 188, 190
Child seats
............................................ 1

6 2-18 8
Child seats, conventional
...................... 168

, 169
Child seats, ISOFIX
............................... 170

-173
Cigarette lighter............................................... 83
C
IT

ROËN
Lo
calised
Emergency Call
.......................................... 278
C

leaning (advice)
.......................................... 233
Cl

ock
............................................................... 38
C

losing the boot
.............................................. 62
C

losing the doors
......................................
53, 55
Configuration, vehicle
............................... 39

, 45
Control, emergency boot release
................... 62
Co

ntrol, emergency door
................................ 57
Co

ntrol, heated seats
...................................... 76
Co

ntrol stalk, lighting
............................ 142

, 148
Control stalk, wipers
.............................. 153

-155
Courtesy lamps
............................................. 157
C

ruise control
........................................ 12
8, 133
Cup holder
....................................................... 8

2
