dashboard fusebox
The fusebox is loacted inside the glove box.
Access to the fuses
F Refer  to   the   paragraph   "Access   to   the  t
o o ls".
Fuse tables
Fuse n° R ating Functions
FH36 5 ATrailer
  relay   unit.
FH37 -Not
  used.
FH38 20 AHi-Fi
  amplifier.
FH39 -Not
  used.
FH40 40 ATrailer
  relay   unit.
Fuse
n
° R

ating Functions
F1 15 ARear
  wiper.
F2 -Not
  used.
F3 5 AAirbags
  and   pretensioners   control   unit.
F4 10 AAir
  conditioning,   clutch   switch,   electrochromatic   mirror,
p

article   filter   pump   (Diesel),   diagnostic   socket,   air flow
sen

sor
 (
Diesel).
F5 30 AElectric
  windows   panel,   passenger's   electric   window
c

ontrol,   front   electric   window   motor.
F6 30 ADriver's
  electric   window   motor.
F7 5 ACourtesy
  lamp.
Practical information

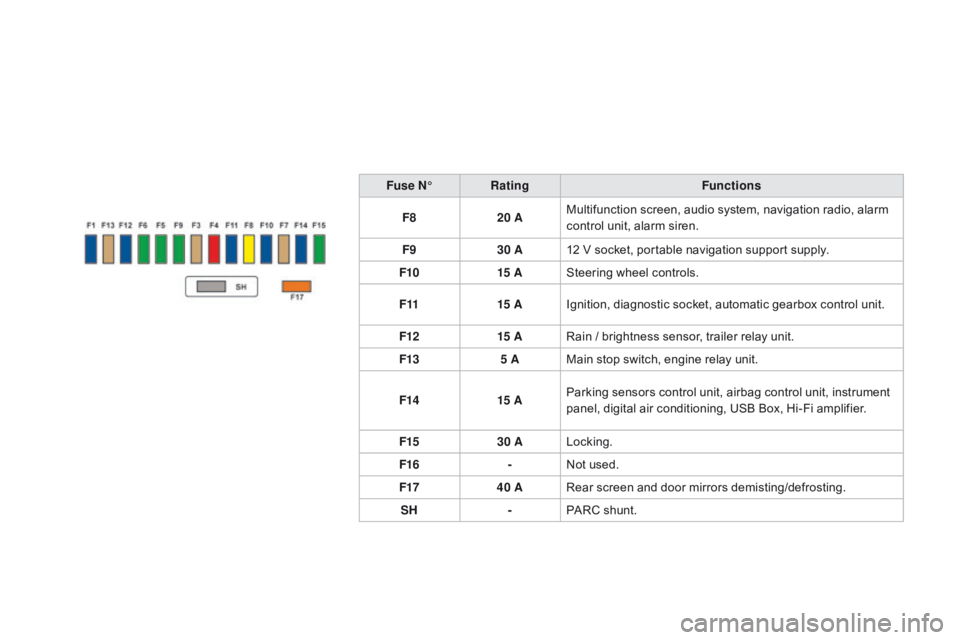

Fuse n°R ating Functions
F8 20 AMultifunction
  screen,   audio   system,   navigation   radio,   alarm
c

ontrol   unit,   alarm   siren.
F9 30 A12
  V   socket,   portable   navigation   support   supply.
F10 15 ASteering
  wheel   controls.
F11 15 AIgnition,
  diagnostic   socket,   automatic   gearbox   control   unit.
F12 15 ARain
  /   brightness   sensor,   trailer   relay   unit.
F13 5 AMain
  stop   switch,   engine   relay   unit.
F14 15 AParking
  sensors   control   unit,   airbag   control   unit,   instrument
p

anel,   digital   air   conditioning,   USB   Box,   Hi-Fi   amplifier.
F15 30 ALocking.
F16 -Not
  used.
F17 40 ARear
  screen   and   door   mirrors   demisting/defrosting.
SH -PARC
  shunt.

Fuse table
Fuse n°R ating Functions
F1 20 AEngine
  control   unit   supply,   cooling   fan   unit   control   relay,   multifunction   engine   control   main   relay,
injection
  pump   (Diesel).
F2 15 AHorn.
F3 10 AFront
  /   rear   wash-wipe.
F4 20 ALED
  daytime   running   lamps.
F5 15 ADiesel
  heater   (Diesel),   particle   filter   additive   pump   (Diesel),   air   flow   sensor   (Diesel),   EGR   electrovalve   (Diesel),
b

low-by   heater   and   electrovalves   (VTi).
F6 10 AABS/DSC
  control   unit,   secondary   stop   switch.
F7 10 AElectric
  power   steering,   automatic   gearbox.
F8 25 AStarter
  control.
F9 10 ASwitching
  and   protection   unit   (Diesel).
F10 30 AFuel
  heater   (Diesel),   blow-by   heater   (Diesel),   fuel   pump   (VTi),   injectors   and   ignition   coils   (petrol).
F11 40 AHeater
 b

lower.
