Recommendations on storage
adblue® freezes at about -11°C and
deteriorates above 25°C. It is recommended
that bottles be stored in a cool area and
protected from direct sunlight.
Under these conditions, the additive can be
kept for at least a year.
If the additive has frozen, it can be used once it
has completely thawed out.
never store bottles of a db lue
® in your
vehicle.
Procedure
Before topping-up, ensure that the vehicle is
parked on a flat and level sur face.
In wintry conditions, ensure that the
temperature of the vehicle is above -11°C.
Other wise, by freezing, the AdBlue
® cannot
be poured into its tank. Park your vehicle in a
warmer area for a few hours to allow the top-up
to be carried out.
F Switch off the ignition and remove the key.
F For access to the a db lue
® tank, raise the
boot carpet then, depending on equipment,
lift out the spare wheel and/or the
storage box. F
Without pressing, turn the black cap a
quarter turn anti-clockwise and lift it off.
F Turn the blue cap a 6
th of a turn anti-
clockwise.
F Lift off the cap.
Checks

241
C5_en_Chap09_verification_ed01-2015
F Refit the blue cap to the tank and turn
it a 6th of a turn clockwise, to its stop.
F Refit the black cap and turn it a quarter of
a turn clockwise without pressing. Ensure
that the indicator on the cap lines up with
the indicator on the support.
F Depending on equipment, return the spare
wheel and/or the storage box to the bottom
of the boot.
F Refit the boot carpet and close the tailgate. Important:
in the event of a top-up
after a breakdown because of a lack
of additive , signalled by the message
"Top up emissions additive: Starting
prevented", you must wait around
5 minutes before switching on the ignition,
without opening the driver's door,
locking the vehicle or introducing the
key into the ignition switch .
Switch on the ignition, then, after
10 seconds, start the engine.
n ever dispose of a db lue® additive
bottles in the household waste. Place
them in a special container provided
this purpose or take them to your dealer.
If any additive is split or splashed, wash
immediately with cold water or wipe with
a damp cloth.
If the additive has crystallised, clean it
off using a sponge and hot water.
F
After emptying the bottle, wipe away any
spillage around the tank filler using a damp
cloth.
Important : if your vehicle's
ad blue
® tank is completely empty -
which is confirmed by the alert
messages and the impossibility of
starting the engine, you must add at
least 3.8 litres (so two 1.89 litre bottles).
F o
btain a bottle of a db lue
®. After first
checking the use-by date, read carefully
the instructions on use on the label before
pouring the contents of the bottle into your
vehicle's AdBlue
® tank.
9
Checks

279
C5_en_Chap11b_SMEGplus_ed01-2015
Select a radio station or frequency (refer to the
corresponding section).Press on Radio Media
to display the
primary page.
Press on the secondary page.
Select " Settings ".
Select " Radio".
Activate/deactivate " RDS
options ".
Press on Radio Media
to display the
primary page.
Press on the secondary page. Press on "
Preset".
Select a number in the list to preset the
previously chosen radio station.
A long press on a number presets (memorises)
the station.
Press on Frequency
.
Enter the frequency in full (e.g.:
92.10 MHz) using the keypad then
" Confirm ".
Changing radio station
Pressing the name of the current radio station
brings up a list.
To change radio station press the name of the
desired station. or
Press on Radio Media to display the
primary page.
Select " Save".
Preset a station Activate/ Deactivate RDS
OR
THEN
a press on this button presets all of
the stations one after the other.
Recall pre-set stations
RdS, if activated, allows you to continue
listening to the same station by automatic
retuning to alternative frequencies.
However, in certain conditions, coverage
of an RDS station may not be assured
throughout the entire country as
radio stations do not cover 100 % of
the territory. This explains the loss of
reception of the station during a journey.
.
audio and Telematics

306
C5_en_Chap11b_SMEGplus_ed01-2015
Managing paired
telephones
This function allows the connection or
disconnection of a peripheral device as
well as the deletion of a pairing.Using the telephone is not
recommended while driving.
Park the vehicle.
Make the call using the steering
mounted controls.
Press on Telephone
to display the
primary page.
Press on the secondary page.
Select " Bluetooth " to display the list
of paired peripheral devices.
Select the peripheral in the list. Select "Search for devices ".
or "Connect / Disconnect " to start or
end the b luetooth connection with
the selected device.
or "Delete " to delete the pairing.
Receiving a call
An incoming call is announced by a ring and a
superimposed display in the screen.
Make a short press on the steering
mounted TEL button to accept an
incoming call.
Make a long press
on the steering mounted TEL button
to reject the call.
or Select "End call".
Making a call
Calling a new number
Press on Telephone to display the
primary page.
Enter the phone number using the
digital keypad.
Press " Call" to start the call.
Calling a contact
Press on Telephone to display the
primary page.
Or make a long press
on the steering mounted TEL button.
audio and Telematics

323
C5_en_Chap11c_RD45_ed01-2015

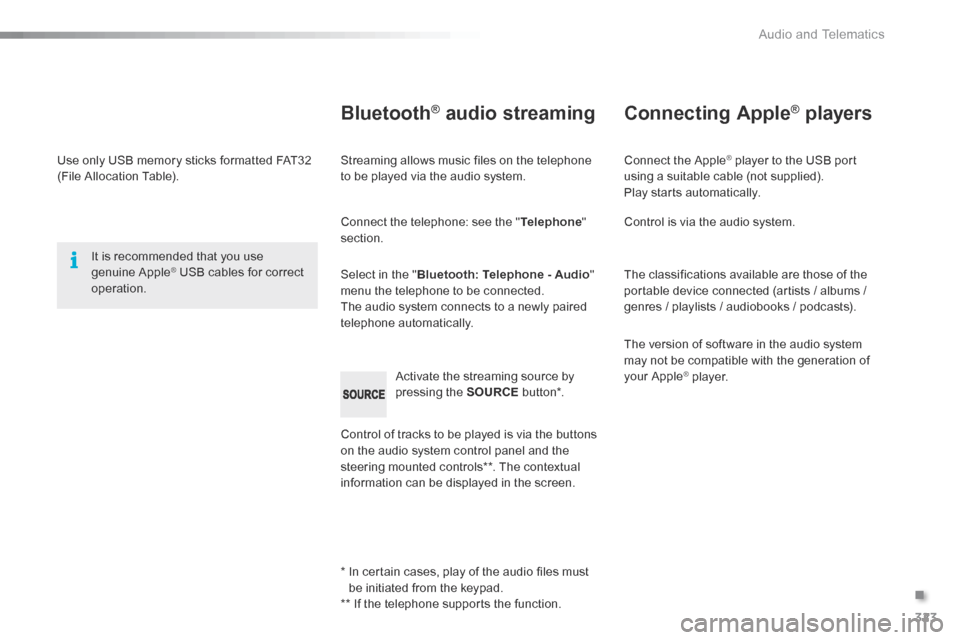

Use only USB memory sticks formatted FAT32
(File Allocation Table).It is recommended that you use
genuine Apple
® USb cables for correct
operation.
* In certain cases, play of the audio files must
be initiated from the keypad.
** If the telephone supports the function.
Bluetooth® audio streaming
Streaming allows music files on the telephone
to be played via the audio system.
Connect the telephone: see the " Telephone"
section.
Select in the " Bluetooth: Telephone - Audio "
menu the telephone to be connected.
The audio system connects to a newly paired
telephone automatically.
Control of tracks to be played is via the buttons
on the audio system control panel and the
steering mounted controls**. The contextual
information can be displayed in the screen. Activate the streaming source by
pressing the SOURCE
but to n*.
Connecting Apple® players
Connect the apple® player to the US b port
using a suitable cable (not supplied).
Play starts automatically.
Control is via the audio system.
The classifications available are those of the
portable device connected (artists / albums /
genres / playlists / audiobooks / podcasts).
The version of software in the audio system
may not be compatible with the generation of
your a pple
® player.
.
audio and Telematics

324
C5_en_Chap11c_RD45_ed01-2015
Telephone
Pairing a Bluetooth® telephone
Screen C
(Available according to model and version)
As a safety measure and because they
require prolonged attention on the part
of the driver, the operations for pairing
of the Bluetooth mobile telephone with
the Bluetooth hands-free system of
your audio equipment must be carried
out with the vehicle stationary and the
ignition on.
Go to www.citroen.co.uk for more information
(compatibility, more help, ...).
Activate the telephone's Bluetooth function
and ensure that it is "visible to all" (telephone
configuration). Press the MENU button. In the menu, select:
- "
Bluetooth: Telephone - Audio "
- " Bluetooth configuration "
- " Perform a Bluetooth search "
A window is displayed with a message that a
search is in progress. The services available depend on
the network, the SIM card and the
compatibility of the Bluetooth device
used.
Consult your telephone's manual and
your operator to find out which services
are available to you.
* If your telephone is fully compatible. The first 4 telephones recognised are displayed
in this window.
The "
Telephone " menu permits access to the
following functions in particular: " Directory" *,
" Calls list ", "Consult the paired equipment ".Select the telephone to be connected from the
list. Only one telephone can be connected at
a time.
A virtual keypad is displayed in the screen:
enter a code with at least 4 digits.
Confirm by pressing OK.
A message in the screen indicates the telephone
chosen. To accept the pairing, enter the same
code on the telephone, then confirm with OK.
If pairing fails, the number of attempts is not
limited.
A message that the pairing has been
successful appears in the screen.
The automatic connection authorised is only
active after the telephone has been configured.
The directory and the call list can be accessed
after the necessary synchronisation period.
audio and Telematics

325
C5_en_Chap11c_RD45_ed01-2015
Receiving a call
An incoming call is announced by a ring and a
superimposed display in the screen.Select the YES tab on the display
using the buttons.
Confirm by pressing OK.
Press this button at the steering
mounted controls to accept the call.
Making a call
From the " Bluetooth : Telephone - Audio "
menu.
Select " Manage the telephone call".
Select " Call".
or
Select " Calls list ".
or
Select " Directory ".
Press this button for more than two
seconds for access to your directory,
then navigate using the thumb wheel.
or
To dial a number, use your telephone's keypad,
with the vehicle stationary.
Ending a call
During a call, press this button for
more than 2 seconds.
Confirm with OK to end the call.
The system accesses the telephone's
contacts directory, depending on its
compatibility, and while it is connected
by Bluetooth.
With certain telephones connected by
b luetooth you can send a contact to the
directory of the audio system.
Contacts imported in this way are
saved in a permanent directory
visible to all, whatever the telephone
connected.
The menu for the directory is not
accessible if it is empty.
.
Audio and Telematics

335
C5_en_Chap12_index-alpha_ed01-2015
Identification, vehicle .................................... 250
Ignition ............................................................. 97
Immobiliser, electronic .............................. 49, 97
Indicator, coolant temperature ........................21
Indicator, engine oil level ........................24, 227
Indicator, engine oil temperature ....................21
Indicator lamps, operation ........................26-36
Indicators, direction ...................................... 148
Inflating tyres .......................................... 12, 25 0
Instrument panels ........................................... 14
Internet .......................................................... 294
Internet browser ............................................ 295
Isofix mountings ............................................ 172
Hazard warning lamps
.................................. 148
Hazard warning lamps, automatic operation .................................... 148
Headlamp adjustment ................................... 141
Headlamps,
automatic illumination .......................... 137, 140
Headlamps, dipped beam .....................136, 193
Headlamps, directional ......................... 141, 143
Headlamps, main beam ........................136, 193
Headlamps, Xenon ....................................... 193
Headlamp wash ............................................ 145
Head restraints, front ................................64, 66
Head restraints, rear ....................................... 71
Heating ................................................ 74, 75, 79
Hill start assist ............................................... 108
Horn ............................................................... 149
H
I
J
K
L
Jack ............................................................... 185
Jukebox ......................................................... 285
Key with remote control ......................45 - 49, 97
k it, hands-free ...................................... 300, 324
Kit, temporary puncture repair ......................181Labels, identification
..................................... 250
Lane Departure Warning System (LDWS) ...128
Level, ad blue
® additive ................................. 234
Level, brake fluid ........................................... 229
Level, d iesel additive .................................... 230
Level, engine coolant ..............................21, 229
Level, engine oil ...................................... 24, 227
Level, headlamp wash ..................................230
Level, power steering fluid ............................229
Levels and checks ................................ 225, 230
Level, screenwash fluid ................................230
Lighting ............................................................ 84
Lighting, dashboard ........................................ 25
Lighting dimmer .............................................. 25
Lighting, directional ............................... 142, 143
Lighting, guide-me home ......................139, 140
Lighting, interior .............................................. 83
Lighting, mood ................................................ 84
Lighting, welcome ........................................... 84
Loading ........................................................... 12
Localised a ssistance Call ..................... 149, 251
Locating your vehicle ...................................... 48
Locking from the inside ...................................55
Log, alerts ....................................................... 20
M
Maintenance, routine ...................................... 12
Map reading lamps ......................................... 83
Markings, identification ................................. 250
Massage function ........................................... 66
Gear lever, automatic gearbox
.....................11 0
Gear lever, manual gearbox .........................109
Glove box ........................................................ 86
.
alphabetical index
