2016 Citroen C4 PICASSO buttons

78
C4-Picasso-II_en_Chap03_ergonomie-confort_ed01-2016
System which registers the electrical settings of   the   driver's   seat   and   door   mirrors.   It   enables
y

ou   to   store   and   recall   two   positions   using   the
b

uttons   on   the   side   of   the   driver's   seat.
Storing driving positions
Storing a position
Using buttons M / 1 / 2
F Switch  on   the   ignition.
F  A djust   your   seat   and   the   door   mirrors.
F

P
ress button M , then press button 1 or 2
within
  four   seconds.
An
  audible   signal   indicates   that
t
he   position   has
b

een   stored.
Storing
  a   new   position   cancels   the   previous
p

osition.
Recalling a stored position
Ignition on or engine running
F Press button 1 or 2 to recall the corresponding p osition.
An
  audible   signal   confirms   that   adjustment   is
c

omplete.
You can interrupt the current movement by
pressing
  button   M, 1 or 2
  or   by   using   one   of   the
s

eat   controls.
A stored position cannot be recalled while
driving.
Recalling
  stored   positions   is   deactivated
4

5 seconds   after   switching   off   the   ignition.
Ease of use and comfort

94
C4-Picasso-II_en_Chap03_ergonomie-confort_ed01-2016
Heating
Temperature adjustment
F Press one of the arrows, or move the cursor from blue (cold) to red
(hot)
  to   adjust   the   temperature   to
y

our
 w
ishes.
Air flow adjustment
F Press one of these buttons to increase or decrease the speed
of
  the   booster   fan.
Air distribution adjustmentThe recirculation of interior air prevents exterior odours   and   smoke   entering   the   passenger
c

ompartment.
This function also allows the air in the
passenger
  compartment   to   be   heated   or   cooled
m

ore   quickly.
Windscreen.
Centre

and

side

vents.
Footwells. The
  air   distribution   can   be   varied   by   using
m

ore   than   one   button:   illumination   of   the
b

utton indicates that air is distributed in that
direction;   no   illumination   indicates   that   air   is   not
d

istributed   in   that   direction.
Pressing   all   three   buttons   gives   an   even
d

istribution   in   the   passenger   compartment.
Air intake / Air recirculation
F Press this button to select the
exterior   air   intake   mode   to   the
p

assenger
 c
ompartment.
Avoid

driving

for

too

long

without

v

entilation

(risk

of

misting

and

d

eterioration

of

air

quality).
The

heating

system

works

only

when

the

e

ngine

is

running.
Press the button for the Air conditioning
menu

to

display

the

page

for

the

system

c

ontrols.
The

symbol

for

air

flow

(a

fan)

fills

progressively

a

ccording

to

the

air

flow

setting

made.
By

reducing

the

air

flow

to

the

minimum,

you

a

re

stopping

ventilation

of

the

passenger

c

ompartment.
The

air

distribution

in

the

passenger

c

ompartment

can

be

adjusted

by

combining

the

u

se

of

several

vents.
When

the
  indicator   lamp   is   off,   air   is   taken   from
o

utside

the   vehicle.   When   the   indicator   lamp   is
o

n,

the

air
  inside   the   passenger   compartment
i

s

recirculated   and   the   intake   of   air   from   outside
t

he

vehicle   is   inhibited.
Ease of use and comfort

95
C4-Picasso-II_en_Chap03_ergonomie-confort_ed01-2016
Dual-zone manual air conditioning with temperature regulation
The air conditioning system only works with the engine r unning.
The temperature at the nozzles and vents
is
  regulated   by   the   system   according   to   the
t

emperature   in   the   passenger   compartment
a

nd   the   temperature   setting.
Press the button for the Air conditioning
menu
  to   display   the   system   controls   page.Temperature adjustment
F Press one of these buttons to reduce (blue) or increase
(red)
  the   value.
Air flow adjustment
Press one of these buttons to
increase or decrease the speed of
the  air   booster   fan.
The

driver

and

front

passenger

can

each

adjust
 t
he t
emperature i
ndependently.
The value indicated corresponds to a level of
comfort
  and   not   to   a   temperature   in   degrees   Celsius o

r   Fahrenheit   (depending   on   the   unit   selected).
A
  setting   of   around   21   provides   optimum   comfort.
 D

epending   on   your   requirements,   a   setting   between
 1

8   and   24   is   normal.
In addition, it is recommended that a difference
between  left   and   right   of   more   than   3   should   be
av

oided. The
  air   flow   symbol   (a   fan)   fills   progressively
a

ccording   to   the   quantity   of   air   wanted.
By   reducing   the   air   flow   to   minimum,   you   are
s

topping
 v
entilation.
Avoid   driving   for   too   long   without
v

entilation   (risk   of   misting   and  d
eterioration   of   air   quality).
3
Ease of use and comfort

96
C4-Picasso-II_en_Chap03_ergonomie-confort_ed01-2016
Air intake / Air recirculation
The intake of exterior air prevents the formation of   mist   on   the   windscreen   and   side   windows.
The recirculation of interior air isolates the
passenger
  compartment   from   exterior   odours
a

nd   smoke.
F

P
ress the button to choose
how
  air   enters   the   passenger
c

ompartment.
Air conditioning On / Off
Switching on
Switching off
The air conditioning does not operate when   the   air   flow   adjustment   is   set
t

o off. F

P
ress this button to activate the
air   conditioning   system.
Avoid

driving

for

too

long

without

r

ecirculation

of

interior

air

(risk

of

m

isting

and

deterioration

of

air

quality).
This function allows hot or cold air to be
delivered

selectively

and

more

quickly.
The

air   conditioning   is   designed   to   operate
 e

ffectively   in   all   seasons,   with   the   windows   closed.
It

enables   you   to:
-
l

ower the temperature, in summer,
-
 i

ncrease   the   effectiveness   of   the   demisting   in
 w

inter,   above   3°C.
F
P
ress   this   button   again   to
d

eactivate   the   air   conditioning
s

ystem.

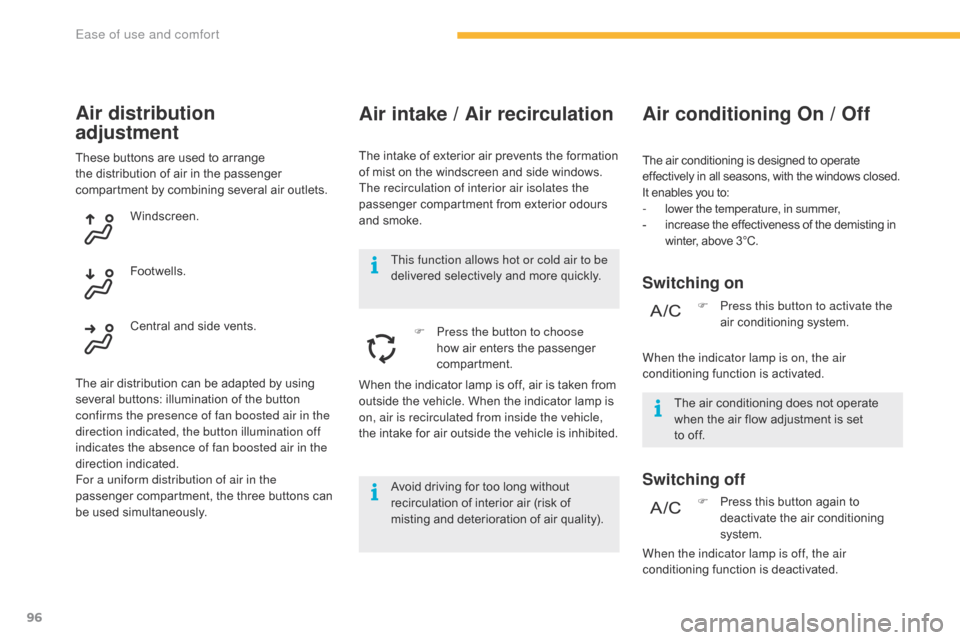

Air distribution
adjustment
These buttons are used to arrange the   distribution   of   air   in   the   passenger
c

ompartment   by   combining   several   air   outlets.
Windscreen.
The
  air   distribution   can   be   adapted   by   using
s

everal   buttons:   illumination   of   the   button
c

onfirms the presence of fan boosted air in the
direction indicated, the button illumination off
indicates the absence of fan boosted air in the
direction
 i

ndicated.
For a uniform distribution of air in the
passenger
  compartment,   the   three   buttons   can
b

e
 us
ed
 s
imultaneously.Footwells.
Central
  and   side   vents.When
  the   indicator   lamp   is   off,   air   is   taken   from
o

utside   the   vehicle.   When   the   indicator   lamp   is
o

n, air is recirculated from inside the vehicle,
the
  intake   for   air   outside   the   vehicle   is   inhibited.When the indicator lamp is on, the air
conditioning
  function   is   activated.
When the indicator lamp is off, the air
conditioning
  function   is   deactivated.
Ease of use and comfort

97
C4-Picasso-II_en_Chap03_ergonomie-confort_ed01-2016
Dual-zone automatic air conditioning
This air conditioning system operates with the   engine   running,   but   the   ventilation   and   its
c

ontrols   are   available   with   the   ignition   on.
Operation
  of   the   air   conditioning   and   regulation
o

f temperature, air flow and air distribution in
the
  passenger   compartment   are   automatic.Temperature adjustment
1. Driver/passenger side t emperature adj
ustment.
2.
 A

ir
 d
istribution
 a
djustment.
3.
 A

ir   flow   adjustment.
4.
 A

ir   intake   /   air   recirculation.
5.
 A

ir   conditioning   On   /   Off.
6.
 A

utomatic   mode.
7.
 A

ccess   to   the   secondary   page.The
  driver   and   front   passenger   can   each   set
t

he
 t
emperature
 i
ndependently.
F
P
ress one of these buttons
to increase or decrease the
value.
The value indicated corresponds to a level of
comfort   and   not   to   a   precise   temperature.
It
  is   recommended   that   you   avoid   a   left /right
s

etting   difference   of   more   than   3.
Press the button for the Air conditioning

menu to display the controls for the air
conditioning

system.
Air flow adjustment
Avoid driving for too long with the v
entilation   off   (risk   of   misting   and
d

eterioration   of   air   quality).
F

P
ress one of these buttons to
increase or decrease the speed
of   the   booster   fan.
The air flow symbol (a fan) is filled in
progressively   in   relation   to   the   quantity   of   air
w

anted.
By

reducing   the   air   flow   to   minimum,   you   are
s

topping
 v
entilation.
" - - - "

is   displayed.
3
Ease of use and comfort

98
C4-Picasso-II_en_Chap03_ergonomie-confort_ed01-2016
The air distribution in the passenger compartment   can   be   adjusted   by   combining   the
u

se   of   several   vents.
Air distribution adjustment
Windscreen.
Footwells.
Centre
  and   side   vents.
The

air

distribution   can   be   varied   by   using
m

ore

than   one   button:   illumination   of   the
b

utton indicates that air is distributed in that
direction;

no   illumination   indicates   that   air   is   not
d

istributed   in   that   direction.
In

AUTO

mode,   all   three   buttons   are   off.Switching off Switching on
Air conditioning On/Off
The air conditioning is designed to operate e
fficiently in all seasons, with the windows
closed.
It
  allows   you:
-

i
n summer, to lower the temperature,
-

i
n   winter,   above   3   °C,   to   improve   demisting.
Avoid
  prolonged   operation   of   the   air
r

ecirculation   function   (risk   of   misting
a

nd   of   deterioration   of   the   air   quality).
When
  the   indicator   lamp   is   off,   the   intake   of
e

xterior   air   is   active.
When the indicator lamp is on, air recirculation
is
  activated,   the   intake   of   exterior   air   is
in

hibited.F

P
ress this button to choose
the mode for air entry to the
passenger
 c

ompartment.
The
  intake   of   exterior   air   avoids   misting   of   the  w
indscreen   and   side   windows.
Air
  recirculation   prevents   exterior   odours
a

nd   smoke   from   entering   the   passenger
c

ompartment.
This
  function   also   allows   faster   heating
o

r   cooling   of   the   air   in   the   passenger
c

ompartment.
Air intake/Air recirculation
F Press  this   button   again   to   switch  o
ff   the   air   conditioning.
When the indicator lamp is off, the air
conditioning
  system   is   off.
F

P
ress this button to switch on the
air
 c
onditioning.
When the indicator lamp is on, the air
conditioning   system   is   on.
The

air

conditioning   cannot   operate   when   the
a

ir

flow

is
  set   to   off.
Ease of use and comfort

101
C4-Picasso-II_en_Chap03_ergonomie-confort_ed01-2016
Settings for
passengers in
the 3
rd row of seats
F Press   the   vent   cover.
F  A djust   the   flow   of   air   to   the   two   vents   using
t

he four-position wheel (off, low, medium,
hi g h).
F

D
irect   the   vent   by   turning   the   cover.
Ventilation with ignition on
function
With the ignition on, you can use the ventilation system and have access to the Air
conditioning


menu   to   adjust   the   air   flow   and
a

ir   distribution   in   the   passenger   compartment.
This function is available for a few minutes,
depending
  on   the   state   of   charge   of   the   battery
o

f   your   vehicle.
This function does not activate the air
conditioning.
You
  can   make   use   of   the   residual   heat   in   the
e

ngine   to   warm   the   passenger   compartment
u

sing   the   temperature   setting   buttons.
3
Ease of use and comfort

155
C4-Picasso-II_en_Chap04_conduite_ed01-2016
Switching on / Pause
F Turn thumbwheel 1 to the "LIMIT" position:  t
he speed limiter mode is selected but is
not
  switched   on   (Pause).
F

S
witch   the   speed   limiter   back   on   by
p

ressing   button   4, if the speed displayed
is suitable (by default, the last speed
programmed).
F

Y
ou can temporarily stop the speed limiter
by
  pressing   button   4   again:   the   display
c

onfirms   that   it   has   been   stopped   (Pause).You do not have to switch the speed limiter on
in
  order   to   set   the   speed.
Once the function is selected, you can modify
the
  speed   setting   by:
-

u
sing   buttons   2 and 3,
  raising   or   lowering
t

he   speed   displayed   :
F

b
y successive short presses, to modify
by
  +   or   -   1   mph   (km/h),
F

b
y a maintained press, to modify in steps
of
  +   or   -   5   mph   (km/h).
Adjusting the speed limiter
setting
- pressing  button   5:
F  t he   six   speeds   memorised   are   displayed
i

n the touch screen tablet,
F

p
ress   the   button   corresponding   to   the
l

imit   speed   chosen.
The
  value   is   displayed   in   the   instrument   panel.
The selection screen closes after a few
moments.
-

b
y   pressing   button   5, if your vehicle has
speed
  limit   recognition:
F

t
he speed to memorise is displayed in
the instrument panel,
F
press button 5 again
  to   save   the   speed.
The value is then displayed in the instrument
panel.
For more information on Speed limit
recognition and memorisation, refer to the
corresponding
 s

ection.
4
Driving
