Eco-driving
Optimise the use of your gearbox
With a manual gearbox, move off gently and change up without waiting.
During acceleration change up early.
With an automatic or electronic gearbox, give preference to automatic
mode and avoid pressing the accelerator pedal heavily or suddenly.
The gear shift indicator invites you engage the most suitable gear: as
soon as the indication is displayed in the instrument panel, follow it
straight away.
For vehicles fitted with an electronic or automatic gearbox, this indicator
appears only in manual mode.
Drive smoothly
Maintain a safe distance between vehicles, use engine braking rather
than the brake pedal, and press the accelerator progressively. These
practices contribute towards a reduction in fuel consumption and CO
2
emissions and also helps reduce the background traffic noise.
Control the use of your electrical
equipment
Before moving off, if the passenger compartment is too warm, ventilate it
by opening the windows and air vents before using the air conditioning.
Above 30 mph (50 km/h), close the windows and leave the air vents
open.
Remember to make use of equipment that can help keep the
temperature in the passenger compartment down (sunroof and window
blinds...).
Switch off the air conditioning, unless it has automatic regulation, as
soon as the desired temperature is attained.
Switch off the demisting and defrosting controls, if not automatic.
Switch off the heated seat as soon as possible.
Switch off the headlamps and front foglamps when the level of light
does not require their use.
Avoid running the engine before moving off, particularly in winter; your
vehicle will warm up much faster while driving.
As a passenger, if you avoid connecting your multimedia devices
(film, music, video game...), you will contribute towards limiting the
consumption of electrical energy, and so of fuel.
Disconnect your portable devices before leaving the vehicle.
Eco-driving is a range of everyday practices that allow the motorist to optimise their fuel consumption and CO
2 emissions.
If your vehicle has cruise control, make use of the system at speeds
above 25 mph (40 km/h) when the traffic is flowing well.
Eco-driving

10
C3Picasso_en_Chap01_controle-de-marche_ed01-2015
Petrol - Diesel instrument panel
Panel grouping together the digital indicator, the multifunction screen and the vehicle operation
indicator and warning lamps.
1.
R
ev counter.
I

ndicates the speed of rotation of the
engine (x 1000 rpm).
2.
R

ev counter zone indicating that you must
change up a gear.
3.
S

peed limiter


or
C

ruise control.
(

mph or km/h)
4.
E

lectric child lock indicator lamp.
I

ndicates, for a few seconds, the activation
of the electric child lock (deactivation of the
rear windows and doors).
Translucent digital instrument panel
This screen groups together the warning and
information messages.
Multifunction screen
Indicator lamps display zone
This zone groups together the vehicle
operation indicator lamps.
Display zero reset button
This permits resetting of the function selected
to zero (trip distance recorder or service
indicator).
Instrument panel lighting button
This adjusts the brightness of the lighting of the
instruments and controls.
5.
F

uel
gauge .
I

ndicates the quantity of fuel remaining in
the tank.
6.
S

peedometer
.
I

ndicates the current speed of the moving
vehicle (mph or km/h).
7.
T

rip distance recorder.

(

miles or km)
8. S
ervice indicator.
(
miles or km) then,
D

istance recorder.
(

miles or km)
9.
E

ngine oil level indicator. For more information, refer to the
paragraph relating to the button or
function and its associated display.
Monitoring

13
C3Picasso_en_Chap01_controle-de-marche_ed01-2015
Passenger
airbag systemfixed.The control switch, located at the
passenger's end of the dashboard, is in
the
"ON " position.
The passenger's front airbag is activated.
In this case, do not install a rear ward
facing child seat on the front passenger
seat.Turn the control switch to the " OFF" position to
deactivate the front passenger's airbag.
You can install a rear ward facing child seat on the
front passenger seat, except if there is a fault with the
airbags (airbag warning lamp on).
Warning
/indicator lampis on Cause Action / Observations
Electric child
lock temporarily.
The electric child lock is activated. Displayed for a few seconds after activating the
function and every time the ignition is switched on.
For more information, refer to the "Child safety"
section.
1
Monitoring

22
C3Picasso_en_Chap01_controle-de-marche_ed01-2015
Service indicator
5 seconds after the ignition is switched on,
the spanner goes off; the distance recorder
resumes its normal operation. The screen then
indicates the total distance.
Between 600 miles (1 000 km)
and 1 800 miles (3 000 km) remain
before the next service is due
For 5 seconds after the ignition is switched on, the
spanner symbolising the service operations comes
on. The distance recorder display line indicates the
distance remaining before the next service is due.
Example: 1 700 miles (2 800 km) remain before
the next service is due.
For 5 seconds after the ignition is switched on, the
screen indicates:
Less than 600 miles (1 000 km)
remain before the next service is due
Example: 560 miles (900 km) remain before
the next service is due.
For 5 seconds after the ignition is switched on,
the screen indicates:
5 seconds after the ignition is switched on,
the distance recorder resumes its normal
operation. The spanner remains on to
indicate that a service must be carried out
soon.
More than 1 800 miles (3 000 km)
remain before the next service is due
When the ignition is switched on, no service
information appears in the screen.
The point at which the next service is due is
calculated from the last indicator zero reset,
depending on the distance travelled and the
time elapsed since the last service. System which informs the driver when the
next service is due, in accordance with the
manufacturer's servicing schedule. For BlueHDi Diesel versions, the
degree of deterioration of the engine oil
is also taken into account (depending
on the country of sale).
Indicators
Monitoring

24
C3Picasso_en_Chap01_controle-de-marche_ed01-2015
Resetting the service indicator
After each service, the service indicator must
be reset to zero.
If you have carried out the service on your
vehicle yourself:
F
s
witch off the ignition,
F

p
ress and hold the trip distance recorder
zero reset button,
F

s
witch on the ignition; the distance recorder
display begins a countdown,
F

w
hen the display indicates "=0" , release
the button; the spanner disappears.
Retrieving the service
information
You can access the service information at any
time.
F

P
ress the trip distance recorder zero reset
button.
T

he service information is displayed for a
few seconds, then disappears. If you have to disconnect the battery
following this operation, lock the vehicle
and wait at least five minutes for the
reset to be registered.
Monitoring

25
C3Picasso_en_Chap01_controle-de-marche_ed01-2015
Engine oil level indicator*
Oil level correct
Oil level lowOil level indicator fault
In the event of a fault with the electric oil
gauge, the engine oil level is no longer
monitored.
While the system is faulty, you should
check the engine oil level using the
dipstick located under the bonnet.
Refer to the "Checking levels" section.
This is indicated by the flashing of " O I L"
, linked
with the service warning lamp, accompanied
by an audible signal and a message in the
multifunction screen.
If the low oil level is confirmed by a check using
the dipstick, the level must be topped up to
prevent damage to the engine.
Refer to the "Checking levels" section. This is signaled by the flashing of "OIL- -"
.
Contact a CITROËN dealer or a qualified
workshop.
The level shown will only be correct
if the vehicle is on level ground and
the engine has been off for more than
30


minutes.
On versions fitted with an electric oil level
gauge, information on the engine oil level is
displayed for a few seconds in the instrument
panel when the ignition is switched on, after the
service information.
* Depending on version.
1
Monitoring

26
C3Picasso_en_Chap01_controle-de-marche_ed01-2015

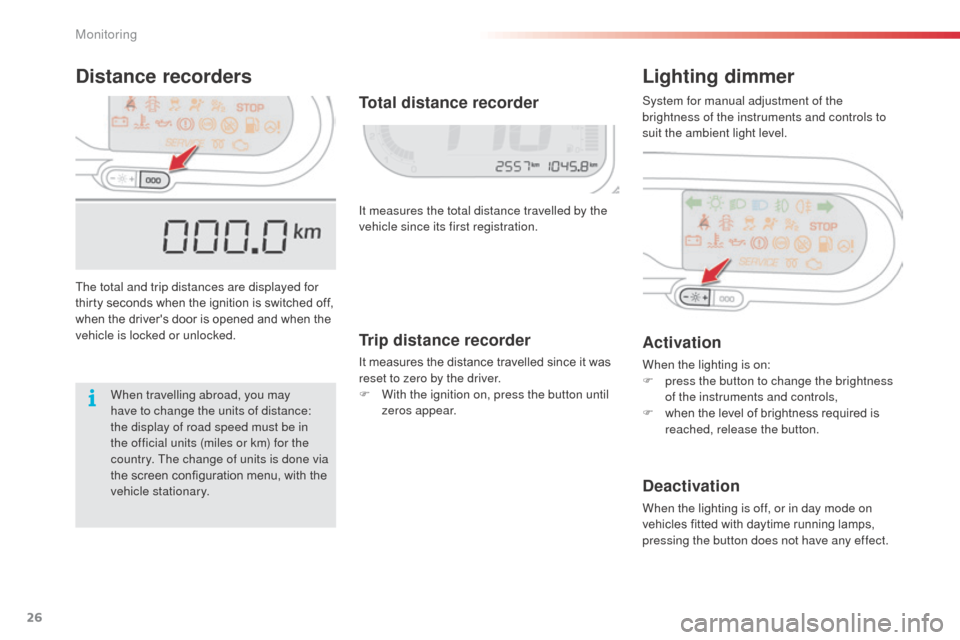

Distance recordersLighting dimmer
The total and trip distances are displayed for
thirty seconds when the ignition is switched off,
when the driver's door is opened and when the
vehicle is locked or unlocked.It measures the total distance travelled by the
vehicle since its first registration.
Activation
When the lighting is on:
F
p ress the button to change the brightness
of the instruments and controls,
F

w
hen the level of brightness required is
reached, release the button.
Deactivation
When the lighting is off, or in day mode on
vehicles fitted with daytime running lamps,
pressing the button does not have any effect.
Total distance recorder
When travelling abroad, you may
have to change the units of distance:
the display of road speed must be in
the official units (miles or km) for the
country. The change of units is done via
the screen configuration menu, with the
vehicle stationary. System for manual adjustment of the
brightness of the instruments and controls to
suit the ambient light level.
Trip distance recorder
It measures the distance travelled since it was
reset to zero by the driver.
F

W
ith the ignition on, press the button until
zeros appear.
Monitoring

27
C3Picasso_en_Chap02_ecran-multifonction_ed01-2015
This displays the following information:
- time,
-


date,
-

a
mbient temperature (this flashes if there is
a risk of ice),
-

s
tate of the openings (doors, boot, etc.),
-

t
rip computer (refer to the end of the
section).
Warning messages or information messages
may appear temporarily. These can be cleared
by pressing the "Back" button.
Monochrome screen A (without audio equipment)
Controls
Main menu
There are three display control buttons:
-
" Back" to abandon the operation in
progress,
-

"
MENU" to scroll through the menus or
sub-menus,
-

"O
K" to select the menu or sub-menu
required. F

P
ress the "MENU"
button to scroll through
the various menus of the main menu :
-
v
ehicle configuration,
-

options,
- d isplay adjust,
- language,
-


units.
F

P
ress the "OK" button to select the menu
required.
Displays in the screen
2
Multifunction screens
