2016 CITROEN C-ELYSÉE ECU

45
C-elysee_en_Chap03_confort_ed01-2016

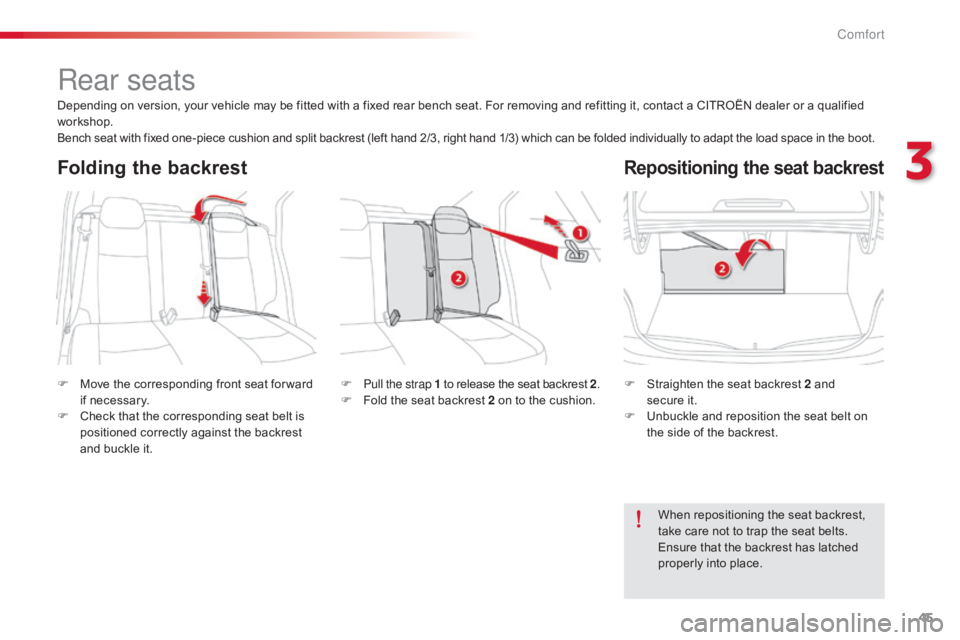

Rear seats
F Move  the   corresponding   front   seat   for ward  i
f   necessary.
F

C
heck   that   the   corresponding   seat   belt   is
p

ositioned   correctly   against   the   backrest
a

nd   buckle   it. F
 S traighten   the   seat   backrest   2   and  s
ecure   it.
F

U
nbuckle   and   reposition   the   seat   belt   on
t

he   side   of   the   backrest.
When
  repositioning   the   seat   backrest,
t

ake   care   not   to   trap   the   seat   belts.
Ensure
  that   the   backrest   has   latched
p

roperly   into   place.
F
P ull the strap 1  to   release   the   seat   backrest   2.
F  F old   the   seat   backrest   2   on   to   the   cushion.
Folding the backrest
Depending on version, your vehicle may be fitted with a fixed rear bench seat. For removing and refitting it, contact a CITROËN dealer or a qualified w
orkshop.
Bench
  seat   with   fixed   one-piece   cushion   and   split   backrest   (left   hand   2/3,   right   hand   1/3)   which   can   be   folded   individually   to   adapt   the   load   space   in   the   boot.
Repositioning the seat backrest
3
Comfort

86
C-elysee_en_Chap05_conduite_ed01-2016
F Turn  thumb   wheel   1 to the
"LIMIT"  position:
  the   speed   limiter
m

ode   is   selected   but   is   not   switched   on
(

PAUS E).
You
  do   not   have   to   switch   the   speed   limiter
o

n   in   order   to   set   the   speed.
Programming Leaving limiter mode
F Turn  thumb   wheel   1 to the "0"  position:  t
he   speed   limiter   mode   is   deselected.   The
d

isplay   returns   to   the   distance   recorder.
On
  a   steep   descent   or   in   the   event   of
s

harp   acceleration,   the   speed   limiter
w

ill not be able to prevent the vehicle
from
  exceeding   the   programmed   speed.
To
  avoid   any   risk   of   jamming   of   the
ped

als:
-

e
nsure   that   the   mat   is   secured
c

o r r e c t l y,
-

d
o   not   fit   one   mat   on   top   of   another.
In
  the   event   of   a   speed   limiter   fault,   the   speed
i

s   cleared   and   the   dashes   then   flash.
Have
  it   checked   by   a   CITROËN   dealer   or   a
q

ualified
 w
orkshop.
Operating fault
F Set  the   speed   value   by   pressing   button   2 or 3   (e.g.:   55   mph  (
90 km/h)).
You
  can   then   change   the   programmed   speed   using   buttons   2   and   3:
-

b
y   +   or   -   1   mph   (km/h)   =   short   press,
-

b
y   +   or   -   5   mph   (km/h)   =   long   press,
-

i
n   steps   of   +   or   -   5   mph   (km/h)   =   maintained   press.
Exceeding the programmed speed
Pressing the accelerator pedal to exceed the programmed speed will not   have   any   effect   unless   you   press   the   pedal   firmly past the point of
resistance .
The


speed

limiter

is

deactivated

temporarily

and

the

programmed

speed,
 w

hich   is   still   displayed,   flashes,   accompanied   by   an   audible   signal.
Returning
  to   the   programmed   speed,   by   means   of   intentional   or
u

nintentional   deceleration   of   the   vehicle,   automatically   cancels   the
f

lashing   of   the   programmed   speed   and   the   audible   signal   stops.
F

S
witch   the   speed   limiter   back   on   by   pressing   button   4
ag
ain.
F
S
witch   the   speed   limiter   on   by   pressing   button   4
.
F
S
witch   the   speed   limiter   off   by   pressing   button   4
:   the   display
c

onfirms   that   it   has   been   switched   off   (PAUSE).
Driving

88
C-elysee_en_Chap05_conduite_ed01-2016
F Turn  thumb   wheel   1 to the
"CRUISE"  position:
  the   cruise   control
m

ode   is   selected   but   is   not   switched   on
(

PAUS E).
Programming
You can then change the programmed speed using buttons 2 and 3:
-  b y   +   or   -   1   mph   (km/h)   =   short   press,
-

b
y   +   or   -   5   mph   (km/h)   =   long   press,
-

i
n   steps   of   +   or   -   5   mph   (km/h)   =   maintained   press. When
  the   cruise   control   is   switched   on,
b

e   careful   if   you   maintain   the   pressure
o

n   one   of   the   programmed   speed
c

hanging   buttons:   this   may   result   in   a
v

ery   rapid   change   in   the   speed   of   your
v

ehicle.
Do not use the cruise control on
slippery
  roads   or   in   heavy   traffic.
On
  a   steep   descent,   the   cruise   control
w

ill not be able to prevent the vehicle
from
  exceeding   the   programmed   speed.
To
  avoid   any   risk   of   jamming   of   the
ped

als:
-

e
nsure   that   the   mat   is   secured
c

o r r e c t l y,
-

n
ever   fit   one   mat   on   top   of   another.
In
  the   event   of   a   cruise   control   malfunction,
t

he   speed   is   cleared   resulting   in   flashing   of   the  d
ashes.   Have   it   checked   by   a   CITROËN   dealer  o
r   a   qualified   workshop.
Operating fault
Leaving cruise control mode
F Turn   thumb   wheel   1 to the "0"  position:   the   cruise   control   mode   is  d
eselected.   The   display   returns   to   the   distance   recorder.
Exceeding the programmed speed
Intentional or unintentional exceeding of the programmed speed results   in   flashing   of   this   speed   in   the   screen.
Return
  to   the   programmed   speed,   by   means   of   intentional   or
u

nintentional   deceleration   of   the   vehicle,   automatically   cancels   the
f

lashing   of   the   speed.F

S
et   the   programmed   speed   by
a

ccelerating   to   the   required   speed,
t

hen press button 2 or 3   (e.g.:   70   mph
(

110   km/h)).
F
S
witch   off   the   cruise   control   by   pressing   button   4
:   the   screen
c

onfirms   that   it   has   been   switched   off   (PAUSE).
F
S
witch   the   cruise   control   back   on   by   pressing   button   4
ag
ain.
Driving

100
C-elysee_en_Chap07_securite_ed01-2016

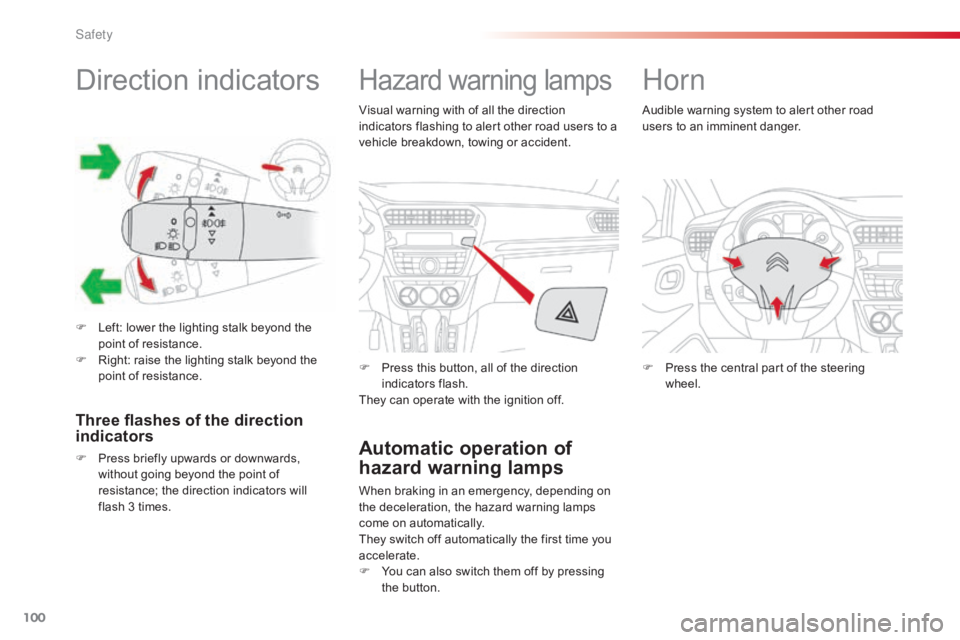

Direction indicators
F Left:  lower   the   lighting   stalk   beyond   the  p
oint   of   resistance.
F

R
ight:   raise   the   lighting   stalk   beyond   the
p

oint   of   resistance.
Three flashes of the direction
indicators
F Press  briefly   upwards   or   downwards,  w
ithout   going   beyond   the   point   of
r

esistance;   the   direction   indicators   will
f

lash   3   times.
Hazard warning lam ps
Automatic operation of
hazard warning lamps
When braking in an emergency, depending on t
he   deceleration,   the   hazard   warning   lamps
c

ome   on   automatically.
They
  switch   off   automatically   the   first   time   you
a

ccelerate.
F

Y
ou   can   also   switch   them   off   by   pressing
t

he   button.
F

P
ress   this   button,   all   of   the   direction
in

dicators
 f
lash.
They   can   operate   with   the   ignition   off.
Horn
F Press
  the   central   part   of   the   steering  w
heel.
Audible
  warning   system   to   alert   other   road
u

sers   to   an   imminent   danger.
Visual

warning

with

of

all

the

direction

i

ndicators

flashing

to

alert

other

road

users

to

a

v

ehicle

breakdown,

towing

or

accident.
Safety

101
C-elysee_en_Chap07_securite_ed01-2016

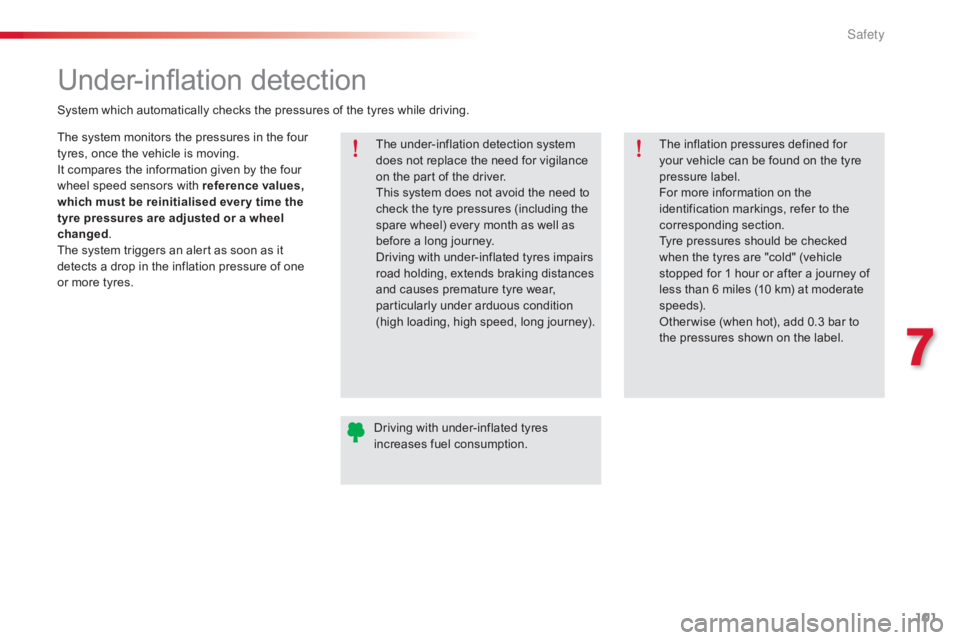

Under-inflation detection
The under-inflation detection system d
oes   not   replace   the   need   for   vigilance
o

n   the   part   of   the   driver.
This
  system   does   not   avoid   the   need   to
c

heck   the   tyre   pressures   (including   the
s

pare   wheel)   every   month   as   well   as
b

efore   a   long   journey.
Driving
  with   under-inflated   tyres   impairs
r

oad   holding,   extends   braking   distances
a

nd   causes   premature   tyre   wear,
p

articularly   under   arduous   condition
(

high   loading,   high   speed,   long   journey).The
  inflation   pressures   defined   for  y
our   vehicle   can   be   found   on   the   tyre
p

ressure   label.
For
  more   information   on   the
i

dentification   markings,   refer   to   the
c

orresponding
 s
ection.
Tyre
  pressures   should   be   checked
w

hen   the   tyres   are   "cold"   (vehicle
s

topped   for   1   hour   or   after   a   journey   of
l

ess   than   6   miles   (10   km)   at   moderate
s

peeds).
Other wise
  (when   hot),   add   0.3   bar   to
t

he   pressures   shown   on   the   label.
Driving
  with   under-inflated   tyres
i

ncreases   fuel   consumption.
System

which

automatically

checks

the

pressures

of

the

tyres   while   driving.
The

system

monitors

the

pressures

in

the

four
 t
yres,

once

the

vehicle

is

moving.
It

compares

the

information

given

by

the

four

w

heel

speed

sensors

with

reference values,
which must be reinitialised ever y time the
tyre pressures are adjusted or a wheel
changed .
The

system

triggers

an

alert

as

soon

as

it

d

etects

a

drop

in

the

inflation

pressure

of

one

o

r

more

tyres.
7
S

102
C-elysee_en_Chap07_securite_ed01-2016
Before reinitialising the system, ensure that the pressures of the four tyres are
correct
  for   the   use   of   the   vehicle   and   in
l

ine   with   the   recommendations   on   the
t

yre   pressure   label.
The
  under-inflation   alert   can   only   be
r

elied   on   if   the   reinitialisation   of   the
s

ystem   has   done   with   the   pressures   in
t

he   four   tyres   correctly   adjusted.
The
  under-inflation   detection   system
d

oes   not   give   a   warning   if   a   pressure   is
i

ncorrect   at   the   time   of   reinitialisation.
The

loss

of

pressure

detected

does

not

a

lways

cause

visible

bulging

of

the

tyre.

D

o

not

satisfy

yourself

with

just

a

visual

c

heck. The

alert

is

maintained

until

the

system

i

s
 r

einitialised.
Under-inflation alert
This is given by fixed illumination of t his   warning   lamp,   accompanied   by
a

n   audible   signal   and   the   display   of   a
m

essage.
F

R

educe   speed   immediately,   avoid
e

xcessive   steering   movements   and   sudden
b

raking
F

S

top the vehicle as soon as it is safe to
do so. F
 I f   you   have   a   compressor   (such   as   the   one
i

n   the   temporary   puncture   repair   kit),   check
t

he   pressures   of   the   four   tyres   when   cold.
I

f   it   is   not   possible   to   carry   out   this   check
s

traight   away,   drive   carefully   at   reduced
s

peed.
or
F

I
n the event of a puncture, use the
temporary
  puncture   repair   kit   or   the   spare
w

heel   (depending   on   equipment),
Reinitialisation
It is necessary to reinitialise the system every time   one   or   more   tyre   pressures   are   adjusted,
a

nd   after   changing   one   or   more   wheels.
Safety

103
C-elysee_en_Chap07_securite_ed01-2016
Reinitialisation of the system must be done with the ignition on and   the   vehicle stationary:
-  i n   the   vehicle   configuration   menu   for   vehicles   fitted   with   a   display   screen,
-

u
sing   the   button   in   the   glove   box   for   vehicles   without   display   screen.
Monochrome screen C
F Press the "7" or " 8" button to select the
" Driving assistance ",
  category,   then
c

onfirm   by   pressing   the   central   button.
F

P
ress the " 7" or " 8", button to select " Ty r e
pressures" , then "Reinitialisation ", then
confirming
  by   pressing   the   central   button.
 A

  message   confirms   the   reinitialisation.
F
P
ress the MENU
button for access to the
main

menu.
F

P

ress the " 7" or " 8" button to select the
" Personalisation-configuration ",

menu

t

hen


confirm


by


pressing


the


central


button.
F

P

ress the " 7" or " 8" button to select the
" Define vehicle parameters ",

menu,

then

c

onfirm

by

pressing

the

central

button.
7
Safety

104
C-elysee_en_Chap07_securite_ed01-2016
Vehicles without display screen
F Open  the   glove   box.
F  M ake   a   long   press   on   this   button.
Reinitialisation
  is   confirmed   by   an   low-pitched
a

udible
 s
ignal.
A
  high-pitched   audible   signal   indicates   that   the
r

einitialisation   has   not   been   done.
The
  new   pressure   settings   registered   are
c

onsidered   to   be   reference   values   by   the
s

ystem.
Operating fault
The under-inflation alert is only d ependable   if   the   system   has   been
r

einitialised   with   all   four   tyres   inflated   to
t

he   correct   pressures.
Snow chains
The system does not have to be reinitialised   after   fitting   or   removing
sn

ow
 c
hains. Before
  doing   anything   to   the   system,
t

he   pressures   of   the   four   tyres   must   be
c

hecked   and   the   system   reinitialised.
The
  flashing   and   then   fixed   illumination   of   the
u

nder-inflation
 w
arning
 lam
p
 a
ccompanied
 b

y   illumination   of   the   Service   warning   lamp
i

ndicates   a   fault   with   the   system.
In   this   case,   under-inflation   monitoring   of   the  t
yres   is   no   longer   assured.
Have   the   system   checked   by   a   CITROËN
d

ealer   or   a   qualified   workshop.
S
