2016 Citroen BERLINGO Controls

61
Berlingo-2-VU_en_Chap04_Ergonomie_ed01-2016
CRUISE CONTROL
"CRUISE"
"This is the speed at which the driver
wishes to drive".
This aid to driving in free-flowing
traffic enables the vehicle to maintain
the speed programmed by the driver,
unless a steep gradient makes this
impossible.
For the system to be programmed or
activated, the vehicle speed must be
greater than 25 mph (40 km/h) with
4th gear or higher engaged. The state of the cruise control system
can be seen in the instrument panel
together with the the programmed
speed setting.
Function selected,
display of the "Cruise
Control" symbol.
Function off
OFF
Function on
Vehicle speed above,
the programmed
speed flashes.
o

perating fault
detected,
OFF - the dashes
flash.
1.
Cruise control mode On / Of
f.
2.

Reduce cruise speed setting.
3.


Increase cruise speed setting.
4.


Pause / Resume cruise control.
Steering mounted controls
EaSE oF USE and CoMFoRT
4

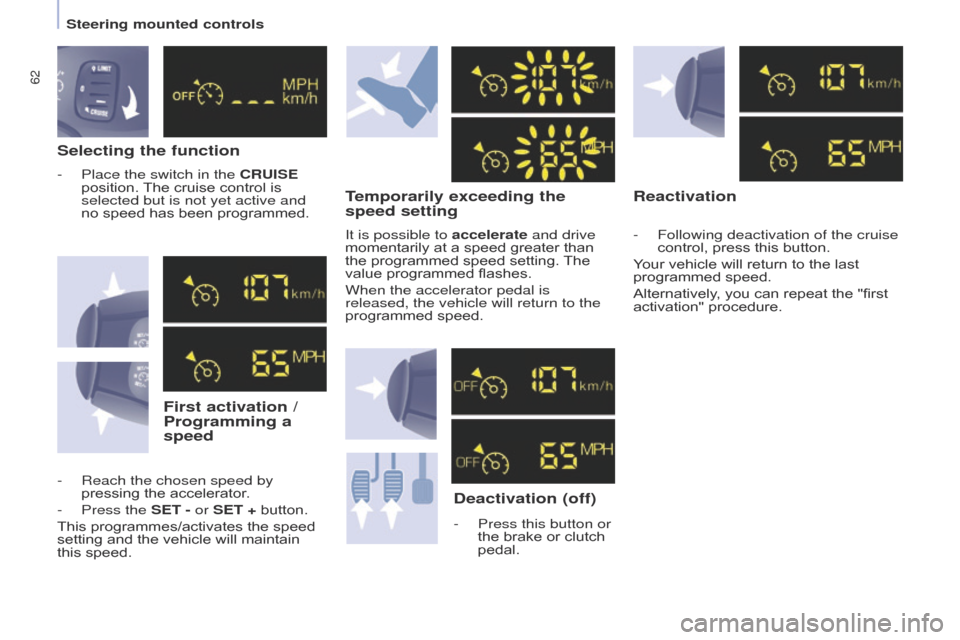

62
Berlingo-2-VU_en_Chap04_Ergonomie_ed01-2016
Selecting the functionFirst activation /
Programming a
speed Temporarily exceeding the
speed setting
Deactivation (off)
- Press this button or
the brake or clutch
pedal.
Reactivation
- Reach the chosen speed by
pressing the accelerator .
-

Press the
SET - or SET + button.
This programmes/activates the speed
setting and the vehicle will maintain
this speed. -
Place the switch in the
CRUISE
position. The cruise control is
selected but is not yet active and
no speed has been programmed.
It is possible to accelerate and drive
momentarily at a speed greater than
the programmed speed setting. The
value programmed flashes.
When the accelerator pedal is
released, the vehicle will return to the
programmed speed. -
Following deactivation of the cruise
control, press this button.
Y
our vehicle will return to the last
programmed speed.
Alternatively, you can repeat the "first
activation" procedure.
Steering mounted controls

63
Berlingo-2-VU_en_Chap04_Ergonomie_ed01-2016
Changing the
programmed speedSwitching the system off
Operating fault Cancelling the programmed
speed setting
When the vehicle becomes stationary,
after switching off the ignition, the
system no longer memorises a speed.
There are two methods of memorising
a speed higher than the previous one:
-
Place the dial in position
0 or switch
off the ignition to switch everything
off.
Good practice
Without using the accelerator
-

Press the
SET + button.
A brief press increases the speed by 1 mph (km/h).
A maintained press increases the
speed in steps of 5 mph (km/h).
Using the accelerator
-

Exceed the memorised speed until
the speed required is reached,
-


Press the
SET + or SET - button.
To memorise a speed lower than the
previous one:
-

Press the
SET - button.
A brief press decreases the speed by 1 mph (km/h).
A maintained press decreases the
speed in steps of 5 mph (km/h). The programmed speed setting is
cleared and replaced by three dashes.
Contact a CITR
o Ë n dealer or a
qualified workshop to have the system
checked. When changing the programmed
speed setting by means of a
maintained press, pay attention as
the speed can increase or decrease
rapidly.
d

o not use the cruise control on
slippery roads or in heavy traffic.
In the event of a steep slope, the cruise
control cannot prevent the vehicle from
exceeding the programmed speed
setting.
In any event, the cruise control cannot
replace the need to observe the speed
limits and the need for vigilance on the
part of the driver.
It is advisable to keep your feet near
the pedals.
To avoid any jamming under the
pedals:
-
ensure that the mat and its fixings
on the floor are positioned correctly

,
-
never place one mat on top of
another

.
Steering mounted controls
EASE OF USE and COMFORT
4

64
Berlingo-2-VU_en_Chap04_Ergonomie_ed01-2016
The speed of the vehicle responds to
the pressure of the driver's foot, up
to the the accelerator pedal's point of
resistance, which indicates that the
programmed speed has been reached.
However, pressing the pedal beyond
this point of resistance to the floor
allows the programmed speed to be
exceeded. To resume use of the limiter,
simply reduce the pressure on the
accelerator pedal gradually and return
to a speed below that programmed.
Adjustments can be carried out
when stationary, with the engine
running, or with the vehicle moving.This speed limiter shows the function
selection status in the instrument panel
and displays the programmed speed:SPEED LIMITER
"LIMIT"
Function selected,
displaying of the
"Speed Limiter"
symbol.
Function off,
last programmed
speed - OFF.
Function on.
Vehicle speed above,
the programmed
speed setting is
displayed flashing.
o

perating fault
detected,
OFF - the dashes
flash.
1.

Limiter mode On / Of

f.
2.

Reduce programmed speed
setting.
3.


Increase programmed speed
setting.
4.


Speed limiter On / Pause.
"This is the selected speed which the
driver does not wish to exceed".
This selection is made with the engine
running while stationary or with the vehicle
moving. The minimum speed which can be
programmed is 20 mph (30 km/h).
Steering mounted controls

65
Berlingo-2-VU_en_Chap04_Ergonomie_ed01-2016
Selecting the functionProgramming a speed setting On / Off
To memorise a speed higher than the
previous one:
-
Press the
SET + button.
A brief press increases the speed by 1 mph (km/h).
A maintained press increases the
speed in steps of 5 mph (km/h).
To memorise a speed lower than the
previous one.
-

Press the
SET - button.
A brief press decreases the speed by 1 mph (km/h).
A maintained press decreases the
speed in steps of 5 mph (km/h).
-

Place the switch in the

LIMIT
position. The limiter is selected
but is not yet active. The screen
indicates the last programmed
speed setting.
A speed can be programmed without
activating the limiter but with the
engine running. Pressing this button once activates
the limiter, pressing the button again
deactivates it (OFF).
Steering mounted controls
EASE OF USE and COMFORT
4

66
Berlingo-2-VU_en_Chap04_Ergonomie_ed01-2016
Switching the function offOperating fault
The programmed speed is cleared
then replaced by three dashes.
Contact a CITR
o Ë n dealer or a
qualified workshop to have the system
checked.
Flashing of the speed setting
Good practice
In any event, the speed limiter cannot
replace the need to observe speed
limits, nor can it replace the need for
vigilance on the part of the driver.
Always pay attention to the profile
of the road and sharp acceleration
and stay in complete control of your
vehicle.
To avoid any jamming under the
pedals:
-

ensure that the mat and its fixings
on the floor are positioned correctly

,
-

never place one mat on top of
another

.
Exceeding the programmed
speed
Pressing the accelerator pedal in order
to exceed the programmed speed
will have no effect unless you press
the pedal firmly beyond the point of
resistance.
The limiter is deactivated temporarily
and the programmed speed flashes
accompanied by an audible signal.
To return to the limiter function, reduce
your speed to below the programmed
speed.
The speed setting flashes:
-

following forcing of the accelerator
point of resistance,
-


when the limiter cannot prevent an
increase in the vehicle speed due
to the profile of the road or on a
steep descent,
-


in the event of sharp acceleration. -


Place the switch in position
0 or
switch off the ignition to switch the
system off.
The last programmed speed remains in
the memory.
Steering mounted controls

69
Berlingo-2-VU_en_Chap04_Ergonomie_ed01-2016Berlingo-2-VU_en_Chap04_Ergonomie_ed01-2016
Good practice
For maximum cooling or heating of the
passenger compartment, it is possible
to exceed the value 15 by turning until
LO is displayed or the value 27 by
turning until HI is displayed.
o
n entering the vehicle, the inside
temperature may be much colder (or
warmer) than is comfortable. There is
no advantage in changing the value
displayed in order to quickly reach the
level of comfort required. The system
will use its maximum performance to
reach the comfort value set.
DIGITAL AIR CONDITIONING
Automatic operation
AUTO comfort programme
This is the normal air conditioning
system operating mode. Driver or passenger side comfort
value
The value indicated in the screen
corresponds to a level of comfort and
not a temperature in degrees Celsius
or Fahrenheit.
Turn this control to the left
or to the right to decrease or
increase the value. A setting
around the value 21 provides
optimum comfort. However,
depending on your requirements, a
setting between 18 and 24 is usual.
d

o not cover the sunshine sensor
located on the dashboard.
Press this button, the AUTO
symbol is displayed.
The system controls the
distribution, the flow and the
intake of air to guarantee
comfort and a sufficient circulation
of air in the passenger compartment
according to the comfort value set. No
further action on your part is required. Air flow will increase gradually when
the engine is cold, to prevent excessive
distribution of cold air.
For your comfort, the settings are
stored when the ignition is switched off
and are reinstated the next time the
vehicle is started.
The automatic function will no longer
be maintained if you change a setting
manually (AUTO is cleared).
SEPARATE SETTINGS FOR DRIVER AND
PASSENGER
EASE OF USE and COMFORT
4
Ventilation

80
Berlingo-2-VU_en_Chap04_Ergonomie_ed01-2016Berlingo-2-VU_en_Chap04_Ergonomie_ed01-2016
Overhead storage unit
This is located above the sun visors
and can accommodate various objects
(a jumper, file, gloves...).
The openings concealed by the sun
visors allow you to see and access the
objects stored in the overhead storage
unit.
The maximum weight permitted in the
overhead storage unit is 5 Kg.
Do not place objects in this storage
unit which could present a risk to the
occupants.
Central storage console
This console offers an appreciable
additional storage area: it can be
removed and clips onto a base which
also incorporates two cup holders at
the rear.
Ensure that the object (bottle, can...)
placed in the cup holder is retained
securely and does not risk being
dislodged while driving.
a
ny liquid which could spill presents
a risk of damage on contact with the
instrument panel and centre console
controls.
Take care.
Sun visor
To prevent dazzle from ahead, fold the
sun visor down.
A pocket is provided in the driver's sun
visor for storing toll cards, tickets,
...
Storage compartments under seats
Storage compartments may be
provided in the floor under the front
seats.
Move the seat forward for easier
access to the storage compartment.
The vehicle's tools are located here.For more information on these
tools, refer to chapter 9, "Changing
a wheel" section.
Practical information
