2016 Citroen BERLINGO MULTISPACE RHD boot

17
Motoring & the Environment
Berlingo-2-VP_en_Chap02_eco-conduite_ed02-2015
Limit the causes of excess consumption
Spread loads throughout the vehicle; place the heaviest
items  in   the   bottom   of   the   boot,   as   close   as   possible   to   the
rear

  seats.
Limit
  the   loads   carried   in   the   vehicle   and   reduce   wind
resistance

  (roof   bars,   roof   rack,   bicycle   carrier,   trailer...).
Use

  a   roof   box   in   preference.
Remove
  roof   bars   and   roof   racks   after   use.
At
  the   end   of   winter,   remove   snow   tyres   and   refit   your
summer

  tyres.
Observe the recommendations on maintenance
Check the tyre pressures regularly, when cold, referring to the  label   in   the   door   aperture,   driver's   side.
Carry
  out   this   check   in   particular:
-

before
  a   long   journey,
-

at each change of season,
-


after
  a   long   period   out   of   use.
d

on't forget the spare wheel and the tyres on any trailer or
caravan.
Have your vehicle serviced regularly (engine oil, oil
filter,
  air   filter,   passenger   compartment   filter...)   and
observe

  the   schedule   of   operations   recommended   in   the
manufacturer's

  service   schedule.
With
  a   BlueHDi   Diesel   engine,   if   the   SCR   system   is
faulty

  your   vehicle   becomes   polluting;   go   to   a   CITROËN
dealer

  or   a   qualified   workshop   without   delay   to   have   the
emissions

  of   nitrous   oxides   brought   back   to   the   legal   level.
When refuelling, do not continue after the third cut-off of
the
  nozzle   to   avoid   any   overflow.
At
  the   wheel   of   your   new   vehicle,   it   is   only   after   the   first
1

  800   miles   (3   000   kilometres)   that   you   will   see   the   fuel
consumption

  settle   down   to   a   consistent   average.
2
ECO-DRIVING

76
Berlingo-2-VP_en_Chap04_Ergonomie_ed02-2015Berlingo-2-VP_en_Chap04_Ergonomie_ed02-2015
DEMISTING AND DEFROSTING
G
OOD PRACTICE
V

ents
"Leave them open"
For
  optimum   distribution   and   diffusion
of hot or cool air in the passenger
compartment,

  there   are   adjustable
central and side vents which can
be directed sideways (right or left)
or

  vertically   (up   or   down).   For   your
comfort

  while   driving,   do   not   close
them

  and   direct   the   flow   of   air   towards
the

  windows   instead.
a

ir vents in the footwells and directed
towards
  the   windscreen   complete   the
equipment.
Do

  not   block   the   vents   located   at   the
windscreen or the air extractor located
in

  the   boot.
Dust filter, odour filter
(activated carbon)
This filter traps certain dust and limits odours.
Ensure   that   this   filter   is   in   good
condition

  and   have   all   of   the   filter
elements

  replaced   regularly.
Refer
  to   the   "Checks"   section   of
chapter

  7.
Air conditioning
In all seasons, the air conditioning
should only be used with the
windows  closed.   However,   if   the
interior

  temperature   remains   high
after

  a   prolonged   period   parked   in
the

  sun,   first   ventilate   the   passenger
compartment

  for   a   few   minutes.
Use
  the
AUT
O   mode   as   much   as
possible

  as   it   permits   optimised
control

  of   all   of   the   functions:   air   flow,
passenger

  compartment   comfort
temperature,

  air   distribution,   air
intake

  mode   or   air   recirculation   in   the
passenger

  compartment.
Operate
  the   air   conditioning   system   for
5


to

10

minutes,

once

or

twice

a

month,

to

  keep   it   in   good   working   order.
If
  the   system   does   not   produce   cold   air,
do not use it and contact a CITR

o Ë n
dealer
  or   a   qualified   workshop.
Automatic mode: visibility
programme
The

comfort

programme

(AUTO)

may

not


be

sufficient

to

quickly

demist

or

defrost


the

windows

(humidity,

several

passengers,


ice).
In this case, select the visibility
programme.

The


visibility

programme

indicator


comes

on.
It activates the air conditioning, the air
flow

and

provides

optimum

distribution

of the ventilation to the windscreen and
side


windows.
It

deactivates

the

air

recirculation. It
  is   normal   that   the   condensation
created

  by   the   air   conditioning   system
results

  in   a   flow   of   water   which   may
form

  a   puddle   under   the   vehicle   when
parked.
Ventilation

 99
Berlingo-2-VP_en_Chap04_Ergonomie_ed02-2015Berlingo-2-VP_en_Chap04_Ergonomie_ed02-2015
From insideFrom outside
Rear box
This roof box can be accessed from the
  rear   seats   and   the   boot.
From
  the   rear   seats,   slide   the   flaps   to
open.
Vents
a 3-position control allows you to
adjust   the   air   flow   through   the   vents.
The
  vents   are   also   fitted   with   a   scented
air

  freshener.
From

the

boot,

place

your

thumb

on
 the recess then pull the handle to
open.
Open

carefully

to

prevent

objects

stored


in

this

interior

roof

box

from

fallin

g

out.
The

maximum

authorised

load

is

10

kg.
EASE OF USE and COMFORT
4
Practical information

105
Berlingo-2-VP_en_Chap04_Ergonomie_ed02-2015Berlingo-2-VP_en_Chap04_Ergonomie_ed02-2015
LOAD SPACE COVER (5 SEAT VERSION)
This rigid shelf conceals the objects stored  in   the   boot. Removing
Fold
  the   load   space   cover.
Detach   it   from   the   notches   A and B
pulling
  it   towards   you.
Raise
  it   and   remove   the   assembly.
Refitting
Place the load space cover in front
of A and B.
Push it forwards to insert the lugs in
the
  notches.
Unfold and clip into the notches C.
Folding
From
  the   boot,   fold   the   half-shelf,
raising

  it   to   detach   it   from   the   notch   C. Storing (according to version)
A
location   is   provided   in   the   back   of   the  rear
  seats   to   accommodate   the   load
space

  cover   folded   onto   itself.
Slide it vertically between the side
guides
  located   at   mid   seat   back   height.
Insert
  the   hinge   first,   with   the   free   flaps
turned

  upwards.
This rigid load space cover can
form
  a   shelf.   However,   as   a   safety
measure,

  do   not   place   objects
on

  it   which   could   become   dangerous
projectiles

  in   the   event   of   sharp   braking
or

  rear   impact.
EaSE oF USE and CoMFoRT
4
Practical information

108
Berlingo-2-VP_en_Chap04_Ergonomie_ed02-2015Berlingo-2-VP_en_Chap04_Ergonomie_ed02-2015
Storage flaps
Raise the corresponding flap.next to the boot sill, the recess is
intended to receive the roller tube
containing
  the   load   space   cover.
Seat belts
Ensure that the centre seat belt has
reeled in correctly to its carrier in the
roof.
Prevent
  the   row   3   seat   belt   buckles
from

  knocking   by   raising   them   as   close
as possible to the anchorages in the
roof.
The

  seat   belt   buckle   attachment   rings
on

  each   side   of   the   boot   must   not   be
used

  to   retain   loads.
Practical information

 109
Berlingo-2-VP_en_Chap04_Ergonomie_ed02-2015Berlingo-2-VP_en_Chap04_Ergonomie_ed02-2015
BLIND, LOAD SPACE COVER
Position the load space screen so as to
present  the   rear   load   space   cover   flaps
towards

  you.
Engage the left-hand lug of the roller in
the support A.
The load space cover is the roller blind
type.

T

ake

care

not

to

place

heavy

objects


on

the

load

space

cover

when

unreeled.
Compress
  then   place   the   right-hand  lug facing the support
B.
Release to engage the roller in its
support.
Unroll the load space cover to the rear
side
  pillars.
Engage the ends in the rear notches to
keep
  it   taut.
To install it
Place the row 3 seats in the fully folded
position.
Raise

the

storage

flap

at

the

boot

sill.
Take

hold

of

the

roller

in

the

centre

and

compress


it

towards

the

left-hand

pillar.
Raise

the

assembly.
EASE OF USE and COMFORT
4
Practical information

11 0
Berlingo-2-VP_en_Chap04_Ergonomie_ed02-2015Berlingo-2-VP_en_Chap04_Ergonomie_ed02-2015

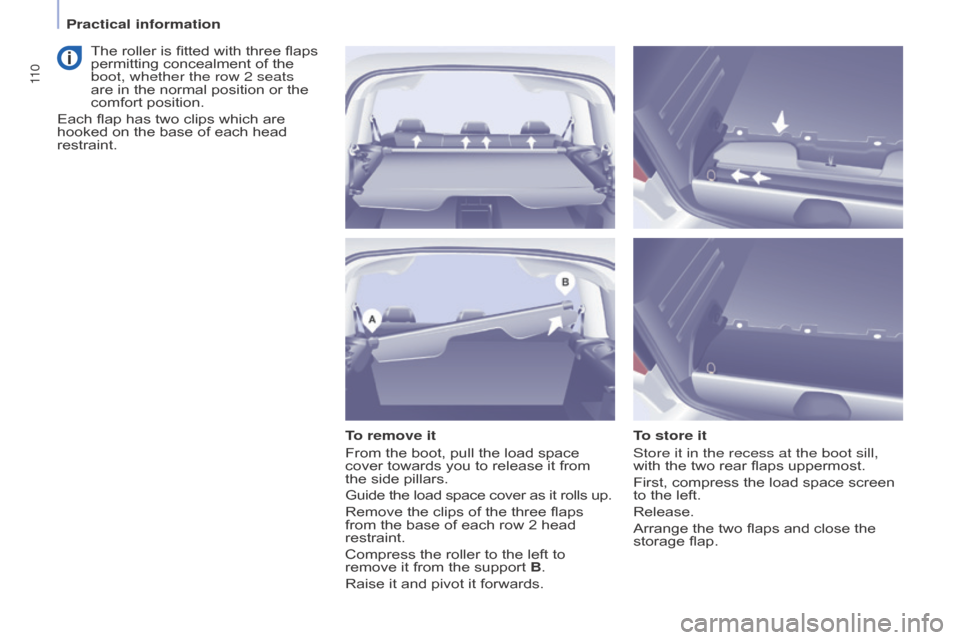

To remove it
From  the   boot,   pull   the   load   space
cover

  towards   you   to   release   it   from
the

  side   pillars.
Guide
  the   load   space   cover   as   it   rolls   up.
Remove
  the   clips   of   the   three   flaps
from

  the   base   of   each   row   2   head
restraint.
Compress

  the   roller   to   the   left   to
remove

  it   from   the   support   B.
Raise
  it   and   pivot   it   forwards. To store it
Store it in the recess at the boot sill,
with
  the   two   rear   flaps   uppermost.
First,
  compress   the   load   space   screen
to

  the   left.
Release.
Arrange
  the   two   flaps   and   close   the
storage

  flap.
The

roller

is

fitted

with

three

flaps

permitting


concealment

of

the

boot, whether the row 2 seats
are


in

the

normal

position

or

the

comfort


position.
Each

flap

has

two

clips

which

are

hooked


on

the

base

of

each

head

restraint.
Practical information
