2016 CHEVROLET TRAVERSE Index
[x] Cancel search: IndexPage 302 of 392
Chevrolet Traverse Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
9159264) - 2016 - crc - 8/17/15

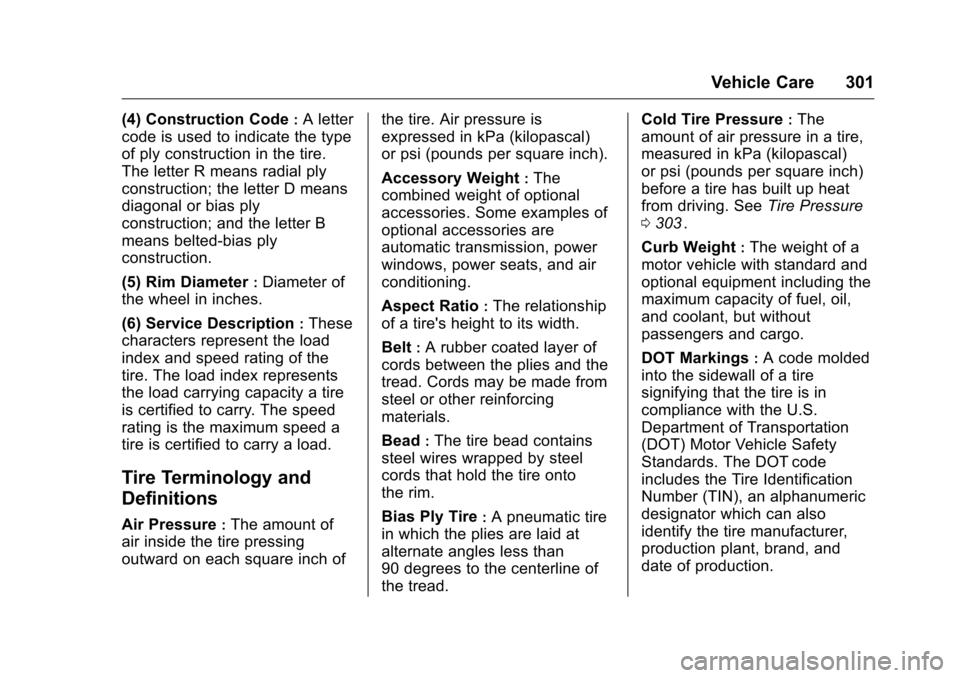

Vehicle Care 301
(4) Construction Code:A letter
code is used to indicate the type
of ply construction in the tire.
The letter R means radial ply
construction; the letter D means
diagonal or bias ply
construction; and the letter B
means belted-bias ply
construction.
(5) Rim Diameter
:Diameter of
the wheel in inches.
(6) Service Description
:These
characters represent the load
index and speed rating of the
tire. The load index represents
the load carrying capacity a tire
is certified to carry. The speed
rating is the maximum speed a
tire is certified to carry a load.
Tire Terminology and
Definitions
Air Pressure:The amount of
air inside the tire pressing
outward on each square inch of the tire. Air pressure is
expressed in kPa (kilopascal)
or psi (pounds per square inch).
Accessory Weight
:The
combined weight of optional
accessories. Some examples of
optional accessories are
automatic transmission, power
windows, power seats, and air
conditioning.
Aspect Ratio
:The relationship
of a tire's height to its width.
Belt
:A rubber coated layer of
cords between the plies and the
tread. Cords may be made from
steel or other reinforcing
materials.
Bead
:The tire bead contains
steel wires wrapped by steel
cords that hold the tire onto
the rim.
Bias Ply Tire
:A pneumatic tire
in which the plies are laid at
alternate angles less than
90 degrees to the centerline of
the tread. Cold Tire Pressure
:The
amount of air pressure in a tire,
measured in kPa (kilopascal)
or psi (pounds per square inch)
before a tire has built up heat
from driving. See Tire Pressure
0 303
ii.
Curb Weight
:The weight of a
motor vehicle with standard and
optional equipment including the
maximum capacity of fuel, oil,
and coolant, but without
passengers and cargo.
DOT Markings
:A code molded
into the sidewall of a tire
signifying that the tire is in
compliance with the U.S.
Department of Transportation
(DOT) Motor Vehicle Safety
Standards. The DOT code
includes the Tire Identification
Number (TIN), an alphanumeric
designator which can also
identify the tire manufacturer,
production plant, brand, and
date of production.
Page 303 of 392
Chevrolet Traverse Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
9159264) - 2016 - crc - 8/17/15
302 Vehicle Care
GVWR:Gross Vehicle Weight
Rating. See Vehicle Load Limits
0 222
ii.
GAWR FRT
:Gross Axle Weight
Rating for the front axle. See
Vehicle Load Limits 0222
ii.
GAWR RR
:Gross Axle Weight
Rating for the rear axle. See
Vehicle Load Limits 0222
ii.
Intended Outboard Sidewall
:
The side of an asymmetrical tire
that must always face outward
when mounted on a vehicle.
Kilopascal (kPa)
:The metric
unit for air pressure.
Light Truck (LT-Metric) Tire
:A
tire used on light duty trucks and
some multipurpose passenger
vehicles.
Load Index
:An assigned
number ranging from 1 to 279
that corresponds to the load
carrying capacity of a tire. Maximum Inflation Pressure
:
The maximum air pressure to
which a cold tire can be inflated.
The maximum air pressure is
molded onto the sidewall.
Maximum Load Rating
:The
load rating for a tire at the
maximum permissible inflation
pressure for that tire.
Maximum Loaded Vehicle
Weight
:The sum of curb
weight, accessory weight,
vehicle capacity weight, and
production options weight.
Normal Occupant Weight
:The
number of occupants a vehicle
is designed to seat multiplied by
68 kg (150 lb). See Vehicle Load
Limits 0222
ii.
Occupant Distribution
:
Designated seating positions.
Outward Facing Sidewall
:The
side of an asymmetrical tire that
has a particular side that faces
outward when mounted on a
vehicle. The side of the tire that contains a whitewall, bears
white lettering, or bears
manufacturer, brand, and/or
model name molding that is
higher or deeper than the same
moldings on the other sidewall
of the tire.
Passenger (P-Metric) Tire
:A
tire used on passenger cars and
some light duty trucks and
multipurpose vehicles.
Recommended Inflation
Pressure
:Vehicle
manufacturer's recommended
tire inflation pressure as shown
on the tire placard. See Tire
Pressure 0303
iiand Vehicle
Load Limits 0222
ii.
Radial Ply Tire
:A pneumatic
tire in which the ply cords that
extend to the beads are laid at
90 degrees to the centerline of
the tread.
Rim
:A metal support for a tire
and upon which the tire beads
are seated.
Page 379 of 392
Chevrolet Traverse Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
9159264) - 2016 - crc - 8/17/15
378 OnStar
Add-on Electrical Equipment
The OnStar system is integrated
into the electrical architecture of the
vehicle. Do not add any electrical
equipment. SeeAdd-On Electrical
Equipment 0263
ii. Added electrical
equipment may interfere with the
operation of the OnStar system and
cause it to not operate.
Vehicle Software Updates
OnStar or GM may remotely deliver
software updates or changes to the
vehicle without further notice or
consent. These updates or changes
may enhance or maintain safety,
security, or the operation of the
vehicle or the vehicle systems.
Software updates or changes may
affect or erase data or settings that
are stored in the vehicle, such as
OnStar Hands-Free Calling name
tags, saved navigation destinations,
or pre-set radio stations. Neither
OnStar nor GM is responsible for
any affected or erased data or
settings. These updates or changes
may also collect personal
information. Such collection is
described in the OnStar privacy statement or separately disclosed at
the time of installation. These
updates or changes may also cause
a system to automatically
communicate with GM servers to
collect information about vehicle
system status, identify whether
updates or changes are available,
or deliver updates or changes. An
active OnStar agreement constitutes
consent to these software updates
or changes and agreement that
either OnStar or GM may remotely
deliver them to the vehicle.
Privacy
The complete OnStar Privacy
Statement may be found at
www.onstar.com (U.S.),
or www.onstar.ca (Canada). We
recommend that you review it. If you
have any questions, call
1-888-4ONSTAR (1-888-466-7827)
or press
Qto speak with an
Advisor. Users of wireless
communications are cautioned that
the privacy of any information sent
via wireless cellular communications
cannot be assured. Third parties may unlawfully intercept or access
transmissions and private
communications without consent.
OnStar - Software
Acknowledgements
Certain OnStar components include
libcurl and unzip software and other
third party software. Below are the
notices and licenses associated with
libcurl and unzip and for other third
party software please see http://
www.lg.com/global/support/
opensource/index and https://
www.onstar.com/us/en/support/
getdocuments.html
libcurl:
COPYRIGHT AND PERMISSION
NOTICE
Copyright (c) 1996 - 2010, Daniel
Stenberg,
All rights reserved.
Permission to use, copy, modify,
and distribute this software for any
purpose with or without fee is
hereby granted, provided that the
Page 382 of 392
Chevrolet Traverse Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
9159264) - 2016 - crc - 8/19/15
Index 381
IndexA
Accessories andModifications . . . . . . . . . . . . . . . . . . 266
Accessory Power . . . . . . . . . . . . . . . 230
Add-On Electrical Equipment . . . 263
Additional Information OnStar
®. . . . . . . . . . . . . . . . . . . . . . 375
Additional Maintenance and Care . . . . . . . . . . . . . . . . . . . . . . 348
Adjustments
Lumbar, Front Seats . . . . . . . . . . . . 54
Agreements Trademarks and License . . . . . 203
Air Cleaner/Filter, Engine . . . . . . . 273
Air Filter, Passenger
Compartment . . . . . . . . . . . . . . . . . 214
Air Vents . . . . . . . . . . . . . . . . . . . . . . . 213
Airbag System Check . . . . . . . . . . . . . . . . . . . . . . . . . . 82
How Does an Airbag
Restrain? . . . . . . . . . . . . . . . . . . . . . 75
Passenger Sensing System . . . . 77
What Makes an Airbag Inflate? . . . . . . . . . . . . . . . . . . . . . . . . 75
What Will You See after an Airbag Inflates? . . . . . . . . . . . . . . . 75
When Should an Airbag Inflate? . . . . . . . . . . . . . . . . . . . . . . . . 74 Airbag System (cont'd)
Where Are the Airbags? . . . . . . . . 72
Airbags Adding Equipment to the
Vehicle . . . . . . . . . . . . . . . . . . . . . . . . 81
Passenger Status Indicator . . . 121
Readiness Light . . . . . . . . . . . . . . 121
Servicing Airbag-Equipped Vehicles . . . . . . . . . . . . . . . . . . . . . . . 81
System Check . . . . . . . . . . . . . . . . . . 71
Alarm Vehicle Security . . . . . . . . . . . . . . . . 42
Alert Side Blind Zone (SBZA) . . . . . . 249
All-Season Tires . . . . . . . . . . . . . . . . 297
All-Wheel Drive . . . . . . . . . . . . 237, 284
AM-FM Radio . . . . . . . . . . . . . . 172, 173
Antenna Multi-band . . . . . . . . . . . . . . . . . . . . 180
Antilock Brake System (ABS) . . . 237 Warning Light . . . . . . . . . . . . . . . . . 125
Appearance Care Exterior . . . . . . . . . . . . . . . . . . . . . . . 332
Interior . . . . . . . . . . . . . . . . . . . . . . . . 336
Armrest Storage . . . . . . . . . . . . . . . . 103
Assistance Program, Roadside . . . . . . . . . . . . . . . . . . . . . . 361
Page 383 of 392
Chevrolet Traverse Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
9159264) - 2016 - crc - 8/19/15
382 Index
AudioTheft-Deterrent Feature . . . . . . . 164
Audio Players CD . . . . . . . . . . . . . . . . . . . . . . 181, 183
MP3 . . . . . . . . . . . . . . . . . . . . . 185, 190
Automatic Door Locks . . . . . . . . . . . . . . . . . . . . . 38
Transmission . . . . . . . . . . . . . . . . . 233
Transmission Fluid . . . . . . . . . . . 273
Automatic Transmission Manual Mode . . . . . . . . . . . . . . . . . 235
Shift Lock Control Function
Check . . . . . . . . . . . . . . . . . . . . . . . 284
Auxiliary Devices . . . . . . . . . . . . . . . . . . . . . . . 192
B
BatteryLoad Management . . . . . . . . . . . . 162
Power Protection . . . . . . . . . . . . . 162
Voltage and ChargingMessages . . . . . . . . . . . . . . . . . . . 137
Battery - North America . . . . 283, 325
Blade Replacement, Wiper . . . . . 285
Bluetooth Overview . . . . . . . . . . . . . . . . . . . . . 195
Brake System Warning Light . . . . . . . . 124
Brakes . . . . . . . . . . . . . . . . . . . . . . . . . . 282 Brakes (cont'd)
Antilock . . . . . . . . . . . . . . . . . . . . . . . 237
Assist . . . . . . . . . . . . . . . . . . . . . . . . . 238
Fluid . . . . . . . . . . . . . . . . . . . . . . . . . . 282
Parking . . . . . . . . . . . . . . . . . . . . . . . 238
System Messages . . . . . . . . . . . . 137
Braking . . . . . . . . . . . . . . . . . . . . . . . . . 217
Break-In, New Vehicle . . . . . . . . . . 226
Bulb Replacement . . . . . . . . . . . . . . 288 Fog Lamps . . . . . . . . . . . . . . . . . . . 159
Headlamp Aiming . . . . . . . . . . . . . 287
Headlamps . . . . . . . . . . . . . . . . . . . 287
License Plate Lamps . . . . . . . . . 288
Taillamps, Turn Signal, andStoplamps . . . . . . . . . . . . . . . . . . 287
Buying New Tires . . . . . . . . . . . . . . . 310C
Calibration . . . . . . . . . . . . . . . . . . . . . . 111
California Fuel Requirements . . . . . . . . . . . 253
Perchlorate MaterialsRequirements . . . . . . . . . . . . . . . 265
California
Proposition
65 Warning . . . . . . . . . .265, 283, 325
Camera Rear Vision (RVC) . . . . . . . . . . . . 243
Canadian Vehicle Owners . . . . . . . . 2 Capacities and
Specifications . . . . . . . . . . . . . . . . . 355
Carbon Monoxide Engine Exhaust . . . . . . . . . . . . . . . 232
Liftgate . . . . . . . . . . . . . . . . . . . . . . . . . 39
Winter Driving . . . . . . . . . . . . . . . . 220
Cargo
Cover . . . . . . . . . . . . . . . . . . . . . . . . . 104
Management System . . . . . . . . . 104
Tie-Downs . . . . . . . . . . . . . . . . . . . . 104
Caution, Danger, and Warning . . . . 2
CD Player . . . . . . . . . . . . . . . . . 181, 183
Center Console Storage . . . . . . . . 103
Chains, Tire . . . . . . . . . . . . . . . . . . . . 315
Charging System Light . . . . . . . . . 122
Check
Ignition Transmission Lock . . . 285
Malfunction IndicatorEngine Light . . . . . . . . . . . . . . . . 123
Child Restraints Infants and Young Children . . . . . 84
Lower Anchors and Tethers
for Children . . . . . . . . . . . . . . . . . . . 90
Older Children . . . . . . . . . . . . . . . . . . 83
Securing . . . . . . . . . . . . . . . . . . . . 96, 98
Systems . . . . . . . . . . . . . . . . . . . . . . . . 87
Circuit Breakers . . . . . . . . . . . . . . . . 289
Page 384 of 392
Chevrolet Traverse Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
9159264) - 2016 - crc - 8/19/15
Index 383
CleaningExterior Care . . . . . . . . . . . . . . . . . 332
Interior Care . . . . . . . . . . . . . . . . . . 336
Climate Control Systems . . . . . . . 204 Air Conditioning . . . . . . . . . . . . . . 204
Dual Automatic . . . . . . . . . . . . . . . 207
Heating . . . . . . . . . . . . . . . . . . . . . . . 204
Rear . . . . . . . . . . . . . . . . . . . . . 211, 212
Clock . . . . . . . . . . . . . . . . . . . . . . 113, 114
Cluster, Instrument . . . . . . . . . . . . . 117
Collision Damage Repair . . . . . . . 364
Compact Spare Tire . . . . . . . . . . . . 323
Compartments Storage . . . . . . . . . . . . . . . . . . . . . . . 102
Compass . . . . . . . . . . . . . . . . . . . . . . . 111
Connections OnStar
®. . . . . . . . . . . . . . . . . . . . . . 373
Control Traction and ElectronicStability . . . . . . . . . . . . . . . . . . . . . 239
Control of a Vehicle . . . . . . . . . . . . . 217
Convenience Net . . . . . . . . . . . . . . . 105
Convex Mirrors . . . . . . . . . . . . . . . . . . 44
Coolant Engine . . . . . . . . . . . . . . . . . . . . . . . . 275
Engine Temperature Gauge . . .119
Engine Temperature
Warning Light . . . . . . . . . . . . . . . 127 Cooling System . . . . . . . . . . . . . . . . . 274
Engine Messages . . . . . . . . . . . . 138
Courtesy Lamps . . . . . . . . . . . . . . . . 160
Courtesy Transportation Program . . . . . . . . . . . . . . . . . . . . . . . 363
Cover Cargo . . . . . . . . . . . . . . . . . . . . . . . . . 104
Engine . . . . . . . . . . . . . . . . . . . . . . . . 269
Cruise Control . . . . . . . . . . . . . . . . . . 241 Light . . . . . . . . . . . . . . . . . . . . . . . . . . 129
Messages . . . . . . . . . . . . . . . . . . . . 137
Cupholders . . . . . . . . . . . . . . . . . . . . . 102
Customer Assistance . . . . . . . . . . . 360 Offices . . . . . . . . . . . . . . . . . . . . . . . . 359
Text Telephone (TTY)Users . . . . . . . . . . . . . . . . . . . . . . . 360
Customer Information Service PublicationsOrdering Information . . . . . . . . 366
Customer Satisfaction Procedure . . . . . . . . . . . . . . . . . . . . . 357
D
Damage Repair, Collision . . . . . . . 364
Danger, Warning, and Caution . . . . 2
Data Recorders, Event . . . . . . . . . 369
Daytime Running Lamps/
Automatic Headlamp
System . . . . . . . . . . . . . . . . . . . . . . . . 157 Defensive Driving . . . . . . . . . . . . . . . 216
Delayed Entry Lighting . . . . . . . . . 161
Delayed Exit Lighting . . . . . . . . . . . 161
Delayed Headlamps . . . . . . . . . . . . 157
Delayed Locking . . . . . . . . . . . . . . . . . 37
Devices
Auxiliary . . . . . . . . . . . . . . . . . . . . . . 192
Diagnostics OnStar
®. . . . . . . . . . . . . . . . . . . . . . 375
Distracted Driving . . . . . . . . . . . . . . . 216
Dome Lamps . . . . . . . . . . . . . . . . . . . 160
Door Ajar Messages . . . . . . . . . . . . . . . 137
Delayed Locking . . . . . . . . . . . . . . . . 37
Locks . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
Power Locks . . . . . . . . . . . . . . . . . . . . 37
Drive Belt Routing, Engine . . . . . . 356
Drive Systems All-Wheel Drive . . . . . . . . . . 237, 284
Driver Information Center (DIC) . . . . . . . . . . . . . 129, 134
Driving Characteristics andTowing Tips . . . . . . . . . . . . . . . . . 256
Defensive . . . . . . . . . . . . . . . . . . . . . 216
Drunk . . . . . . . . . . . . . . . . . . . . . . . . . 216
For Better Fuel Economy . . . . . . . 29
Hill and Mountain Roads . . . . . . 220
Page 385 of 392
Chevrolet Traverse Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
9159264) - 2016 - crc - 8/19/15
384 Index
Driving (cont'd)If the Vehicle is Stuck . . . . . . . . . 222
Loss of Control . . . . . . . . . . . . . . . 218
Off-Road Recovery . . . . . . . . . . . 218
Vehicle Load Limits . . . . . . . . . . . 222
Wet Roads . . . . . . . . . . . . . . . . . . . 219
Winter . . . . . . . . . . . . . . . . . . . . . . . . 220
Dual Automatic Climate Control System . . . . . . . . . . . . . . . . 207
E
Electrical Equipment,
Add-On . . . . . . . . . . . . . . . . . . . . . . . 263
Electrical System
Engine Compartment FuseBlock . . . . . . . . . . . . . . . . . . . . . . . . 290
Fuses and Circuit Breakers . . . 289
Instrument Panel Fuse Block . . . . . . . . . . . . . . . . . . . . . . . . 293
Overload . . . . . . . . . . . . . . . . . . . . . 289
Emergency OnStar
®. . . . . . . . . . . . . . . . . . . . . . 372
Engine Air Cleaner/Filter . . . . . . . . . . . . . 273
Check and Service Engine
Soon Light . . . . . . . . . . . . . . . . . . 123
Compartment Overview . . . . . . . 268
Coolant . . . . . . . . . . . . . . . . . . . . . . . 275 Engine (cont'd)
Coolant Temperature
Gauge . . . . . . . . . . . . . . . . . . . . . . .119
Coolant Temperature
Warning Light . . . . . . . . . . . . . . . 127
Cooling System . . . . . . . . . . . . . . . 274
Cooling System Messages . . . 138
Cover . . . . . . . . . . . . . . . . . . . . . . . . . 269
Drive Belt Routing . . . . . . . . . . . . 356
Exhaust . . . . . . . . . . . . . . . . . . . . . . 232
Heater . . . . . . . . . . . . . . . . . . . . . . . . 229
Oil Life System . . . . . . . . . . . . . . . 272
Oil Messages . . . . . . . . . . . . . . . . . 139
Oil Pressure Light . . . . . . . . . . . . 127
Overheated Protection Operating Mode . . . . . . . . . . . . . 280
Overheating . . . . . . . . . . . . . . . . . . 278
Power Messages . . . . . . . . . . . . . 139
Running While Parked . . . . . . . . 233
Starting . . . . . . . . . . . . . . . . . . . . . . . 228
Entry Lighting . . . . . . . . . . . . . . . . . . . 161
Equipment, Towing . . . . . . . . . . . . . 261
Event Data Recorders . . . . . . . . . . 369
Extender, Safety Belt . . . . . . . . . . . . 69
Exterior Lamp Controls . . . . . . . . . 156
F
Features Memory . . . . . . . . . . . . . . . . . . . . . . . . . 11
Filter, Engine Air Cleaner . . . . . . . . . . . 273
Flash-to-Pass . . . . . . . . . . . . . . . . . . . 157
Flashers, Hazard Warning . . . . . . 158
Flat Tire . . . . . . . . . . . . . . . . . . . . . . . . 315 Changing . . . . . . . . . . . . . . . . . . . . . 316
Floor Mats . . . . . . . . . . . . . . . . . . . . . . 339
Fluid
Automatic Transmission . . . . . . 273
Brakes . . . . . . . . . . . . . . . . . . . . . . . . 282
Power Steering . . . . . . . . . . . . . . . 280
Washer . . . . . . . . . . . . . . . . . . . . . . . 281
Fog Lamps Bulb Replacement . . . . . . . . . . . . 159
Folding Mirrors . . . . . . . . . . . . . . . . . . 45
Forward Collision Alert (FCA) System . . . . . . . . . . . . . . . . . 247
Frequency Statement Radio . . . . . . . . . . . . . . . . . . . . . . . . . 367
Front Seats Adjustment . . . . . . . . . . . . . . . . . . . . . 53
Heated and Cooled . . . . . . . . . . . . . 57
Fuel . . . . . . . . . . . . . . . . . . . . . . . . . . . . 252 Additives . . . . . . . . . . . . . . . . . . . . . 253
Economy Driving . . . . . . . . . . . . . . . 29
Page 386 of 392
Chevrolet Traverse Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
9159264) - 2016 - crc - 8/19/15
Index 385
Fuel (cont'd)Filling a Portable Fuel
Container . . . . . . . . . . . . . . . . . . . 255
Filling the Tank . . . . . . . . . . . . . . . 254
Foreign Countries . . . . . . . . . . . . 253
Gauge . . . . . . . . . . . . . . . . . . . . . . . . .118
Requirements, California . . . . . 253
System Messages . . . . . . . . . . . . 140
Fuses
Engine Compartment FuseBlock . . . . . . . . . . . . . . . . . . . . . . . . 290
Fuses and Circuit Breakers . . . 289
Instrument Panel Fuse Block . . . . . . . . . . . . . . . . . . . . . . . . 293
G
Garage Door Opener . . . . . . . . . . . 152
Programming . . . . . . . . . . . . . . . . . 152
Gauges
Engine CoolantTemperature . . . . . . . . . . . . . . . . .119
Fuel . . . . . . . . . . . . . . . . . . . . . . . . . . .118
Odometer . . . . . . . . . . . . . . . . . . . . . .118
Speedometer . . . . . . . . . . . . . . . . . .118
Tachometer . . . . . . . . . . . . . . . . . . . .118
Voltmeter . . . . . . . . . . . . . . . . . . . . . 120
Warning Lights and Indicators . . . . . . . . . . . . . . . . . . . .116 General Information
Service and Maintenance . . . . . 341
Towing . . . . . . . . . . . . . . . . . . . . . . . . 256
Vehicle Care . . . . . . . . . . . . . . . . . . 265
Glove Box . . . . . . . . . . . . . . . . . . . . . . 102
GM Mobility Reimbursement Program . . . . . . . . . . . . . . . . . . . . . . . 360
H
Hazard Warning Flashers . . . . . . . 158
Head Restraints . . . . . . . . . . . . . . . . . 52
Headlamps
Aiming . . . . . . . . . . . . . . . . . . . . . . . . 287
Bulb Replacement . . . . . . . . . . . . 287
Daytime Running Lamps/Automatic Headlamp
System . . . . . . . . . . . . . . . . . . . . . . 157
Delayed . . . . . . . . . . . . . . . . . . . . . . 157
Flash-to-Pass . . . . . . . . . . . . . . . . . 157
High-Beam On Light . . . . . . . . . . 128
High/Low Beam Changer . . . . . 156
Heated Steering Wheel . . . . . . . . . . . . . . . .110
Heated and Cooled Front Seats . . . . . . . . . . . . . . . . . . . . . . . . . . 57
Heated Mirrors . . . . . . . . . . . . . . . . . . . 46
Heater
Engine . . . . . . . . . . . . . . . . . . . . . . . . 229
Heating and Air Conditioning . . . 204 High Voltage Devices and
Wiring . . . . . . . . . . . . . . . . . . . . . . . . . 289
High-Beam On Light . . . . . . . . . . . . 128
Hill and Mountain Roads . . . . . . . . 220
Hill Start Assist (HSA) . . . . . . . . . . 239
Hood . . . . . . . . . . . . . . . . . . . . . . . . . . . 267
Horn . . . . . . . . . . . . . . . . . . . . . . . . . . . . 110
How to Wear Safety Belts Properly . . . . . . . . . . . . . . . . . . . . . . . . 64
I
Ignition Positions . . . . . . . . . . . . . . . 226
Ignition Transmission LockCheck . . . . . . . . . . . . . . . . . . . . . . . . . 285
Immobilizer . . . . . . . . . . . . . . . . . . . . . . 43
Indicator Vehicle Ahead . . . . . . . . . . . . . . . . 126
Infants and Young Children, Restraints . . . . . . . . . . . . . . . . . . . . . . 84
Infotainment . . . . . . . . . . . . . . . . . . . . 163
Infotainment System . . . . . . . . . . . . 370
Instrument Cluster . . . . . . . . . . . . . . 117
Instrument Panel Storage Area . . . . . . . . . . . . . . . . . 102
Interior Rearview Mirrors . . . . . . . . . 46
Introduction . . . . . . . . . . . . . . . . . . . . . . . 2
