2016 CHEVROLET SONIC CD changer

Chevrolet Sonic Owner Manual (GMNA-Localizing-U.S/Canada-9085902) -
2016 - CRC - 5/27/15
Introduction 3
{Warning
Warning indicates a hazard that
could result in injury or death.
Caution
Caution indicates a hazard that
could result in property or vehicle
damage.
A circle with a slash through it is a
safety symbol which means“Do
Not,” “Do not do this,” or“Do not let
this happen.”
Symbols
The vehicle has components and
labels that use symbols instead of
text. Symbols are shown along with the text describing the operation or
information relating to a specific
component, control, message,
gauge, or indicator.
M:
Shown when the owner
manual has additional instructions
or information.
*: Shown when the service
manual has additional instructions
or information.
0: Shown when there is more
information on another page —
“see page.”
Vehicle Symbol Chart
Here are some additional symbols
that may be found on the vehicle
and what they mean. For more
information on the symbol, refer to
the Index.
9: Airbag Readiness Light
#:Air Conditioning
!:Antilock Brake System (ABS)
%:Audio Steering Wheel Controls
or OnStar®
$: Brake System Warning Light
":Charging System
I: Cruise Control
`:Do Not Puncture
^:Do Not Service
B:Engine Coolant Temperature
O:Exterior Lamps
_: Flame/Fire Prohibited
#:Fog Lamps
.:Fuel Gauge
+: Fuses
3:Headlamp High/Low-Beam
Changer
j: LATCH System Child Restraints
*:Malfunction Indicator Lamp
::Oil Pressure
}:Power
/:Remote Vehicle Start
>: Safety Belt Reminders
7:Tire Pressure Monitor
d:Traction Control/StabiliTrak®
a:Under Pressure
M: Windshield Washer Fluid

Chevrolet Sonic Owner Manual (GMNA-Localizing-U.S/Canada-9085902) -
2016 - CRC - 5/27/15
In Brief 19
3. Touch and hold any of thepreset buttons to save the
current radio station to that
button of the selected
favorites page.
To change a preset button, tune to
the new desired radio station and
touch and hold the button.
See “Storing a Favorite Station”
under "Radio Controls with
Touchscreen" in AM-FM Radio
0 136.
Setting the Clock
See Clock 093.
Satellite Radio
SiriusXM®is a satellite radio service
based in the 48 contiguous United
States and 10 Canadian provinces. SiriusXM satellite radio has a wide
variety of programming and
commercial-free music, coast to
coast, and in digital-quality sound.
A fee is required to receive the
SiriusXM service.
Refer to:
.
www.siriusxm.com or call
1-866-635-2349 (U.S.).
. www.xmradio.ca or call
1-877-209-0079 (Canada)
See Satellite Radio 0140.
Portable Audio Devices
Some vehicles have a 3.5 mm
(1/8 in) auxiliary input and a USB
port in the storage area to the right
of the infotainment system.
A second AUX input is on the front
of the infotainment system,
if equipped. External devices such
as iPods
®, laptop computers, MP3
players, CD changers, and USB
storage devices may be connected,
depending on the audio system.
See Auxiliary Devices 0144.
Bluetooth®
The Bluetooth®system allows users
with a Bluetooth-enabled mobile
phone to make and receive
hands-free calls using the vehicle
audio system and controls.
The Bluetooth-enabled mobile
phone must be paired with the
in-vehicle Bluetooth system before it
can be used in the vehicle. Not all
phones will support all functions.
See Bluetooth (Voice Recognition)
0 153 orBluetooth (Overview) 0146
or Bluetooth (Infotainment Controls)
0 147 andHands-Free Phone
0 158.

Chevrolet Sonic Owner Manual (GMNA-Localizing-U.S/Canada-9085902) -
2016 - CRC - 5/27/15
108 Instruments and Controls
The reduced engine power light
should come on briefly as the
engine is started. If it does not come
on, have the vehicle serviced by
your dealer.
This light, along with the malfunction
indicator lamp, displays when a
noticeable reduction in the vehicle's
performance occurs.
The vehicle can be driven at a
reduced speed when the reduced
engine power light is on but
acceleration and speed might be
reduced. If this light stays on, see
your dealer as soon as possible for
diagnosis and repair.
High-Beam On Light
This light comes on when the
high-beam headlamps are in use.
SeeHeadlamp High/Low-Beam
Changer 0121.
Daytime Running Lamps
(DRL) Indicator Light
This light turns on whenever the
Daytime Running Lamps are in use.
See Daytime Running Lamps (DRL)
0 121.
Front Fog Lamp Light
For vehicles with fog lamps, this
light comes on when the fog lamps
are on.
The light goes out when the fog
lamps are turned off. See Fog
Lamps 0123 for more information.
Lamps On Reminder
This light comes on when the
exterior lamps are in use. See
Exterior Lamp Controls 0120.
Cruise Control Light
For vehicles with cruise control, the
cruise control light is white when the
cruise control is on and ready, and
turns green when the cruise control
is set and active.
The light turns off when the cruise
control is turned off. See Cruise
Control 0206.

Chevrolet Sonic Owner Manual (GMNA-Localizing-U.S/Canada-9085902) -
2016 - CRC - 5/27/15
120 Lighting
Lighting
Exterior Lighting
Exterior Lamp Controls . . . . . . . 120
Headlamp High/Low-BeamChanger . . . . . . . . . . . . . . . . . . . . 121
Flash-to-Pass . . . . . . . . . . . . . . . . 121
Daytime Running Lamps (DRL) . . . . . . . . . . . . . . . 121
Automatic Headlamp System . . . . . . . . . . . . . . . . . . . . . . 122
Hazard Warning Flashers . . . . . 122
Turn and Lane-Change Signals . . . . . . . . . . . . . . . . . . . . . . 123
Fog Lamps . . . . . . . . . . . . . . . . . . . 123
Interior Lighting
Instrument Panel Illumination Control . . . . . . . . . . . . . . . . . . . . . . 124
Courtesy Lamps . . . . . . . . . . . . . . 124
Dome Lamps . . . . . . . . . . . . . . . . . 124
Reading Lamps . . . . . . . . . . . . . . 124
Lighting Features
Entry Lighting . . . . . . . . . . . . . . . . 125
Exit Lighting . . . . . . . . . . . . . . . . . . 125
Battery Load Management . . . 125
Battery Power Protection . . . . . 126
Exterior Lighting Battery Saver . . . . . . . . . . . . . . . . . . . . . . . 126
Exterior Lighting
Exterior Lamp Controls
The exterior lamp control is on the
instrument panel to the outboard
side of the steering column.
There are four positions:
O(Off) : Briefly turn to this position
to turn the automatic light control off
or on again. AUTO (Automatic) :
Turns the
headlamps on automatically at
normal brightness, together with the
following:
. Parking Lamps
. Taillamps
. License Plate Lamps
. Instrument Panel Lights
. Sidemarker Lamps
;(Parking Lamps) : Turns on the
parking lamps including all lamps
except the headlamps.
5(Headlamps) : Turns the
headlamps on together with the
parking lamps and instrument panel
lights. A warning chime sounds if
the driver door is opened when the
ignition switch is off and the
headlamps are on.
#(Front Fog Lamps) : If equipped
with fog lamps, press to turn the
lamps on or off.
See Fog Lamps 0123.
When the lights are on,
;will be
lit. See Lamps On Reminder 0108.

Chevrolet Sonic Owner Manual (GMNA-Localizing-U.S/Canada-9085902) -
2016 - CRC - 5/27/15
Lighting 121
Headlamp High/
Low-Beam Changer
3(Headlamp High/Low-Beam
Changer) : Push the turn signal
lever away from you to turn the high
beams on.
Push the lever again or pull the
lever toward you to return to low
beams.
This indicator light turns on in the
instrument cluster when the
high-beam headlamps are on.
Flash-to-Pass
To flash the high beams, pull the
turn signal lever all the way toward
you. Then release it.
Daytime Running
Lamps (DRL)
DRL can make it easier for others to
see the front of your vehicle during
the day. Fully functional DRL are
required on all vehicles first sold in
Canada.
This indicator light turns on in the
instrument cluster when the DRL
are on.
A light sensor on top of the
instrument panel makes the DRL
work, so be sure it is not covered. The DRL system makes the
low-beam headlamps come on at a
reduced brightness when the
following conditions are met:
.
The ignition is in the ON/
RUN mode.
. The exterior lamp control is
in AUTO.
. The engine is running.
When the DRL are on, only the
low-beam headlamps, at a reduced
level of brightness, will be on. The
taillamps, sidemarker, instrument
panel, and other lamps will not
be on.
The headlamps automatically
change from DRL to the regular
headlamps depending on the
darkness of the surroundings. The
other lamps that come on with the
headlamps will also come on.
When it is bright enough outside,
the headlamps go off and the DRL
come on.

Chevrolet Sonic Owner Manual (GMNA-Localizing-U.S/Canada-9085902) -
2016 - CRC - 5/27/15
346 Index
General InformationService and Maintenance . . . . . 301
Towing . . . . . . . . . . . . . . . . . . . . . . . . 217
Vehicle Care . . . . . . . . . . . . . . . . . . 220
Glove Box . . . . . . . . . . . . . . . . . . . . . . . 86
GM Mobility Reimbursement Program . . . . . . . . . . . . . . . . . . . . . . . 322
H
Halogen Bulbs . . . . . . . . . . . . . . . . . . 243
Hands-Free Phone . . . . . . . . . . . . . 158
Hazard Warning Flashers . . . . . . . 122
Head Restraints . . . . . . . . . . . . . . . . . 43
Headlamps
Aiming . . . . . . . . . . . . . . . . . . . . . . . . 243
Automatic . . . . . . . . . . . . . . . . . . . . . 122
Bulb Replacement . . . . . . . . . . . . 243
Daytime RunningLamps (DRL) . . . . . . . . . . . . . . . . 121
Daytime Running Lamps (DRL) Indicator Light . . . . . . . . 108
Flash-to-Pass . . . . . . . . . . . . . . . . . 121
High-Beam On Light . . . . . . . . . . 108
High/Low Beam Changer . . . . . 121
Lamps On Reminder . . . . . . . . . 108
Heated Front Seats . . . . . . . . . . . . . . 47
Heated Mirrors . . . . . . . . . . . . . . . . . . . 39
Heater
Engine . . . . . . . . . . . . . . . . . . . . . . . . 193 Heating and Air Conditioning . . . 176
High-Beam On Light . . . . . . . . . . . . 108
Hill and Mountain Roads . . . . . . . . 185
Hill Start Assist (HSA) . . . . . . . . . . 203
Home Page . . . . . . . . . . . . . . . . . . . . . 131
Hood . . . . . . . . . . . . . . . . . . . . . . . . . . . 222
Horn . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 90
How to Wear Safety Belts
Properly . . . . . . . . . . . . . . . . . . . . . . . . 51
Hydraulic Clutch . . . . . . . . . . . . . . . . 230
I
Ignition Positions . . . . . . . . . . . . . . . 191
Ignition Transmission Lock Check . . . . . . . . . . . . . . . . . . . . . . . . . 241
Immobilizer . . . . . . . . . . . . . . . . . . . . . . 37 Light . . . . . . . . . . . . . . . . . . . . . . . . . . 107
Indicator Owner Manual . . . . . . . . . . . . . . . . 102
Vehicle Ahead . . . . . . . . . . . . . . . . 104
Infants and Young Children,
Restraints . . . . . . . . . . . . . . . . . . . . . . 69
Infotainment . . . . . . . . . . . . . . . . . . . . 127
Instrument Cluster . . . . . . . . . . . . . . . 96
Instrument Panel Storage Area . . . . . . . . . . . . . . . . . . . 86
Introduction . . . . . . . . . . . . . . . . . . . . . . . 2
J
Jump Starting - North America . . . . . . . . . . . . . . . . . . . . . . . 287
K
Keyless EntryRemote (RKE) System . . . . . . . . . 27
Keys . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
L
Labeling, Tire Sidewall . . . . . . . . . . 256
Lamps Courtesy . . . . . . . . . . . . . . . . . . . . . . 124
Daytime Running (DRL) . . . . . . 121
Dome . . . . . . . . . . . . . . . . . . . . . . . . . 124
Exterior Controls . . . . . . . . . . . . . . 120
Exterior Lighting BatterySaver . . . . . . . . . . . . . . . . . . . . . . . 126
Headlamps, Front Turn Signal, and Parking
Lamps . . . . . . . . . . . . . . . . . . . . . . 244
License Plate . . . . . . . . . . . . . . . . . 246
Malfunction Indicator . . . . . . . . . 100
On Reminder . . . . . . . . . . . . . . . . . 108
Reading . . . . . . . . . . . . . . . . . . . . . . 124
Lane Departure Warning (LDW) . . . . . . . . . . . . . . . . 212
Lane Departure Warning Light . . . . . . . . . . . . . . . . . . . . . . . . . . 104

Chevrolet Sonic Owner Manual (GMNA-Localizing-U.S/Canada-9085902) -
2016 - CRC - 5/27/15

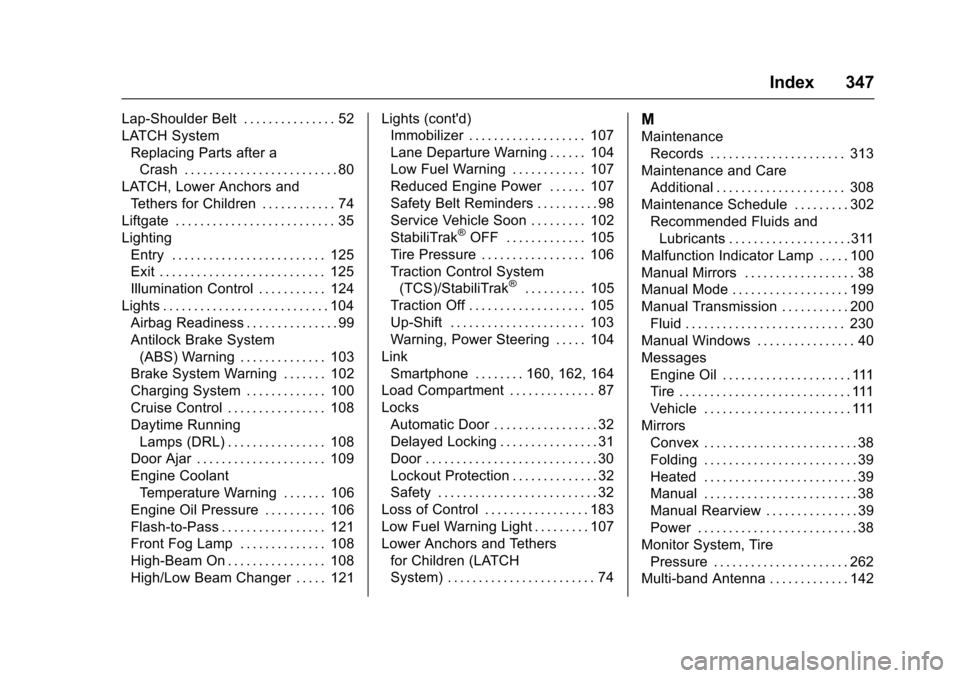

Index 347
Lap-Shoulder Belt . . . . . . . . . . . . . . . 52
LATCH SystemReplacing Parts after aCrash . . . . . . . . . . . . . . . . . . . . . . . . . 80
LATCH, Lower Anchors and Tethers for Children . . . . . . . . . . . . 74
Liftgate . . . . . . . . . . . . . . . . . . . . . . . . . . 35
Lighting
Entry . . . . . . . . . . . . . . . . . . . . . . . . . 125
Exit . . . . . . . . . . . . . . . . . . . . . . . . . . . 125
Illumination Control . . . . . . . . . . . 124
Lights . . . . . . . . . . . . . . . . . . . . . . . . . . . 104 Airbag Readiness . . . . . . . . . . . . . . . 99
Antilock Brake System(ABS) Warning . . . . . . . . . . . . . . 103
Brake System Warning . . . . . . . 102
Charging System . . . . . . . . . . . . . 100
Cruise Control . . . . . . . . . . . . . . . . 108
Daytime Running
Lamps (DRL) . . . . . . . . . . . . . . . . 108
Door Ajar . . . . . . . . . . . . . . . . . . . . . 109
Engine Coolant
Temperature Warning . . . . . . . 106
Engine Oil Pressure . . . . . . . . . . 106
Flash-to-Pass . . . . . . . . . . . . . . . . . 121
Front Fog Lamp . . . . . . . . . . . . . . 108
High-Beam On . . . . . . . . . . . . . . . . 108
High/Low Beam Changer . . . . . 121 Lights (cont'd)
Immobilizer . . . . . . . . . . . . . . . . . . . 107
Lane Departure Warning . . . . . . 104
Low Fuel Warning . . . . . . . . . . . . 107
Reduced Engine Power . . . . . . 107
Safety Belt Reminders . . . . . . . . . . 98
Service Vehicle Soon . . . . . . . . . 102
StabiliTrak
®OFF . . . . . . . . . . . . . 105
Tire Pressure . . . . . . . . . . . . . . . . . 106
Traction Control System
(TCS)/StabiliTrak
®. . . . . . . . . . 105
Traction Off . . . . . . . . . . . . . . . . . . . 105
Up-Shift . . . . . . . . . . . . . . . . . . . . . . 103
Warning, Power Steering . . . . . 104
Link Smartphone . . . . . . . . 160, 162, 164
Load Compartment . . . . . . . . . . . . . . 87
Locks Automatic Door . . . . . . . . . . . . . . . . . 32
Delayed Locking . . . . . . . . . . . . . . . . 31
Door . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
Lockout Protection . . . . . . . . . . . . . . 32
Safety . . . . . . . . . . . . . . . . . . . . . . . . . . 32
Loss of Control . . . . . . . . . . . . . . . . . 183
Low Fuel Warning Light . . . . . . . . . 107
Lower Anchors and Tethers for Children (LATCH
System) . . . . . . . . . . . . . . . . . . . . . . . . 74
M
MaintenanceRecords . . . . . . . . . . . . . . . . . . . . . . 313
Maintenance and Care Additional . . . . . . . . . . . . . . . . . . . . . 308
Maintenance Schedule . . . . . . . . . 302 Recommended Fluids andLubricants . . . . . . . . . . . . . . . . . . . .311
Malfunction Indicator Lamp . . . . . 100
Manual Mirrors . . . . . . . . . . . . . . . . . . 38
Manual Mode . . . . . . . . . . . . . . . . . . . 199
Manual Transmission . . . . . . . . . . . 200 Fluid . . . . . . . . . . . . . . . . . . . . . . . . . . 230
Manual Windows . . . . . . . . . . . . . . . . 40
Messages
Engine Oil . . . . . . . . . . . . . . . . . . . . . 111
Tire . . . . . . . . . . . . . . . . . . . . . . . . . . . . 111
Vehicle . . . . . . . . . . . . . . . . . . . . . . . . 111
Mirrors
Convex . . . . . . . . . . . . . . . . . . . . . . . . . 38
Folding . . . . . . . . . . . . . . . . . . . . . . . . . 39
Heated . . . . . . . . . . . . . . . . . . . . . . . . . 39
Manual . . . . . . . . . . . . . . . . . . . . . . . . . 38
Manual Rearview . . . . . . . . . . . . . . . 39
Power . . . . . . . . . . . . . . . . . . . . . . . . . . 38
Monitor System, Tire Pressure . . . . . . . . . . . . . . . . . . . . . . 262
Multi-band Antenna . . . . . . . . . . . . . 142
