Chevrolet Sonic Owner Manual (GMNA-Localizing-U.S/Canada-9085902) -
2016 - CRC - 5/27/15

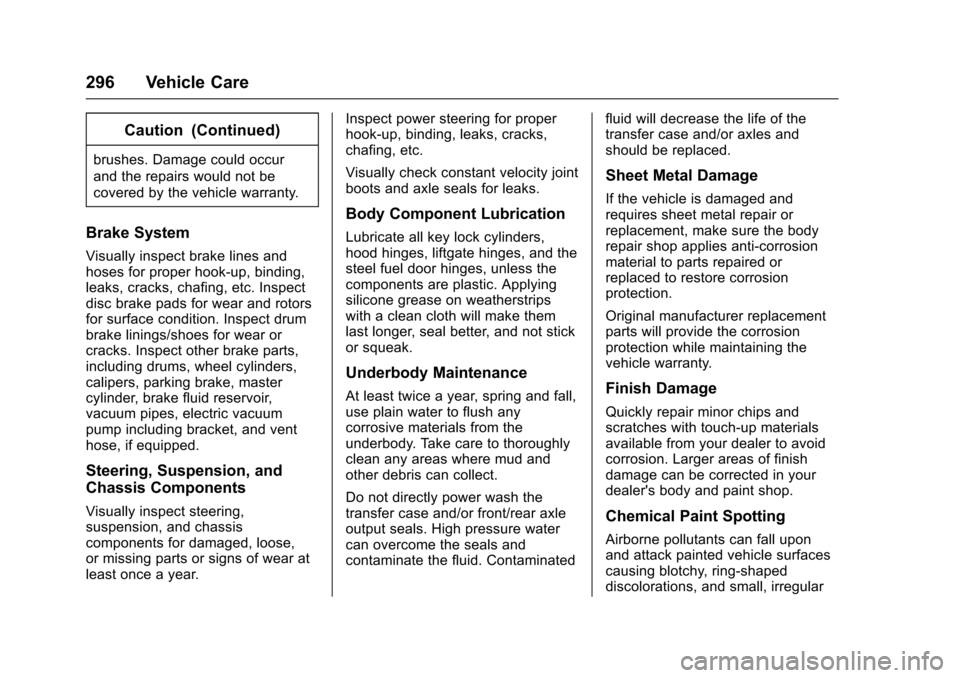

296 Vehicle Care
Caution (Continued)
brushes. Damage could occur
and the repairs would not be
covered by the vehicle warranty.
Brake System
Visually inspect brake lines and
hoses for proper hook-up, binding,
leaks, cracks, chafing, etc. Inspect
disc brake pads for wear and rotors
for surface condition. Inspect drum
brake linings/shoes for wear or
cracks. Inspect other brake parts,
including drums, wheel cylinders,
calipers, parking brake, master
cylinder, brake fluid reservoir,
vacuum pipes, electric vacuum
pump including bracket, and vent
hose, if equipped.
Steering, Suspension, and
Chassis Components
Visually inspect steering,
suspension, and chassis
components for damaged, loose,
or missing parts or signs of wear at
least once a year.Inspect power steering for proper
hook-up, binding, leaks, cracks,
chafing, etc.
Visually check constant velocity joint
boots and axle seals for leaks.
Body Component Lubrication
Lubricate all key lock cylinders,
hood hinges, liftgate hinges, and the
steel fuel door hinges, unless the
components are plastic. Applying
silicone grease on weatherstrips
with a clean cloth will make them
last longer, seal better, and not stick
or squeak.
Underbody Maintenance
At least twice a year, spring and fall,
use plain water to flush any
corrosive materials from the
underbody. Take care to thoroughly
clean any areas where mud and
other debris can collect.
Do not directly power wash the
transfer case and/or front/rear axle
output seals. High pressure water
can overcome the seals and
contaminate the fluid. Contaminated
fluid will decrease the life of the
transfer case and/or axles and
should be replaced.
Sheet Metal Damage
If the vehicle is damaged and
requires sheet metal repair or
replacement, make sure the body
repair shop applies anti-corrosion
material to parts repaired or
replaced to restore corrosion
protection.
Original manufacturer replacement
parts will provide the corrosion
protection while maintaining the
vehicle warranty.
Finish Damage
Quickly repair minor chips and
scratches with touch-up materials
available from your dealer to avoid
corrosion. Larger areas of finish
damage can be corrected in your
dealer's body and paint shop.
Chemical Paint Spotting
Airborne pollutants can fall upon
and attack painted vehicle surfaces
causing blotchy, ring-shaped
discolorations, and small, irregular

Chevrolet Sonic Owner Manual (GMNA-Localizing-U.S/Canada-9085902) -
2016 - CRC - 5/27/15

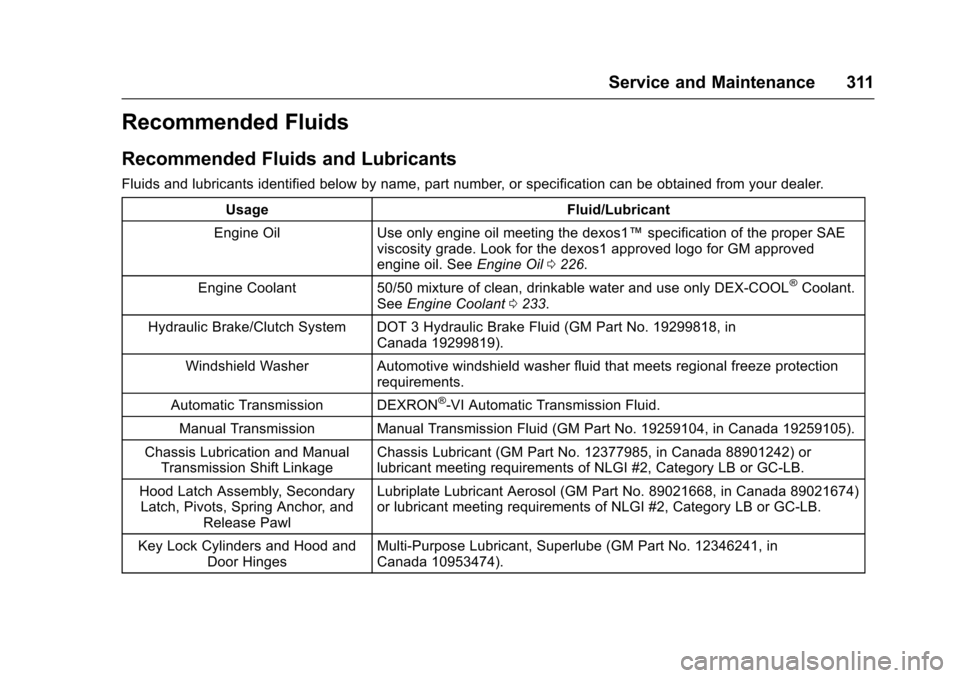

Service and Maintenance 311
Recommended Fluids
Recommended Fluids and Lubricants
Fluids and lubricants identified below by name, part number, or specification can be obtained from your dealer.Usage Fluid/Lubricant
Engine Oil Use only engine oil meeting the dexos1™ specification of the proper SAE
viscosity grade. Look for the dexos1 approved logo for GM approved
engine oil. See Engine Oil0226.
Engine Coolant 50/50 mixture of clean, drinkable water and use only DEX-COOL
®Coolant.
See Engine Coolant 0233.
Hydraulic Brake/Clutch System DOT 3 Hydraulic Brake Fluid (GM Part No. 19299818, in Canada 19299819).
Windshield Washer Automotive windshield washer fluid that meets regional freeze protection requirements.
Automatic Transmission DEXRON
®-VI Automatic Transmission Fluid.
Manual Transmission Manual Transmission Fluid (GM Part No. 19259104, in Canada 19259105).
Chassis Lubrication and Manual Transmission Shift Linkage Chassis Lubricant (GM Part No. 12377985, in Canada 88901242) or
lubricant meeting requirements of NLGI #2, Category LB or GC-LB.
Hood Latch Assembly, Secondary Latch, Pivots, Spring Anchor, and Release Pawl Lubriplate Lubricant Aerosol (GM Part No. 89021668, in Canada 89021674)
or lubricant meeting requirements of NLGI #2, Category LB or GC-LB.
Key Lock Cylinders and Hood and Door Hinges Multi-Purpose Lubricant, Superlube (GM Part No. 12346241, in
Canada 10953474).

Chevrolet Sonic Owner Manual (GMNA-Localizing-U.S/Canada-9085902) -
2016 - CRC - 5/27/15
OnStar 333
.Obtain the Wi-Fi®hotspot name
or SSID and password,
if equipped.
Press
Qto connect to an
Advisor to:
. Verify account information or
update contact information.
. Get driving directions.
. Receive a Diagnostic check of
the vehicle's key operating
systems.
. Receive Roadside Assistance.
. Manage Wi-Fi Settings,
if equipped.
Press
>to get a priority connection
to an OnStar Advisor available 24/
7 to:
. Get help for an emergency.
. Be a Good Samaritan or
respond to an AMBER Alert.
. Get assistance in severe
weather or other crisis situations
and find evacuation routes.
OnStar Services
Emergency
OnStar Emergency Services require
a specific OnStar subscription plan.
With Automatic Crash Response, in
many crashes, built-in sensors can
automatically alert a specially
trained OnStar Advisor who is
immediately connected to the
vehicle to help.
Press
>for a priority connection to
an OnStar Advisor who can contact
emergency service providers, direct
them to your exact location, and
relay important information.
With OnStar Crisis Assist, specially
trained Advisors are available
24 hours a day, 7 days a week, to
provide a central point of contact,
assistance, and information during a
crisis.
With Roadside Assistance, Advisors
can locate a nearby service provider
to help with a flat tire, a battery
jump, or an empty gas tank.
Security
If equipped, OnStar provides these
services:
. With Stolen Vehicle Assistance,
OnStar Advisors can use GPS to
pinpoint the vehicle and help
authorities quickly recover it.
. With Remote Ignition Block,
if equipped, OnStar can block
the engine from being started.
. With Stolen Vehicle Slowdown,
if equipped, OnStar can work
with law enforcement to
gradually slow the vehicle down.
Navigation
OnStar navigation requires a
specific OnStar subscription plan.
Press
Qto receive Turn-by-Turn
directions or have them sent to the
vehicle’s navigation screen,
if equipped.

Chevrolet Sonic Owner Manual (GMNA-Localizing-U.S/Canada-9085902) -
2016 - CRC - 5/27/15
336 OnStar
Retrieve My Number
1. Press=. System responds:
“OnStar ready.”
2. Say “My number.” System
responds: “Your OnStar
Hands-Free Calling number is,”
then says the number.
End a Call
Press=. System responds: “Call
ended.”
Verify Minutes and Expiration
Press=and say “Minutes” then
“Verify” to check how many minutes
remain and their expiration date.
Diagnostics
OnStar Advanced Diagnostics can
perform a check of the vehicle's key
operating systems through a
monthly diagnostics report, through
real time alerts or by pressing
Q.
OnStar can also monitor tire
pressure, if equipped with a Tire
Pressure Monitor System.
OnStar Additional
Information
In-Vehicle Audio Messages
Audio messages may play important
information at the following times:
. Prior to vehicle purchase. Press
Qto set up an account.
. With the OnStar Basic Plan,
every 60 days.
. After change in ownership and
at 90 days.
Transferring Service
PressQto request account transfer
eligibility information. The Advisor
can cancel or change account
information.
Selling/Transferring the
Vehicle
Call 1-888-4ONSTAR
(1-888-466-7827) immediately to
terminate your OnStar services if
the vehicle is disposed of, sold,
transferred, or if the lease ends.
Reactivation for Subsequent
Owners
PressQand follow the prompts to
speak to an Advisor as soon as
possible. The Advisor will update
vehicle records and explain OnStar
service options.
How OnStar Service Works
Automatic Crash Response,
Emergency Services, Crisis Assist,
Stolen Vehicle Assistance, Vehicle
Diagnostics, Remote Services,
Roadside Assistance, Turn-by-Turn
Navigation, and Hands-Free Calling
are available on most vehicles. Not
all OnStar services are available
everywhere or on all vehicles. For
more information, a full description
of OnStar services, system
limitations, and OnStar terms and
conditions:
. Call 1-888-4ONSTAR
(1-888-466-7827).
. See www.onstar.com (U.S.).
. See www.onstar.ca (Canada).
. Call TTY 1-877-248-2080.

Chevrolet Sonic Owner Manual (GMNA-Localizing-U.S/Canada-9085902) -
2016 - CRC - 5/27/15
346 Index
General InformationService and Maintenance . . . . . 301
Towing . . . . . . . . . . . . . . . . . . . . . . . . 217
Vehicle Care . . . . . . . . . . . . . . . . . . 220
Glove Box . . . . . . . . . . . . . . . . . . . . . . . 86
GM Mobility Reimbursement Program . . . . . . . . . . . . . . . . . . . . . . . 322
H
Halogen Bulbs . . . . . . . . . . . . . . . . . . 243
Hands-Free Phone . . . . . . . . . . . . . 158
Hazard Warning Flashers . . . . . . . 122
Head Restraints . . . . . . . . . . . . . . . . . 43
Headlamps
Aiming . . . . . . . . . . . . . . . . . . . . . . . . 243
Automatic . . . . . . . . . . . . . . . . . . . . . 122
Bulb Replacement . . . . . . . . . . . . 243
Daytime RunningLamps (DRL) . . . . . . . . . . . . . . . . 121
Daytime Running Lamps (DRL) Indicator Light . . . . . . . . 108
Flash-to-Pass . . . . . . . . . . . . . . . . . 121
High-Beam On Light . . . . . . . . . . 108
High/Low Beam Changer . . . . . 121
Lamps On Reminder . . . . . . . . . 108
Heated Front Seats . . . . . . . . . . . . . . 47
Heated Mirrors . . . . . . . . . . . . . . . . . . . 39
Heater
Engine . . . . . . . . . . . . . . . . . . . . . . . . 193 Heating and Air Conditioning . . . 176
High-Beam On Light . . . . . . . . . . . . 108
Hill and Mountain Roads . . . . . . . . 185
Hill Start Assist (HSA) . . . . . . . . . . 203
Home Page . . . . . . . . . . . . . . . . . . . . . 131
Hood . . . . . . . . . . . . . . . . . . . . . . . . . . . 222
Horn . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 90
How to Wear Safety Belts
Properly . . . . . . . . . . . . . . . . . . . . . . . . 51
Hydraulic Clutch . . . . . . . . . . . . . . . . 230
I
Ignition Positions . . . . . . . . . . . . . . . 191
Ignition Transmission Lock Check . . . . . . . . . . . . . . . . . . . . . . . . . 241
Immobilizer . . . . . . . . . . . . . . . . . . . . . . 37 Light . . . . . . . . . . . . . . . . . . . . . . . . . . 107
Indicator Owner Manual . . . . . . . . . . . . . . . . 102
Vehicle Ahead . . . . . . . . . . . . . . . . 104
Infants and Young Children,
Restraints . . . . . . . . . . . . . . . . . . . . . . 69
Infotainment . . . . . . . . . . . . . . . . . . . . 127
Instrument Cluster . . . . . . . . . . . . . . . 96
Instrument Panel Storage Area . . . . . . . . . . . . . . . . . . . 86
Introduction . . . . . . . . . . . . . . . . . . . . . . . 2
J
Jump Starting - North America . . . . . . . . . . . . . . . . . . . . . . . 287
K
Keyless EntryRemote (RKE) System . . . . . . . . . 27
Keys . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
L
Labeling, Tire Sidewall . . . . . . . . . . 256
Lamps Courtesy . . . . . . . . . . . . . . . . . . . . . . 124
Daytime Running (DRL) . . . . . . 121
Dome . . . . . . . . . . . . . . . . . . . . . . . . . 124
Exterior Controls . . . . . . . . . . . . . . 120
Exterior Lighting BatterySaver . . . . . . . . . . . . . . . . . . . . . . . 126
Headlamps, Front Turn Signal, and Parking
Lamps . . . . . . . . . . . . . . . . . . . . . . 244
License Plate . . . . . . . . . . . . . . . . . 246
Malfunction Indicator . . . . . . . . . 100
On Reminder . . . . . . . . . . . . . . . . . 108
Reading . . . . . . . . . . . . . . . . . . . . . . 124
Lane Departure Warning (LDW) . . . . . . . . . . . . . . . . 212
Lane Departure Warning Light . . . . . . . . . . . . . . . . . . . . . . . . . . 104

Chevrolet Sonic Owner Manual (GMNA-Localizing-U.S/Canada-9085902) -
2016 - CRC - 5/27/15
Index 349
Rear Seats . . . . . . . . . . . . . . . . . . . . . . 48
Rear Vision Camera (RVC) . . . . . 208
Rear Window Washer/Wiper . . . . . 92
Rearview Mirrors . . . . . . . . . . . . . . . . 39
Reclining Seatbacks . . . . . . . . . . . . . 46
Recommended Fluids andLubricants . . . . . . . . . . . . . . . . . . . . . 311
Records Maintenance . . . . . . . . . . . . . . . . . . 313
Recreational Vehicle Towing . . . . 290
Reduced Engine Power Light . . . 107
Reimbursement Program, GM Mobility . . . . . . . . . . . . . . . . . . . 322
Remote Keyless Entry (RKE) System . . . . . . . . . . . . . . . . . . . . . . . . . 27
Remote Vehicle Start . . . . . . . . . . . . 29
Replacement Bulbs . . . . . . . . . . . . . 247
Replacement Parts
Airbags . . . . . . . . . . . . . . . . . . . . . . . . . 67
Maintenance . . . . . . . . . . . . . . . . . . 312
Replacing Airbag System . . . . . . . . 67
Replacing LATCH System
Parts after a Crash . . . . . . . . . . . . . 80
Replacing Safety Belt System Parts after a Crash . . . . . . . . . . . . . 55
Reporting Safety Defects Canadian Government . . . . . . . . 329
General Motors . . . . . . . . . . . . . . . 329 Reporting Safety Defects (cont'd)
U.S. Government . . . . . . . . . . . . . 329
Restraints Where to Put . . . . . . . . . . . . . . . . . . . 73
Retained Accessory Power (RAP) . . . . . . . . . . . . . . . . . . 194
Roads Driving, Wet . . . . . . . . . . . . . . . . . . 184
Roadside Assistance
Program . . . . . . . . . . . . . . . . . . . . . . . 322
Roof Sunroof . . . . . . . . . . . . . . . . . . . . . . . . . 42
Rotation, Tires . . . . . . . . . . . . . . . . . . 266
Routing, Engine Drive Belt . . . . . . 317
Running the Vehicle While Parked . . . . . . . . . . . . . . . . . . . . . . . . 197
S
Safety Belts . . . . . . . . . . . . . . . . . . . . . 50Care . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55
Extender . . . . . . . . . . . . . . . . . . . . . . . . 55
How to Wear Safety BeltsProperly . . . . . . . . . . . . . . . . . . . . . . . 51
Lap-Shoulder Belt . . . . . . . . . . . . . . 52
Reminders . . . . . . . . . . . . . . . . . . . . . . 98
Replacing after a Crash . . . . . . . . 55
Use During Pregnancy . . . . . . . . . . 54
Safety Defects Reporting
Canadian Government . . . . . . . . 329 Safety Defects Reporting (cont'd)
General Motors . . . . . . . . . . . . . . . 329
U.S. Government . . . . . . . . . . . . . 329
Safety Locks . . . . . . . . . . . . . . . . . . . . . 32
Safety System Check . . . . . . . . . . . . 55
Satellite Radio . . . . . . . . . . . . . . . . . . 140
Satellite Radio Antenna . . . . . . . . . 142
Scheduling Appointments . . . . . . . 324
Sealant Kit, Tire . . . . . . . . . . . . . . . . 275
Seats
Adjustment, Front . . . . . . . . . . . . . . . 45
Head Restraints . . . . . . . . . . . . . . . . 43
Heated Front . . . . . . . . . . . . . . . . . . . 47
Rear . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48
Reclining Seatbacks . . . . . . . . . . . . 46
Securing Child Restraints . . . . 80, 82
Security OnStar®. . . . . . . . . . . . . . . . . . . . . . 333
Vehicle . . . . . . . . . . . . . . . . . . . . . . . . . 36
Vehicle Alarm . . . . . . . . . . . . . . . . . . . 36
Service Accessories andModifications . . . . . . . . . . . . . . . . 220
Climate Control System . . . . . . . 176
Doing Your Own Work . . . . . . . . 221
Engine Soon Light . . . . . . . . . . . . 100
Maintenance Records . . . . . . . . 313
