2016 CHEVROLET SONIC clock

Chevrolet Sonic Owner Manual (GMNA-Localizing-U.S/Canada-9085902) -
2016 - CRC - 5/27/15

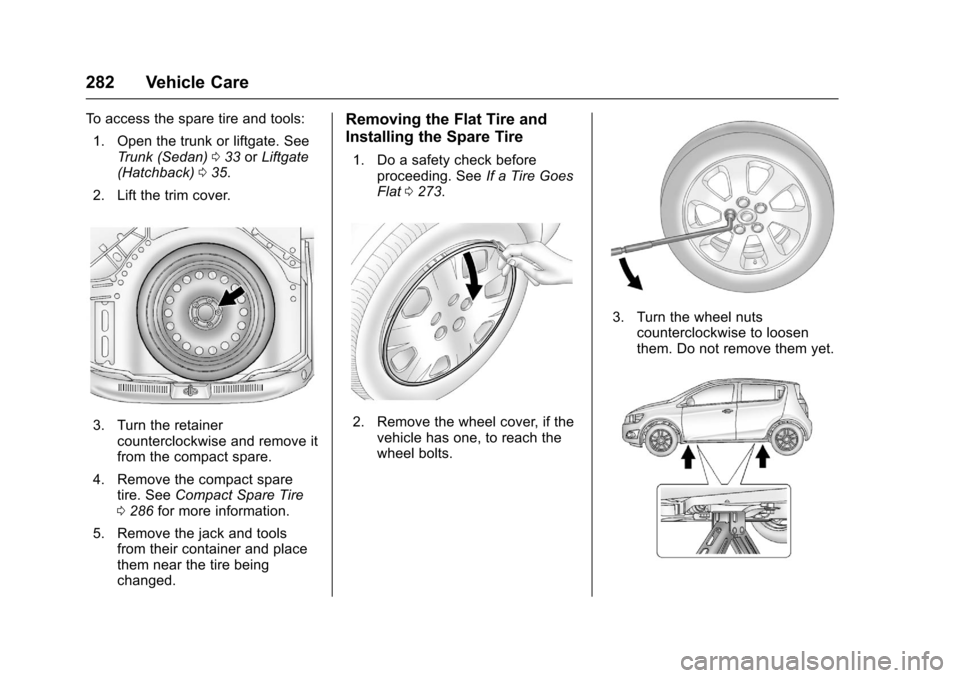

282 Vehicle Care
To access the spare tire and tools:1. Open the trunk or liftgate. See Trunk (Sedan) 033 orLiftgate
(Hatchback) 035.
2. Lift the trim cover.
3. Turn the retainer counterclockwise and remove it
from the compact spare.
4. Remove the compact spare tire. See Compact Spare Tire
0 286 for more information.
5. Remove the jack and tools from their container and place
them near the tire being
changed.
Removing the Flat Tire and
Installing the Spare Tire
1. Do a safety check beforeproceeding. See If a Tire Goes
Flat 0273.
2. Remove the wheel cover, if the
vehicle has one, to reach the
wheel bolts.
3. Turn the wheel nutscounterclockwise to loosen
them. Do not remove them yet.

Chevrolet Sonic Owner Manual (GMNA-Localizing-U.S/Canada-9085902) -
2016 - CRC - 5/27/15

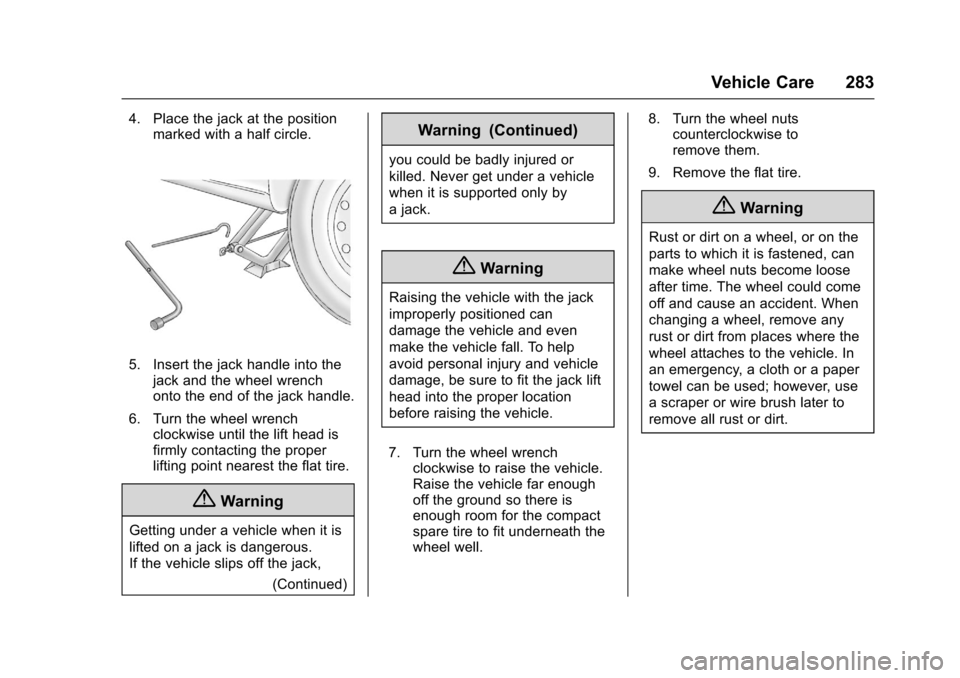

Vehicle Care 283
4. Place the jack at the positionmarked with a half circle.
5. Insert the jack handle into thejack and the wheel wrench
onto the end of the jack handle.
6. Turn the wheel wrench clockwise until the lift head is
firmly contacting the proper
lifting point nearest the flat tire.
{Warning
Getting under a vehicle when it is
lifted on a jack is dangerous.
If the vehicle slips off the jack,
(Continued)
Warning (Continued)
you could be badly injured or
killed. Never get under a vehicle
when it is supported only by
a jack.
{Warning
Raising the vehicle with the jack
improperly positioned can
damage the vehicle and even
make the vehicle fall. To help
avoid personal injury and vehicle
damage, be sure to fit the jack lift
head into the proper location
before raising the vehicle.
7. Turn the wheel wrench clockwise to raise the vehicle.
Raise the vehicle far enough
off the ground so there is
enough room for the compact
spare tire to fit underneath the
wheel well. 8. Turn the wheel nuts
counterclockwise to
remove them.
9. Remove the flat tire.
{Warning
Rust or dirt on a wheel, or on the
parts to which it is fastened, can
make wheel nuts become loose
after time. The wheel could come
off and cause an accident. When
changing a wheel, remove any
rust or dirt from places where the
wheel attaches to the vehicle. In
an emergency, a cloth or a paper
towel can be used; however, use
a scraper or wire brush later to
remove all rust or dirt.

Chevrolet Sonic Owner Manual (GMNA-Localizing-U.S/Canada-9085902) -
2016 - CRC - 5/27/15

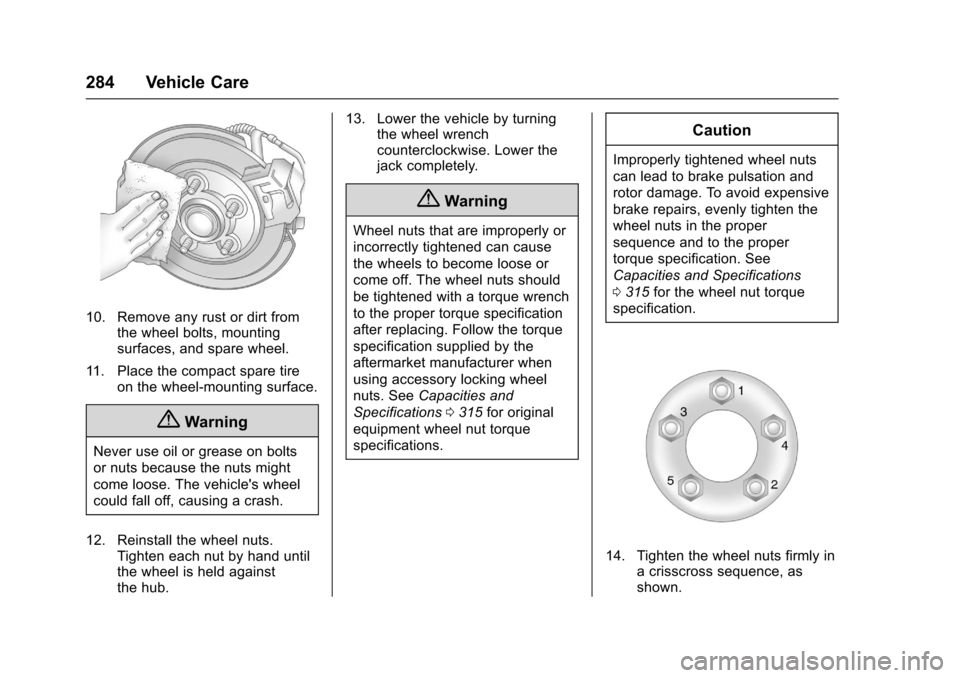

284 Vehicle Care
10. Remove any rust or dirt fromthe wheel bolts, mounting
surfaces, and spare wheel.
11. Place the compact spare tire on the wheel-mounting surface.
{Warning
Never use oil or grease on bolts
or nuts because the nuts might
come loose. The vehicle's wheel
could fall off, causing a crash.
12. Reinstall the wheel nuts. Tighten each nut by hand until
the wheel is held against
the hub. 13. Lower the vehicle by turning
the wheel wrench
counterclockwise. Lower the
jack completely.
{Warning
Wheel nuts that are improperly or
incorrectly tightened can cause
the wheels to become loose or
come off. The wheel nuts should
be tightened with a torque wrench
to the proper torque specification
after replacing. Follow the torque
specification supplied by the
aftermarket manufacturer when
using accessory locking wheel
nuts. See Capacities and
Specifications 0315 for original
equipment wheel nut torque
specifications.
Caution
Improperly tightened wheel nuts
can lead to brake pulsation and
rotor damage. To avoid expensive
brake repairs, evenly tighten the
wheel nuts in the proper
sequence and to the proper
torque specification. See
Capacities and Specifications
0 315 for the wheel nut torque
specification.
14. Tighten the wheel nuts firmly in a crisscross sequence, as
shown.

Chevrolet Sonic Owner Manual (GMNA-Localizing-U.S/Canada-9085902) -
2016 - CRC - 5/27/15

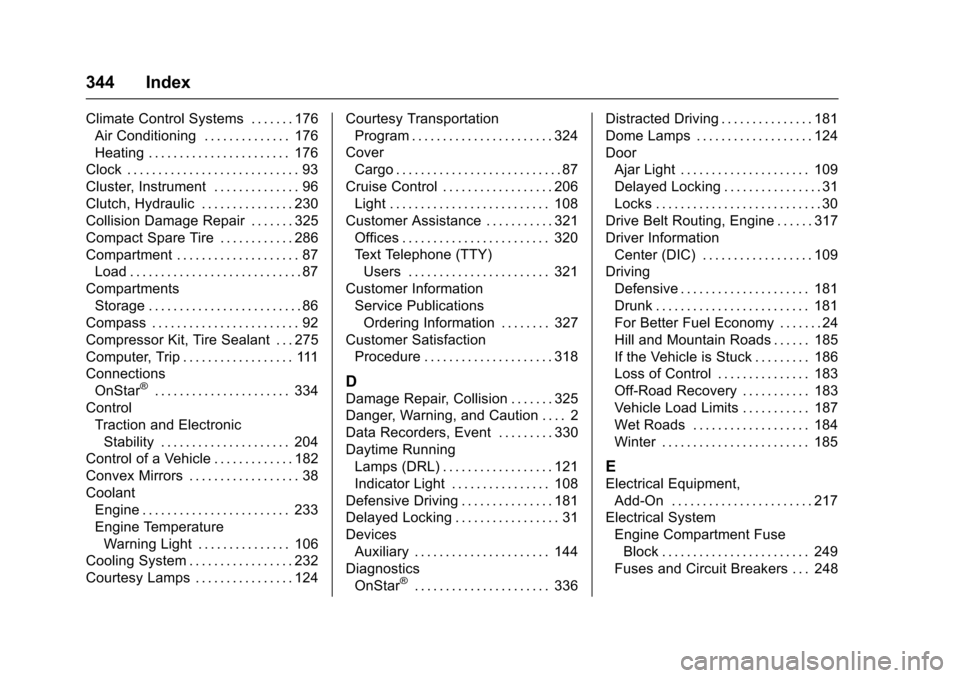

344 Index
Climate Control Systems . . . . . . . 176Air Conditioning . . . . . . . . . . . . . . 176
Heating . . . . . . . . . . . . . . . . . . . . . . . 176
Clock . . . . . . . . . . . . . . . . . . . . . . . . . . . . 93
Cluster, Instrument . . . . . . . . . . . . . . 96
Clutch, Hydraulic . . . . . . . . . . . . . . . 230
Collision Damage Repair . . . . . . . 325
Compact Spare Tire . . . . . . . . . . . . 286
Compartment . . . . . . . . . . . . . . . . . . . . 87 Load . . . . . . . . . . . . . . . . . . . . . . . . . . . . 87
Compartments
Storage . . . . . . . . . . . . . . . . . . . . . . . . . 86
Compass . . . . . . . . . . . . . . . . . . . . . . . . 92
Compressor Kit, Tire Sealant . . . 275
Computer, Trip . . . . . . . . . . . . . . . . . . 111
Connections OnStar
®. . . . . . . . . . . . . . . . . . . . . . 334
Control Traction and ElectronicStability . . . . . . . . . . . . . . . . . . . . . 204
Control of a Vehicle . . . . . . . . . . . . . 182
Convex Mirrors . . . . . . . . . . . . . . . . . . 38
Coolant
Engine . . . . . . . . . . . . . . . . . . . . . . . . 233
Engine TemperatureWarning Light . . . . . . . . . . . . . . . 106
Cooling System . . . . . . . . . . . . . . . . . 232
Courtesy Lamps . . . . . . . . . . . . . . . . 124 Courtesy Transportation
Program . . . . . . . . . . . . . . . . . . . . . . . 324
Cover Cargo . . . . . . . . . . . . . . . . . . . . . . . . . . . 87
Cruise Control . . . . . . . . . . . . . . . . . . 206 Light . . . . . . . . . . . . . . . . . . . . . . . . . . 108
Customer Assistance . . . . . . . . . . . 321
Offices . . . . . . . . . . . . . . . . . . . . . . . . 320
Text Telephone (TTY)Users . . . . . . . . . . . . . . . . . . . . . . . 321
Customer Information
Service PublicationsOrdering Information . . . . . . . . 327
Customer Satisfaction Procedure . . . . . . . . . . . . . . . . . . . . . 318D
Damage Repair, Collision . . . . . . . 325
Danger, Warning, and Caution . . . . 2
Data Recorders, Event . . . . . . . . . 330
Daytime RunningLamps (DRL) . . . . . . . . . . . . . . . . . . 121
Indicator Light . . . . . . . . . . . . . . . . 108
Defensive Driving . . . . . . . . . . . . . . . 181
Delayed Locking . . . . . . . . . . . . . . . . . 31
Devices Auxiliary . . . . . . . . . . . . . . . . . . . . . . 144
Diagnostics OnStar
®. . . . . . . . . . . . . . . . . . . . . . 336 Distracted Driving . . . . . . . . . . . . . . . 181
Dome Lamps . . . . . . . . . . . . . . . . . . . 124
Door
Ajar Light . . . . . . . . . . . . . . . . . . . . . 109
Delayed Locking . . . . . . . . . . . . . . . . 31
Locks . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
Drive Belt Routing, Engine . . . . . . 317
Driver Information
Center (DIC) . . . . . . . . . . . . . . . . . . 109
Driving Defensive . . . . . . . . . . . . . . . . . . . . . 181
Drunk . . . . . . . . . . . . . . . . . . . . . . . . . 181
For Better Fuel Economy . . . . . . . 24
Hill and Mountain Roads . . . . . . 185
If the Vehicle is Stuck . . . . . . . . . 186
Loss of Control . . . . . . . . . . . . . . . 183
Off-Road Recovery . . . . . . . . . . . 183
Vehicle Load Limits . . . . . . . . . . . 187
Wet Roads . . . . . . . . . . . . . . . . . . . 184
Winter . . . . . . . . . . . . . . . . . . . . . . . . 185
E
Electrical Equipment,
Add-On . . . . . . . . . . . . . . . . . . . . . . . 217
Electrical System Engine Compartment Fuse
Block . . . . . . . . . . . . . . . . . . . . . . . . 249
Fuses and Circuit Breakers . . . 248
