2016 CHEVROLET MALIBU LIMITED roof rack

Chevrolet Malibu Limited Owner Manual (GMNA-Localizing-U.S/Canada-
9086425) - 2016 - crc - 7/31/15

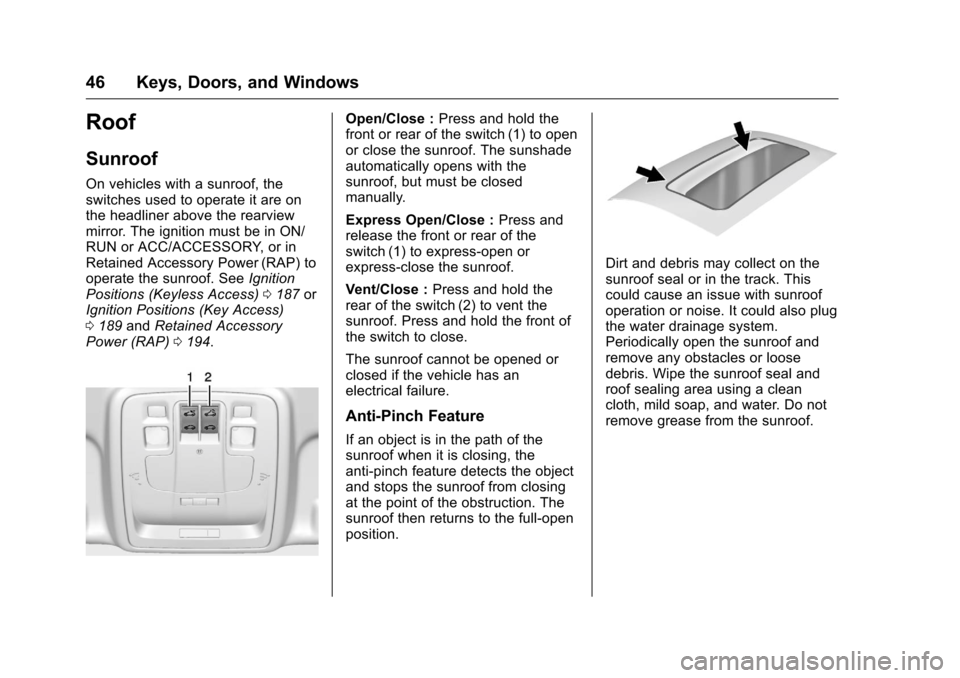

46 Keys, Doors, and Windows
Roof
Sunroof
On vehicles with a sunroof, the
switches used to operate it are on
the headliner above the rearview
mirror. The ignition must be in ON/
RUN or ACC/ACCESSORY, or in
Retained Accessory Power (RAP) to
operate the sunroof. SeeIgnition
Positions (Keyless Access) 0187 or
Ignition Positions (Key Access)
0 189 andRetained Accessory
Power (RAP) 0194.
Open/Close : Press and hold the
front or rear of the switch (1) to open
or close the sunroof. The sunshade
automatically opens with the
sunroof, but must be closed
manually.
Express Open/Close : Press and
release the front or rear of the
switch (1) to express-open or
express-close the sunroof.
Vent/Close : Press and hold the
rear of the switch (2) to vent the
sunroof. Press and hold the front of
the switch to close.
The sunroof cannot be opened or
closed if the vehicle has an
electrical failure.
Anti-Pinch Feature
If an object is in the path of the
sunroof when it is closing, the
anti-pinch feature detects the object
and stops the sunroof from closing
at the point of the obstruction. The
sunroof then returns to the full-open
position.
Dirt and debris may collect on the
sunroof seal or in the track. This
could cause an issue with sunroof
operation or noise. It could also plug
the water drainage system.
Periodically open the sunroof and
remove any obstacles or loose
debris. Wipe the sunroof seal and
roof sealing area using a clean
cloth, mild soap, and water. Do not
remove grease from the sunroof.

Chevrolet Malibu Limited Owner Manual (GMNA-Localizing-U.S/Canada-
9086425) - 2016 - crc - 7/30/15

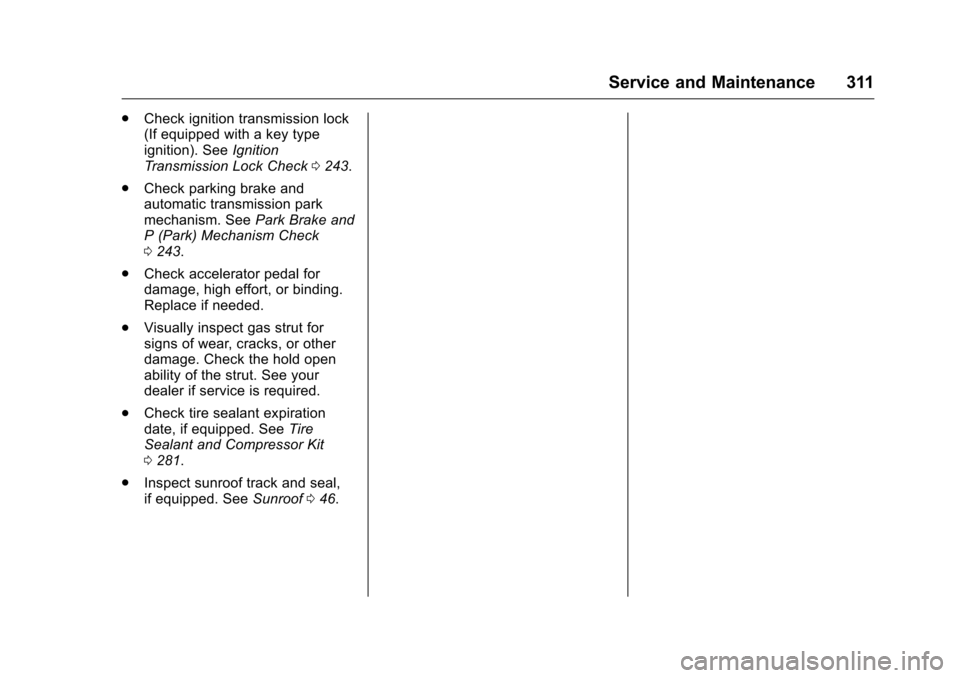

Service and Maintenance 311
.Check ignition transmission lock
(If equipped with a key type
ignition). See Ignition
Transmission Lock Check 0243.
. Check parking brake and
automatic transmission park
mechanism. See Park Brake and
P (Park) Mechanism Check
0 243.
. Check accelerator pedal for
damage, high effort, or binding.
Replace if needed.
. Visually inspect gas strut for
signs of wear, cracks, or other
damage. Check the hold open
ability of the strut. See your
dealer if service is required.
. Check tire sealant expiration
date, if equipped. See Tire
Sealant and Compressor Kit
0 281.
. Inspect sunroof track and seal,
if equipped. See Sunroof046.

Chevrolet Malibu Limited Owner Manual (GMNA-Localizing-U.S/Canada-
9086425) - 2016 - crc - 7/30/15

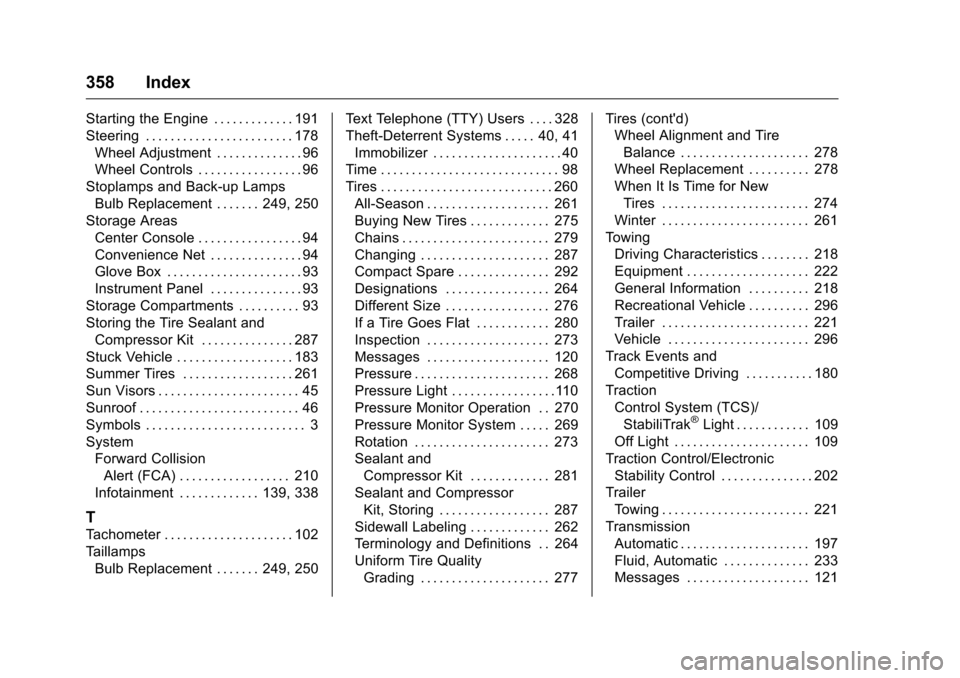

358 Index
Starting the Engine . . . . . . . . . . . . . 191
Steering . . . . . . . . . . . . . . . . . . . . . . . . 178Wheel Adjustment . . . . . . . . . . . . . . 96
Wheel Controls . . . . . . . . . . . . . . . . . 96
Stoplamps and Back-up Lamps Bulb Replacement . . . . . . . 249, 250
Storage Areas
Center Console . . . . . . . . . . . . . . . . . 94
Convenience Net . . . . . . . . . . . . . . . 94
Glove Box . . . . . . . . . . . . . . . . . . . . . . 93
Instrument Panel . . . . . . . . . . . . . . . 93
Storage Compartments . . . . . . . . . . 93
Storing the Tire Sealant and Compressor Kit . . . . . . . . . . . . . . . 287
Stuck Vehicle . . . . . . . . . . . . . . . . . . . 183
Summer Tires . . . . . . . . . . . . . . . . . . 261
Sun Visors . . . . . . . . . . . . . . . . . . . . . . . 45
Sunroof . . . . . . . . . . . . . . . . . . . . . . . . . . 46
Symbols . . . . . . . . . . . . . . . . . . . . . . . . . . 3
System Forward Collision
Alert (FCA) . . . . . . . . . . . . . . . . . . 210
Infotainment . . . . . . . . . . . . . 139, 338
T
Tachometer . . . . . . . . . . . . . . . . . . . . . 102
Taillamps Bulb Replacement . . . . . . . 249, 250 Text Telephone (TTY) Users . . . . 328
Theft-Deterrent Systems . . . . . 40, 41
Immobilizer . . . . . . . . . . . . . . . . . . . . . 40
Time . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 98
Tires . . . . . . . . . . . . . . . . . . . . . . . . . . . . 260 All-Season . . . . . . . . . . . . . . . . . . . . 261
Buying New Tires . . . . . . . . . . . . . 275
Chains . . . . . . . . . . . . . . . . . . . . . . . . 279
Changing . . . . . . . . . . . . . . . . . . . . . 287
Compact Spare . . . . . . . . . . . . . . . 292
Designations . . . . . . . . . . . . . . . . . 264
Different Size . . . . . . . . . . . . . . . . . 276
If a Tire Goes Flat . . . . . . . . . . . . 280
Inspection . . . . . . . . . . . . . . . . . . . . 273
Messages . . . . . . . . . . . . . . . . . . . . 120
Pressure . . . . . . . . . . . . . . . . . . . . . . 268
Pressure Light . . . . . . . . . . . . . . . . .110
Pressure Monitor Operation . . 270
Pressure Monitor System . . . . . 269
Rotation . . . . . . . . . . . . . . . . . . . . . . 273
Sealant andCompressor Kit . . . . . . . . . . . . . 281
Sealant and Compressor Kit, Storing . . . . . . . . . . . . . . . . . . 287
Sidewall Labeling . . . . . . . . . . . . . 262
Terminology and Definitions . . 264
Uniform Tire Quality
Grading . . . . . . . . . . . . . . . . . . . . . 277 Tires (cont'd)
Wheel Alignment and Tire
Balance . . . . . . . . . . . . . . . . . . . . . 278
Wheel Replacement . . . . . . . . . . 278
When It Is Time for New
Tires . . . . . . . . . . . . . . . . . . . . . . . . 274
Winter . . . . . . . . . . . . . . . . . . . . . . . . 261
Towing Driving Characteristics . . . . . . . . 218
Equipment . . . . . . . . . . . . . . . . . . . . 222
General Information . . . . . . . . . . 218
Recreational Vehicle . . . . . . . . . . 296
Trailer . . . . . . . . . . . . . . . . . . . . . . . . 221
Vehicle . . . . . . . . . . . . . . . . . . . . . . . 296
Track Events and Competitive Driving . . . . . . . . . . . 180
Traction Control System (TCS)/
StabiliTrak
®Light . . . . . . . . . . . . 109
Off Light . . . . . . . . . . . . . . . . . . . . . . 109
Traction Control/Electronic Stability Control . . . . . . . . . . . . . . . 202
Trailer
Towing . . . . . . . . . . . . . . . . . . . . . . . . 221
Transmission Automatic . . . . . . . . . . . . . . . . . . . . . 197
Fluid, Automatic . . . . . . . . . . . . . . 233
Messages . . . . . . . . . . . . . . . . . . . . 121
