2016 CHEVROLET CRUZE low beam

Chevrolet Cruze Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
9234744) - 2016 - CRC - 3/9/16
264 Vehicle Care

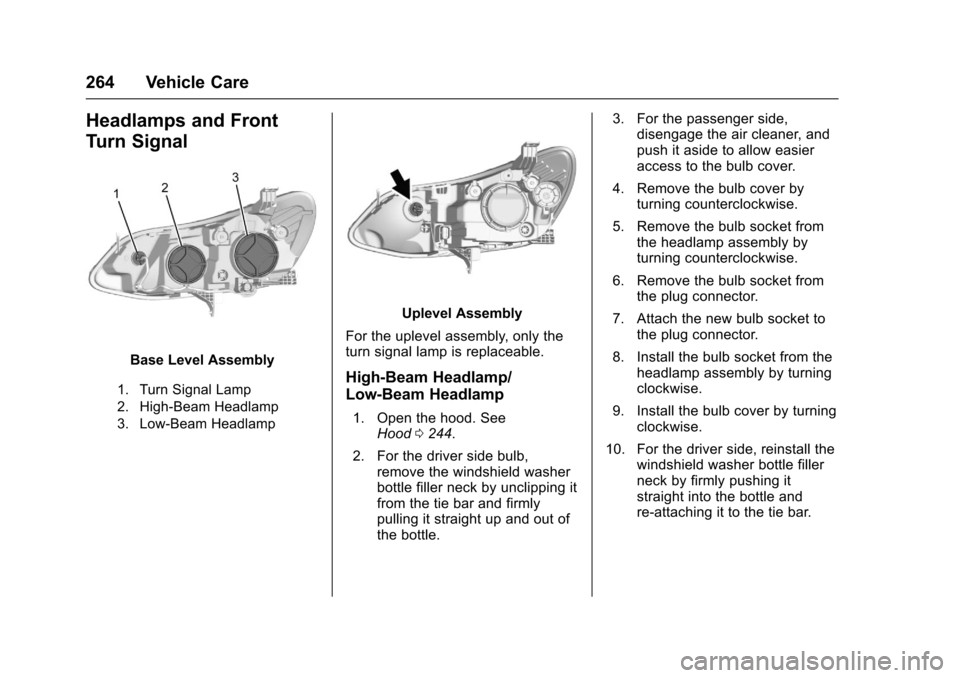

Headlamps and Front
Turn Signal
Base Level Assembly
1. Turn Signal Lamp
2. High-Beam Headlamp
3. Low-Beam Headlamp
Uplevel Assembly
For the uplevel assembly, only the
turn signal lamp is replaceable.
High-Beam Headlamp/
Low-Beam Headlamp
1. Open the hood. See Hood 0244.
2. For the driver side bulb, remove the windshield washer
bottle filler neck by unclipping it
from the tie bar and firmly
pulling it straight up and out of
the bottle. 3. For the passenger side,
disengage the air cleaner, and
push it aside to allow easier
access to the bulb cover.
4. Remove the bulb cover by turning counterclockwise.
5. Remove the bulb socket from the headlamp assembly by
turning counterclockwise.
6. Remove the bulb socket from the plug connector.
7. Attach the new bulb socket to the plug connector.
8. Install the bulb socket from the headlamp assembly by turning
clockwise.
9. Install the bulb cover by turning clockwise.
10. For the driver side, reinstall the windshield washer bottle filler
neck by firmly pushing it
straight into the bottle and
re-attaching it to the tie bar.

Chevrolet Cruze Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
9234744) - 2016 - CRC - 3/9/16
Vehicle Care 267

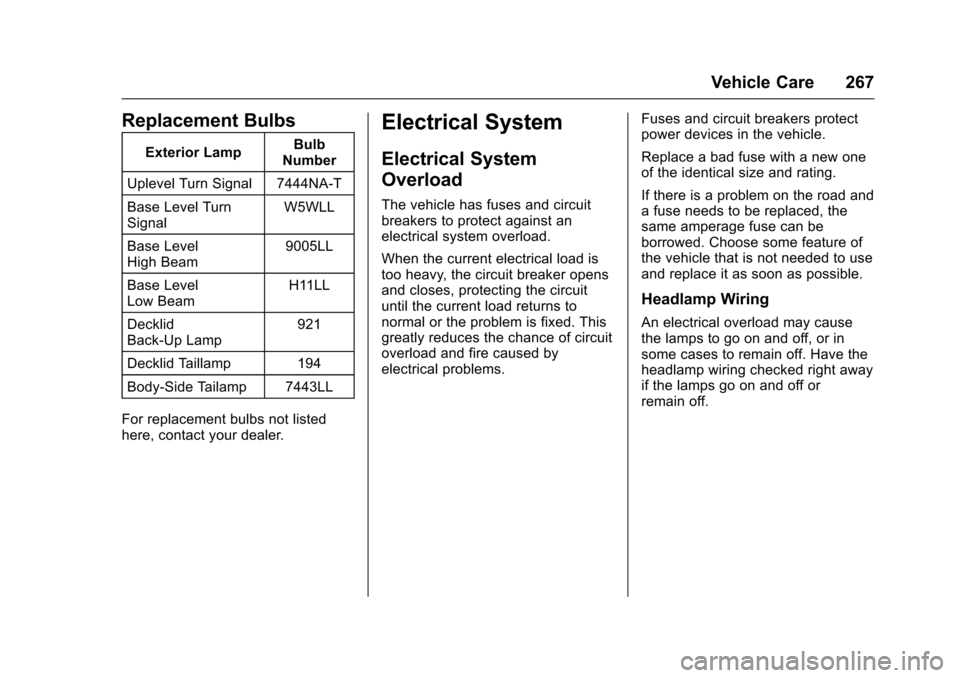

Replacement Bulbs
Exterior LampBulb
Number
Uplevel Turn Signal 7444NA-T
Base Level Turn
Signal W5WLL
Base Level
High Beam 9005LL
Base Level
Low Beam H11LL
Decklid
Back-Up Lamp 921
Decklid Taillamp 194
Body-Side Tailamp 7443LL
For replacement bulbs not listed
here, contact your dealer.
Electrical System
Electrical System
Overload
The vehicle has fuses and circuit
breakers to protect against an
electrical system overload.
When the current electrical load is
too heavy, the circuit breaker opens
and closes, protecting the circuit
until the current load returns to
normal or the problem is fixed. This
greatly reduces the chance of circuit
overload and fire caused by
electrical problems. Fuses and circuit breakers protect
power devices in the vehicle.
Replace a bad fuse with a new one
of the identical size and rating.
If there is a problem on the road and
a fuse needs to be replaced, the
same amperage fuse can be
borrowed. Choose some feature of
the vehicle that is not needed to use
and replace it as soon as possible.
Headlamp Wiring
An electrical overload may cause
the lamps to go on and off, or in
some cases to remain off. Have the
headlamp wiring checked right away
if the lamps go on and off or
remain off.

Chevrolet Cruze Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
9234744) - 2016 - CRC - 3/9/16
Vehicle Care 271
FusesUsage
F44 Interior rearview mirror/Rear vision
camera/Trailer
F45 Heated steering wheel
F46 Cluster
F47 Steering column lock
F48 Rear wiper
F49 –
F50 –
F51 –
F52 Engine/Transmission control module
F53 –
F54 Windshield wiper
F55 Diesel NOx
F56 Aeroshutter
F57 – Fuses
Usage
Relays Usage
K01 Starter
K02 A/C control
K03 Engine functions
K04 CVT8 transmission
K05 Starter
K06 Diesel fuel heating/ Secondary air
induction
K07 Right low-beam headlamp/Right
daytime
running lamp
K08 Transmission
K09 Diesel NOx
K10 Fuel pump K11 –
K12 High-beam headlamps Relays
Usage
K13 Left daytime running lamp/Left low-beam
headlamp
K14 Run/Crank
K15 Mirror defogger/Rear window defogger/
Anti-theft warning
sensor
K16 Horn/Dual horn
K17 Diesel NOx
K18 Front fog lamps
K19 After boil pump/ Heated steering
wheel
K20 Anti-theft warning horn
K21 Rear window washer
K22 Front window washer
K23 Rear window wiper

Chevrolet Cruze Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
9234744) - 2016 - CRC - 3/9/16
274 Vehicle Care
The vehicle may not be equipped
with all of the fuses, relays, and
features shown.Fuses Usage
F1 –
F2 Blower
F3 Driver power seat
F4 Front power outlet
F5 –
F6 Front power windows
F7 ABS valves
F8 Rear power outlet
F9 Body control module 8
F10 Rear power window F11 Sunroof
F12 Body control module 4
F13 Heated seats Fuses Usage
F14 Exterior mirrors/Lane keep assist/
High-beam
headlamp auto
control
F15 Body control module 1
F16 Body control module 7
F17 Body control module 6
F18 Body control module 3
F19 Data link connector
F20 Airbag
F21 A/C
F22 Trunk release
F23 Passive entry/ Passive start
F24 Right front child presence detection
F25 Steering wheel switch illumination Fuses Usage
F26 Ignition switch
F27 Body control module 2
F28 Amplifier
F29 –
F30 PRNDL/Shift lever illumination
F31 Rear wiper
F32 Transmission control module (with Stop/
Start)
F33 Mobile phone wireless charging/
DC AC converter
F34 Parking assist/Side blind zone alert/
Infotainment/USB
F35 OnStar
F36 Display/Cluster
F37 Radio

Chevrolet Cruze Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
9234744) - 2016 - CRC - 3/9/16
370 Index
G
GaugesEngine CoolantTemperature . . . . . . . . . . . . . . . . .119
Fuel . . . . . . . . . . . . . . . . . . . . . . . . . . .118
Odometer . . . . . . . . . . . . . . . . . . . . . .117
Speedometer . . . . . . . . . . . . . . . . . .117
Tachometer . . . . . . . . . . . . . . . . . . . .117
Trip Odometer . . . . . . . . . . . . . . . . .117
Warning Lights and
Indicators . . . . . . . . . . . . . . . . . . . . 111
General Information Service and Maintenance . . . . . 325
Towing . . . . . . . . . . . . . . . . . . . . . . . . 238
Vehicle Care . . . . . . . . . . . . . . . . . . 241
Glove Box . . . . . . . . . . . . . . . . . . . . . . 101
GM Mobility Reimbursement Program . . . . . . . . . . . . . . . . . . . . . . . 346
H
Halogen Bulbs . . . . . . . . . . . . . . . . . . 263
Hands-Free Phone . . . . . . . . . . . . . 174
Hazard Warning Flashers . . . . . . . 154
Head Restraints . . . . . . . . . . . . . . . . . 56
HeadlampsAiming . . . . . . . . . . . . . . . . . . . . . . . . 263
Automatic . . . . . . . . . . . . . . . . . . . . . 153
Bulb Replacement . . . . . . . 263, 264 Headlamps (cont'd)
Daytime Running
Lamps (DRL) . . . . . . . . . . . . . . . . 153
Flash-to-Pass . . . . . . . . . . . . . . . . . 153
High Intensity Discharge
(HID) Lighting . . . . . . . . . . . . . . . 263
High-Beam On Light . . . . . . . . . . 128
High/Low Beam Changer . . . . . 153
Lamps On Reminder . . . . . . . . . 129
Heated Rear Seats . . . . . . . . . . . . . . . . . . . . . 63
Steering Wheel . . . . . . . . . . . . . . . 105
Heated Front Seats . . . . . . . . . . . . . . 60
Heated Mirrors . . . . . . . . . . . . . . . . . . . 50
Heater Engine . . . . . . . . . . . . . . . . . . . . . . . . 210
Heating and Air Conditioning . . . . . . . . .185, 187, 188
High-Beam On Light . . . . . . . . . . . . 128
High-Speed Operation . . . . . . . . . . 283
Hill and Mountain Roads . . . . . . . . 198
Home Page . . . . . . . . . . . . . . . . . . . . . 162
Hood . . . . . . . . . . . . . . . . . . . . . . . . . . . 244
Horn . . . . . . . . . . . . . . . . . . . . . . . . . . . . 105
How to Wear Safety Belts Properly . . . . . . . . . . . . . . . . . . . . . . . . 65
Hydraulic Clutch . . . . . . . . . . . . . . . . 250
I
Ignition Positions . . . . . . . . . . 204, 206
Ignition Transmission Lock Check . . . . . . . . . . . . . . . . . . . . . . . . . 261
Immobilizer . . . . . . . . . . . . . . . . . . . . . . 47
Indicator
Vehicle Ahead . . . . . . . . . . . . . . . . 126
Infants and Young Children, Restraints . . . . . . . . . . . . . . . . . . . . . . 84
Infotainment . . . . . . . . . . . . . . . . . . . . 159
Infotainment System . . . . . . . . . . . . 355
Instrument Cluster . . . . . . . . . 112, 114
Instrument Panel Overview . . . . . . . 6
Interior Rearview Mirrors . . . . . . . . . 50
Introduction . . . . . . . . . . . . . . . . . . . . . . . 2
J
Jump Starting - North
America . . . . . . . . . . . . . . . . . . . . . . . 309
K
Key and Lock Messages . . . . . . . . 138
Keyless EntryRemote (RKE) System . . . . . 31, 33
Keys . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28

Chevrolet Cruze Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
9234744) - 2016 - CRC - 3/9/16
Index 371
L
Labeling, Tire Sidewall . . . . . . . . . . 277
LampsCourtesy . . . . . . . . . . . . . . . . . . . . . . 156
Daytime Running (DRL) . . . . . . 153
Dome . . . . . . . . . . . . . . . . . . . . . . . . . 156
Exterior Controls . . . . . . . . . . . . . . 151
Exterior Lighting BatterySaver . . . . . . . . . . . . . . . . . . . . . . . 158
Malfunction Indicator . . . . . . . . . 122
Messages . . . . . . . . . . . . . . . . . . . . 139
On Reminder . . . . . . . . . . . . . . . . . 129
Reading . . . . . . . . . . . . . . . . . . . . . . 156
Taillamps and Back-up . . . . . . . 265
Lane Change Alert (LCA) . . . . . . . 231
Lane Departure Warning (LDW) . . . . . . . . . . . . . . . . 233
Lane Keep Assist (LKA) . . . . . . . . 233
Lane Keep Assist Light . . . . . . . . . 125
Lap-Shoulder Belt . . . . . . . . . . . . . . . 66
LATCH System Replacing Parts after aCrash . . . . . . . . . . . . . . . . . . . . . . . . . 95
LATCH, Lower Anchors and
Tethers for Children . . . . . . . . . . . . 89
Lighting Entry . . . . . . . . . . . . . . . . . . . . . . . . . 157
Exit . . . . . . . . . . . . . . . . . . . . . . . . . . . 157 Lighting (cont'd)
Illumination Control . . . . . . . . . . . 156
Lights . . . . . . . . . . . . . . . . . . . . . . . . . . . 125 Airbag Readiness . . . . . . . . . . . . . 121
Antilock Brake System
(ABS) Warning . . . . . . . . . . . . . . 125
Brake System Warning . . . . . . . 124
Charging System . . . . . . . . . . . . . 122
Cruise Control . . . . . . . . . . . . . . . . 129
Door Ajar . . . . . . . . . . . . . . . . . . . . . 129
Engine Oil Pressure . . . . . . . . . . 127
Flash-to-Pass . . . . . . . . . . . . . . . . . 153
Front Fog Lamp . . . . . . . . . . . . . . 129
High-Beam On . . . . . . . . . . . . . . . . 128
High/Low Beam Changer . . . . . 153
Low Fuel Warning . . . . . . . . . . . . 128
Safety Belt Reminders . . . . . . . . 120
Security . . . . . . . . . . . . . . . . . . . . . . 128
StabiliTrak
®OFF . . . . . . . . . . . . . 126
Tire Pressure . . . . . . . . . . . . . . . . . 127
Traction Control System (TCS)/StabiliTrak
®. . . . . . . . . . 127
Traction Off . . . . . . . . . . . . . . . . . . . 126
Up-Shift . . . . . . . . . . . . . . . . . . . . . . 125
Locks Automatic Door . . . . . . . . . . . . . . . . . 43
Delayed Locking . . . . . . . . . . . . . . . . 42
Door . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41 Locks (cont'd)
Lockout Protection . . . . . . . . . . . . . . 43
Power Door . . . . . . . . . . . . . . . . . . . . . 42
Safety . . . . . . . . . . . . . . . . . . . . . . . . . . 43
Loss of Control . . . . . . . . . . . . . . . . . 196
Low Fuel Warning Light . . . . . . . . . 128
Low-Profile Tires . . . . . . . . . . . . . . . . 276
Lower Anchors and Tethers for Children (LATCH
System) . . . . . . . . . . . . . . . . . . . . . . . . 89
M
MaintenanceRecords . . . . . . . . . . . . . . . . . . . . . . 337
Maintenance and Care Additional . . . . . . . . . . . . . . . . . . . . . 332
Maintenance Schedule . . . . . . . . . 326 Recommended Fluids andLubricants . . . . . . . . . . . . . . . . . . . 335
Malfunction Indicator Lamp . . . . . 122
Manual Mode . . . . . . . . . . . . . . . . . . . 216
Manual Transmission . . . . . . . . . . . 217 Fluid . . . . . . . . . . . . . . . . . . . . . . . . . . 250
Media
Avoiding Untrusted Devices . . 167
Messages Airbag System . . . . . . . . . . . . . . . . 141
Battery Voltage andCharging . . . . . . . . . . . . . . . . . . . . 136
