2016 CHEVROLET CORVETTE technical specifications

Chevrolet Corvette Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
9085364) - 2016 - crc - 9/15/15

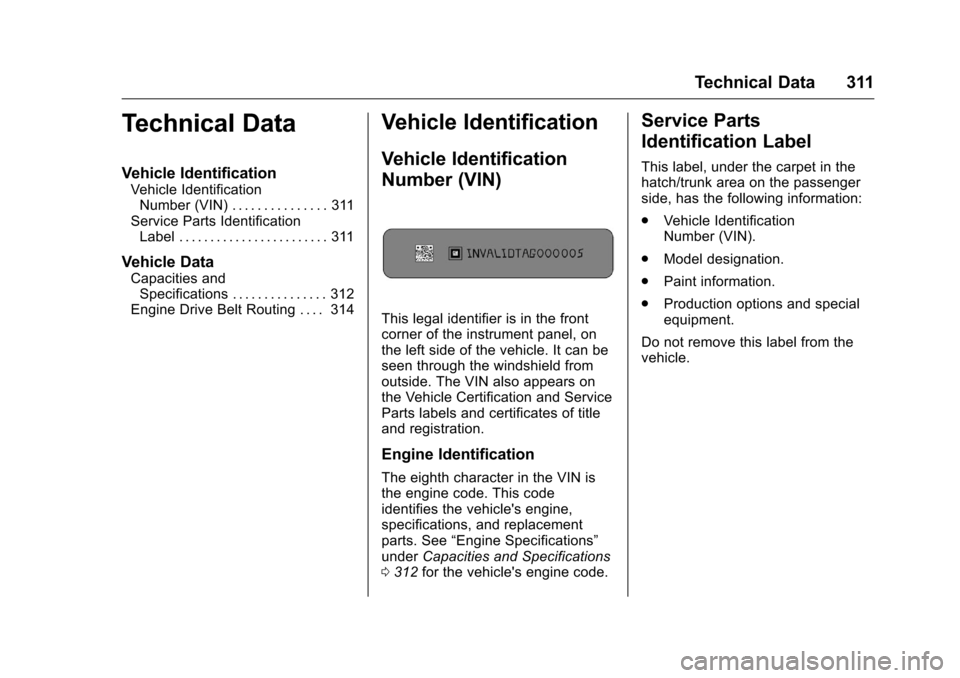

Technical Data 311
Technical Data
Vehicle Identification
Vehicle IdentificationNumber (VIN) . . . . . . . . . . . . . . . 311
Service Parts Identification Label . . . . . . . . . . . . . . . . . . . . . . . . 311
Vehicle Data
Capacities andSpecifications . . . . . . . . . . . . . . . 312
Engine Drive Belt Routing . . . . 314
Vehicle Identification
Vehicle Identification
Number (VIN)
This legal identifier is in the front
corner of the instrument panel, on
the left side of the vehicle. It can be
seen through the windshield from
outside. The VIN also appears on
the Vehicle Certification and Service
Parts labels and certificates of title
and registration.
Engine Identification
The eighth character in the VIN is
the engine code. This code
identifies the vehicle's engine,
specifications, and replacement
parts. See “Engine Specifications”
under Capacities and Specifications
0 312 for the vehicle's engine code.
Service Parts
Identification Label
This label, under the carpet in the
hatch/trunk area on the passenger
side, has the following information:
.
Vehicle Identification
Number (VIN).
. Model designation.
. Paint information.
. Production options and special
equipment.
Do not remove this label from the
vehicle.

Chevrolet Corvette Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
9085364) - 2016 - crc - 9/15/15

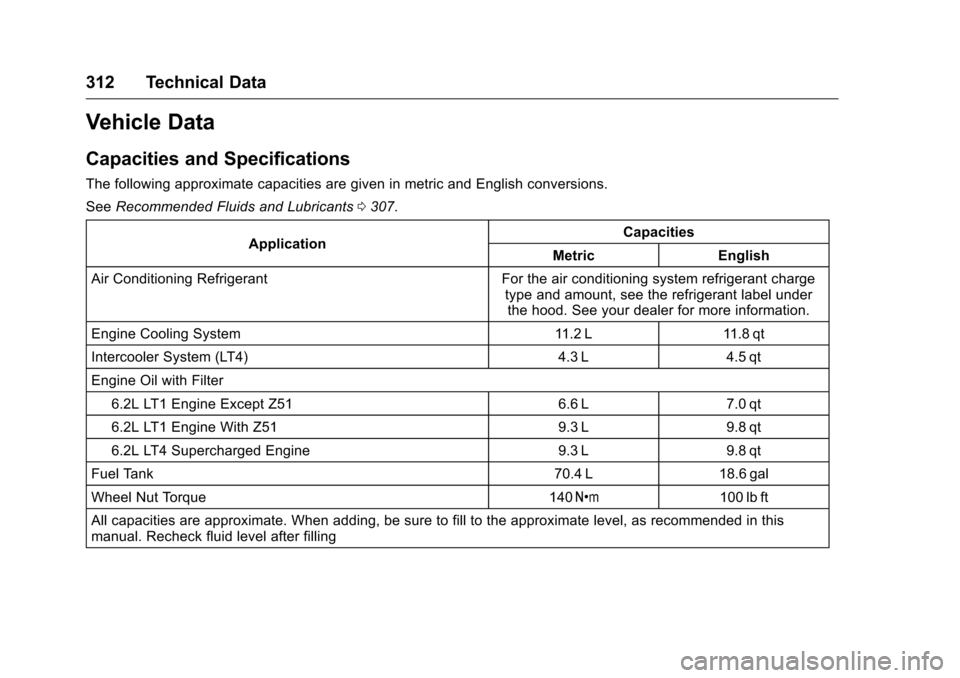

312 Technical Data
Vehicle Data
Capacities and Specifications
The following approximate capacities are given in metric and English conversions.
SeeRecommended Fluids and Lubricants 0307.
Application Capacities
Metric English
Air Conditioning Refrigerant For the air conditioning system refrigerant charge type and amount, see the refrigerant label underthe hood. See your dealer for more information.
Engine Cooling System 11.2 L 11.8 qt
Intercooler System (LT4) 4.3 L 4.5 qt
Engine Oil with Filter 6.2L LT1 Engine Except Z51 6.6 L 7.0 qt
6.2L LT1 Engine With Z51 9.3 L 9.8 qt
6.2L LT4 Supercharged Engine 9.3 L 9.8 qt
Fuel Tank 70.4 L 18.6 gal
Wheel Nut Torque 140 Y100 lb ft
All capacities are approximate. When adding, be sure to fill to the approximate level, as recommended in this
manual. Recheck fluid level after filling

Chevrolet Corvette Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
9085364) - 2016 - crc - 9/15/15

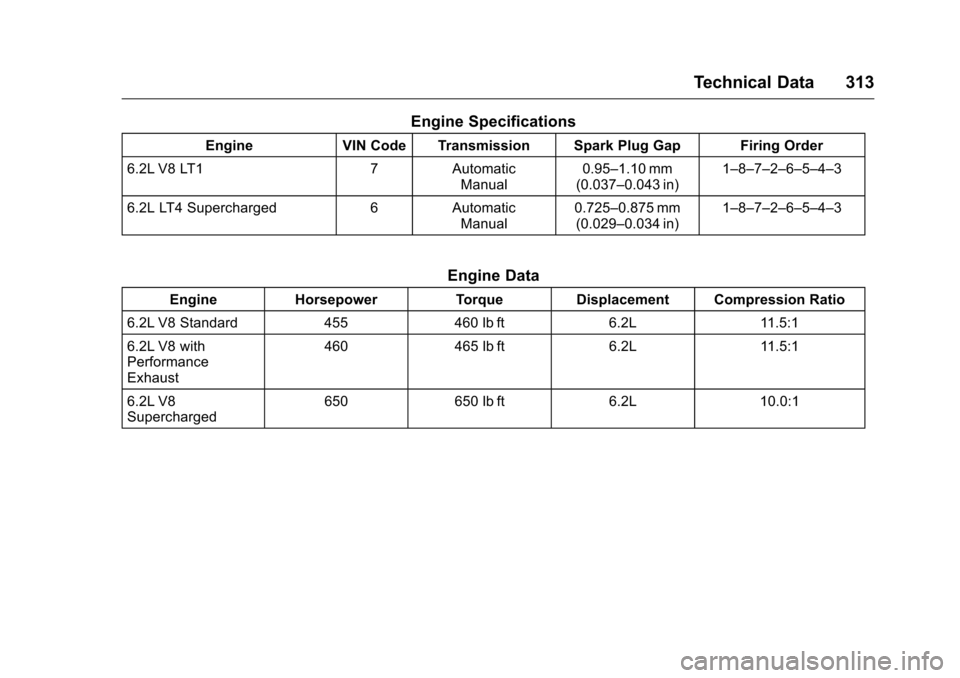

Technical Data 313
Engine Specifications
EngineVIN Code Transmission Spark Plug Gap Firing Order
6.2L V8 LT1 7Automatic
Manual 0.95–1.10 mm
(0.037–0.043 in) 1–8–7–2–6–5–4–3
6.2L LT4 Supercharged 6Automatic
Manual 0.725–0.875 mm
(0.029–0.034 in) 1–8–7–2–6–5–4–3
Engine Data
Engine
Horsepower TorqueDisplacement Compression Ratio
6.2L V8 Standard 455460 lb ft 6.2L11.5:1
6.2L V8 with
Performance
Exhaust 460
465 lb ft 6.2L11.5:1
6.2L V8
Supercharged 650
650 lb ft 6.2L10.0:1
