Chevrolet Corvette Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
9085364) - 2016 - crc - 9/15/15
304 Service and Maintenance
Additional
Maintenance and Care
Your vehicle is an important
investment and caring for it properly
may help to avoid future costly
repairs. To maintain vehicle
performance, additional
maintenance services may be
required.
It is recommended that your dealer
perform these services—their
trained dealer technicians know
your vehicle best. Your dealer can
also perform a thorough
assessment with a multi-point
inspection to recommend when your
vehicle may need attention.
The following list is intended to
explain the services and conditions
to look for that may indicate
services are required.
Battery
The 12-volt battery supplies power
to start the engine and operate any
additional electrical accessories. .
To avoid break-down or failure to
start the vehicle, maintain a
battery with full cranking power.
. Trained dealer technicians have
the diagnostic equipment to test
the battery and ensure that the
connections and cables are
corrosion-free.
Belts
. Belts may need replacing if they
squeak or show signs of
cracking or splitting.
. Trained dealer technicians have
access to tools and equipment
to inspect the belts and
recommend adjustment or
replacement when necessary.
Brakes
Brakes stop the vehicle and are
crucial to safe driving.
. Signs of brake wear may include
chirping, grinding, or squealing
noises, or difficulty stopping. .
Trained dealer technicians have
access to tools and equipment
to inspect the brakes and
recommend quality parts
engineered for the vehicle.
Fluids
Proper fluid levels and approved
fluids protect the vehicle’s systems
and components. See
Recommended Fluids and
Lubricants 0307 for GM approved
fluids.
. Engine oil and windshield
washer fluid levels should be
checked at every fuel fill.
. Instrument cluster lights may
come on to indicate that fluids
may be low and need to be
filled.
Hoses
Hoses transport fluids and should
be regularly inspected to ensure
that there are no cracks or leaks.
With a multi-point inspection, your
dealer can inspect the hoses and
advise if replacement is needed.

Chevrolet Corvette Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
9085364) - 2016 - crc - 9/15/15
Service and Maintenance 307
Recommended Fluids, Lubricants, and Parts
Recommended Fluids and Lubricants
Fluids and lubricants identified below by name, part number, or specification can be obtained from your dealer.Usage Fluid/Lubricant
Engine Oil Engine oil meeting the dexos1™ specification of the proper SAE viscosity
grade. ACDelco dexos1 Synthetic Blend is recommended. For track events
or competitive driving, use Mobil 1
®engine oil. See Engine Oil0223.
Engine Coolant 40/60 coolant/water mixture of clean, drinkable water and use only DEX-COOL
®Coolant. SeeEngine Coolant 0235.
Hydraulic Brake System DOT 3 Hydraulic Brake Fluid (GM Part No. 19299818, in Canada 19299819).
Windshield Washer Automotive windshield washer fluid that meets regional freeze protection requirements.
Hydraulic Clutch System Hydraulic Clutch Fluid. Use only GM Part No. 19299570, in Canada 19299571, Super DOT 4 brake fluid.
Chassis Lubrication Chassis Lubricant (GM Part No. 12377985, in Canada 88901242) or lubricant meeting requirements of NLGI #2, Category LB or GC-LB.
Automatic Transmission DEXRON
®-HP Automatic Transmission Fluid (GM Part No. 19300536, in
Canada 19300537).
Manual Transmission Manual Transmission Fluid (GM Part No. 88861800, in Canada 88861801). Rear Axle DEXRON
®LS Gear Oil (GM Part No. 88862624, in Canada 88862625).
See Rear Axle 0242 for information on checking the fluid.

Chevrolet Corvette Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
9085364) - 2016 - crc - 9/15/15
312 Technical Data
Vehicle Data
Capacities and Specifications
The following approximate capacities are given in metric and English conversions.
SeeRecommended Fluids and Lubricants 0307.
Application Capacities
Metric English
Air Conditioning Refrigerant For the air conditioning system refrigerant charge type and amount, see the refrigerant label underthe hood. See your dealer for more information.
Engine Cooling System 11.2 L 11.8 qt
Intercooler System (LT4) 4.3 L 4.5 qt
Engine Oil with Filter 6.2L LT1 Engine Except Z51 6.6 L 7.0 qt
6.2L LT1 Engine With Z51 9.3 L 9.8 qt
6.2L LT4 Supercharged Engine 9.3 L 9.8 qt
Fuel Tank 70.4 L 18.6 gal
Wheel Nut Torque 140 Y100 lb ft
All capacities are approximate. When adding, be sure to fill to the approximate level, as recommended in this
manual. Recheck fluid level after filling

Chevrolet Corvette Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
9085364) - 2016 - crc - 9/15/15
340 Index
IndexA
Accessories andModifications . . . . . . . . . . . . . . . . . . 213
Accessory Power . . . . . . . . . . . . . . . 179
Active Fuel Management
®. . . . . . 181
Active Rev Match . . . . . . . . . . . . . . . 188
Add-On Electrical Equipment . . . 211
Additional Information OnStar
®. . . . . . . . . . . . . . . . . . . . . . 334
Additional Maintenance
and Care . . . . . . . . . . . . . . . . . . . . . . 304
Adjustments Lumbar, Front Seats . . . . . . . . . . . . 56
Air Cleaner/Filter, Engine . . . . . . . 230
Air Dam, Front . . . . . . . . . . . . . . . . . . 175
Air Filter, Passenger
Compartment . . . . . . . . . . . . . . . . . 156
Air Vents . . . . . . . . . . . . . . . . . . . . . . . 156
Airbag System Check . . . . . . . . . . . . . . . . . . . . . . . . . . 77
How Does an AirbagRestrain? . . . . . . . . . . . . . . . . . . . . . 70
Passenger Sensing System . . . . 71
What Makes an Airbag Inflate? . . . . . . . . . . . . . . . . . . . . . . . . 70
What Will You See after an Airbag Inflates? . . . . . . . . . . . . . . . 70 Airbag System (cont'd)
When Should an Airbag
Inflate? . . . . . . . . . . . . . . . . . . . . . . . . 69
Where Are the Airbags? . . . . . . . . 68
Airbags Adding Equipment to theVehicle . . . . . . . . . . . . . . . . . . . . . . . . 76
Passenger Status Indicator . . . 105
Readiness Light . . . . . . . . . . . . . . 104
Servicing Airbag-Equipped Vehicles . . . . . . . . . . . . . . . . . . . . . . . 76
System Check . . . . . . . . . . . . . . . . . . 67
Alarm Vehicle Security . . . . . . . . . . . . . . . . 39
Antilock Brake System (ABS) . . . 189 Warning Light . . . . . . . . . . . . . . . . . 109
Appearance Care Exterior . . . . . . . . . . . . . . . . . . . . . . . 288
Interior . . . . . . . . . . . . . . . . . . . . . . . . 292
Assistance Program, Roadside . . . . . . . . . . . . . . . . . . . . . . 319
Assistance Systems for Parking and Backing . . . . . . . . . . 205
Automatic Dimming Mirrors . . . . . . . . . . . . . . . . 42
Door Locks . . . . . . . . . . . . . . . . . . . . . 35
Headlamp System . . . . . . . . . . . . 142
Transmission . . . . . . . . . . . . . . . . . 182

Chevrolet Corvette Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
9085364) - 2016 - crc - 9/15/15
Index 341
Automatic (cont'd)Transmission Fluid . . . . . . . . . . . 229
Automatic Transmission Manual Mode . . . . . . . . . . . . . . . . . 184
Shift Lock Control Function
Check . . . . . . . . . . . . . . . . . . . . . . . 243
Axle, Rear . . . . . . . . . . . . . . . . . . . . . . 242
B
Battery Exterior Lighting BatterySaver . . . . . . . . . . . . . . . . . . . . . . . 145
Power Protection . . . . . . . . . . . . . 145
Voltage and Charging Messages . . . . . . . . . . . . . . . . . . . 120
Battery - North America . . . . 241, 284
Blade Replacement, Wiper . . . . . 244
Boost Gauge . . . . . . . . . . . . . . . . . . . 102
Brake Parking, Electric . . . . . . . . . . . . . . 190
System Warning Light . . . . . . . . 108
Brakes . . . . . . . . . . . . . . . . . . . . . . . . . . 239 Antilock . . . . . . . . . . . . . . . . . . . . . . . 189
Assist . . . . . . . . . . . . . . . . . . . . . . . . . 192
Fluid . . . . . . . . . . . . . . . . . . . . . . . . . . 240
System Messages . . . . . . . . . . . . 120
Braking . . . . . . . . . . . . . . . . . . . . . . . . . 160
Break-In, New Vehicle . . . . . . . . . . 174
Bulb Replacement . . . . . . . . . . . . . . 246 Bulb Replacement (cont'd)
Headlamp Aiming . . . . . . . . . . . . . 245
Headlamps . . . . . . . . . . . . . . . . . . . 245
High Intensity Discharge
(HID) Lighting . . . . . . . . . . . . . . . 245
License Plate Lamps . . . . . . . . . 246
Buying New Tires . . . . . . . . . . . . . . . 270
C
Calibration . . . . . . . . . . . . . . . . . . . . . . . 93
California Fuel Requirements . . . . . . . . . . . 207
Perchlorate MaterialsRequirements . . . . . . . . . . . . . . . 213
California Proposition
65 Warning . . . . . . . . . .213, 241, 284
Canadian Vehicle Owners . . . . . . . . 2
Capacities and Specifications . . . . . . . . . . . . . . . . . 312
Carbon Fiber . . . . . . . . . . . . . . . . . . . 175
Carbon Monoxide Engine Exhaust . . . . . . . . . . . . . . . 181
Hatch . . . . . . . . . . . . . . . . . . . . . . . . . . . 37
Winter Driving . . . . . . . . . . . . . . . . 169
Cargo Cover . . . . . . . . . . . . . . . . . . . . . . . . . . . 89
Caution, Danger, and Warning . . . . 3
Center Console Storage . . . . . . . . . 89 Chains, Tire . . . . . . . . . . . . . . . . . . . . 275
Charging System Light . . . . . . . . . 106
Check
Malfunction IndicatorEngine Light . . . . . . . . . . . . . . . . 106
Child Restraints Infants and Young Children . . . . . 79
Lower Anchors and Tethers
for Children . . . . . . . . . . . . . . . . . . . 83
Older Children . . . . . . . . . . . . . . . . . . 78
Securing . . . . . . . . . . . . . . . . . . . . . . . . 84
Systems . . . . . . . . . . . . . . . . . . . . . . . . 81
Cleaning Exterior Care . . . . . . . . . . . . . . . . . 288
Interior Care . . . . . . . . . . . . . . . . . . 292
Climate Control Systems
Dual Automatic . . . . . . . . . . . . . . . 152
Clock . . . . . . . . . . . . . . . . . . . . . . . . . . . . 94
Cluster, Instrument . . . . . . . . . . . . . . 96
Clutch, Hydraulic . . . . . . . . . . . . . . . 230
Collision Damage Repair . . . . . . . 322
Compartments Storage . . . . . . . . . . . . . . . . . . . . . . . . . 87
Compass . . . . . . . . . . . . . . . . . . . . . . . . 93 Messages . . . . . . . . . . . . . . . . . . . . 121
Competition Oriented Tires . . . . . 257
Competitive Driving Mode . . . . . . 198
Compressor Kit, Tire Sealant . . . 276

Chevrolet Corvette Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
9085364) - 2016 - crc - 9/15/15
Index 343
Electrical System (cont'd)Fuses . . . . . . . . . . . . . . . . . . . . . . . . 247
Overload . . . . . . . . . . . . . . . . . . . . . 247
Rear Compartment Fuse
Block . . . . . . . . . . . . . . . . . . . . . . . . 251
Electronic Stability Control (ESC) Off Light . . . . . . . . . . . . . . . . 110
Emergency OnStar
®. . . . . . . . . . . . . . . . . . . . . . 331
Engine Air Cleaner/Filter . . . . . . . . . . . . . 230
Check and Service EngineSoon Light . . . . . . . . . . . . . . . . . . 106
Compartment Overview . . . . . . . 218
Coolant . . . . . . . . . . . . . . . . . . . . . . . 235
Coolant Temperature
Gauge . . . . . . . . . . . . . . . . . . . . . . 103
Coolant Temperature
Warning Light . . . . . . . . . . . . . . . . 111
Cooling System . . . . . . . . . . 232, 234
Cooling System Messages . . . 123
Drive Belt Routing . . . . . . . . . . . . 314
Exhaust . . . . . . . . . . . . . . . . . . . . . . 181
Oil Life System . . . . . . . . . . . . . . . 228
Oil Messages . . . . . . . . . . . . . . . . . 123
Oil Pressure Light . . . . . . . . . . . . . 111
Overheating . . . . . . . . . . . . . . . . . . 237
Power Messages . . . . . . . . . . . . . 124 Engine (cont'd)
Running While Parked . . . . . . . . 182
Starting . . . . . . . . . . . . . . . . . . . . . . . 177
Entry Lighting . . . . . . . . . . . . . . . . . . . 144
Event Data Recorders . . . . . . . . . . 327
Exit Lighting . . . . . . . . . . . . . . . . . . . . 145
Extender, Safety Belt . . . . . . . . . . . . 65
Exterior Lamp Controls . . . . . . . . . 140
Exterior Lamps Off Reminder . . . 140
Exterior Lighting Battery
Saver . . . . . . . . . . . . . . . . . . . . . . . . . 145
F
FeaturesMemory . . . . . . . . . . . . . . . . . . . . . . . . . 12
Filter, Engine Air Cleaner . . . . . . . . . . . 230
Flash-to-Pass . . . . . . . . . . . . . . . . . . . 141
Flashers, Hazard Warning . . . . . . 143
Flat Tire . . . . . . . . . . . . . . . . . . . . . . . . 275
Floor Mats . . . . . . . . . . . . . . . . . . . . . . 295
Fluid Automatic Transmission . . . . . . 229
Brakes . . . . . . . . . . . . . . . . . . . . . . . . 240
Washer . . . . . . . . . . . . . . . . . . . . . . . 238
Folding Mirrors . . . . . . . . . . . . . . . . . . 42
Frequency Statement Radio . . . . . . . . . . . . . . . . . . . . . . . . . 325
Front Air Dam . . . . . . . . . . . . . . . . . . 175 Front Seats
Heated and Ventilated . . . . . . . . . . 59
Fuel . . . . . . . . . . . . . . . . . . . . . . . . . . . . 206 Additives . . . . . . . . . . . . . . . . . . . . . 208
Economy Driving . . . . . . . . . . . . . . . 22
Filling a Portable FuelContainer . . . . . . . . . . . . . . . . . . . 210
Filling the Tank . . . . . . . . . . . . . . . 208
Foreign Countries . . . . . . . . . . . . 208
Gauge . . . . . . . . . . . . . . . . . . . . . . . . 101
Low Fuel Warning Light . . . . . . . .112
Management, Active . . . . . . . . . . 181
Requirements, California . . . . . 207
System Messages . . . . . . . . . . . . 124
Fuses . . . . . . . . . . . . . . . . . . . . . . . . . . 247 Engine Compartment Fuse
Block . . . . . . . . . . . . . . . . . . . . . . . . 247
Rear Compartment Fuse Block . . . . . . . . . . . . . . . . . . . . . . . . 251
G
Garage Door Opener . . . . . . . . . . . 137Programming . . . . . . . . . . . . . . . . . 137
Gauges Boost . . . . . . . . . . . . . . . . . . . . . . . . . 102
Engine CoolantTemperature . . . . . . . . . . . . . . . . 103
Fuel . . . . . . . . . . . . . . . . . . . . . . . . . . 101
Odometer . . . . . . . . . . . . . . . . . . . . . 101

Chevrolet Corvette Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
9085364) - 2016 - crc - 9/15/15
346 Index
Messages (cont'd)Starting the Vehicle . . . . . . . . . . . 128
Tire . . . . . . . . . . . . . . . . . . . . . . . . . . . 128
Transmission . . . . . . . . . . . . . . . . . 129
Vehicle . . . . . . . . . . . . . . . . . . . . . . . 120
Vehicle Reminder . . . . . . . . . . . . . 129
Vehicle Speed . . . . . . . . . . . . . . . . 130
Washer Fluid . . . . . . . . . . . . . . . . . 130
Window . . . . . . . . . . . . . . . . . . . . . . . 130
Mirrors Automatic Dimming . . . . . . . . . . . . . 42
Automatic DimmingRearview . . . . . . . . . . . . . . . . . . . . . . 43
Convex . . . . . . . . . . . . . . . . . . . . . . . . . 42
Folding . . . . . . . . . . . . . . . . . . . . . . . . . 42
Heated . . . . . . . . . . . . . . . . . . . . . . . . . 42
Manual Rearview . . . . . . . . . . . . . . . 43
Power . . . . . . . . . . . . . . . . . . . . . . . . . . 42
Tilt in Reverse . . . . . . . . . . . . . . . . . . 42
Mirrors, Interior Rearview . . . . . . . . 43
Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . 194 Driver Control . . . . . . . . . . . . . . . . . 194
Monitor System, Tire
Pressure . . . . . . . . . . . . . . . . . . . . . . 265N
NavigationOnStar®. . . . . . . . . . . . . . . . . . . . . . 331
Net, Convenience . . . . . . . . . . . . . . . 90
New Vehicle Break-In . . . . . . . . . . . 174
O
Odometer . . . . . . . . . . . . . . . . . . . . . . . 101 Trip . . . . . . . . . . . . . . . . . . . . . . . . . . . 101
Off-Road Recovery . . . . . . . . . . . . . . . . . . . . . 161
Oil Engine . . . . . . . . . . . . . . . . . . . . . . . . 223
Engine Oil Life System . . . . . . . 228
Messages . . . . . . . . . . . . . . . . . . . . 123
Pressure Light . . . . . . . . . . . . . . . . . 111
Older Children, Restraints . . . . . . . 78
Online Owner Center . . . . . . . . . . . 318
OnStar . . . . . . . . . . . . . . . . . . . . . . . . . 327
OnStar
®Additional
Information . . . . . . . . . . . . . . . . . . . . 334
OnStar
®Connections . . . . . . . . . . . 332
OnStar®Diagnostics . . . . . . . . . . . . 334
OnStar®Emergency . . . . . . . . . . . . 331
OnStar®Navigation . . . . . . . . . . . . . 331
OnStar®Overview . . . . . . . . . . . . . . 329
OnStar®Security . . . . . . . . . . . . . . . 331
Ordering Service Publications . . . . . . . . . . 324 Outlets
Power . . . . . . . . . . . . . . . . . . . . . . . . . . 94
Overheating, Engine . . . . . . . . . . . . 237
P
Panel, Roof . . . . . . . . . . . . . . . . . . . . . . 46
Park Shifting Into . . . . . . . . . . . . . . . . . . . 179
Shifting Out of . . . . . . . . . . . . . . . . 180
Parking . . . . . . . . . . . . . . . . . . . . . . . . . 180 Brake and P (Park)Mechanism Check . . . . . . . . . . 244
Over Things That Burn . . . . . . . 181
Parking or Backing Assistance Systems . . . . . . . . . . 205
Passenger Airbag Status Indicator . . . . . . . . . . . . . . . . . . . . . . 105
Passenger Compartment Air Filter . . . . . . . . . . . . . . . . . . . . . . . . . . 156
Passenger Sensing System . . . . . 71
Perchlorate Materials Requirements, California . . . . . . 213
Performance Data Recorder (PDR) . . . . . . . . . . . . . . . 146
Personalization Vehicle . . . . . . . . . . . . . . . . . . . . . . . 130
Power Door Locks . . . . . . . . . . . . . . . . . . . . . 35
Mirrors . . . . . . . . . . . . . . . . . . . . . . . . . . 42

Chevrolet Corvette Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
9085364) - 2016 - crc - 9/15/15

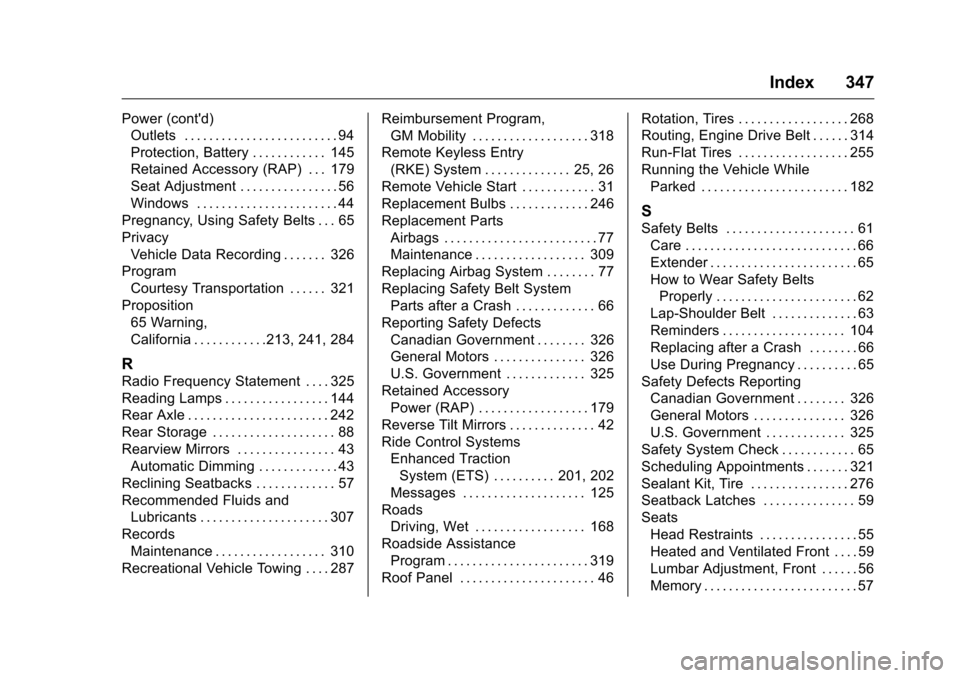

Index 347
Power (cont'd)Outlets . . . . . . . . . . . . . . . . . . . . . . . . . 94
Protection, Battery . . . . . . . . . . . . 145
Retained Accessory (RAP) . . . 179
Seat Adjustment . . . . . . . . . . . . . . . . 56
Windows . . . . . . . . . . . . . . . . . . . . . . . 44
Pregnancy, Using Safety Belts . . . 65
Privacy Vehicle Data Recording . . . . . . . 326
Program Courtesy Transportation . . . . . . 321
Proposition 65 Warning,
California . . . . . . . . . . . .213, 241, 284
R
Radio Frequency Statement . . . . 325
Reading Lamps . . . . . . . . . . . . . . . . . 144
Rear Axle . . . . . . . . . . . . . . . . . . . . . . . 242
Rear Storage . . . . . . . . . . . . . . . . . . . . 88
Rearview Mirrors . . . . . . . . . . . . . . . . 43Automatic Dimming . . . . . . . . . . . . . 43
Reclining Seatbacks . . . . . . . . . . . . . 57
Recommended Fluids and Lubricants . . . . . . . . . . . . . . . . . . . . . 307
Records Maintenance . . . . . . . . . . . . . . . . . . 310
Recreational Vehicle Towing . . . . 287 Reimbursement Program,
GM Mobility . . . . . . . . . . . . . . . . . . . 318
Remote Keyless Entry (RKE) System . . . . . . . . . . . . . . 25, 26
Remote Vehicle Start . . . . . . . . . . . . 31
Replacement Bulbs . . . . . . . . . . . . . 246
Replacement Parts Airbags . . . . . . . . . . . . . . . . . . . . . . . . . 77
Maintenance . . . . . . . . . . . . . . . . . . 309
Replacing Airbag System . . . . . . . . 77
Replacing Safety Belt System Parts after a Crash . . . . . . . . . . . . . 66
Reporting Safety Defects Canadian Government . . . . . . . . 326
General Motors . . . . . . . . . . . . . . . 326
U.S. Government . . . . . . . . . . . . . 325
Retained Accessory Power (RAP) . . . . . . . . . . . . . . . . . . 179
Reverse Tilt Mirrors . . . . . . . . . . . . . . 42
Ride Control Systems Enhanced Traction
System (ETS) . . . . . . . . . . 201, 202
Messages . . . . . . . . . . . . . . . . . . . . 125
Roads Driving, Wet . . . . . . . . . . . . . . . . . . 168
Roadside Assistance Program . . . . . . . . . . . . . . . . . . . . . . . 319
Roof Panel . . . . . . . . . . . . . . . . . . . . . . 46 Rotation, Tires . . . . . . . . . . . . . . . . . . 268
Routing, Engine Drive Belt . . . . . . 314
Run-Flat Tires . . . . . . . . . . . . . . . . . . 255
Running the Vehicle While
Parked . . . . . . . . . . . . . . . . . . . . . . . . 182
S
Safety Belts . . . . . . . . . . . . . . . . . . . . . 61Care . . . . . . . . . . . . . . . . . . . . . . . . . . . . 66
Extender . . . . . . . . . . . . . . . . . . . . . . . . 65
How to Wear Safety BeltsProperly . . . . . . . . . . . . . . . . . . . . . . . 62
Lap-Shoulder Belt . . . . . . . . . . . . . . 63
Reminders . . . . . . . . . . . . . . . . . . . . 104
Replacing after a Crash . . . . . . . . 66
Use During Pregnancy . . . . . . . . . . 65
Safety Defects Reporting
Canadian Government . . . . . . . . 326
General Motors . . . . . . . . . . . . . . . 326
U.S. Government . . . . . . . . . . . . . 325
Safety System Check . . . . . . . . . . . . 65
Scheduling Appointments . . . . . . . 321
Sealant Kit, Tire . . . . . . . . . . . . . . . . 276
Seatback Latches . . . . . . . . . . . . . . . 59
Seats Head Restraints . . . . . . . . . . . . . . . . 55
Heated and Ventilated Front . . . . 59
Lumbar Adjustment, Front . . . . . . 56
Memory . . . . . . . . . . . . . . . . . . . . . . . . . 57
