Chevrolet Colorado Owner Manual (GMNA-Localizing-U.S/Canada/Mexico-
9159327) - 2016 - crc - 8/28/15

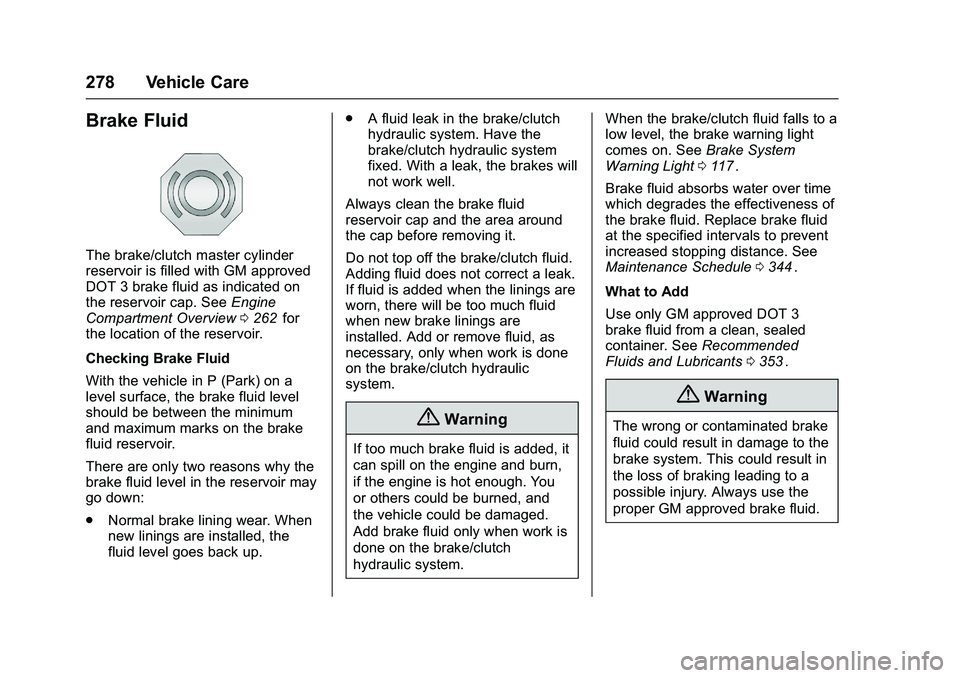

278 Vehicle Care
Brake Fluid
The brake/clutch master cylinder
reservoir is filled with GM approved
DOT 3 brake fluid as indicated on
the reservoir cap. SeeEngine
Compartment Overview 0262
iifor
the location of the reservoir.
Checking Brake Fluid
With the vehicle in P (Park) on a
level surface, the brake fluid level
should be between the minimum
and maximum marks on the brake
fluid reservoir.
There are only two reasons why the
brake fluid level in the reservoir may
go down:
. Normal brake lining wear. When
new linings are installed, the
fluid level goes back up. .
A fluid leak in the brake/clutch
hydraulic system. Have the
brake/clutch hydraulic system
fixed. With a leak, the brakes will
not work well.
Always clean the brake fluid
reservoir cap and the area around
the cap before removing it.
Do not top off the brake/clutch fluid.
Adding fluid does not correct a leak.
If fluid is added when the linings are
worn, there will be too much fluid
when new brake linings are
installed. Add or remove fluid, as
necessary, only when work is done
on the brake/clutch hydraulic
system.
{Warning
If too much brake fluid is added, it
can spill on the engine and burn,
if the engine is hot enough. You
or others could be burned, and
the vehicle could be damaged.
Add brake fluid only when work is
done on the brake/clutch
hydraulic system. When the brake/clutch fluid falls to a
low level, the brake warning light
comes on. See
Brake System
Warning Light 0117
ii.
Brake fluid absorbs water over time
which degrades the effectiveness of
the brake fluid. Replace brake fluid
at the specified intervals to prevent
increased stopping distance. See
Maintenance Schedule 0344
ii.
What to Add
Use only GM approved DOT 3
brake fluid from a clean, sealed
container. See Recommended
Fluids and Lubricants 0353
ii.
{Warning
The wrong or contaminated brake
fluid could result in damage to the
brake system. This could result in
the loss of braking leading to a
possible injury. Always use the
proper GM approved brake fluid.
Page 329 of 396
Chevrolet Colorado Owner Manual (GMNA-Localizing-U.S/Canada/Mexico-
9159327) - 2016 - crc - 8/28/15

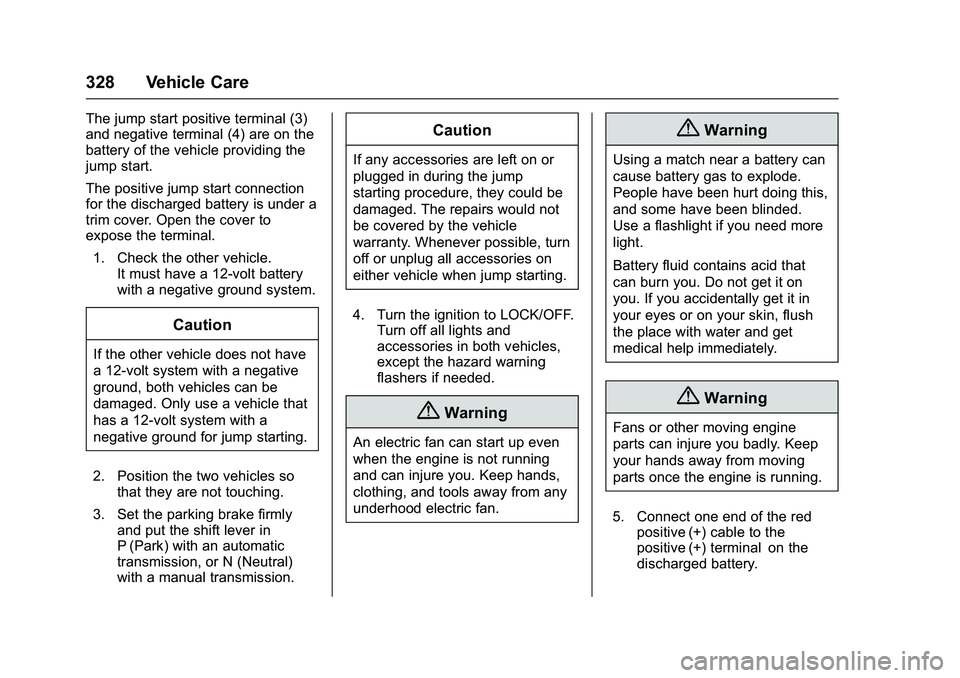

328 Vehicle Care
The jump start positive terminal (3)
and negative terminal (4) are on the
battery of the vehicle providing the
jump start.
The positive jump start connection
for the discharged battery is under a
trim cover. Open the cover to
expose the terminal.1. Check the other vehicle. It must have a 12-volt battery
with a negative ground system.
Caution
If the other vehicle does not have
a 12-volt system with a negative
ground, both vehicles can be
damaged. Only use a vehicle that
has a 12-volt system with a
negative ground for jump starting.
2. Position the two vehicles so that they are not touching.
3. Set the parking brake firmly and put the shift lever in
P (Park) with an automatic
transmission, or N (Neutral)
with a manual transmission.
Caution
If any accessories are left on or
plugged in during the jump
starting procedure, they could be
damaged. The repairs would not
be covered by the vehicle
warranty. Whenever possible, turn
off or unplug all accessories on
either vehicle when jump starting.
4. Turn the ignition to LOCK/OFF. Turn off all lights and
accessories in both vehicles,
except the hazard warning
flashers if needed.
{Warning
An electric fan can start up even
when the engine is not running
and can injure you. Keep hands,
clothing, and tools away from any
underhood electric fan.
{Warning
Using a match near a battery can
cause battery gas to explode.
People have been hurt doing this,
and some have been blinded.
Use a flashlight if you need more
light.
Battery fluid contains acid that
can burn you. Do not get it on
you. If you accidentally get it in
your eyes or on your skin, flush
the place with water and get
medical help immediately.
{Warning
Fans or other moving engine
parts can injure you badly. Keep
your hands away from moving
parts once the engine is running.
5. Connect one end of the red positive (+) cable to the
positive (+) terminal on the
discharged battery.
Page 352 of 396
Chevrolet Colorado Owner Manual (GMNA-Localizing-U.S/Canada/Mexico-
9159327) - 2016 - crc - 8/28/15

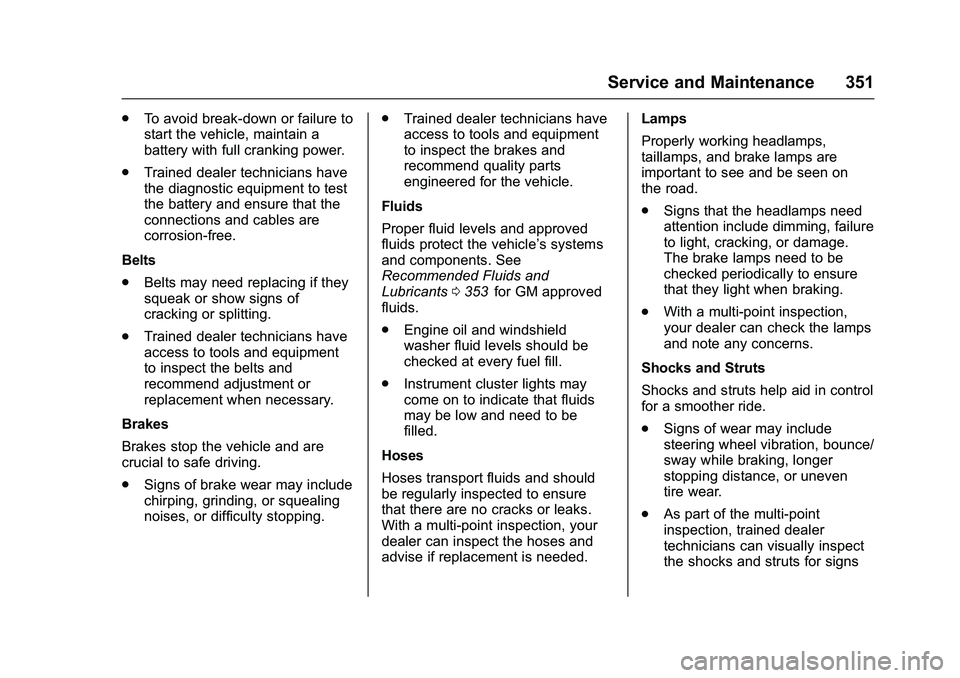

Service and Maintenance 351
.To avoid break-down or failure to
start the vehicle, maintain a
battery with full cranking power.
. Trained dealer technicians have
the diagnostic equipment to test
the battery and ensure that the
connections and cables are
corrosion-free.
Belts
. Belts may need replacing if they
squeak or show signs of
cracking or splitting.
. Trained dealer technicians have
access to tools and equipment
to inspect the belts and
recommend adjustment or
replacement when necessary.
Brakes
Brakes stop the vehicle and are
crucial to safe driving.
. Signs of brake wear may include
chirping, grinding, or squealing
noises, or difficulty stopping. .
Trained dealer technicians have
access to tools and equipment
to inspect the brakes and
recommend quality parts
engineered for the vehicle.
Fluids
Proper fluid levels and approved
fluids protect the vehicle’s systems
and components. See
Recommended Fluids and
Lubricants 0353
iifor GM approved
fluids.
. Engine oil and windshield
washer fluid levels should be
checked at every fuel fill.
. Instrument cluster lights may
come on to indicate that fluids
may be low and need to be
filled.
Hoses
Hoses transport fluids and should
be regularly inspected to ensure
that there are no cracks or leaks.
With a multi-point inspection, your
dealer can inspect the hoses and
advise if replacement is needed. Lamps
Properly working headlamps,
taillamps, and brake lamps are
important to see and be seen on
the road.
.
Signs that the headlamps need
attention include dimming, failure
to light, cracking, or damage.
The brake lamps need to be
checked periodically to ensure
that they light when braking.
. With a multi-point inspection,
your dealer can check the lamps
and note any concerns.
Shocks and Struts
Shocks and struts help aid in control
for a smoother ride.
. Signs of wear may include
steering wheel vibration, bounce/
sway while braking, longer
stopping distance, or uneven
tire wear.
. As part of the multi-point
inspection, trained dealer
technicians can visually inspect
the shocks and struts for signs
Page 386 of 396
Chevrolet Colorado Owner Manual (GMNA-Localizing-U.S/Canada/Mexico-
9159327) - 2016 - crc - 8/28/15

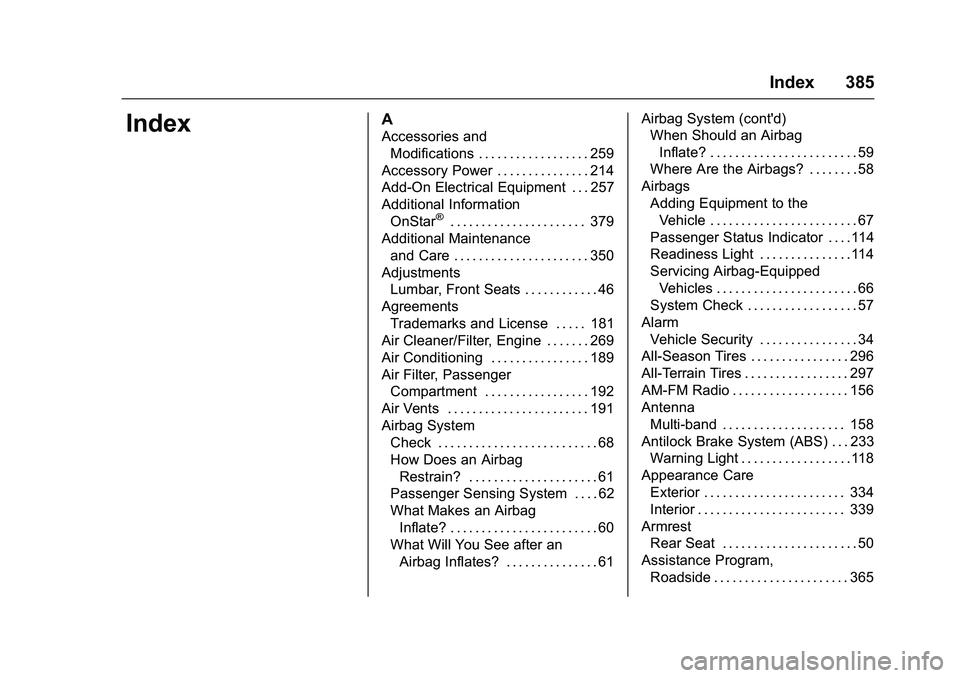

Index 385
IndexA
Accessories andModifications . . . . . . . . . . . . . . . . . . 259
Accessory Power . . . . . . . . . . . . . . . 214
Add-On Electrical Equipment . . . 257
Additional Information OnStar
®. . . . . . . . . . . . . . . . . . . . . . 379
Additional Maintenance and Care . . . . . . . . . . . . . . . . . . . . . . 350
Adjustments
Lumbar, Front Seats . . . . . . . . . . . . 46
Agreements Trademarks and License . . . . . 181
Air Cleaner/Filter, Engine . . . . . . . 269
Air Conditioning . . . . . . . . . . . . . . . . 189
Air Filter, Passenger
Compartment . . . . . . . . . . . . . . . . . 192
Air Vents . . . . . . . . . . . . . . . . . . . . . . . 191
Airbag System Check . . . . . . . . . . . . . . . . . . . . . . . . . . 68
How Does an AirbagRestrain? . . . . . . . . . . . . . . . . . . . . . 61
Passenger Sensing System . . . . 62
What Makes an Airbag Inflate? . . . . . . . . . . . . . . . . . . . . . . . . 60
What Will You See after an Airbag Inflates? . . . . . . . . . . . . . . . 61 Airbag System (cont'd)
When Should an Airbag
Inflate? . . . . . . . . . . . . . . . . . . . . . . . . 59
Where Are the Airbags? . . . . . . . . 58
Airbags Adding Equipment to theVehicle . . . . . . . . . . . . . . . . . . . . . . . . 67
Passenger Status Indicator . . . .114
Readiness Light . . . . . . . . . . . . . . .114
Servicing Airbag-Equipped Vehicles . . . . . . . . . . . . . . . . . . . . . . . 66
System Check . . . . . . . . . . . . . . . . . . 57
Alarm Vehicle Security . . . . . . . . . . . . . . . . 34
All-Season Tires . . . . . . . . . . . . . . . . 296
All-Terrain Tires . . . . . . . . . . . . . . . . . 297
AM-FM Radio . . . . . . . . . . . . . . . . . . . 156
Antenna Multi-band . . . . . . . . . . . . . . . . . . . . 158
Antilock Brake System (ABS) . . . 233 Warning Light . . . . . . . . . . . . . . . . . .118
Appearance Care Exterior . . . . . . . . . . . . . . . . . . . . . . . 334
Interior . . . . . . . . . . . . . . . . . . . . . . . . 339
Armrest Rear Seat . . . . . . . . . . . . . . . . . . . . . . 50
Assistance Program, Roadside . . . . . . . . . . . . . . . . . . . . . . 365
Page 387 of 396
Chevrolet Colorado Owner Manual (GMNA-Localizing-U.S/Canada/Mexico-
9159327) - 2016 - crc - 8/28/15
386 Index
AudioBluetooth . . . . . . . . . . . . . . . . . . . . . 164
Theft-Deterrent Feature . . . . . . . 151
Automatic Climate Control System . . . . . . . 189
Door Locks . . . . . . . . . . . . . . . . . . . . . 32
Headlamp System . . . . . . . . . . . . 145
Transmission . . . . . . . . . . . . . . . . . 220
Transmission Fluid . . . . . . . . . . . 268
Automatic Transmission Manual Mode . . . . . . . . . . . . . . . . . 223
Shift Lock Control Function
Check . . . . . . . . . . . . . . . . . . . . . . . 282
Auxiliary Jack . . . . . . . . . . . . . . . . . . . 164
Axle, Front . . . . . . . . . . . . . . . . . . . . . . 280
Axle, Rear . . . . . . . . . . . . . . . . . . . . . . 280
B
Battery Load Management . . . . . . . . . . . . 149
Power Protection . . . . . . . . . . . . . 149
Voltage and ChargingMessages . . . . . . . . . . . . . . . . . . . 129
Battery - North America . . . . 279, 327
Blade Replacement, Wiper . . . . . 283
Blind Spot Mirrors . . . . . . . . . . . . . . . 37
Bluetooth Overview . . . . . . . . . . . 171, 172, 176 Bluetooth Audio . . . . . . . . . . . . . . . . 164
Brake
System Warning Light . . . . . . . . .117
Brakes . . . . . . . . . . . . . . . . . . . . . . . . . . 277 Antilock . . . . . . . . . . . . . . . . . . . . . . . 233
Assist . . . . . . . . . . . . . . . . . . . . . . . . . 234
Fluid . . . . . . . . . . . . . . . . . . . . . . . . . . 278
Parking . . . . . . . . . . . . . . . . . . . . . . . 233
System Messages . . . . . . . . . . . . 130
Braking . . . . . . . . . . . . . . . . . . . . . . . . . 195
Break-In, New Vehicle . . . . . . . . . . 211
Bulb Replacement . . . . . . . . . . . . . . 286 Center High-MountedStoplamp (CHMSL) and
Cargo Lamp . . . . . . . . . . . . . . . . . 286
Fog Lamps . . . . . . . . . . . . . . . . . . . 146
Halogen Bulbs . . . . . . . . . . . . . . . . 284
Headlamp Aiming . . . . . . . . . . . . . 284
Headlamps . . . . . . . . . . . . . . . . . . . 284
Headlamps, Front Turn Signal, Sidemarker, and
Parking Lamps . . . . . . . . . . . . . . 284
Taillamps, Turn Signal, Stoplamps, and Back-up
Lamps . . . . . . . . . . . . . . . . . . . . . . 285
Buying New Tires . . . . . . . . . . . . . . . 310
C
Calibration . . . . . . . . . . . . . . . . . . . . . . 104
California Fuel Requirements . . . . . . . . . . . 246
Perchlorate MaterialsRequirements . . . . . . . . . . . . . . . 259
California Proposition
65 Warning . . . . . . . . . .259, 279, 327
Camera
Rear Vision (RVC) . . . . . . . . . . . . 240
Canadian Vehicle Owners . . . . . . . . 2
Capacities and Specifications . . . . . . . . . . . . . . . . . 358
Carbon Monoxide Engine Exhaust . . . . . . . . . . . . . . . 219
Tailgate . . . . . . . . . . . . . . . . . . . . . . . . . 33
Winter Driving . . . . . . . . . . . . . . . . 203
Cargo Lamp . . . . . . . . . . . . . . . . . . . . 147
Caution, Danger, and Warning . . . . 3
Center Console Storage . . . . . . . . 100
Center High-Mounted
Stoplamp (CHMSL) and
Cargo Lamp . . . . . . . . . . . . . . . . . . . 286
Chains, Tire . . . . . . . . . . . . . . . . . . . . 314
Charging System Light . . . . . . . . . 115
Check Ignition Transmission Lock . . . 282
Page 388 of 396
Chevrolet Colorado Owner Manual (GMNA-Localizing-U.S/Canada/Mexico-
9159327) - 2016 - crc - 8/28/15

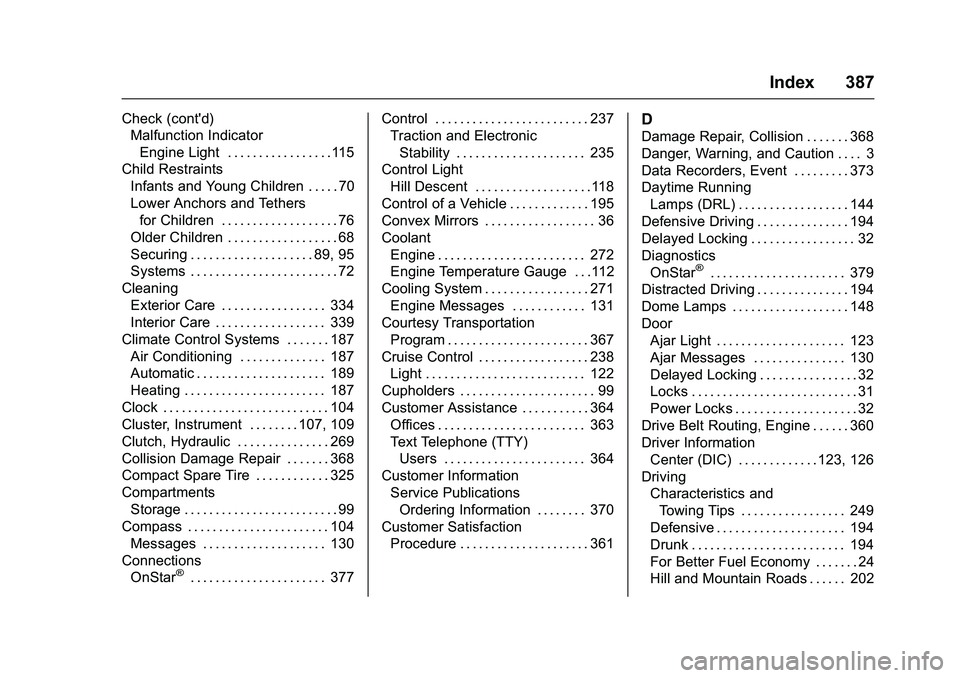

Index 387
Check (cont'd)Malfunction Indicator
Engine Light . . . . . . . . . . . . . . . . .115
Child Restraints
Infants and Young Children . . . . . 70
Lower Anchors and Tethersfor Children . . . . . . . . . . . . . . . . . . . 76
Older Children . . . . . . . . . . . . . . . . . . 68
Securing . . . . . . . . . . . . . . . . . . . . 89, 95
Systems . . . . . . . . . . . . . . . . . . . . . . . . 72
Cleaning Exterior Care . . . . . . . . . . . . . . . . . 334
Interior Care . . . . . . . . . . . . . . . . . . 339
Climate Control Systems . . . . . . . 187
Air Conditioning . . . . . . . . . . . . . . 187
Automatic . . . . . . . . . . . . . . . . . . . . . 189
Heating . . . . . . . . . . . . . . . . . . . . . . . 187
Clock . . . . . . . . . . . . . . . . . . . . . . . . . . . 104
Cluster, Instrument . . . . . . . . 107, 109
Clutch, Hydraulic . . . . . . . . . . . . . . . 269
Collision Damage Repair . . . . . . . 368
Compact Spare Tire . . . . . . . . . . . . 325
Compartments
Storage . . . . . . . . . . . . . . . . . . . . . . . . . 99
Compass . . . . . . . . . . . . . . . . . . . . . . . 104 Messages . . . . . . . . . . . . . . . . . . . . 130
Connections OnStar
®. . . . . . . . . . . . . . . . . . . . . . 377 Control . . . . . . . . . . . . . . . . . . . . . . . . . 237
Traction and Electronic
Stability . . . . . . . . . . . . . . . . . . . . . 235
Control Light Hill Descent . . . . . . . . . . . . . . . . . . .118
Control of a Vehicle . . . . . . . . . . . . . 195
Convex Mirrors . . . . . . . . . . . . . . . . . . 36
Coolant Engine . . . . . . . . . . . . . . . . . . . . . . . . 272
Engine Temperature Gauge . . .112
Cooling System . . . . . . . . . . . . . . . . . 271
Engine Messages . . . . . . . . . . . . 131
Courtesy Transportation Program . . . . . . . . . . . . . . . . . . . . . . . 367
Cruise Control . . . . . . . . . . . . . . . . . . 238 Light . . . . . . . . . . . . . . . . . . . . . . . . . . 122
Cupholders . . . . . . . . . . . . . . . . . . . . . . 99
Customer Assistance . . . . . . . . . . . 364 Offices . . . . . . . . . . . . . . . . . . . . . . . . 363
Text Telephone (TTY)Users . . . . . . . . . . . . . . . . . . . . . . . 364
Customer Information Service PublicationsOrdering Information . . . . . . . . 370
Customer Satisfaction
Procedure . . . . . . . . . . . . . . . . . . . . . 361
D
Damage Repair, Collision . . . . . . . 368
Danger, Warning, and Caution . . . . 3
Data Recorders, Event . . . . . . . . . 373
Daytime RunningLamps (DRL) . . . . . . . . . . . . . . . . . . 144
Defensive Driving . . . . . . . . . . . . . . . 194
Delayed Locking . . . . . . . . . . . . . . . . . 32
Diagnostics OnStar
®. . . . . . . . . . . . . . . . . . . . . . 379
Distracted Driving . . . . . . . . . . . . . . . 194
Dome Lamps . . . . . . . . . . . . . . . . . . . 148
Door Ajar Light . . . . . . . . . . . . . . . . . . . . . 123
Ajar Messages . . . . . . . . . . . . . . . 130
Delayed Locking . . . . . . . . . . . . . . . . 32
Locks . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
Power Locks . . . . . . . . . . . . . . . . . . . . 32
Drive Belt Routing, Engine . . . . . . 360
Driver Information
Center (DIC) . . . . . . . . . . . . . 123, 126
Driving Characteristics andTowing Tips . . . . . . . . . . . . . . . . . 249
Defensive . . . . . . . . . . . . . . . . . . . . . 194
Drunk . . . . . . . . . . . . . . . . . . . . . . . . . 194
For Better Fuel Economy . . . . . . . 24
Hill and Mountain Roads . . . . . . 202
Page 389 of 396
Chevrolet Colorado Owner Manual (GMNA-Localizing-U.S/Canada/Mexico-
9159327) - 2016 - crc - 8/28/15
388 Index
Driving (cont'd)If the Vehicle is Stuck . . . . . . . . . 204
Loss of Control . . . . . . . . . . . . . . . 196
Off-Road . . . . . . . . . . . . . . . . . . . . . 197
Off-Road Recovery . . . . . . . . . . . 196
Vehicle Load Limits . . . . . . . . . . . 205
Wet Roads . . . . . . . . . . . . . . . . . . . 201
Winter . . . . . . . . . . . . . . . . . . . . . . . . 203
E
Electrical Equipment,
Add-On . . . . . . . . . . . . . . . . . . . . . . . 257
Electrical System Engine Compartment Fuse
Block . . . . . . . . . . . . . . . . . . . . . . . . 288
Fuses . . . . . . . . . . . . . . . . . . . . . . . . 287
Instrument Panel Fuse Block . . . . . . . . . . . . . . . . . . . . . . . . 292
Overload . . . . . . . . . . . . . . . . . . . . . 287
Emergency OnStar
®. . . . . . . . . . . . . . . . . . . . . . 376
Engine Air Cleaner/Filter . . . . . . . . . . . . . 269
Check and Service EngineSoon Light . . . . . . . . . . . . . . . . . . .115
Compartment Overview . . . . . . . 262
Coolant . . . . . . . . . . . . . . . . . . . . . . . 272
Coolant Heater . . . . . . . . . . . . . . . 215 Engine (cont'd)
Coolant Temperature
Gauge . . . . . . . . . . . . . . . . . . . . . . .112
Cooling System . . . . . . . . . . . . . . . 271
Cooling System Messages . . . 131
Drive Belt Routing . . . . . . . . . . . . 360
Exhaust . . . . . . . . . . . . . . . . . . . . . . 219
Fan . . . . . . . . . . . . . . . . . . . . . . . . . . . 276
Oil Life System . . . . . . . . . . . . . . . 267
Oil Messages . . . . . . . . . . . . . . . . . 131
Oil Pressure Light . . . . . . . . . . . . 121
Overheating . . . . . . . . . . . . . . . . . . 274
Power Messages . . . . . . . . . . . . . 132
Running While Parked . . . . . . . . 220
Starting . . . . . . . . . . . . . . . . . . . . . . . 213
Entry Lighting . . . . . . . . . . . . . . . . . . . 148
Equipment, Towing . . . . . . . . . . . . . 254
Event Data Recorders . . . . . . . . . . 373
Exit Lighting . . . . . . . . . . . . . . . . . . . . 148
Extender, Safety Belt . . . . . . . . . . . . 55
Exterior Lamp Controls . . . . . . . . . 143
Exterior Lamps Off Reminder . . . 144
F
Fan Engine . . . . . . . . . . . . . . . . . . . . . . . . 276 Filter,
Engine Air Cleaner . . . . . . . . . . . 269
Flash-to-Pass . . . . . . . . . . . . . . . . . . . 144
Flashers, Hazard Warning . . . . . . 146
Flat Tire . . . . . . . . . . . . . . . . . . . . . . . . 315 Changing . . . . . . . . . . . . . . . . . . . . . 316
Floor Mats . . . . . . . . . . . . . . . . . . . . . . 341
Fluid
Automatic Transmission . . . . . . 268
Brakes . . . . . . . . . . . . . . . . . . . . . . . . 278
Four-Wheel DriveTransfer Case . . . . . . . . . . . . . . . 226
Washer . . . . . . . . . . . . . . . . . . . . . . . 276
Fog Lamps Bulb Replacement . . . . . . . . . . . . 146
Forward Collision Alert
(FCA) System . . . . . . . . . . . . . . . . . 242
Four-Wheel Drive . . . . . . . . . . 226, 279
Frequency Statement Radio . . . . . . . . . . . . . . . . . . . . . . . . . 371
Front Axle . . . . . . . . . . . . . . . . . . . . . . 280
Front Fog Lamp
Light . . . . . . . . . . . . . . . . . . . . . . . . . . 122
Front Seats Adjustment . . . . . . . . . . . . . . . . . . . . . 45
Heated . . . . . . . . . . . . . . . . . . . . . . . . . 47
Fuel . . . . . . . . . . . . . . . . . . . . . . . . . . . . 245 Additives . . . . . . . . . . . . . . . . . . . . . 246
Page 390 of 396
Chevrolet Colorado Owner Manual (GMNA-Localizing-U.S/Canada/Mexico-
9159327) - 2016 - crc - 8/28/15

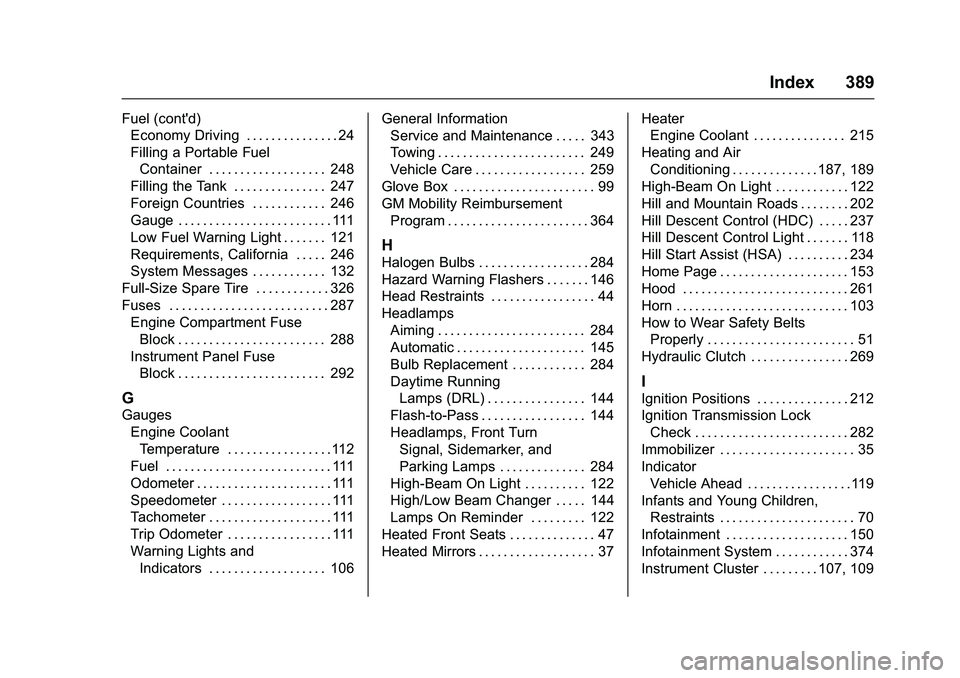

Index 389
Fuel (cont'd)Economy Driving . . . . . . . . . . . . . . . 24
Filling a Portable Fuel
Container . . . . . . . . . . . . . . . . . . . 248
Filling the Tank . . . . . . . . . . . . . . . 247
Foreign Countries . . . . . . . . . . . . 246
Gauge . . . . . . . . . . . . . . . . . . . . . . . . . 111
Low Fuel Warning Light . . . . . . . 121
Requirements, California . . . . . 246
System Messages . . . . . . . . . . . . 132
Full-Size Spare Tire . . . . . . . . . . . . 326
Fuses . . . . . . . . . . . . . . . . . . . . . . . . . . 287 Engine Compartment FuseBlock . . . . . . . . . . . . . . . . . . . . . . . . 288
Instrument Panel Fuse Block . . . . . . . . . . . . . . . . . . . . . . . . 292
G
GaugesEngine CoolantTemperature . . . . . . . . . . . . . . . . .112
Fuel . . . . . . . . . . . . . . . . . . . . . . . . . . . 111
Odometer . . . . . . . . . . . . . . . . . . . . . . 111
Speedometer . . . . . . . . . . . . . . . . . . 111
Tachometer . . . . . . . . . . . . . . . . . . . . 111
Trip Odometer . . . . . . . . . . . . . . . . . 111
Warning Lights and Indicators . . . . . . . . . . . . . . . . . . . 106 General Information
Service and Maintenance . . . . . 343
Towing . . . . . . . . . . . . . . . . . . . . . . . . 249
Vehicle Care . . . . . . . . . . . . . . . . . . 259
Glove Box . . . . . . . . . . . . . . . . . . . . . . . 99
GM Mobility Reimbursement Program . . . . . . . . . . . . . . . . . . . . . . . 364
H
Halogen Bulbs . . . . . . . . . . . . . . . . . . 284
Hazard Warning Flashers . . . . . . . 146
Head Restraints . . . . . . . . . . . . . . . . . 44
Headlamps
Aiming . . . . . . . . . . . . . . . . . . . . . . . . 284
Automatic . . . . . . . . . . . . . . . . . . . . . 145
Bulb Replacement . . . . . . . . . . . . 284
Daytime RunningLamps (DRL) . . . . . . . . . . . . . . . . 144
Flash-to-Pass . . . . . . . . . . . . . . . . . 144
Headlamps, Front Turn Signal, Sidemarker, and
Parking Lamps . . . . . . . . . . . . . . 284
High-Beam On Light . . . . . . . . . . 122
High/Low Beam Changer . . . . . 144
Lamps On Reminder . . . . . . . . . 122
Heated Front Seats . . . . . . . . . . . . . . 47
Heated Mirrors . . . . . . . . . . . . . . . . . . . 37 Heater
Engine Coolant . . . . . . . . . . . . . . . 215
Heating and Air Conditioning . . . . . . . . . . . . . . 187, 189
High-Beam On Light . . . . . . . . . . . . 122
Hill and Mountain Roads . . . . . . . . 202
Hill Descent Control (HDC) . . . . . 237
Hill Descent Control Light . . . . . . . 118
Hill Start Assist (HSA) . . . . . . . . . . 234
Home Page . . . . . . . . . . . . . . . . . . . . . 153
Hood . . . . . . . . . . . . . . . . . . . . . . . . . . . 261
Horn . . . . . . . . . . . . . . . . . . . . . . . . . . . . 103
How to Wear Safety Belts Properly . . . . . . . . . . . . . . . . . . . . . . . . 51
Hydraulic Clutch . . . . . . . . . . . . . . . . 269
I
Ignition Positions . . . . . . . . . . . . . . . 212
Ignition Transmission Lock Check . . . . . . . . . . . . . . . . . . . . . . . . . 282
Immobilizer . . . . . . . . . . . . . . . . . . . . . . 35
Indicator
Vehicle Ahead . . . . . . . . . . . . . . . . .119
Infants and Young Children, Restraints . . . . . . . . . . . . . . . . . . . . . . 70
Infotainment . . . . . . . . . . . . . . . . . . . . 150
Infotainment System . . . . . . . . . . . . 374
Instrument Cluster . . . . . . . . . 107, 109
