2016 CADILLAC CTS technical data

Cadillac CTS/CTS-V Owner Manual (GMNA-Localizing-MidEast-9369309) -
2016 - crc - 7/30/15
ContentsIntroduction . . . . . . . . . . . . . . . . . . . . . . 2
In Brief . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Keys, Doors, and Windows . . . . . 28
Seats and Restraints . . . . . . . . . . . 51
Storage . . . . . . . . . . . . . . . . . . . . . . . 100
Instruments and Controls . . . . . . 103
Lighting . . . . . . . . . . . . . . . . . . . . . . . 155
Infotainment System . . . . . . . . . . 163
Climate Controls . . . . . . . . . . . . . . 169
Driving and Operating . . . . . . . . . 178
Vehicle Care . . . . . . . . . . . . . . . . . . 249
Service and Maintenance . . . . . 328
Technical Data . . . . . . . . . . . . . . . . 337
Customer Information . . . . . . . . . 342
Index . . . . . . . . . . . . . . . . . . . . 344

Cadillac CTS/CTS-V Owner Manual (GMNA-Localizing-MidEast-9369309) -
2016 - crc - 7/30/15
Technical Data 337
Technical Data
Vehicle Identification
Vehicle IdentificationNumber (VIN) . . . . . . . . . . . . . . . 337
Service Parts Identification Label . . . . . . . . . . . . . . . . . . . . . . . . 337
Vehicle Data
Capacities andSpecifications . . . . . . . . . . . . . . . 338
Engine Drive Belt Routing . . . . 341
Vehicle Identification
Vehicle Identification
Number (VIN)
This legal identifier is in the front
corner of the instrument panel, on
the left side of the vehicle. It can be
seen through the windshield from
outside. The VIN also appears on
the Vehicle Certification and Service
Parts labels and certificates of title
and registration.
Engine Identification
The eighth character in the VIN is
the engine code. This code
identifies the vehicle's engine,
specifications, and replacement
parts. See “Engine Specifications”
under Capacities and Specifications
0 338 for the vehicle's engine code.
Service Parts
Identification Label
This label, under the floor cover in
the trunk on the passenger side,
has the following information:
.
Vehicle Identification
Number (VIN).
. Model designation.
. Paint information.
. Production options and special
equipment.
Do not remove this label from the
vehicle.

Cadillac CTS/CTS-V Owner Manual (GMNA-Localizing-MidEast-9369309) -
2016 - crc - 7/30/15
338 Technical Data
Vehicle Data
Capacities and Specifications
The following approximate capacities are given in metric and English conversions. SeeRecommended Fluids and
Lubricants 0333 for more information.
Application Capacities
Metric English
Air Conditioning Refrigerant For the air conditioning system refrigerant type and charge amount, see the refrigerant label under thehood. See your dealer for more information.
Cooling System– Engine
2.0L L4 Engine 8.8 L9.3 qt
3.6L V6 Engine (LGX) 10 L10.7 qt
3.6L V6 Engine (LF3) 12.8 L13.5 qt
6.2L V8 Engine (V-Series) 12.2 L12.9 qt
Engine Oil with Filter 2.0L L4 Engine RWD 4.7 L5.0 qt
2.0L L4 Engine AWD 5.7 L6.0 qt
3.6L V6 Engine (LGX) RWD 5.2 L5.5 qt
3.6L V6 Engine (LF3) 6.6 L7.0 qt
6.2L V8 Engine (V-Series) 9.5 L10.0 qt

Cadillac CTS/CTS-V Owner Manual (GMNA-Localizing-MidEast-9369309) -
2016 - crc - 7/30/15

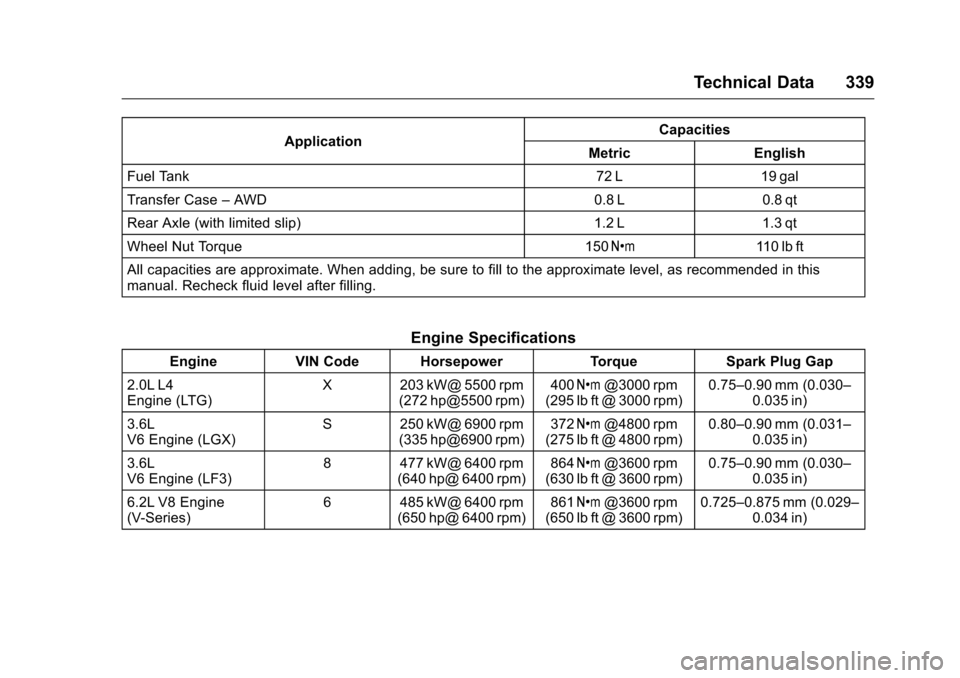

Technical Data 339
ApplicationCapacities
Metric English
Fuel Tank 72 L 19 gal
Transfer Case –AWD 0.8 L0.8 qt
Rear Axle (with limited slip) 1.2 L1.3 qt
Wheel Nut Torque 150Y 110 lb ft
All capacities are approximate. When adding, be sure to fill to the approximate level, as recommended in this
manual. Recheck fluid level after filling.
Engine Specifications
Engine VIN Code Horsepower TorqueSpark Plug Gap
2.0L L4
Engine (LTG) X 203 kW@ 5500 rpm
(272 hp@5500 rpm) 400
Y @3000 rpm
(295 lb ft @ 3000 rpm) 0.75–0.90 mm (0.030–
0.035 in)
3.6L
V6 Engine (LGX) S 250 kW@ 6900 rpm
(335 hp@6900 rpm) 372
Y @4800 rpm
(275 lb ft @ 4800 rpm) 0.80–0.90 mm (0.031–
0.035 in)
3.6L
V6 Engine (LF3) 8 477 kW@ 6400 rpm
(640 hp@ 6400 rpm) 864
Y @3600 rpm
(630 lb ft @ 3600 rpm) 0.75–0.90 mm (0.030–
0.035 in)
6.2L V8 Engine
(V-Series) 6 485 kW@ 6400 rpm
(650 hp@ 6400 rpm) 861
Y @3600 rpm
(650 lb ft @ 3600 rpm) 0.725–0.875 mm (0.029–
0.034 in)

Cadillac CTS/CTS-V Owner Manual (GMNA-Localizing-MidEast-9369309) -
2016 - crc - 7/30/15
340 Technical Data
Vehicle Top Speed
Vehicle Top SpeedMetricEnglish
2.0L L4 Engine (LTG) 200 km/h124 mph
3.6L V6 Engine (LGX) 240 km/h149 mph
3.6L V6 Engine (LF3) TBD km/hTBD mph
6.2L V8 Engine (V-Series) TBD km/hTBD mph

Cadillac CTS/CTS-V Owner Manual (GMNA-Localizing-MidEast-9369309) -
2016 - crc - 7/30/15
Technical Data 341
Engine Drive Belt Routing
2.0L L4 Engine
3.6L V6 Engine
6.2L V8 Engine
