Opening and closin g
"'Se lect : the IMENU ! button> Car> Syste m s*
contro l button > V ehicl e settin gs > Central
loc king > Door unlock ing.
Select ing All and pressing the~ button on the
remote control key un locks the entire vehicle .
I f you select
Dri ver and then press the~ button
on the remote contro l key , o nl y the drive r's door
will unlo ck. In veh icles w ith a convenience key,
only the front door whose handle you pull will
un lock . If you pr ess the ~ button twic e, the en ­
tire veh icle w ill unlock. If you press the~ button,
the entire vehicle w ill always lo ck.
F olding * th e ex ter ior m irrors
"'Se lect : the IMENU ! button> Car > Sy stem s*
contro l button > Ve hicl e s ett ing s > Central
lo ck ing > Fold m irro rs.
For more information,
refer to
c> page 50, Adjusting the exterior
mirrors.
If you select On , the exter ior mirrors wi ll fold in
automatically when you press the~ button on
the remote control key <=>
page 50.
T on e wh en locking
"' Se lect : the IMENU ! button> Car> S yst em s*
contro l button > V ehicl e sett ing s > Ce ntral
loc king > Tone wh en lo cking.
When checked off./, a tone will sou nd when you
lock the vehicle .
I f you press the~ button twice , the entire veh i­
cle will lock. There is a locking to ne at the same
time
1l.
Electronic immobilizer
The immobilizer prevents unauthorized use of
your vehicle.
A microch ip in the key automat ically deactivates
the electronic immob ilizer when the key is locat­
ed in the vehicle. If yo u remove the key from the
ve hicle, the electro nic immobilize r activates
again a utomat ica lly.
l) Th is fun ction is not a vail able in al l co un tries.
40
A WARNING ,_ -
A lways take the key w ith you whenever you
leave your veh icle. The electronic immobilizer
can be deactivated with the key, so this could make it possible for unauthorized persons to
start the engine and operate vehi cle systems
such as the power windows or sun roof. This
can increase the ris k of serious injury .
(D Tips
-The veh icle cannot be started if an unau­
tho rized key is used. It may not be possib le
to start the veh icle unde r ce rtain c ircum­
stances, for examp le if there is ano ther ra­
dio module like the key from another vehi ­
cle or a transponder on the same keychai n.
- For an exp lanation on conformity w ith the
FCC regulations in the Un ited States and the
Industry Canada regulations, refer to
<=> page 309.
Safety central locking
App lies to vehicles : wit h safety cent ra l locking
Sa fety central locking provides the possib ility , to
only un lock the dr iver 's door and the fuel filler
door . The rest of the vehicle remains locked .
Unlocking the driver's door and the fuel filler
doo r
"' Press the remote control key or convenience
key
[§il button once or turn the key once in the
open ing d irection .
Unlocking all doors , the luggag e
compartment lid and th e fu el filler door
"' Press the remote control key or convenience
key
[§il button twice within five seconds or turn
the key
twice w ithin five seconds in the opening
di rect ion.
When unlock ing just the driver 's door, the a nti­
theft alarm system* is also immediately deacti­
vated .
In veh icles with an MMI, you can directly adjust
the safety central locking
c> page 39 .

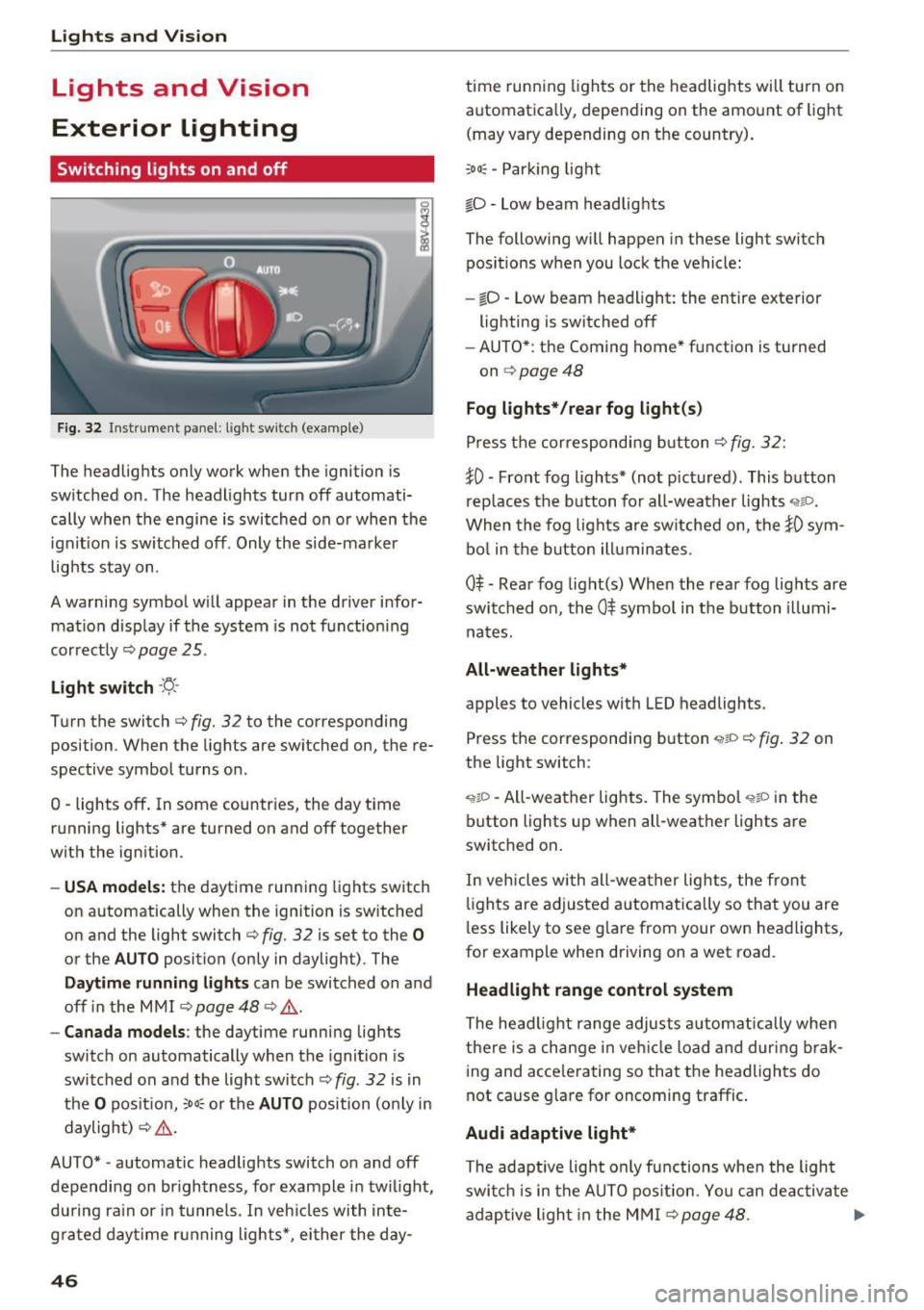

Lights and Vision
Lights and Vision
Exterior lighting
Switching lights on and off
Fig. 32 Instrument pa nel: lig ht sw it c h (ex am ple)
I
The headlights only work when the ignition is
sw itched on . The headlights turn off automati­
cally when the engine is switched on or when the
ignit ion is switched off . Only the side-marker
lights stay on .
A warning symbol w ill appear in the driver infor­
mat ion disp lay if the system is not functioning
correctly ¢page 25.
Light switch ·f!-·
Turn the switch¢ fig. 32 to the corresponding
posi tion . When the ligh ts are sw itched on, the re­
spective symbol turns on .
O -lights off . In som e countr ies, th e day tim e
r unning lights * are turned on and off together
with the ign ition.
- USA mode ls: the daytime running lights switch
on automatically when th e ignition is switched
on and the light switch ¢ fig. 32 is set to the
0
or the AUTO position (only in daylight) . The
Daytime runn ing lights can be switched on and
off in the MMI ¢ page 48 ¢
,&..
-Canad a models : the daytime runni ng lights
switch on automatically when the ignit ion is
switched on and the light switch¢ fig . 32 is in
the
O pos it ion, :oo~ or the AUTO position (only in
daylight)
~ ,&. .
AU TO* -automatic headlights switch o n and off
dependi ng on br igh tness, for example in tw ilight,
du ring ra in or in tunne ls. In veh icles with inte­
g ra ted day time r unning lights*, ei ther the day-
46
time runn ing lights or the headlights will turn on
automatica lly, depending on the amount of light
(may vary depending on the country) .
;oo~ -Par king light
iD -low beam headlig hts
The following w ill happen in these light switch
pos itions when you lock the vehicle:
- io -Low beam headlight: the entire exterior
lighting is switched off
- AU TO* : the Coming home* f unction is turned
on ¢page48
Fog lights* /rear fog light (s )
Press the cor respondi ng b utton ¢fig. 32:
~0 -Front fog ligh ts* (not pictured) . This b utton
r ep laces the b utton for all-weath er lights
"1io.
When the fog lig hts are sw itched on, the }0 sym­
bo l in the b utton ill uminates.
0$ -Rear fog light(s) When the rear fog lights are
swi tched on, the
0$ symbo l in the b utton illumi­
na tes.
All-weather lights*
apples to vehicles with L ED headlights .
Press the correspondi ng button
'wlD ~ fig . 32 on
the light switch :
'?IP -All-wea ther lights. The symbo l "1$D in the
button lights up when all-weather lights are
switched on .
In vehicles with all-wea ther lights , the front
li g ht s are adjusted automatically so that you are
l ess likely to see g lare from your own head lights,
for example when driving on a wet road.
Headlight range control system
The head light range adjusts a utom atically whe n
there is a change in vehicl e load and during brak­
ing and acce lerating so that the headlights do
not cause g la re for oncoming traffic .
Audi adaptive light*
The adaptive light only functions when the ligh t
swi tch is in the AU TO pos it ion. Yo u can de activate
adaptive ligh t in the M MI
~ page 48. .,.

.... N
0 > CX)
.... I.Cl U"I
.... I.Cl ....
When switched on, adaptive light adjusts to
curves depending on the vehicle speed and steer­ing wheel angle. This provides better lighting
through the curve. The system operates in a
speed range from approximately 6 mph (10 km/
h) to 68 mph (110 km/h).
Static cornering light* (vehicles with adaptive
light) -the cornering light switches on automati­
cally when the steering wheel is turned at acer­
tain angle at speeds up to approximately 44 mph
(70 km/h) and when the turn signal is activated
at speeds up to approximately 25 mph (40 km/
h). The area to the side of the vehicle is illuminat­
ed better when turning.
Speed dependent light distribution* -The speed
dependent light distribution adapts the light in
towns and on highways or expressways . Intersec­
tions can also be illuminated on vehicles with a
navigation system* .
Highway light function*
(Vehicles with adaptive light or LED headlights) -
This function adapts the lighting for highway
driving based on vehicle speed .
& WARNING
-Automatic headlights* are only intended to
assist the driver. They do not relieve the
driver of responsibility to check the head­
lights and to turn them on manually accord­
ing to the current light and visibility condi­
tions. For example, fog cannot be detected by the light sensors . So always switch on the
low beam under these weather conditions
and when driving in the dark
io.
-Accidents could occur if you cannot see the
road ahead of you well and if others on the
road cannot see you . Always switch your
headlightsonsothatyoucanseetheroad
ahead of you and others can see your vehicle
from behind.
- The rear fog lights should only be turned on
in accordance with traffic regulations, to
prevent glare for traffic behind your vehicle .
-If the battery has been discharging for a
while, the parking lights may switch off au­
tomatically to conserve the battery charge
Lights and Vision
for the next time the engine is started. Al·
ways make sure your vehicle complies with
legal regulations regarding sufficient and
safe lighting when parking it. Avoid using
the parking lights for several hours.
- Please observe legal regulations when using
the lighting systems described .
@ Tips
-The light sensor for the automatic head­
lights* is in the rearview mirror mount.
Therefore, do not place any stickers in this
area on the windshield.
- Some functions of the exterior lighting can
be adjusted
¢ page 48 .
-If you turn off the ignition while the exterior
lights are on and open the door, you will
hear a warning tone.
- In some market-specific versions, the tail
lights do not turn on when switching on the
daytime running lights .
- In cool or damp weather, the inside of the
headlights, turn signals and tail lights can
fog over due to the temperature difference
between the inside and outside. They will
clear shortly after switching them on. This
does not affect the service life of the light­
ing.
- A message will appear in the instrument
cluster if there is a malfunction in the light
sensor
¢ page 25.
Emergency flasher
Fig. 33 Inst rume nt panel: e merge ncy flasher butto n
The emergency flashers makes other drivers
aware of your vehicle in dangerous situations .
N Cl) M 0
> Cl) (0
47

.... N
0 > CX)
.... I.Cl U"I
.... I.Cl ....
.. To move the head restraint down, press the
button ®
¢fig . 52 and slide the head restraint
downward .
Removing the head restraints
To remove the head res tra ints, the back res t must
be folded forward partially .
.. Remove the screwdriver from the vehicle tool
kit
r:::;, page 280 .
.. Release the backrest r:::;, page 65 .
.. Press the button @ r:::;, fig . 52 and slide the head
restraint up as far as it can go
c::> ,& .
.. Place the screwdriver in position@ in the
opening, press the button ® and pull the head
restraint out of the backrest at the same time
r:::;, _& .
.. Fold the backrest down until it latches securely
r:::;, ,& in Increasing the size of the luggage
compartment on page 65 .
Installing the head restraints
To install the head restraints , the backrest must
be folded forward partially .
.. Release the backrest
c::> page 65.
.. Slide the posts on the head restraint down into
the gu ides until you feel the posts click into
place . You should not be able to pull the head
restra int out of the backrest .
.,. Fold the backrest down until it latches securely
r:::;, ,&. in Increasing the size of the luggage
compartment on page 65 .
A WARNING
- Only remove the rear seat head restraints
when necessary in order to install a child
seat . Install the head restraint again imme­
diately once the child seat is removed. Driv­
ing with the head restra ints removed or
head restraints not in the highest position
increases the risk of serious injury .
- Read and following the WARNINGS in
r:::;, poge 170 .
-
Seats and storag e
Cigarette lighter
Applies to vehicles: with cigarette lighter
Fig. 53 Center conso le : cigarette lighte r
.,. Press the c igarette lighter in .
.,. Remove the cigarette lighter when it pops out.
The cigarette lighter should only be used as a
power source when it is absol utely necessary.
A WARNING
The cigarette lighter only works when the ig­
ni tion is switched on. Inco rrect usage can lead
to serious inj uries or burns. To reduce the ris k
of injuries, never leave children unattended in
the vehicle with the vehicle key .
(D Note
- To red uce the risk of damage to the sockets,
only use plugs that fit correctly .
- T he ciga rette lighte r socket should only be
used as a powe r source fo r electr ical acces­
sories for a short pe riod of time. The sock­
ets* in the vehicle should be used for longe r
use of power supply .
(D Tips
The vehicle battery dra ins when accessories
are tu rned on but the engine is off.
.
61

....
Eco is shown in the display. To exit "Eco" mode*,
press the
I AUTOI button again.
I• I • I Setting the temperature
The temperature can be adjusted individually for
the driver and front passenger using the dials.
Temperatures between 60 °F ( +16 °C) and 84 °F
(+28 °C) can be set. If outside of this range, LO or
HI will appear in the climate control system dis­
p lay. In both settings, the climate control runs
with constantly at the maximum cooling or heat­ ing level. The temperature is not regulated.
Synchronization: by pressing the IAUTOI button
for two seconds, the temperature setting for the
driver's side is transferred to the front passeng­
er's side. This applies a temperature change to
the front passenger's side.
~ Adjusting the blower
To prevent the windows from fogging over, the b lower should a lways run at a low speed. You can
adjust the volume of air generated by the blower
to your preference. To have the blower regulated
automatically, press the IAUTO ! button .
Adjusting the air distribution
The air distribution is adjusted with the~, U!J
and ~ buttons. To have the air distribution regu­
lated automatically, press the
IAUTOI button.
The round air vents in the cockpit are adjustable
¢page 74.
To keep the windows from fogging in damp
weather, we recommend opening the side air
vents and tilting them to the side¢
page 74,
Adjusting the air vents .
Foot vents are located under the front seats and
adjustable vents on the end of the center console
to heat the rear of the vehicle.
~ Switching the defroster on and off
The winds hield and side windows are defrosted
or cleared of condensation as quickly as possible.
The maximum amount of air flows mainly from
"' the vents below the windshield. Recirculation
0
ii; mode switches off . The temperature is controlled
~ automatically. In the [!] sett ing, the IA/Cl cooling
.... v:, ....
Warm and cold
mode switches on automatically, depending on
the outside air temperature .
T he
IAUTOI button switches the defroster off .
l"""I Switching recirculation mode on and off
The rec irculat ion mode can be turned on manual­
ly or automatically* .
- Switching manual recirculation mode on and
off: press
l"""I The LED light up when sw itched
on.
- Automatic* rec irculat ion mode: auto recircula­
tion needs to be activated in the
MMI. Select:
the
I MENU I button> Car > Systems* control
button
> AC > Auto recirculation . The air quali­
ty sensor that is designed for diesel and gaso­
line exha ust automatically switches the recircu­
lation mode on or off depending on the level of
pollutants in the outside air .
In rec ircu lation mode, the air inside the vehicle is
circulated and filtered. This prevents the unfi l­
tered air outside the vehicl e from enter ing the
vehicle interior. We recommend switching recir­
cu lation mode on when driving through a twnnel
or when sitting in traffic¢ .&..
T he
1-1 button, IAUTOI or the [ii button switches
recirculation mode off.
T he system switches to recirculation mode when
driv ing in r everse when the engine is cold.
_&. WARNING
You should not use the recirculation mode for
an extended period since no fresh air is drawn
in. With the air-conditioning switched off, the
windows can fog up, which increases the risk
of an acc ident.
73

.... N
0 > CX)
.... I.Cl U"I
.... I.Cl ....
- The seat is damp or wet.
A WARNING
Individua ls with reduced sensitivity to pain or
temperature could develop burns when using
the seat heating function. To reduce the risk
of injury, these individuals should not use
seat heat ing .
(D Note
To avoid damage to the heating elements in
the seats, do not kneel on the seats or place heavy loads on a small area of the seat.
(D Tips
- The setting for the seat heating on the driv­
er's side is ass igned to the key that is in use .
- If the front passenger 's seat heat ing is
turned on, it will not turn on again automat­
ically if more than 10 m inutes have passed
between sw itch ing the ign ition off and
switch ing it on again.
Auxiliary heater
A pp lies to vehicles: with diesel e ng in e
In cool outside temperatures, the electr ic auxi li­
ary heater helps the vehicle interior to wa rm
mo re quickly. The a uxiliary heater swi tches on
and off automatically accord ing to the vehicle
heating settings.
The "auxiliary heater " function can be sw itched
on and off in the MMI. Select: the
I MENU I button
> Car > S ystem s* contro l but ton > AC > Au xilia ry
heat er (fuel ).
Warm and cold
Engine preheater
Applies to vehicles: wi th engine prehea te r
( )
Fig. 75 Left fron t bump er: connecto r socke t@ for th e en ·
gine prehea ter
T he engine preheater s lowly warms the engine
coolant using a heating element when the vehicle
is parked. For this function, the cable provided
must be connected to a 120 Volt socket that is
protected from water and t hat is grounded a nd
equipped with a GFI circu it breaker, for example
in a ga rage. The engine reaches operating tem­
perature much more quickly afte r sta rting when
t h e coolant is preheated . This reduces fuel con­
s u mption and exha ust emissions dur ing the
warm-up phase.
Preheat ing the engine can take up to 3 hours de­
pend ing on the temperature o utside.
Connecting the engine preheat er
- Only use the connector cable provided and a
suitable extension cord, if necessary .
- All cables and connectors that are used must not be damaged
~ li::,. .
-Open the cover(!).
- Plug the connector cable into the socket @.
- If necessary, plug the connector cable into the
extension cord. Only use highly durab le exten­
sion co rds that are class 12 or better and can
be properly grounded to a three-prong wall
socket with a GFI circuit breaker and that are
not longe r than 100 feet (30 meters) .
- Plug the connector cable or extension cord into
a grounded 120 Volt wall socket that is pro­
tected by a GFI circuit breaker and that is pro­
tected against rain and other moisture. Never p lug the engine preheater into a conventiona l .._
75

Warm and cold
outlet, regardless of whether it is protected
against a short circuit or not.
- Always disconnect the connector cable and
close the cover
(D before starting the engine.
.&_ WARNING
Using the engine preheater incorrectly can
cause short circuits, electric shocks, fire, seri­
ous injuries and death.
- The connector cable must always be con­
nected to a grounded 120 Volt socket that
is equipped with a GFI circuit breaker . Al­
ways protect the sockets from water, mois ­
ture and other fluids .
- Never plug the engine preheater into a con­
ventional outlet, regardless of whether it is protected against a short circuit or not .
.&_ WARNING
-
Short circuiting, fire, serious injuries and life­
threatening or lethal electric shock can result
from using unsuitable or damaged sockets and connector cables/extension cords, using
electrical equipment incorrectly, and/or disre­
garding general safety precautions.
- Always plug the extension cord into a 120 V
socket that is properly functioning, ground­
ed, equipped with a GFI circuit breaker and
is protected against water, moisture and
other fluids.
- Never connect the engine preheater to a
conventional socket, even if the socket is
protected by a fuse.
- Always check the fuse on the 120 Volt GFI
socket before connecting the connector ca­
ble to the engine preheater on the vehicle.
- Only use highly durable extension cords that
are class 12 or better and can be properly grounded to a three-prong wall socket with
a GFI circuit breaker . The extension cord
must not be longer than 100 feet (30 me­
ters).
- Never use damaged connector cables, ex­
tension cords or sockets . Always check the
connector cable, extension cord and sockets
for damage before using them. Damaged
parts must be replaced. If damaged, replace
76
the engine preheater connector cable at an
authorized Audi dealer or authorized Audi
service facility .
- Only use the connector cable provided to
connect the vehicle socket to a suitable
power source. Use a suitable extension cord
if necessary .
- Always disconnect the connector cable from
the vehicle socket before starting the en­
gine. Switch off the power supply to the
connector cable and to the extension cord if necessary, or disconnect the cable or exten­
sion cord from the 120 Volt socket equip­
ped with a GFI circuit breaker. Never leave
the connector cable or extension cord con­
nected to a live power source.
- Never make alterations or repairs to the
connector cables or extension cords that
supply power to the engine preheater or to
any components that affect the engine pre­
heater.
- Always protect the connections from water,
moisture and other fluids. Always store the
connector cable and extension cord securely
and in a dry place when they are not being
used, and disconnect them from the power
source before storing .
(D Tips
Test the GFI circuit breaker once a month if
you use the engine preheater occasionally, and test it weekly if you use it regularly.

,....,
N
0 > co ,...., Driving
General information
The first 1,000 miles (1,500 km) and afterwards
The new engine needs to be run-in during the
first 1,000 miles (1,500 km).
For the first 600 mile s (1,000 kilom eter s):
.,. Do not use full throttle.
.,. Do not drive at engine speeds that are more
than 2/3 of the max imum permitted RPM .
.,. Avo id high engine speeds .
From 600 to 1,000 mile s (1 ,000 to
1 ,500 kilomete rs ):
.,. Speeds can gradually be increased to the maxi­
mum perm issible road or engine speed.
During and aft er bre ak-in pe riod
.,. Do not rev the engine up to high speeds when it
is cold. This applies whether the transmission is
in
N (Neutral) or in gear .
After th e br eak-in p eriod
.,. Do not exceed maximum engine speed under
any circumstances .
.,. Upshift into the next higher gear
before reach­
ing the red area at the end of the tachometer
scale
opage 10.
During the first few hours of driving, the engine's
internal friction is higher than later when all the
mov ing parts have been broken in. How well this
break-in process is done depends to a considera­
b le extent on the way the veh icle is driven during
the first 1,000 miles (1,500 kilometers).
CD Note
Extremely high eng ine speeds are automati­
cally reduced. However, these rpm lim its are
programmed for an engine well run-in, not a
new engine.
@) For the sake of the environment
Do not dr ive with unnecessarily high eng ine
speeds -upshifting early saves fuel, reduces
noise and protects the environment.
D riv ing
Driving through water on roads
Note the following to avo id vehicle damage when
driv ing th rough water, for example on flooded
roads:
- The water must not be any higher than the bot­
tom of the vehicle body .
- Do not drive faster than walk ing speed .
.&, WARNING ..__
After driv ing through water or mud, the brak­
i ng effect can be reduced d ue to moistu re on
the brake d iscs and bra ke pads. A few careful
brake applications should dry off the brakes.
CD Note
Vehicle components such as the engine,
transmission, suspension o r electrical system
can be severely damaged by d riving throug h
water.
(D Tips
- Determine the depth before dr iving through
water.
- Do not stop the vehicle, d rive in reverse or
switch t he engine off when d riving through
water .
- Keep in mind that oncom ing vehicles may
create waves that raise the water level and
ma ke it too deep for yo ur vehicle to drive
through safe ly.
- Avoid dr iv ing th rough salt wate r (cor rosion) .
Economical and environ­
mentally-friendly driving
General
Your personal style of driving will determine the
economy of your vehicle, as well as exhaust and
noise levels.
Fuel economy, env ironmental impact, and wear
on your engine, brakes and t ires largely depend
on three factors:
- your personal driving style
- operat ing cond itions
- technical limitations
77
