Lights and Vision
Instrument illumination
The brightness of the instrument cluster and the
center console can be adjusted .
Fig. 37 Instrument ill umination
Requirement: the light must be switched on.
~ Press the knob to release it .
~ Turn the knob toward"-" or"+" to reduce or in
crease the brightness.
~ Press the knob again to return it to its original
position.
(D Tips
The needles and gauges in the instrument cluster illuminate when the headlights are off
and the ignition is switched one. The illumina
tion reduces automatically and eventually
turns off as brightness outside decreases.
This function reminds the driver to turn the
headlights on at the appropriate time.
Vision
Adjusting the exterior mirrors
Fig. 38 Driver's door: knob for the ex ter ior mirrors (exam
ple)
Turn the knob to the desired position:
50
0 - All adjustment functions are deactivated.
q;p -adjusting the left/right exterior mirror.
Move the knob in the desired direction.
4#1 -Heating* the mirror glass depending on the
outside temperature.
8 -Folding exterior mirrors*. You can select if
the mirrors fold in automatically when you lock
the vehicle In the
MMI* ~ page 40.
Front passenger's exterior mirror tilt
function*
To help you see the curb when backing into a
parking space, the surface of the mirror tilts
slightly. For this to happen, the knob must be in
the position for the front passenger's outside mirror.
You can adjust the tilted mirror surface by turn ing the knob in the desired direction . When you
move out of reverse and into another gear, the
new mirror position is stored and assigned to the
key you are using.
The mirror goes back into its original position
once you drive forward faster than 9 mph (15 km/h) or turn the ignition off.
.&, WARNING
Curved mirror surfaces (convex) enlarge the
field of vision. However, they make objects in the mirror appear smaller and further away.
Your may estimate incorrectly when you use
these mirrors to gauge your distance from the
vehicles behind you when changing lanes -ac
cident risk!
(D Note
- Applies to vehicles with power folding out
side mirrors*: if the mirror housing was
moved by outside forces (such as an impact
when maneuvering), you must use the pow er folding function to fold the mirror all the
way out. You will hear a loud noise when the
mirrors are latched back in place. The mirror
housing must not be moved back into place
by hand because this would impair the func
tion of the mirror mechanism.
-
.... N
0 > CX)
rl I.Cl U"I
rl I.Cl ....
Power seat adjustment
Applies to vehicles: with power adjustable seats
Fig. 48 Front se at: po wer se at adjust men t
@ -Adjusting the lumbar support: press the but
ton in the applicable position .
@-moving the seat up/down : press the button
up/down. To adjust the front seat cushion, press
t he fron t button up/down. To adjust the rear seat
cushion, press the rear button up/down .
@-moving the seat forward/back: press the
but ton forward/back.
© -adjusting the backrest angle : press the but
ton forward/back.
@ -lengthening/shortening the upper thigh sup
port* : lift the grip handle.
A WARNING
- Only adjust the front seat with when the ve
hicle is stationary. Otherwise, this increases
the risk of an accident
- The power adjustment for the front seats al
so works with the ignition switched off or
with the ignition key removed. For this rea
son, children should never be left unattend
ed in the vehicle - they could be injured!
- Exercise caution when adjusting the seat
height. Unsupervised or careless seat ad
justment can pinch fingers or hands causing
injuries .
- The front seat backrests must not be re
clined too far back when driving, because
this impairs the effectiveness of the safety
belts and airbag system, which increases
the risk of injury.
Seats and storage
-To reduce the risk of injury during sudden
braking or in a collision, the driver and front
passenger should not have their backrests in
the reclined position while driving or riding .
The safety belts and airbag system can pro
vide the greatest protection possible when
the backrests are in the upright position and
the safety belts are worn correctly. The
more a backrest is reclined, the greater the
risk of injury due to an incorrect seating po
sition and safety belt position.
Front center armrest
Applies to vehicles: with front center a rm rest
The center armrest can be adjusted to several
l e ve ls.
Fig. 49 Armre st between th e driv er's /fro nt pa ssenger 's
s eats.
.,. To adjust the angle, raise the armrest~ fig. 49
notch by notch.
.,. To bring the armrest back down, raise it out of
the top notch and fold it back down. Then
lift
the armrest to the desired position, if necessa
ry.
Please note that the driver 's ability to move his or
arm may be restricted when the armrest is folded
down. Because of this, the armrest should not be
folded down during city driving .
The armrest can slide forward and back.
There is a storage compartment under the arm
rest .
59
.... N
0 > CX)
.... I.Cl U"I
.... I.Cl ....
.. To move the head restraint down, press the
button ®
¢fig . 52 and slide the head restraint
downward .
Removing the head restraints
To remove the head res tra ints, the back res t must
be folded forward partially .
.. Remove the screwdriver from the vehicle tool
kit
r:::;, page 280 .
.. Release the backrest r:::;, page 65 .
.. Press the button @ r:::;, fig . 52 and slide the head
restraint up as far as it can go
c::> ,& .
.. Place the screwdriver in position@ in the
opening, press the button ® and pull the head
restraint out of the backrest at the same time
r:::;, _& .
.. Fold the backrest down until it latches securely
r:::;, ,& in Increasing the size of the luggage
compartment on page 65 .
Installing the head restraints
To install the head restraints , the backrest must
be folded forward partially .
.. Release the backrest
c::> page 65.
.. Slide the posts on the head restraint down into
the gu ides until you feel the posts click into
place . You should not be able to pull the head
restra int out of the backrest .
.,. Fold the backrest down until it latches securely
r:::;, ,&. in Increasing the size of the luggage
compartment on page 65 .
A WARNING
- Only remove the rear seat head restraints
when necessary in order to install a child
seat . Install the head restraint again imme
diately once the child seat is removed. Driv
ing with the head restra ints removed or
head restraints not in the highest position
increases the risk of serious injury .
- Read and following the WARNINGS in
r:::;, poge 170 .
-
Seats and storag e
Cigarette lighter
Applies to vehicles: with cigarette lighter
Fig. 53 Center conso le : cigarette lighte r
.,. Press the c igarette lighter in .
.,. Remove the cigarette lighter when it pops out.
The cigarette lighter should only be used as a
power source when it is absol utely necessary.
A WARNING
The cigarette lighter only works when the ig
ni tion is switched on. Inco rrect usage can lead
to serious inj uries or burns. To reduce the ris k
of injuries, never leave children unattended in
the vehicle with the vehicle key .
(D Note
- To red uce the risk of damage to the sockets,
only use plugs that fit correctly .
- T he ciga rette lighte r socket should only be
used as a powe r source fo r electr ical acces
sories for a short pe riod of time. The sock
ets* in the vehicle should be used for longe r
use of power supply .
(D Tips
The vehicle battery dra ins when accessories
are tu rned on but the engine is off.
.
61
Seats and storage
Socket
Applies to vehicles: with socket
Electrical accessories con be connected in the 12
volt socket.
-
--:,: -_-,--,-~
' ' I
Fig . 54 Center console: front/rear 12 volt socket•
Fig. 55 Luggage compartment s ide trim panel: 12 volt
socket * (example)
... Remove the plug from the center console sock
et
¢ fig. 54, or
... Open the cover on the luggage compartment
socket*
¢ fig . 55 .
... Insert the plug for the electr ical device into the
socket.
The 12 volt socket can be used for electrical ac cessories. The power consumption at the outlet
m ust not exceed 120 watts.
A WARNING
The socket works only when the ignition is
switched on. Incorrect usage can lead to seri
ous injur ies or burns. To reduce the risk of in
jur ies, never leave children unattended in the
vehicle with the vehicle key.
(D Note
- To prevent damage to the socket, only use
the correct type of plugs.
62
- Never connect devices that generate electri
cal power such as solar pane ls or a battery
charger to the 12 vo lt socket. They can dam
age the vehicle e lectrica l system.
(D Tips
The vehicle battery drains when accessories
are turned on but the eng ine is off.
Storage
Beverage holders
Fig. 56 Center console: front cup holders
Fig. 57 Sect ion of the rear bench seat: rear cup holde rs*
Front cup holders
... Place beverages in the holder ¢fig. 56. There is
space for two beverages. A larger plast ic bottle
can be placed in the door trim.
Rear* cup holders
... To open the cup holders, tap on the rim@
¢fig . 57.
... To place the beverage container in the cup
holder, push the arm @ outward .
... Then push the arm against the beverage con
tainer so that the arm lies closely against it .
... To close the cup holders, push them back into
t he slot . .,.
.... N
0 > CX)
.... I.Cl U"I
.... I.Cl ....

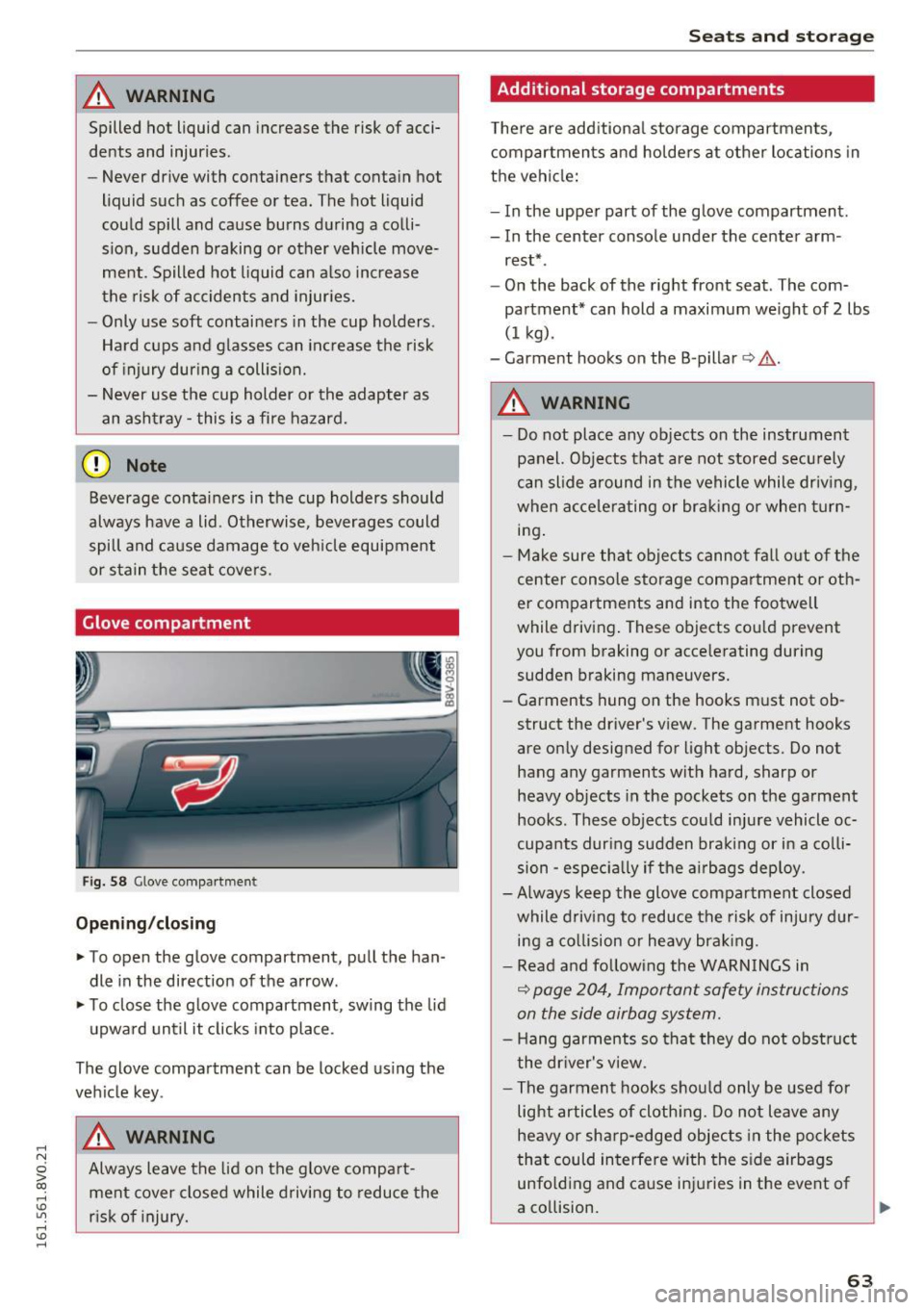

A WARNING
Spilled hot liquid can increase the risk of acci
dents and injuries.
- Never drive with containers that contain hot
liquid such as coffee or tea. The hot liquid
could spill and cause burns during a colli
sion, sudden braking or other vehicle move
ment. Spilled hot liquid can also increase
the risk of accidents and injuries.
- Only use soft containers in the cup holders .
Hard cups and glasses can increase the risk
of injury during a collision.
- Never use the cup holder or the adapter as
an ashtray - this is a fire hazard.
(D Note
Beverage containers in the cup holders should
always have a lid . Otherwise, beverages could
spill and cause damage to vehicle equipment
or stain the seat covers.
Glove compartment
Fig. 58 Glove compartmen t
Opening/closing
.. To open the glove compartment, pull the han
dle in the direction of the arrow.
.. To close the glove compartment , swing the lid
upward until it clicks into place .
The glove compartment can be locked using the
vehicle key .
A WARNING
Always leave the lid on the glove compart
ment cover closed while driving to reduce the
risk of injury.
Seats and storage
Additional storage compartments
There are additional storage compartments,
compartments and holders at other locations in
the vehicle:
- In the upper part of the glove compartment.
- In the center console under the center arm -
rest* .
- On the back of the right front seat . The com
partment* can hold a maximum weight of 2 lbs
(1 kg) .
- Garment hooks on the B -pillar
c:> ,& .
A WARNING ,~ -- Do not place any objects on the instrument
panel. Objects that are not stored securely
can slide around in the vehicle while driving ,
when accelerating or braking or when turn
ing.
- Make sure that objects cannot fall out of the
center console storage compartment or oth
er compartments and into the footwell
while driving. These objects could prevent
you from braking or accelerating during
sudden braking maneuvers.
- Garments hung on the hooks must not ob
struct the driver's view . The garment hooks
are only designed for light objects. Do not hang any garments with hard, sharp or
heavy objects in the pockets on the garment
hooks . These objects could injure vehicle oc
cupants during sudden braking or in a colli
sion -especially if the airbags deploy .
-Always keep the glove compartment closed
while driving to reduce the risk of injury dur
ing a collision or heavy braking .
- Read and following the WARNINGS in
¢ page 204, Important safety instructions
on the side airbag system.
- Hang garments so that they do not obstruct
the driver's view .
- The garment hooks should only be used for
light articles of clothing. Do not leave any
heavy or sharp-edged objects in the pockets
that could interfere with the side airbags
unfolding and cause injuries in the event of
a collision.
63
Warm and cold
Warm and cold Climate control system
Description
Different systems could be installed.
- manual climate control system* or
- automatic climate control system*
- Plug-in hybrid drive* climate control
¢page 122
The climate control system* cools and removes
humidity from the air in the vehicle interior. It is
the most effective when the windows and panor
ama sunroof* are closed.
If there is a build-up of
heat inside the vehicle, ventilation can help to
speed up the cooling process. For this reason, the
windows and panorama sunroof can be opened from the outside .
¢ page 43, Convenience open
ing/closing
Pollutant filter
The pollutant filter removes pollutants such as
dust and pollen from the air .
Key recognition
You can store various settings for the manual and
automatic
climate control system* and assign
them to the key being used.
A WARNING
Poor visibility can lead to accidents.
- For safer driving, keep all windows free of
ice, snow and fog.
- Become familiar as quickly as possible with
the correct use and function of the cl imate
control system, especially with the defrost
ing and defogg ing function.
- When the temperature is below freezing,
only use the windshield washer system after
70
the windshield has been warmed by the cli
mate control system. The washer fluid could
freeze on the windshield and impair visibili
ty.
Cl) Note
- If you suspect that the climate control sys
tem is damaged, switch the system off to
prevent further damage and have it checked
by an authorized Audi dealer or authorized
Audi Service Facility.
- Repairs to the Audi climate control system
require special technical knowledge and
special tools. See an authorized Aud i dealer
or authorized Aud i Service Facility .
@ For the sake of the environment
Reducing the amount of fuel used also re
duces the amount of pollutants that enter the
air.
(D Tips
- To prevent interference with the heating
and cooling output and to prevent the win
dows from fogging over, the a ir intake in
front of the windshie ld must be free of ice,
snow or leaves.
- Condensation from the cooling system* can
dr ip and form a puddle of water unde r the
vehicle. This is norma l and does not mean
there is a leak.
- Th e energy management system may switch
the seat heating* or rear window defroster
off temporarily. These systems are available
again as soon as the energy supply has been
restored.
- The f lows through the vents under the rear
window. Make sure the openings are not
covered when placing clothing on the lug
gage compartment cover .
.... N
0 > CX)
.... I.Cl U"I
.... I.Cl ....
- The seat is damp or wet.
A WARNING
Individua ls with reduced sensitivity to pain or
temperature could develop burns when using
the seat heating function. To reduce the risk
of injury, these individuals should not use
seat heat ing .
(D Note
To avoid damage to the heating elements in
the seats, do not kneel on the seats or place heavy loads on a small area of the seat.
(D Tips
- The setting for the seat heating on the driv
er's side is ass igned to the key that is in use .
- If the front passenger 's seat heat ing is
turned on, it will not turn on again automat
ically if more than 10 m inutes have passed
between sw itch ing the ign ition off and
switch ing it on again.
Auxiliary heater
A pp lies to vehicles: with diesel e ng in e
In cool outside temperatures, the electr ic auxi li
ary heater helps the vehicle interior to wa rm
mo re quickly. The a uxiliary heater swi tches on
and off automatically accord ing to the vehicle
heating settings.
The "auxiliary heater " function can be sw itched
on and off in the MMI. Select: the
I MENU I button
> Car > S ystem s* contro l but ton > AC > Au xilia ry
heat er (fuel ).
Warm and cold
Engine preheater
Applies to vehicles: wi th engine prehea te r
( )
Fig. 75 Left fron t bump er: connecto r socke t@ for th e en ·
gine prehea ter
T he engine preheater s lowly warms the engine
coolant using a heating element when the vehicle
is parked. For this function, the cable provided
must be connected to a 120 Volt socket that is
protected from water and t hat is grounded a nd
equipped with a GFI circu it breaker, for example
in a ga rage. The engine reaches operating tem
perature much more quickly afte r sta rting when
t h e coolant is preheated . This reduces fuel con
s u mption and exha ust emissions dur ing the
warm-up phase.
Preheat ing the engine can take up to 3 hours de
pend ing on the temperature o utside.
Connecting the engine preheat er
- Only use the connector cable provided and a
suitable extension cord, if necessary .
- All cables and connectors that are used must not be damaged
~ li::,. .
-Open the cover(!).
- Plug the connector cable into the socket @.
- If necessary, plug the connector cable into the
extension cord. Only use highly durab le exten
sion co rds that are class 12 or better and can
be properly grounded to a three-prong wall
socket with a GFI circuit breaker and that are
not longe r than 100 feet (30 meters) .
- Plug the connector cable or extension cord into
a grounded 120 Volt wall socket that is pro
tected by a GFI circuit breaker and that is pro
tected against rain and other moisture. Never p lug the engine preheater into a conventiona l .._
75
Driving
-Always hold the steering wheel with your
hands in the 9 o'clock and 3 o'clock posi
t ions to reduce the risk of injury if the airbag
deploys.
- Never hold the steer ing whee l in the
12
o'clock posit ion or with both hands on the
rim or the center of the steer ing whee l.
Holding the steering wheel inco rrectly s ig
nificantly incr eas es the risk of inju ry to the
h ands, arms and head if t he ai rbag dep loys.
Starting and stopping
the engine (vehicles with
an ignition Lock)
Starting the engine with the key
A pp lies to veh icles: w ith ig ni tion lock
The ignition is switched on and the engine start
ed with the key in the ignition .
Fig . 77 Ign it io n key pos it ions
Stee ring lock
If the steering whee l w ill not turn, the steering
lock is engaged .
.,. To release the steering wheel lo ck, inse rt the
k ey i n the ignition lock and tu rn t he key in the
-d irection of the arrow- while tu rning the steer
ing wheel.
Sw itching the ignition on/off or preheating
.,. To switc h the ignition on, turn the ign ition key
to posit io n @ . The need le in the tachometer
moves into the
READY position.
.,. To switc h the ign ition off, turn the ignit ion key
to position @. The need le in the tachometer
moves into the
OFF position.
80
D iesel ve hicl es are p reheated while the ig nition is
switched on
m .
Starting the engine
You r vehicle is equipped wi th la unch control. As
soon as you have turned the ig nition key to pos i
tion @, the eng ine will start au tomati cally .
.,. Press the brake pedal and move the sele ctor
lever to the P o r
N position.
.,. Turn the key briefly to pos it ion @. The ign ition
key a utomat ically returns to position @. D o not
press the acce lerator peda l when doing this.
Major elec trical equipmen t sw itches off tempora
r ily whe n starting the engine.
It is possible t hat there will be a s ligh t de lay
whe n starting the engine in diesel veh icles in
colder temperatu res. Therefore, yo u must hold
t h e b rake pedal down until the eng ine starts . T he
i ndicato r ligh t turns on wh ile the engine is pre
heating
iJ.
The preheating time depends on the coolant
temper ature and o utside temperature. The glow
pl ug indi cato r light
m will only tu rn on for ap
proximately
1 second when the engine is warm or
t h e outside temperat ure is higher than
8 °C. That
means you can start the engine
immediately.
I f the engine does not s tart immedia tely, s top
the starti ng p rocedure by tu rni ng the ig nition key
to posit ion @ and repeat after
30 seconds .
Automatic start malfunction
There is an a utom atic st art ma lf u nct ion if the ~
(ga so lin e engine) or
m (diese l eng ine) indica tor
li ght tur ns on and the message
Engine start sys·
tem malfun ction! Please contact Service
ap
pears.
To star t the engine, hold the igni tion key in pos i
tion @unt il the engine r uns.
D rive to an au thori zed A udi dealer or au thori zed
A udi Se rvice Fa cility immed iate ly to h ave the
malfunc tion correc ted .
& WARNING
- To red uce the r isk o f po ison ing, never allow
the engine to run in conf ined spaces .
