2016 AUDI A8 charging

Instruments and indicator lights
If the indicator light t urns on and the message
app ears, th ere is a malfunction in the gene rator
or veh icle electrical system .
Drive to yo ur autho rized Aud i dea le r o r q ual ified
workshop immediately . Because the vehicle bat ­
tery is discharging, turn off a ll unnecessary e lec­
tr ica l equipment s uch as the radio. Seek profes ­
sional ass istance if the battery charge level is too
low.
(•) Low b attery charge: b attery w ill be charged
while dri ving
If th e ind icator lig ht tu rns on and the message
appears, there may be lim ited starting ab ility .
I f th is message turns off afte r a litt le while, the
b a ttery charged enough wh ile d riving.
If the message does not turn off, have your a u­
thor ized Audi dealer or qualified wo rkshop cor­
re ct the malfunction .
~ Engine
• Engin e stopp ed: No power steering and
brake support .
There is a malfunction in the eng ine or in the fue l
supp ly system .
A large amount of steering and braking force is required when driving a rolling vehicle with the
e ng ine stopped . Try to stop a rolling vehicle ca re­
fu lly on the side of the road. See your autho riz ed
Aud i deale r or qualified repair facility.
A WARNING
-
If the eng ine stops while dr iving, a la rge
amount of braking force is req uired . This in­
creases the risk of an accident. As long as the
vehicle rolls with the ignition switched on and there is enough battery charge, the powe r
steering will still work . If not, a la rge amount
o f stee ring force is requ ired .
16
~ Safety belts
This warning/indicator light reminds you to put
on your safety belt.
The . warn ing/ indicator light illumin ates when
the igni tion is swi tched on to remind th e driver
and any front passenger to put on the safety belt .
Additionally, a n acoust ic wa rning (go ng) w ill also
sou nd.
For more Information
c::> page 138, ~ Safe ty belt
warning light .
"1::::1': Engine oil pressure malfunction
The red engine oil pressure warning symbol re­
quires immediate service or repair . Driving with a
low-oil-pressure indication is likely to inflict se­
vere damage to the engine.
• Switch o ff engine and check oil le vel
If the indicator light turns on and the message
appears, the oil pressure is too low .
.. Pull off the road .
.. Stop the vehicle.
.. Turn off the engine .
.. Che ck the engine oil le vel c::> page 224.
.. If the eng ine o il level is too low, add engine oil
c::> page 22 5 . Make sure tha t t he o il pressure
warning symbol. appears no longer in the
display before you sta rt d riving again .
.. If the eng ine o il level is co rrect and the indica­
to r li ght still turns on, tu rn t he e ngine off and
do not cont inue d riv ing. Seek professiona l as­
sistance.
(D Tips
- The engine oil pres sure symbol. is not
an indicator for a low engine oil level. Do
not rel y on it . In stead , check the oil level in
your engine at regular inte rvals , preferably
each time you refuel , and always before
go ing on a long trip .
- The yellow oil level warning indication
II
require s oil refill o r workshop servi ce with­
out delay. Do not wait until the red o il
pre ssure wa rning. starts to flash before
you respond to the low oil le vel warning .,.

compartment exceeds 131 °F (55 °C) . Once the
temperat ure falls below 131 °F (55 °C) again,
the cooler switches on again automatically.
- the battery is adequately charged . The cooler
switches off automatically if the vehicle battery
voltage falls below a minimum level. This pre­
vents the battery from discharging. The cooler
switches back on again automatically when the
battery voltage increases again (e.g. after start ­
ing the engine) .
The cooler cools to 42.8 °F
(+ 6 °C) and the freez­
er cools to 21.2 °F (- 6 °C) in optimum cooling
conditions . The cooling performance is affected
by the temperature in the luggage compartment .
The temperature inside the cooler will be higher
if the luggage compartment is hot .
& WARNING
To avoid putting the occupants at any risk,
please observe the following safety rules:
- The maximum capacity is 2.5 kg (5.5 lbs.).
- Never overload the cooler. This could cause
injury in the event of a collision or sudden
braking.
- The cooler lid must always be kept closed
while you are driving. Make sure the retain­
ing catch is securely engaged. The contents
of the cooler could be thrown forward into
the passenger compartment in the event of
a collision or under sudden braking -risk of
injury!
- Inflammable liquids, gas canisters, etc.
must not be stored in the cooler -risk of ex-
-
plosion! This also includes any products that
might emit volatile or inflammable gases.
- liquids will freeze at temperatures at or be­
low 32 °F (0 °C) and may cause glass bottles
to burst!
(D Note
- The ventilation openings for the cooler are
located on the back panel trim in the lug­
gage compartment and
must be kept clear
at all times.
- If the cooler is not functioning properly,
switch it off to prevent further damage .
Have it checked by a qualified workshop.
Seats and storage
Operation
App lies to : vehicles wit h coo ler
Fig. 83 Rear center a rmrest
The cooler is located in the rear cabin behind the
center armrest or behind the sliding cover (de­
pending on the equipment fitted in your vehicle) .
The cooler and freezer only work when the igni­
tion is on.
Opening / closing the cooler
• To open the cooler, pull the re lease lever CD
c:::>fig . 83.
• To close the cooler, push the lid back into its
original position. You should hear the release
lever
CD engage if the lid is properly closed.
Switching on/off
• Press button @ c:::> fig. 83 to switch the cooler
on/off . The symbol in the button is lit when this
function is activated .
• Press button @ to switch the freezer on/off.
The symbol in the button is lit when this func­
tion is activated .
(D Tips
-Always try to leave the lid open for as short
a time as possible to prevent condensation
buildup.
- Do not put hot food or drinks in the cooler.
75

Driving
more force to turn or brake if necessary. Be­
cause you cannot steer and brake as you
usually would, this could lead to crashes
and serious injur ies.
- For safety reasons, you should a lways park
yo ur vehicle with the selector lever in P.
O therwise, the ve hicle co uld inadverte ntly
r oll away.
- After the engine has been sw itched off , the
rad iator fan can con tinue to ru n for up to 10
mi nutes -even with the ig nition switched
off.
It ca n also swi tc h on again after some
t ime if t he coolant te mperature ris es as th e
resul t of a he at bu ildup o r if the eng ine is
hot an d the engine compartme nt is addi ­
t iona lly heated by the sun's rays.
([) Note
Do not s top the e ngine immed ia te ly after
h ard o r ex tende d driving. Keep the engine
r u nning for approxima tely two m in utes to
prevent excessive heat b uild- up.
Driver message in the instrument cluster
display
Turn off ignition before leaving car
This message appears and a warn ing tone sounds
if you open the driver's door when the ignition is
sw itched on.
Press brake pedal to start engine
T his message appea rs if you press the
I START ENGI NE STOP I butt on to st art the engine
and do not depress the brake pedal. The eng ine
can only be started if the bra ke pe dal is de­
pressed.
Ill Is key in the vehicle ?
If the i nd icator light t urns on and the message
appears, the remote co ntro l key was removed
from the vehicle while the eng ine was ru nning. If
the ignition key is no t in the vehicle yo u w ill not
be ab le to sw itch on the ign ition or restart the
engine after it has been switched off . You will a l­
so not be able to lock the ve hicle from the out­
side.
82
Shift to P, othe rwi se vehicle can roll away.
Door s do not lock if lever is not in P.
This dr ive r mess age ap pears for safety re a sons if
the tra nsmission has not been shifted to the P
p os it ion when you switch the ignition off . Move
the se lecto r lever to the P position. Otherwise the
vehicle is not p rotected from rol ling and cannot
be locked .
fl Key is not recognized. Hold back of key
against marked area. See owner 's manual.
If the indic ator ligh t turns on and this mes sage
appea rs, there is a ma lfunction
¢page 83 .
Turn off ignition before leaving car . Battery is
discharging
This message appears if the driver's door is
opened wh ile the ign ition is sw itched on. Always
swi tch off the ignition if yo u are leav ing the ve hi­
cl e. See a lso
¢ page 87.
Shift to P and turn off ignition before leaving
car, otherwise vehicle can roll away
This message appears if the driver's door is
opened wh ile the ignition is switched on and the
selector lever is not in the P position . S hi ft the
selector lever i nto the P posit io n and sw itch off
t h e ign it io n when yo u exit the vehicle . Otherwise
t h e ve hicle co uld ro ll. See a lso
¢ page 87.

Putting the fuel c ap back on
"' After filling your tank , tw ist the f uel fi ller cap
clockwise as far as it wi ll go .
"' Close the fuel filler flap.
To avoid fuel spill ing o r evaporating from the f uel
tank always close fuel filler cap properly and
comp let ely. An improperly closed fue l filler cap
may a lso caus e the MIL lamp ¢
page 28 to come
on (only vehicles with gasoline engine).
A WARNING
Improper refueling or handling of fuel can
cause fire, explosion and severe burns .
- Fuel is highly f lammable and can cause se­
vere burns and other injur ies.
-
- Failure to shut the engine off wh ile refuel ­
ing and/or to insert the pump no zzle fully
into the fuel filler neck could cause fuel to
spray out of filler neck or to overflow . Fuel
spray and overflowing fue l can cause a fire .
- Never use a cellular telephone wh ile refuel­
ing . The electromagnetic radiation can
cause spa rks that can ignite fuel vapors and
cause a fire.
- Never get back into your vehicle while refu­
eling .
If in except io na l circumstances you
must get back in you r vehicle while refue l­
ing, make certain tha t you close the door
and touch meta l to discharge static electric­
ity before touchi ng the filler nozz le again.
Static electricity can ca use spa rks that can
ignite fuel vapors released during refueling .
- Never smoke o r have an open flame any­
where in or near your vehicle when refueling or filling a portable f uel container.
- For yo ur safety , we strongly recommend
that you do not travel with a portable fue l
conta iner in your vehicle. The conta iner, full
or empty may leak and could cause a fire,
especially in a crash .
-If, under exceptional c ircumstances, you
must transport a portable fuel container,
please observe the follow ing :
- Neve r fi ll a portable fuel containe r wh ile i t
is anywhere in or on the vehicle (for exam ­
p le, in the luggage compartment, or on
the trunk) . Static e lectr icity can build up
Fuel and R efueling
whi le filling and can ignite fuel vapors
caus ing a fire .
- Always place a portab le fue l container on
the ground before f illing.
- Always keep the fi ller nozzle comp lete ly
inside the po rtable container before and
during f illing.
- If filling a portable container made of
metal, the filler nozz le m ust always be in
contact with the container. This will he lp
prevent stat ic electricity from discharging
and cause a fire .
- Never spill fue l inside the vehicle or lug­
gage compartment. F uel vapors are highly
flammable .
- Always observe local and state/prov incial
laws regarding the use, storage and trans ­
po rtation of fuel co nta iners.
- Make ce rtain t he f uel container meets in­
dust ry standards (ANSI/ ASTM F852-86) .
(0 Note
If any fuel has sp illed onto the car, it should
be removed immed iately to p revent damage
to the pa int.
@ For the sake of the environment
As soon as the correctly operated noz zle
switches off automatically for the first time,
the tank is fu ll. Do not try to add more fuel
because f uel may sp ill out . In add it ion, the
expans ion space in the fuel tank will be fi lled -
causing the fue l to overflow when it becomes
warm and po llute the environment.
(D Tips
- Runn ing your engine while refuelling may
cause vapors to escape or even ca use fue l to
spill out of the tank. This wo uld then shut
off the f uel no zzle befo re t he t ank is f ull.
- Do not ref ue l your veh icle with the ignition
switched on . The fuel gauge m ay o therwise
no t indicate the co rrect fuel leve l after refu­
elling.
- Diesel vehicles* are equ ipped wi th a die sel
m isf ueli ng pro tector . It a llows the vehi cle
to be fuele d only with a d iesel fue l pump .,.
215

will be damaged and will then have to be re­
placed.
Battery charging
Starting the engine requires a well charged bat­
tery.
Fig. 203 Engine co mpa rtment: connectors fo r a c harger
and jump start cables
Always read and heed all WARNINGS below
~ &. and
¢ A in Working on the battery on
page 232.
• Switch off the ignition and all electrical con­
sumers .
• Make sure the area is well ventilated when you
charge the battery.
• Open the engine hood
~ page 220.
• Remove the cover (D by pressing on the arrow
¢ fig . 203.
• Open the cover @on the positive terminal.
• Connect the charger connectors according to
the instructions to the
jump start bolts. (Bolts
under the red cover= "positive" , Bolts with hex
head
= "negat ive").
• Only now plug the mains lead for the charging
equipment into the wall outlet and turn it on
¢&,, .
• Make sure the charging rate is not over
30 amps/14.8 Volt.
• When the battery is fully charged: Turn the
charging equipment off and remove the mains
lead from the wall outlet .
• Now remove the clamps for the charging equip-
ment.
~ • Close the red cover on the positive pole. 0
~ • Close the hood~ page 221.
rl I.Cl U"I
rl I.Cl rl
Checking and Filling
A discharged battery can freeze at temperatures
of only 32 F
0 (0 °C). Allow a frozen battery to
thaw completely before attempting to charge it
¢ &. However , we recommend not using a
thawed battery again because the battery casing can be cracked due to ice formation and can leak
battery acid.
Battery charging (Maximum charging rate of
30 amps/14.8 Volt)
When charging at low voltages (e.g . w ith a trick­
le charger),
the battery cables do not have to be
disconnected first. The battery caps should
not
be opened when charging a battery.
It is not necessary to remove the battery from
the luggage compartment, and it is also not nec­
essary to disconnect the cables .
Fast charging the battery (charging rate
above 14.8 Volts)
For technical reasons do not use a battery charg­
er that uses voltage greater than 14.8 Volts to
charge your vehicle's battery.
.&_ WARNING
Charging a battery can be dangerous.
- Always follow the operating instructions
provided by the battery charger manufactur­
e r when charging your battery.
- Never charge a frozen battery. It may ex­
p lode because of gas trapped in the ice. Al­
low a frozen battery to thaw out first.
- Do not reuse batteries which were frozen.
The battery housing may have cracked and
weakened when the battery froze.
- Charge the battery in a well ventilated area.
Keep away from open flame or electrical
spark. Do not smoke. Hydrogen gas generat­
ed by the battery is explosive.
- To reduce the danger of explosion, never
connect or disconnect charger cables while
the charger is operating.
- Fast charging a battery is dangerous and
should only be attempted by a competent
technician with the proper equipment.
- Battery acid that may spill during charging
should be washed off with a so lution of
233

Emergency situations
When jump starting or charging the bat­
tery, never connect the negative ground ca­
ble to the battery negative post because the
battery manager system must be able to de­
tect the battery's state of charge. Always
connect the negative ground cable to the
negative ground post of the battery manag­
er contro l unit.

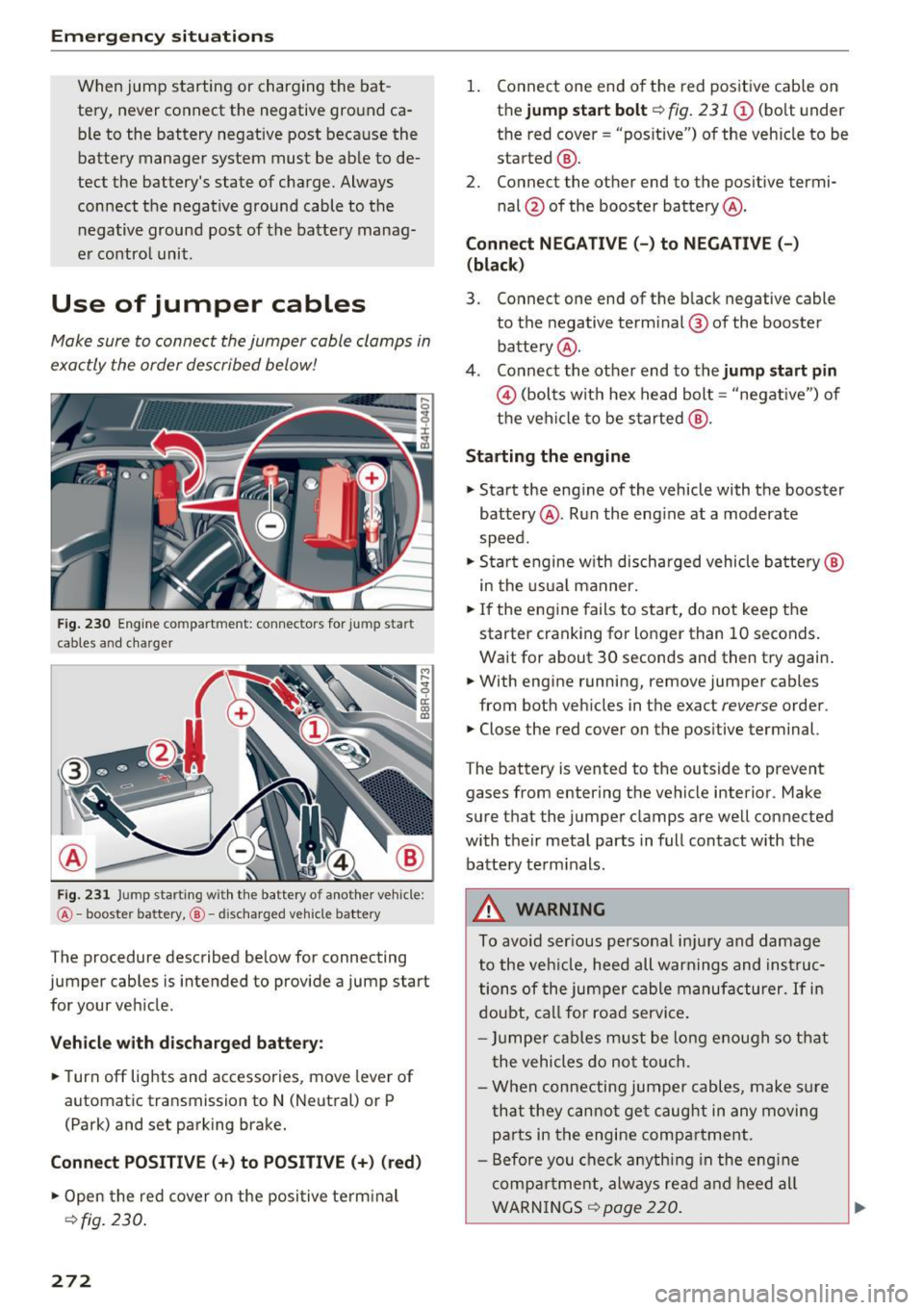

Use of jumper cables
Make sure to connect the jumper cable clamps in
exactly the order described below!
F ig . 230 Engine compar tment: connectors for jump start
cables and cha rger
F ig. 231 Jump starti ng wit h the battery of another veh icle:
@ -boos ter battery, @-disc harged vehicle battery
The procedure described be low for connecting
jumper cables is intended to provide a jump start for your vehicle.
Vehicle with discharged battery:
• Turn off lights and accessories, move leve r of
automatic transmission to N (Neutral) or P
(Park) and set parking brake.
Connect POSITIVE (+) to POSITIVE (+) ( red)
• Open the red cover on the positive term inal
¢ fig. 230.
272
1. Connect one end of the red positive cable on
the
jump start bolt 9 fig. 231 (D (bolt under
the red cover= "positive") of the veh icle to be
started @.
2. Connect the other end to the positive termi-
nal @ of the booster battery @.
Connect NEGATIVE (- ) to NEGATIVE(-)
(black)
3. Connect one end of the black negative cable
to the negative term inal @ of the booster
battery @.
4. Connect the other end to the
jump start pin
@ (bolts with hex head bolt= "negative") of
the vehicle to be started ®·
Starting the engine
• Start the eng ine of the vehicle with the booster
battery @. Run the eng ine at a moderate
speed.
• Sta rt engine w ith discharged vehicle ba ttery @
in the usual manner.
• If the engine fails to start, do not keep the
starter cranking for longer than 10 seconds.
Wait for about 30 seconds and then try again.
• With engine running, remove jumper cables
from both vehicles in the exact
reverse order.
• Close the red cover on the positive terminal.
The battery is vented to the outside to prevent
gases from entering the vehicle interior . Make
sure that the jumper clamps are well connected
with their metal parts in full contact with the battery terminals.
&_ WARNING
To avoid ser ious personal injury and damage
to the vehicle, heed all warnings and instruc­
tions of the jumper cable manufacturer. If in
doubt, call for road service.
- Jumper cables must be long enough so that
the vehicles do not touch .
- When connecting jumper cables, make sure
that they cannot get caug ht in any moving
parts in the engine compartment.
- Before you check anything in the engine
compartment, always read and heed all
WARNINGS
¢ page 220.

Index
Auto Lock . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
Automatic belt retractor . . . . . . . . . . . . . . . 141
Automatic climate control Air vents . . . . . . . . . . . . . . . . . . . . . . . . . . . . 78
Automatic recirculation . . . . . . . . . . . . . . . . 79
Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . 77
Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 79
Automatic climate control system synchroni zing . . . . . . . . . . . . . . . . . . . . . . . . 78
Automatic post-collision braking system . . 191
Automatic transm ission . . . . . . . . . . . . . . . . 112
Automatic transmission (tiptronic) Emergency mode . . . . . . . . . . . . . . . . . . . . 116
Kick-down .. .. .. ................. ... 115
Manual shifting . . . . . . . . . . . . . . . . . . . . . 115
Parking lock emergency release . .. .. .. . 117
Selector lever positions . . . . . . . . . . . . . . . 112
Automatic wipers . . . . . . . . . . . . . . . . . . . . . . 54
Auto Safety Hotline . . . . . . . . . . . . . . . . . . . 136
Average consumption . . . . . . . . . . . . . . . . . . . 24
Average speed . . . . . . . . . . . . . . . . . . . . . . . . 24
Avoid damaging the vehicle . . . . . . . . . . . . . 197
B
Battery
Charge level . . . . . . . . . . . . . . . . . . . . . . . . 195
Charging . . . . . . . . . . . . . . . . . . . . . . . . . . . 233
E nergy management 195
Important warnings . . . . . . . . . . . . . . . . . 231
Location . . . . . . . . . . . . . . . . . . . . . . . . . . . 231
Replacing the battery . . . . . . . . . . . . . . . . 234
Working on the battery ........ .... .. . 231
Before driving . . . . . . . . . . . . . . . . . . . . . . . . 129
Belt tensioners . . . . . . . . . . . . . . . . . . . . . . . 144
Blended gasoline . . . . . . . . . . . . . . . . . . . . . 212
Blower (automatic climate control) . . . . . . . . 78
Booster seats . . . . . . . . . . . . . . . . . . . . . . . . 176
Brake fluid
Changing the brake fluid . . . . . . . . . . . . . . 230
Checking the brake fluid level . . . . . . . . . . 230
Brake system
Anti-lock brak ing system . . . . . . . . . . . . . . . 18
Brake assist system . . . . . . . . . . . . . . . . . . 190
Brake booster . . . . . . . . . . . . . . . . . . . . . . . 193
Brake fluid specifications for refill and re­
placement . . . . . . . . . . . . . . . . . . . . . . . . . 230
286
Brake light defective . . . . . . . . . . . . . . . . . . 21
Brake power assist un it . . . . . . . . . . . . . . . 192
Brakes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 192
Electromechanical parking brake . . . . . . . . 83
Warning/indicator lights . . . . . . . . . . . . . . . 14
Worn brake pads symbol . . . . . . . . . . . . . . . 19
braking guard Messages . . . . . . . . . . . . . . . . . . . . . . . . . . . 97
Braking guard . . . . . . . . . . . . . . . . . . . . . . . . . 90
Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . 97
Break -in period
Brake pads . . . . . . . . . . . . . . . . . . . . . . . . . 192
Tires . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 197
Breaking in . . . . . . . . . . . . . . . . . . . . . . . . . . 197
New tires . . . . . . . . . . . . . . . . . . . . . . . . . . 243
Bulbs 270
C
California Proposition 65 Warning . . . . . . . 221
Battery specific . . . . . . . . . . . . . . . . . . . . . 232
Capacities . . . . . . . . . . . . . . . . . . . . . . . . . . . 278
AdBlue . .. .... .. .. .. ...... ......... 216
Engine oil . . . . . . . . . . . . . . . . . . . . . . . . . . 223
Carbon parts Cleaning . . . . . . . . . . . . . . . . . . . . . . . 208, 209
Car carrier Transporting your vehicle . . . . . . . . . . . . . 274
Care . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 206
Cargo area
refer to Luggage compartment . . . . . . . . . 135
Catalytic converter 197
Center armrest
Cockpit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 61
Central locking . . . . . . . . . . . . . . . . . . . . . . . . 32
Emergency locking . . . . . . . . . . . . . . . . . . . . 36
Certification . . . . . . . . . . . . . . . . . . . . . . . . . 284
Changi ng engine oil . . . . . . . . . . . . . . . . . . . 226
Checking Engine coolant level . . . . . . . . . . . . . . . . . . 22 7
Child restraints Danger of using child restraints in the front
seat . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 147
Where can I get additional information about child restraints and their use? . . . . 186
Child restraint system anchors . . . . . . . . . . 180
